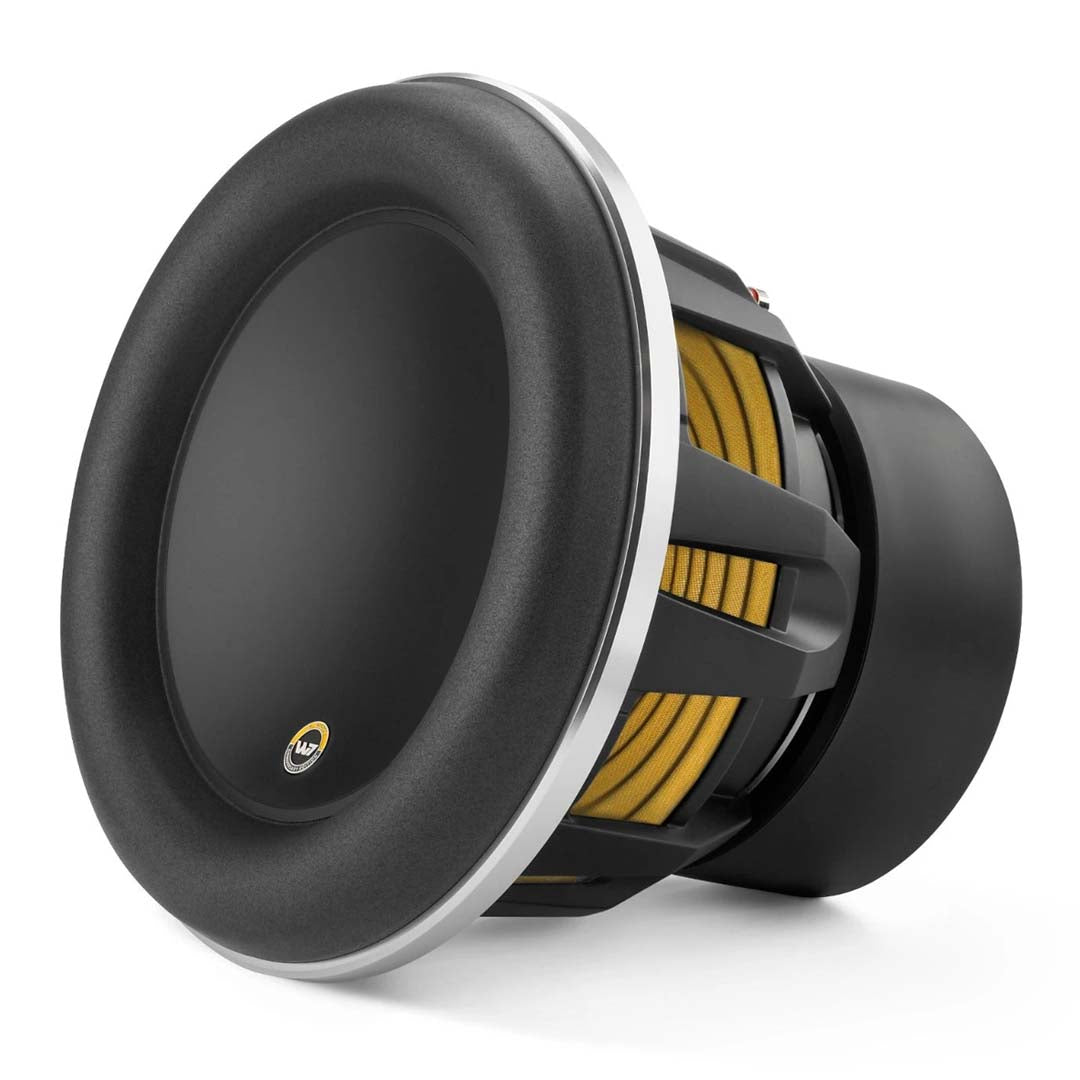

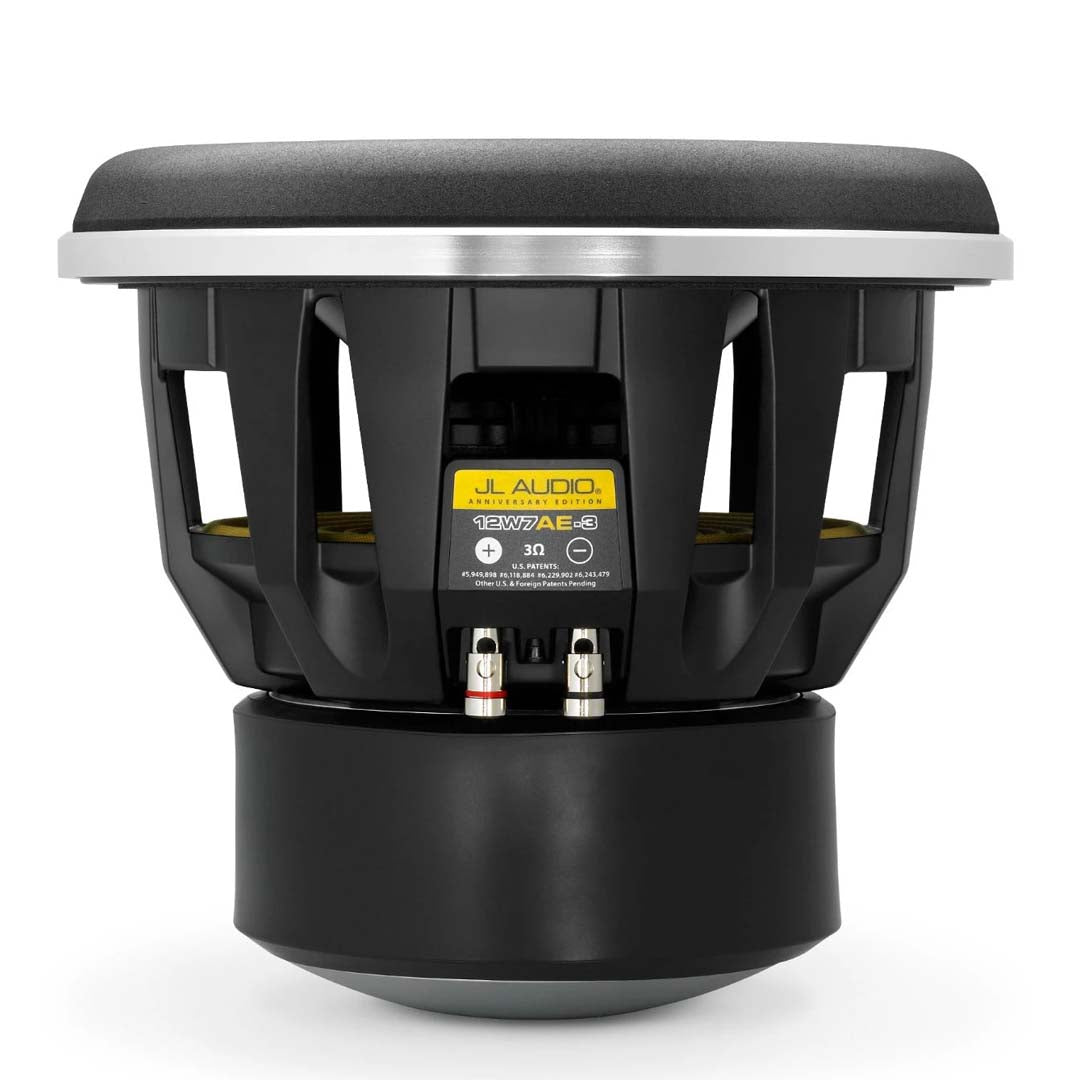

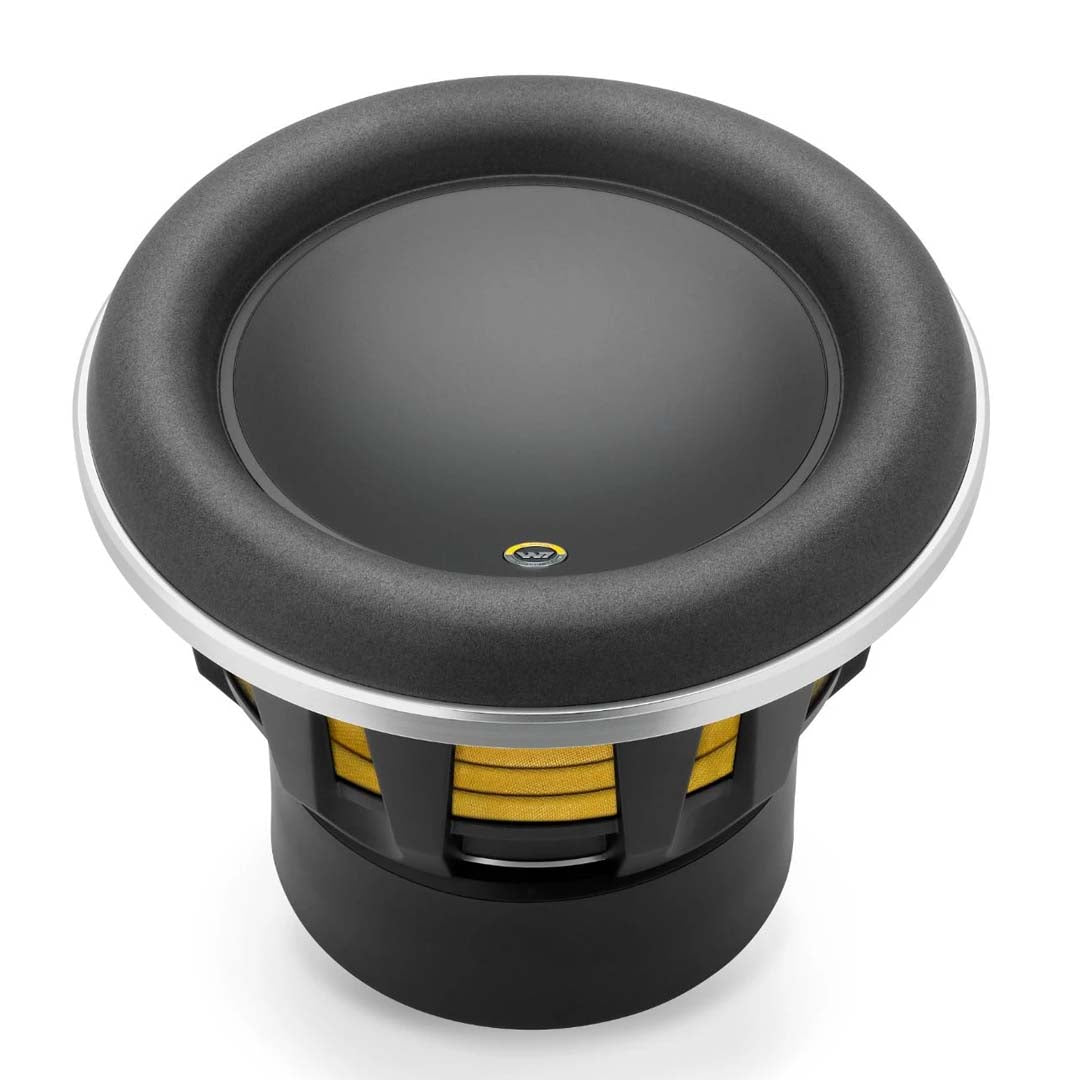

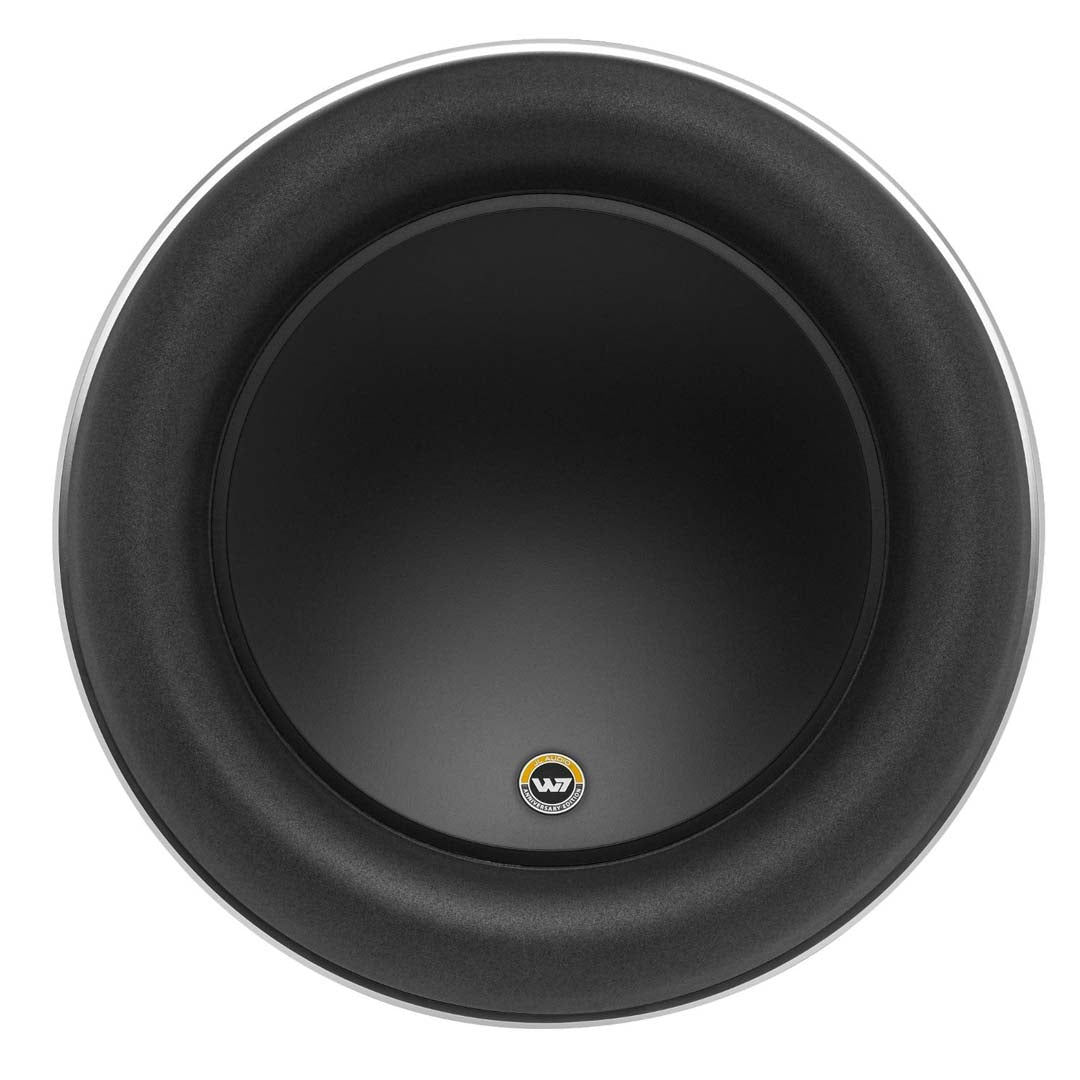

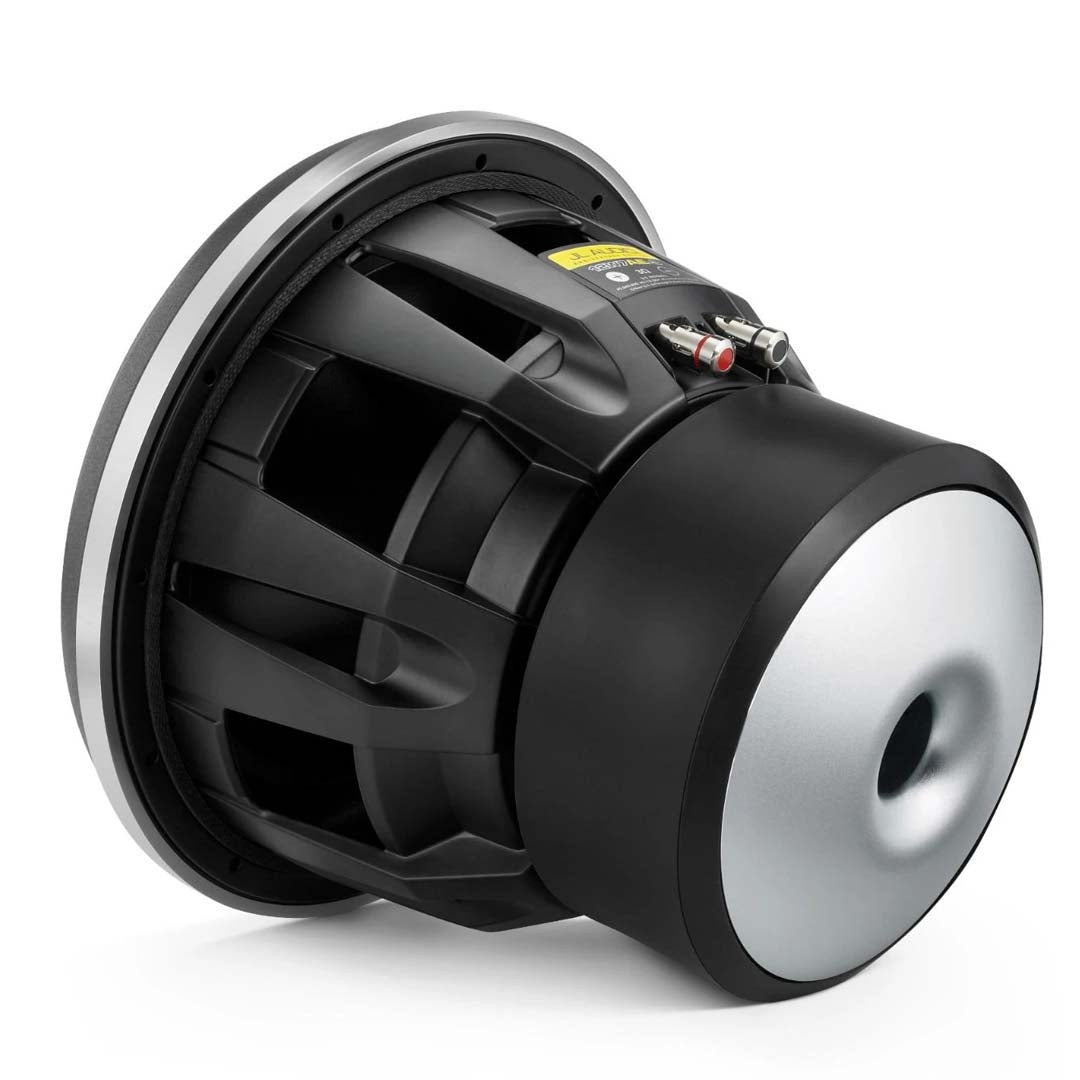

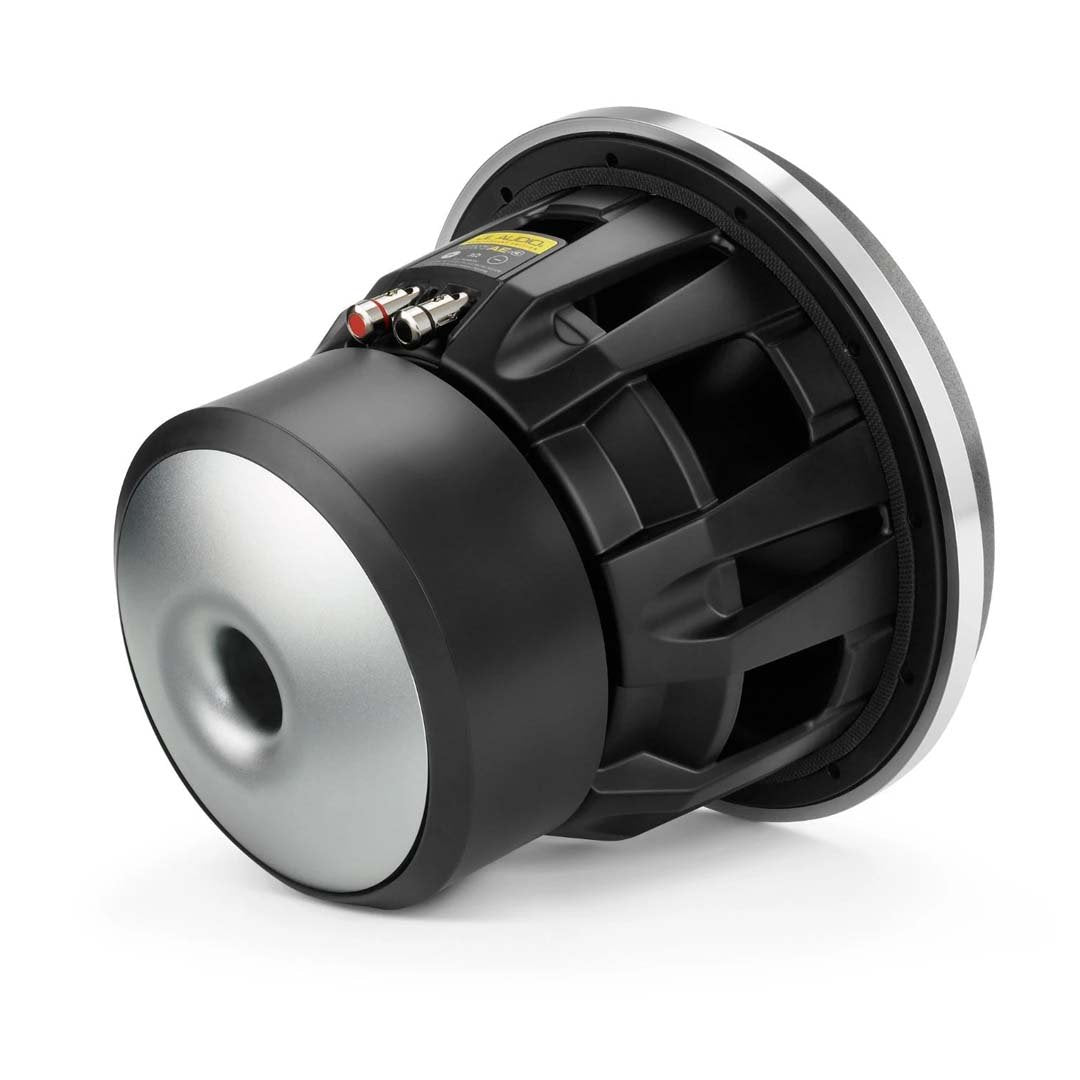

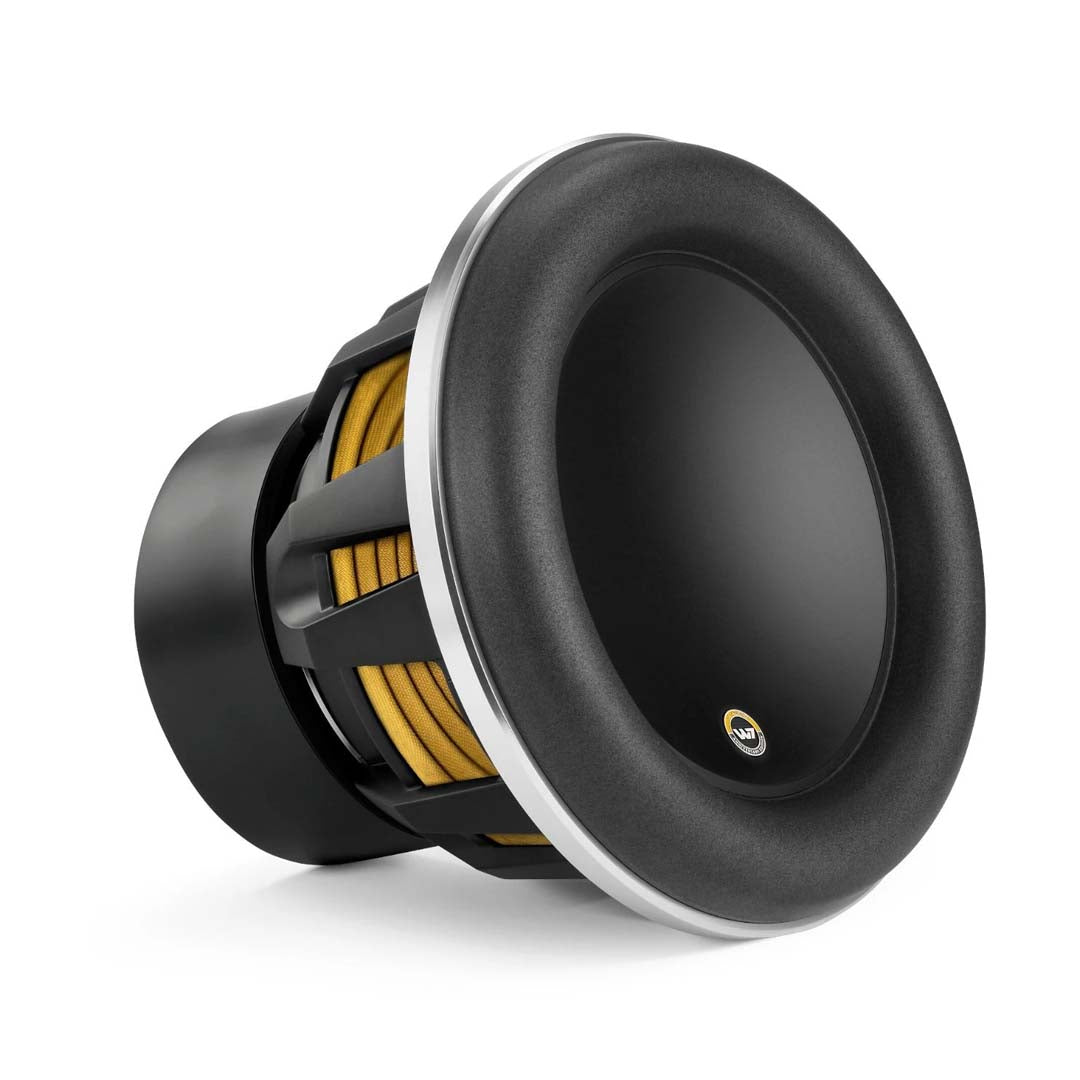

JL Audio 12W7AE-3, W7 Series 12" 3-Ohm Subwoofer, 1000W

JL Audio
JL Audio

JL Audio 12W7AE-3, W7 Series 12" 3-Ohm Subwoofer, 1000W

Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$1,049.99

1 In stock

JL Audio

JL-12W7AE-3

699440921152

-
+
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.
This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)

This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

W-Cone (U.S. Patent #6,496,590)

The W-Cone is a unit-body cone assembly that delivers astonishing cone stiffness with minimal mass. The shape also provides superb torsional rigidity, which is critical to maintaining voice coil alignment at the suspension limits.

OverRoll™ Surround

By utilizing space wasted in conventional speakers, this ground-breaking innovation controls the W7's massive excursion without sacrificing precious cone area.

Radially Cross-Drilled Pole-Piece (U.S. Patent #6,243,479)

This innovative venting system greatly enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Elevated Frame cooling technology to effectively remove heat from the voice coil. This improves power handling and reduces power compression effects, leading to more linear performance.

Engineered Lead-Wire System (U.S. Patent #7,356,157)

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

Built in U.S.A. with Global Components

JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.

Size

12-inch

Voice Coil

Single

Impedance

3 ohms

RMS Power Rating (Watts)

1000

Peak Power Rating (Watts)

2000
Cone Material

Polypropylene

Surround Material

Polyester foam

Free Air

No

Sensitivity

86.2 dB at 1 Watt

Frequency Response

18-200hz

Top Mount Depth (Inches)

9 1/2

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

10 1/2

Vas (liters)

66

Fs (Hz)

27.2

Xmax (millimeters)

29

Warranty
1 Year
