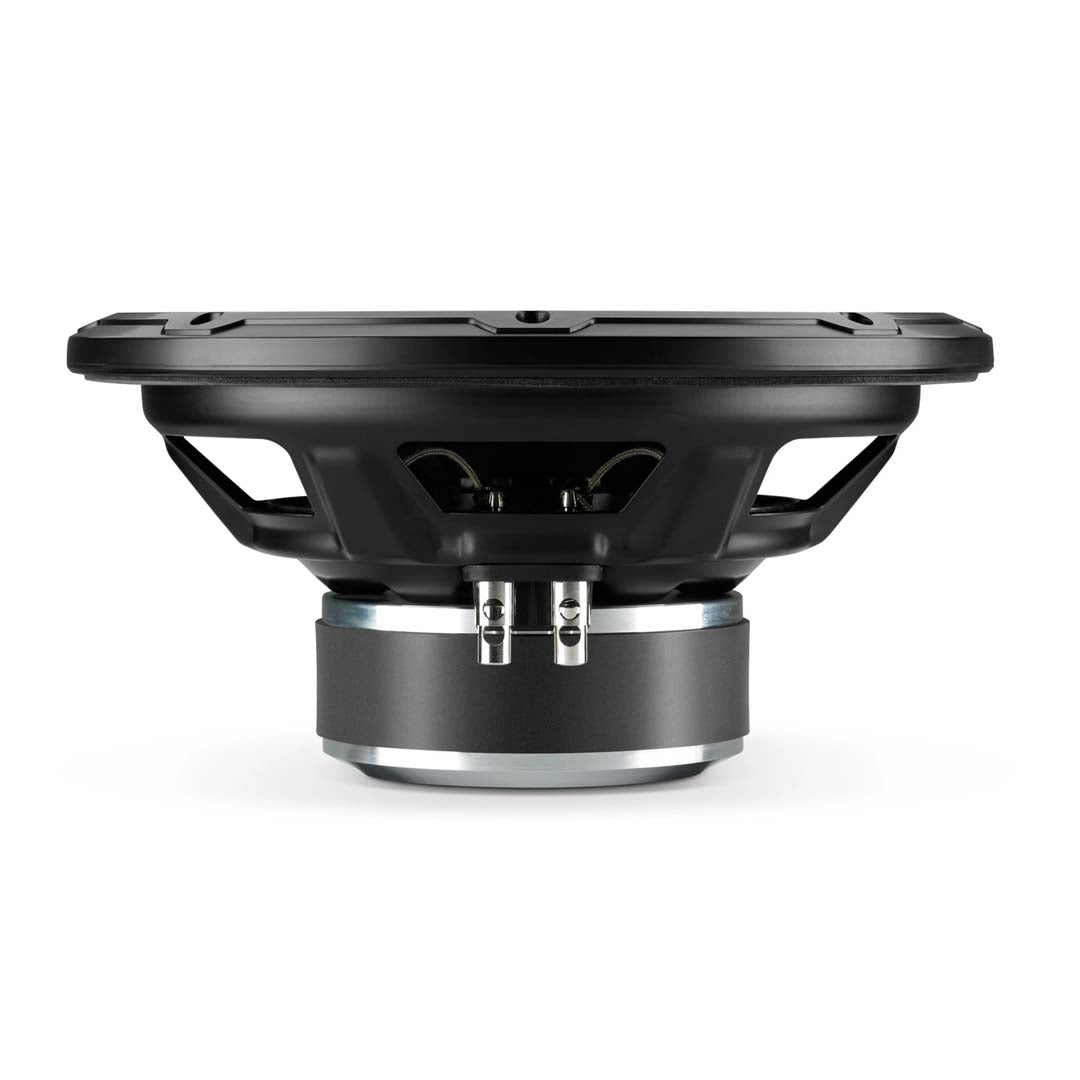

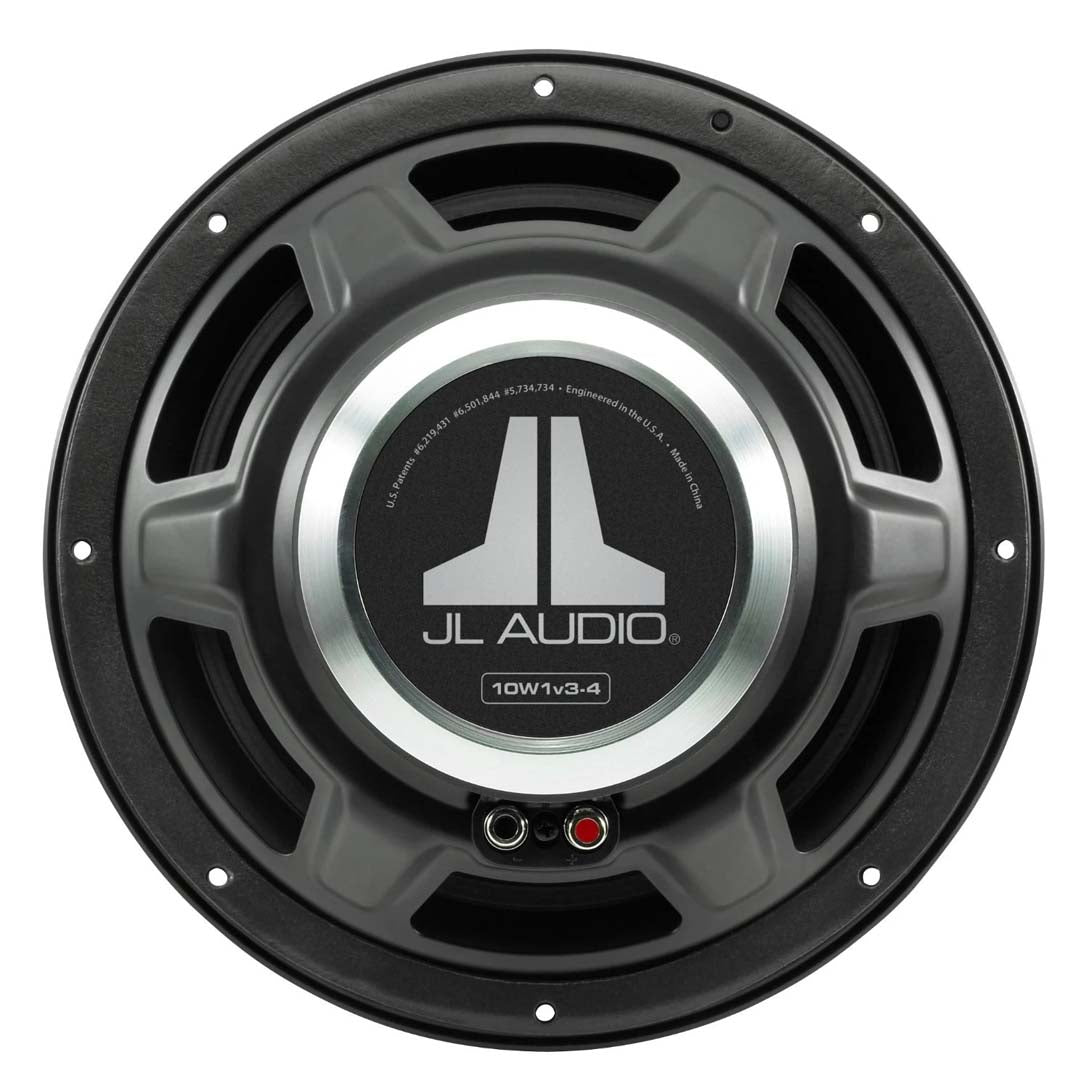

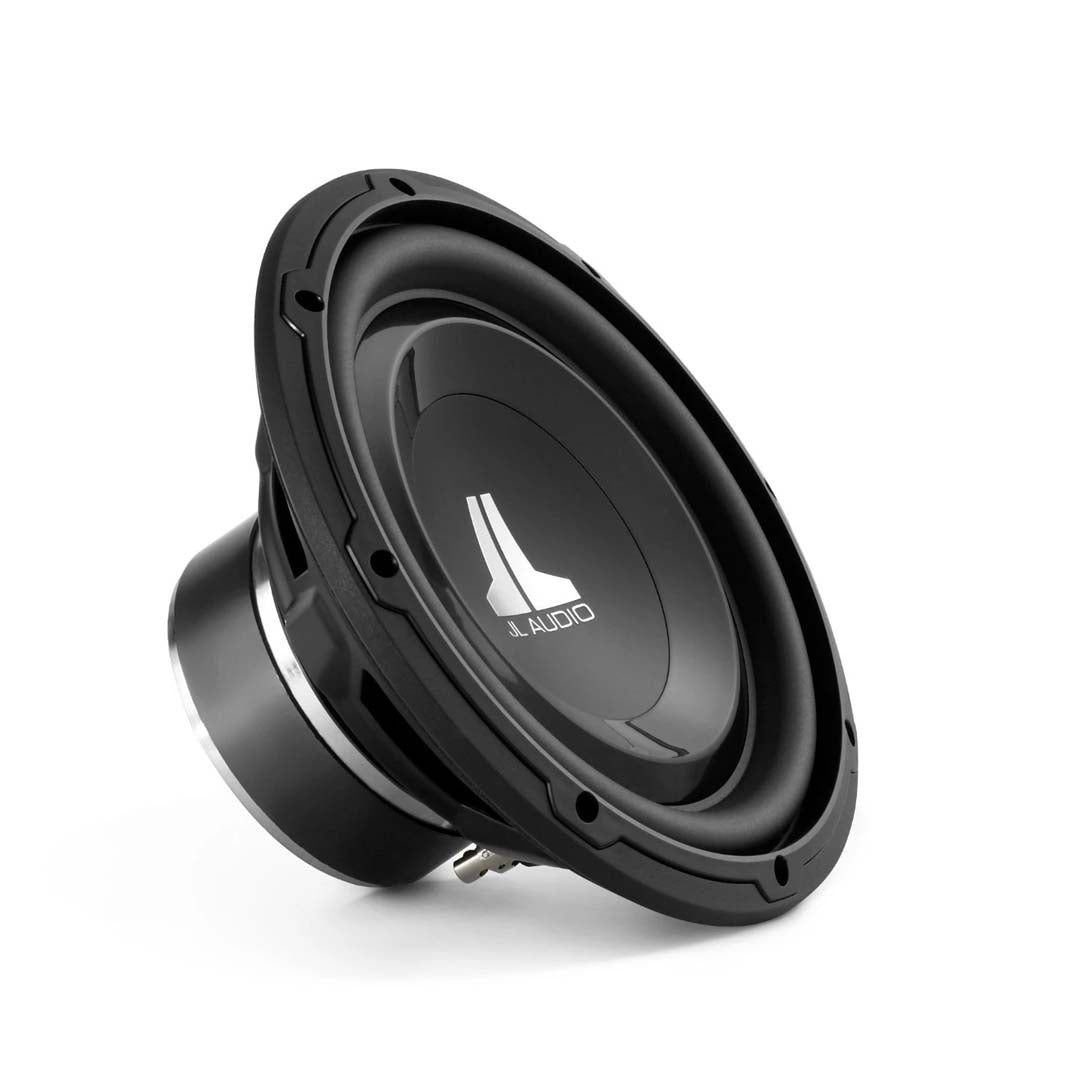

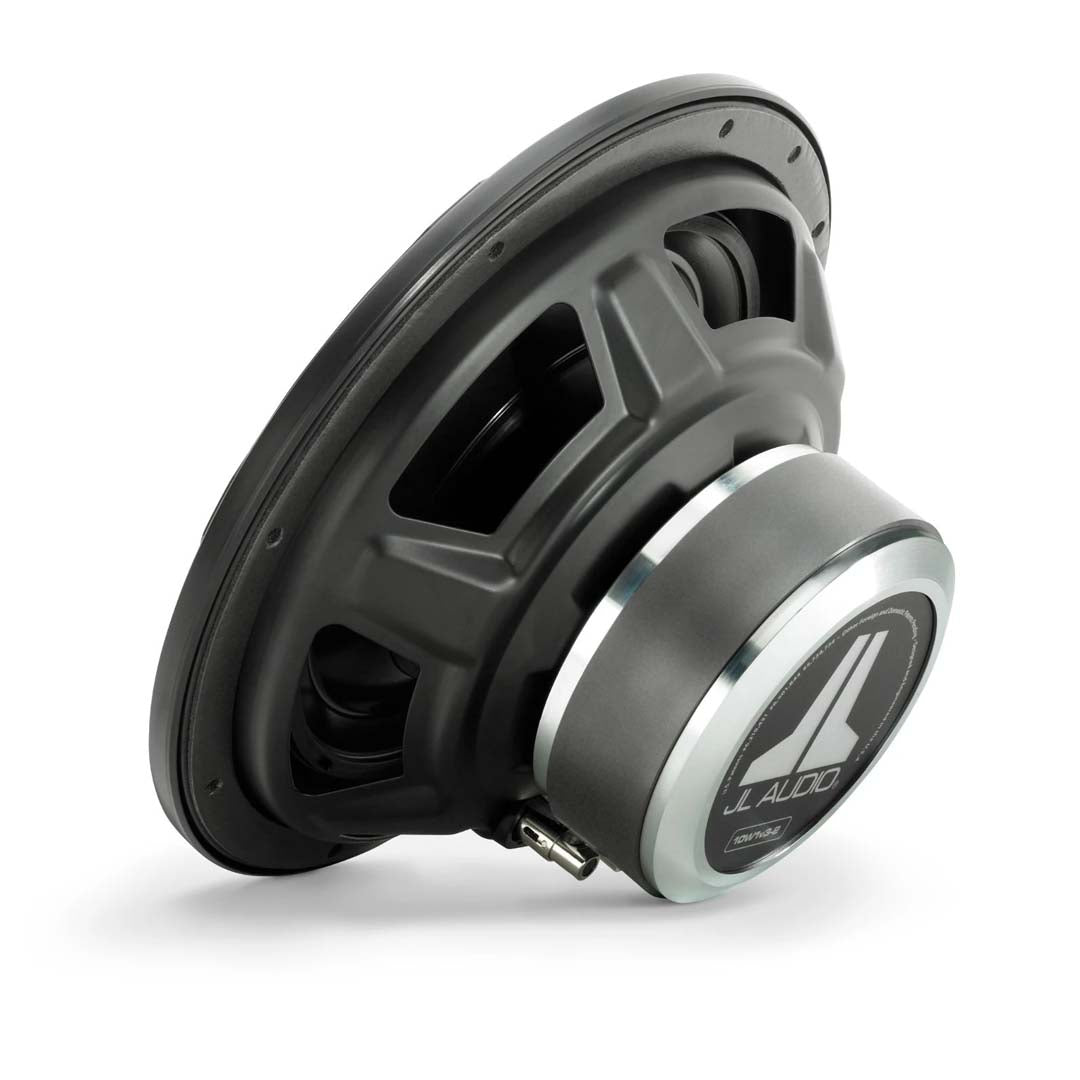

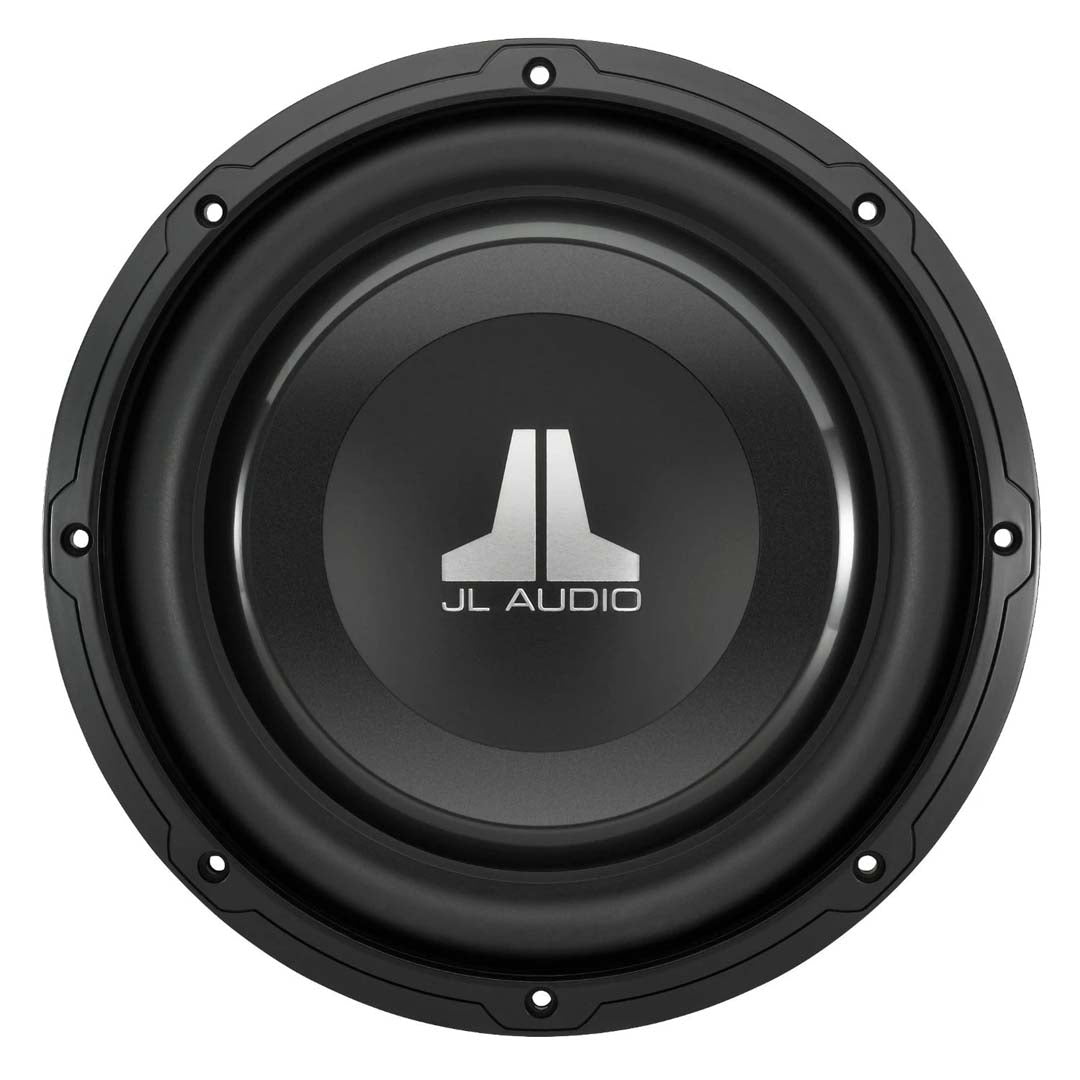

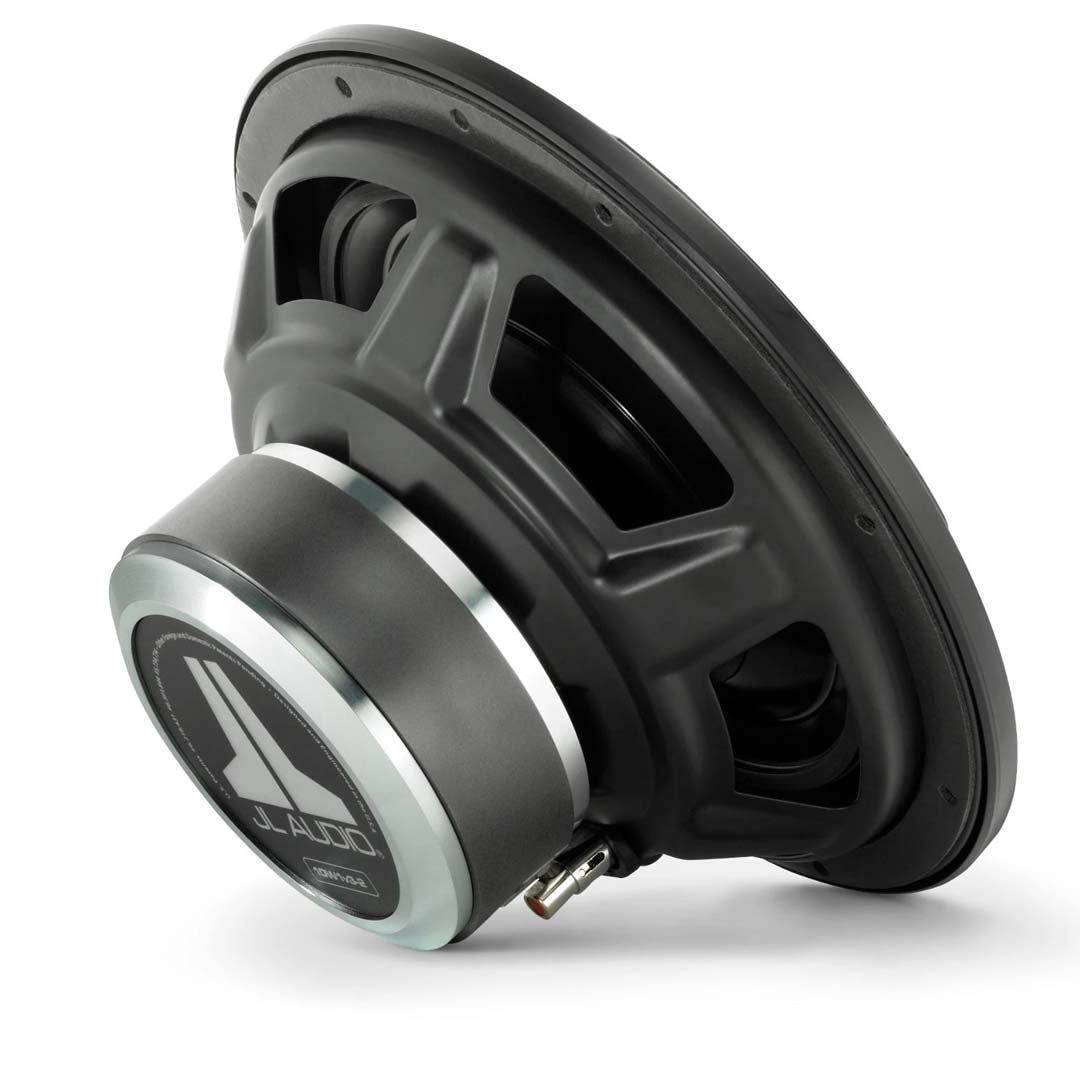

JL Audio 10W1v3-4, W1 Series 10" Single 4-Ohm Subwoofer, 300W
JL Audio 10W1v3-4, W1 Series 10" Single 4-Ohm Subwoofer, 300W
Not Available for Shiping Outside the United States
Questions? We're here to help.
866-859-0896 ChatEmail Us
PROP 65 WARNING
The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 10W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Vented Reinforcement Collar
JL Audio's Vented Reinforcement Collar (VRC®) improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.
Insert Molded Suspension / Coil / Terminal Sub-Assembly (U.S. Patent #7,379,558)
Spiders, voice coils, terminals and lead wires are preassembled, using a patented process, onto a composite carrier for improved precision and reliability.
|
Size |
10-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
300 |
|
Peak Power Rating (Watts) |
600 |
| Cone Material |
Mica-filled polypropylene |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
84.2 dB at 1 Watt |
| Frequency Response |
25-250hz |
|
Top Mount Depth (Inches) |
4 5/8 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
8 7/8 |
| Vas (liters) |
43.41 |
| Fs (Hz) |
26.15 |
| Xmax (millimeters) |
11.4 |
| Warranty |
1 Year |
