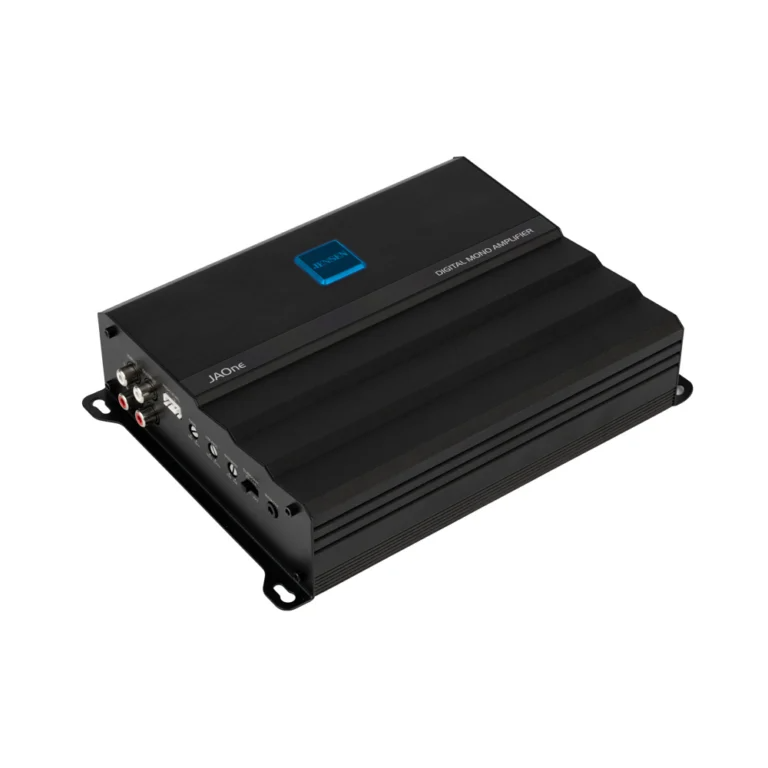

Jensen JAONE Apex Series Mono Block Class D Subwoofer Amplifier – 1525 Watts
Bring powerful, deep bass to your vehicle audio system with the Jensen JAONE Apex Series Mono Block Subwoofer Amplifier. Designed specifically for subwoofer applications, the JAONE delivers high-efficiency Class D performance, impressive output, and precise bass control in a compact chassis. It is the ideal choice for drivers looking to add powerful low-frequency impact without sacrificing installation flexibility.
Featuring a maximum dynamic power output of 1,525 watts, the JAONE provides the muscle needed to drive demanding subwoofers with strong, controlled bass response. Its mono-channel design delivers dedicated power to your subwoofer, while the efficient Class D MOSFET circuitry helps maintain performance while reducing heat and power consumption.
The JAONE offers flexible power delivery with 500 watts RMS at 4 ohms, 870 watts RMS at 2 ohms, and 1,310 watts RMS at 1 ohm, allowing compatibility with a variety of subwoofer configurations. Adjustable low-pass crossover controls, variable bass boost, and gain adjustment make it easy to fine-tune your bass output for your vehicle and listening preferences.
Installation is simplified with both high-level speaker inputs and low-level RCA inputs, allowing integration with factory or aftermarket audio systems. The included wired remote bass control provides convenient adjustment of bass levels from the driver’s seat, giving you complete control over your system’s performance.
Key Features:
- Apex Series mono block Class D MOSFET subwoofer amplifier
- 1,525 watts maximum dynamic power output
- Dedicated single-channel design for subwoofer applications
- 500W RMS x 1 @ 4 ohms
- 870W RMS x 1 @ 2 ohms
- 1,310W RMS x 1 @ 1 ohm
- Stable operation at 1, 2, and 4 ohms

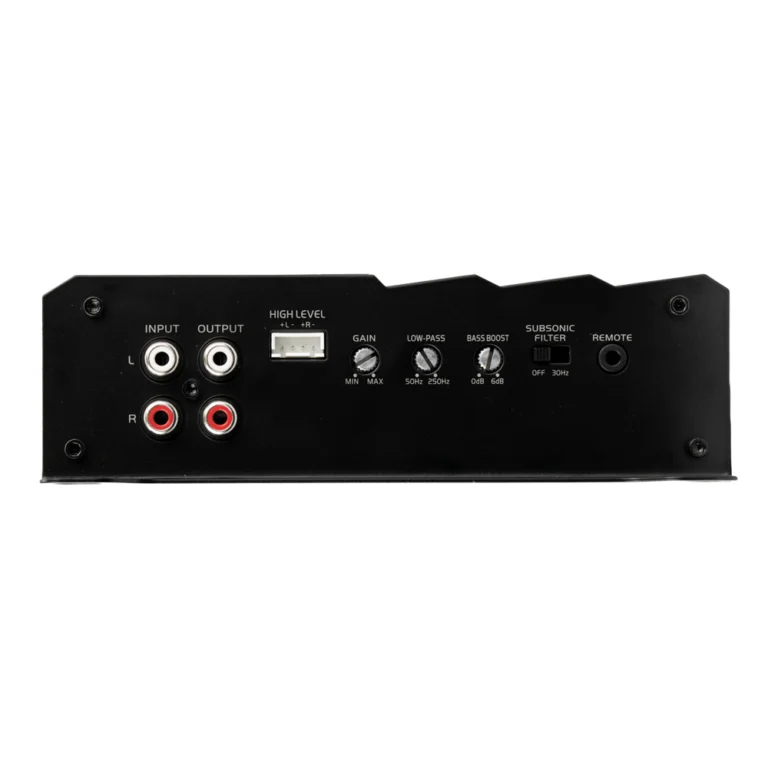

- Adjustable low-pass crossover (50Hz–150Hz)
- Variable bass boost at 45Hz (0–6 dB)
- Variable gain adjustment
- High-level speaker wire and low-level RCA inputs
- RCA pass-through output

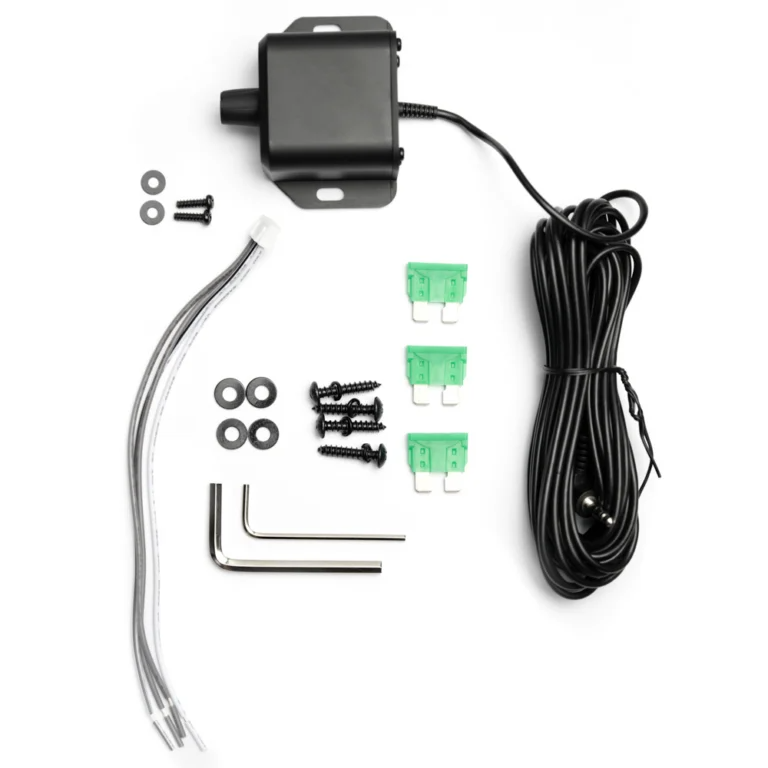

- Included wired remote bass control
- CTA-2006-D certified
Specifications:
- Amplifier Class: Class D Digital
- Channels: 1 (Mono)
- Maximum Dynamic Power: 1,525 Watts
- Continuous Power Output:
- 500 Watts RMS @ 4 Ohms
- 870 Watts RMS @ 2 Ohms
- 1,310 Watts RMS @ 1 Ohm
- Frequency Response: 20Hz–250Hz
- Signal-to-Noise Ratio: 89 dBA
- Total Harmonic Distortion: <0.04% at 1 Watt RMS
- Crossover: Adjustable Low Pass, 50Hz–150Hz
- Gain Adjustment: 200mV–6V
- Bass Boost: Variable 45Hz (0–6 dB)
- Recommended Power/Ground Wire: 8 AWG
- Dimensions: 1.99" H x 6.53" D x 9.92" W
The Jensen JAONE Apex Series amplifier delivers the power, control, and efficiency needed for a serious bass upgrade. Whether building a complete custom audio system or enhancing an existing setup, the JAONE provides clean, powerful subwoofer performance in a compact and versatile package.
