Jensen JAFIVE Apex Series 5-Channel Class D Amplifier – 1175 Watts
Take your car audio system to the next level with the Jensen JAFIVE Apex Series 5-Channel Amplifier. Designed for high-performance sound in a compact chassis, the JAFIVE delivers efficient, powerful output with the flexibility to run an entire audio system from a single amplifier. Its 5-channel Class D design provides dedicated power for four full-range speakers plus a subwoofer, giving you complete control over your vehicle’s sound system.
With up to 1,175 watts of maximum dynamic power, the JAFIVE provides the strength needed for loud, detailed playback while maintaining clean and efficient operation. The amplifier delivers 85 watts RMS x 4 channels plus 310 watts RMS x 1 subwoofer channel at 4 ohms, or up to 135 watts RMS x 4 channels plus 495 watts RMS x 1 subwoofer channel at 2 ohms.
The advanced Class D MOSFET design helps maximize power efficiency while reducing heat, making it ideal for modern vehicle installations where space is limited. Adjustable high-pass, low-pass, and full-range crossover controls allow precise tuning, while variable bass boost and gain adjustment help optimize your system’s performance.
Featuring both high-level speaker inputs and low-level RCA inputs, the JAFIVE easily integrates with factory or aftermarket head units. The included wired remote bass control provides convenient adjustment from the driver’s seat, allowing you to fine-tune your bass response whenever you want.
Key Features:
- Apex Series 5-channel Class D MOSFET amplifier
- 1,175 watts maximum dynamic power
- Powers full-range speakers and subwoofer from one amplifier
- 85W RMS x 4 + 310W RMS x 1 @ 4 ohms
- 135W RMS x 4 + 495W RMS x 1 @ 2 ohms

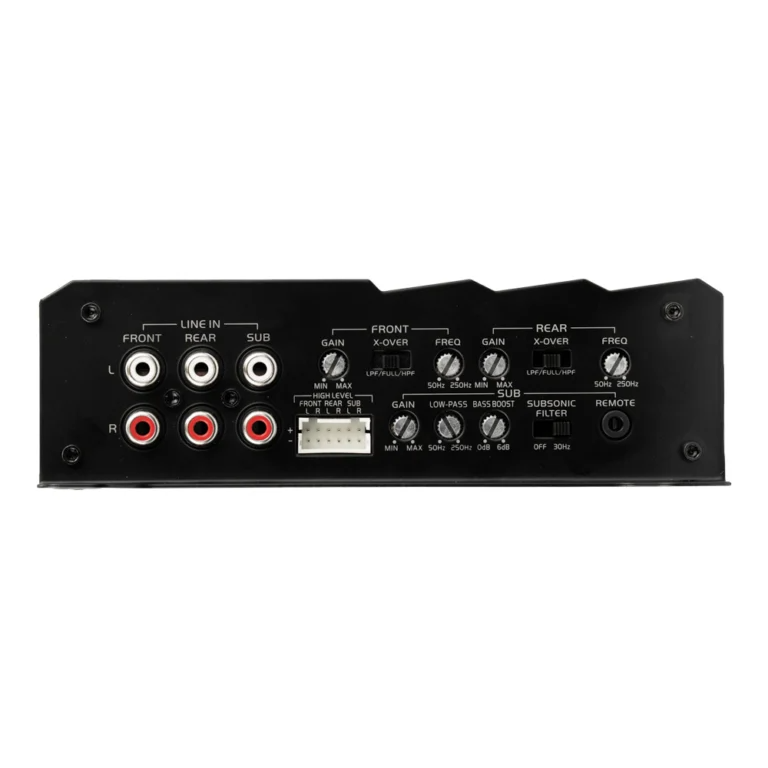

- Adjustable high-pass, low-pass, and full-range crossover modes
- Variable bass boost at 45Hz (0–6 dB)
- High-level speaker wire and RCA inputs

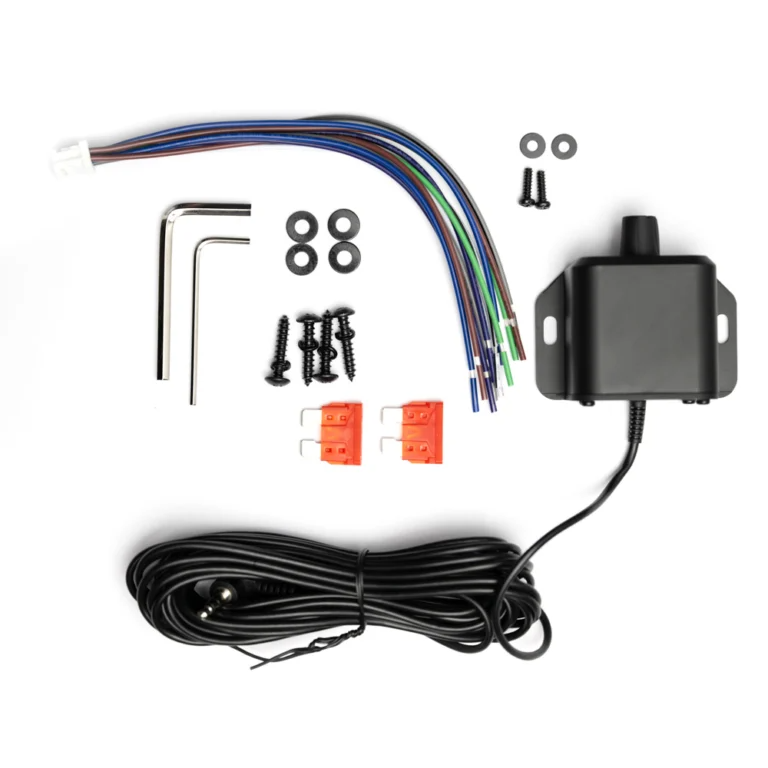

- Included wired bass remote control
- Compact design for flexible installation
- CTA-2006-D certified
Specifications:
- Amplifier Class: Class D Digital
- Channels: 5
- Maximum Dynamic Power: 1,175 Watts
- Frequency Response: 20Hz–20kHz (Channels 1–4), 20Hz–250Hz (Subwoofer)
- Signal-to-Noise Ratio: 86 dBA (CH 1–4), 88 dBA (Sub)
- Crossover Range: 50Hz–250Hz
- Gain Adjustment: 300mV–6V
- Speaker Impedance: 2 or 4 Ohms
- Recommended Power/Ground Wire: 4 AWG
- Fuse Rating: Dual 40A
- Dimensions: 1.99" H x 6.53" D x 13.07" W
The Jensen JAFIVE Apex Series amplifier is the perfect solution for enthusiasts looking to build a powerful, clean, and space-efficient car audio system with dedicated control for speakers and subwoofer performance.
