JENSEN CAR12TC 12-Inch Floating Screen Multimedia Receiver
Go big with a better view

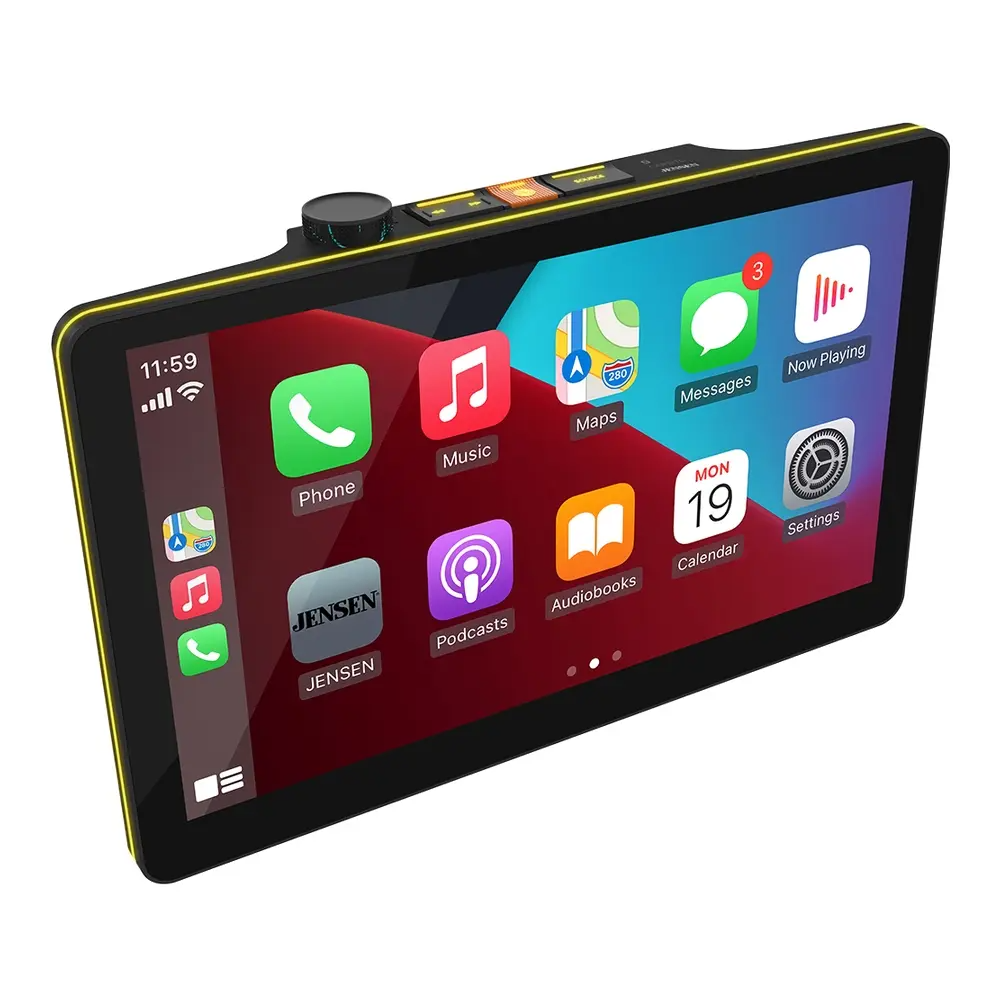

Bring a larger, more connected experience to your dashboard with the JENSEN CAR12TC. Its 12-inch floating touchscreen puts music, navigation, calls, and smartphone features front and center, with a modern look that makes a statement.
Wireless Apple CarPlay and Android Auto give you easy access to compatible apps and features from your phone without needing to connect a cable every time you get in the vehicle.
12 inches of touchscreen control
The large floating display gives you plenty of room to see and control what you need while driving. Switch between audio, navigation, phone functions, and other features with an intuitive touchscreen interface.
Wireless Apple CarPlay and Android Auto
Connect your compatible smartphone wirelessly and bring familiar apps to the receiver's display. Get directions, make calls, listen to music, check messages, and more while keeping your phone in your pocket.
Key Features
- 12-inch floating touchscreen display
- Double DIN digital multimedia receiver
- Wireless Apple CarPlay
- Wireless Android Auto
- Bluetooth hands-free calling
- Bluetooth audio streaming
- Large, easy-to-use touchscreen
- Modern floating-screen design
- Designed for compatible vehicle installations
More screen. More connection.
The CAR12TC combines a large 12-inch display with the smartphone features you use every day. Whether you're navigating across town, streaming music, or taking a hands-free call, everything is right where you need it.
JENSEN CAR12TC. Bigger screen. Smarter drive.
|
| CAR12TC |
|
| Screen |
11.6" touchscreen |
| Resolution |
1366 × 768 |
| Brightness |
500 cd/m² |
| Contrast ratio |
500:1 |
| CarPlay |
Wireless + wired Apple CarPlay |
| Android Auto |
Wireless + wired Android Auto |
| Bluetooth |
Audio streaming, hands-free calling, phonebook, external microphone, voice activation |
| Controls |
Top-mounted tactile buttons + volume knob |
| Peak power |
240 W (60 W × 4) MOSFET |
| RMS power |
16 W × 4 @ 4 Ω, ≤1% THD+N |
| Preamp outputs |
3 pairs, 4 V — Front / Rear / Sub |
| EQ |
10-band EQ + 8 preset EQ curves |
| Subwoofer control |
Gain control |
| Camera inputs |
Front + rear |
| USB |
1 rear USB-C + 1 rear USB-A |
| USB charging |
2.1 A |
| USB-C playback |
Yes |
| Rear A/V input |
Yes |
| Audio playback |
MP3, FLAC, JPEG |
| AM/FM presets |
30 — 18 FM / 12 AM |
| RDS |
Yes |
| Illumination |
RGB customizable + 6 preset colors |
| Steering-wheel controls |
Yes — adapter required |
| Installation |
Single-DIN or Double-DIN |

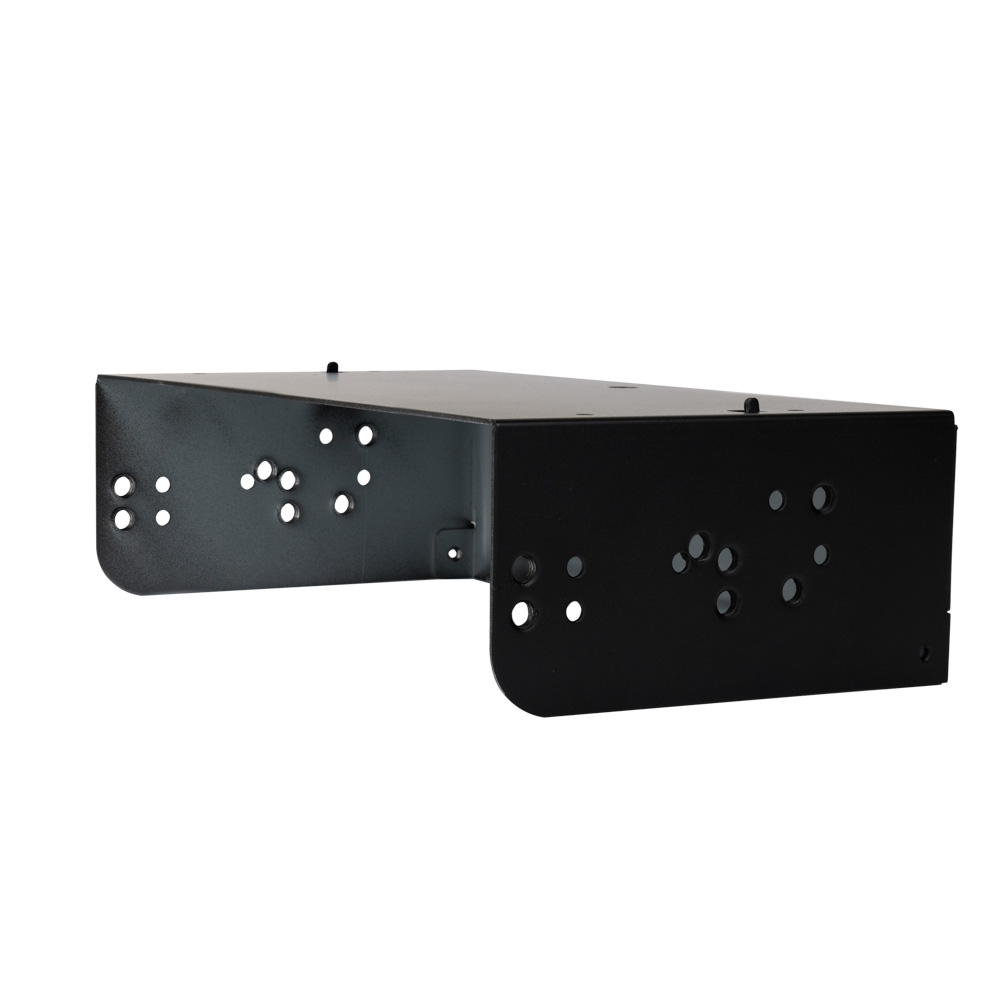

| 2-DIN bracket |
Included |
| Chassis dimensions |
7" × 4.1" × 2" (W × D × H) |
| Speaker impedance |
4 Ω |
| Line output |
4 V RMS |
| FM tuning range |
87.5–107.9 MHz |
| AM tuning range |
530–1710 kHz |
