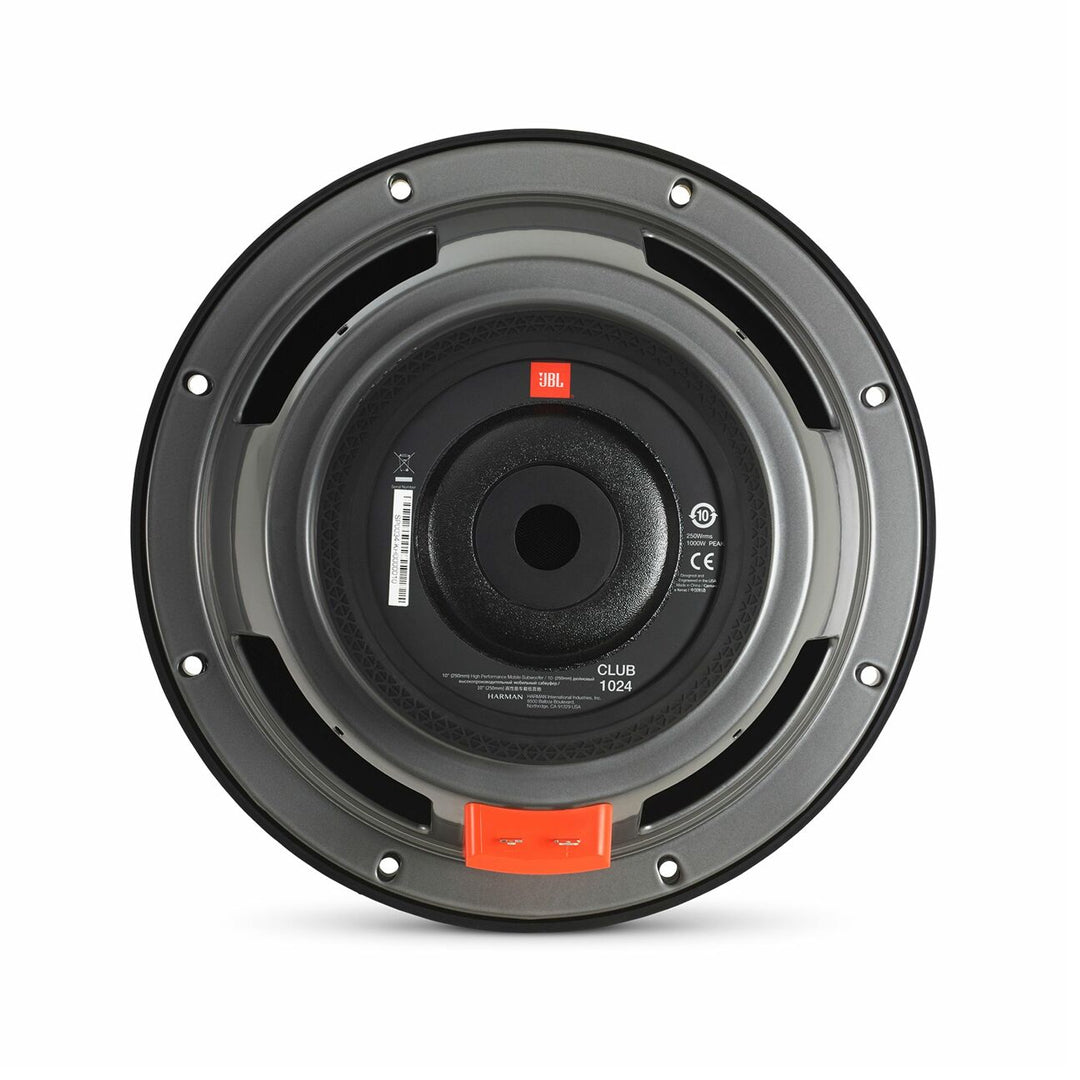

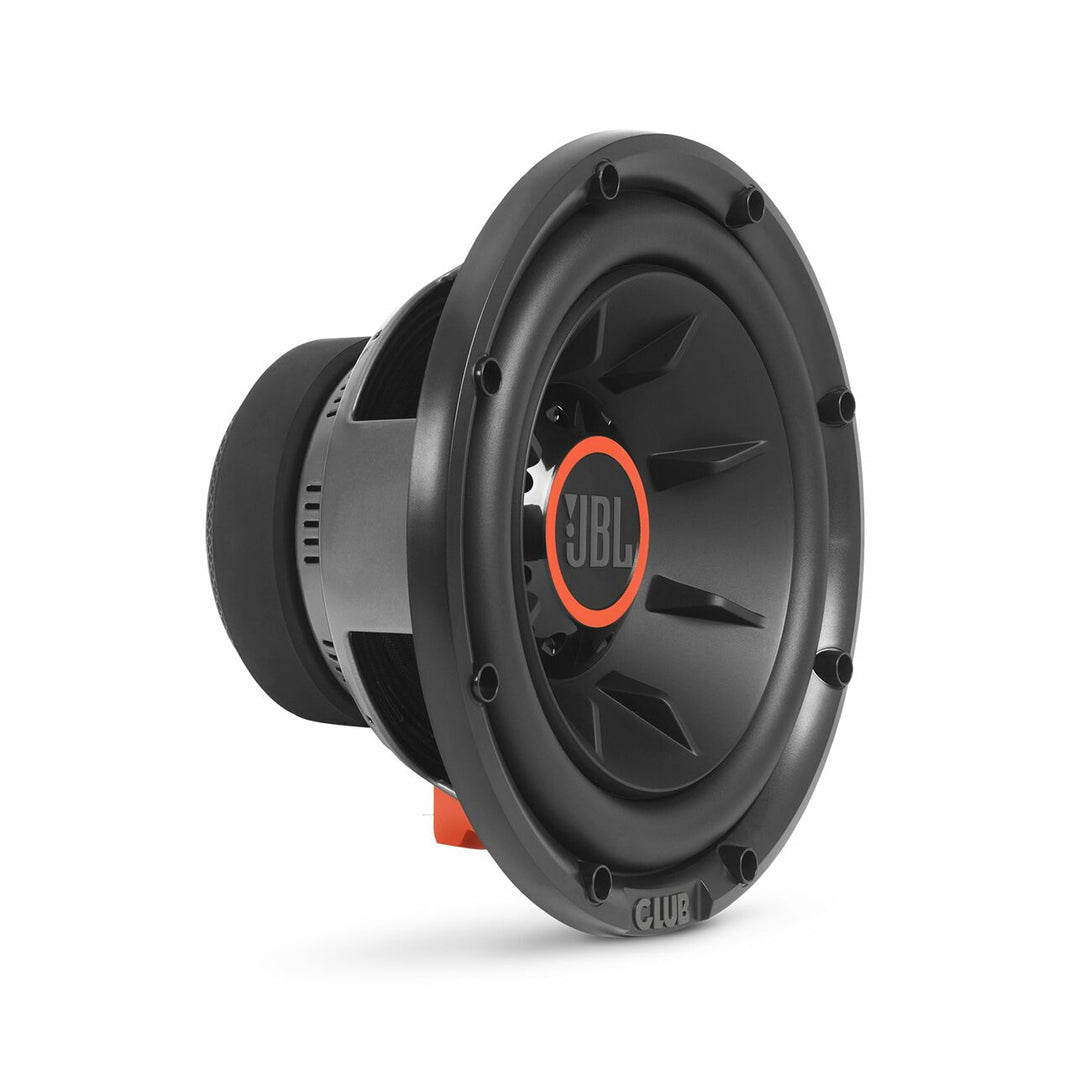

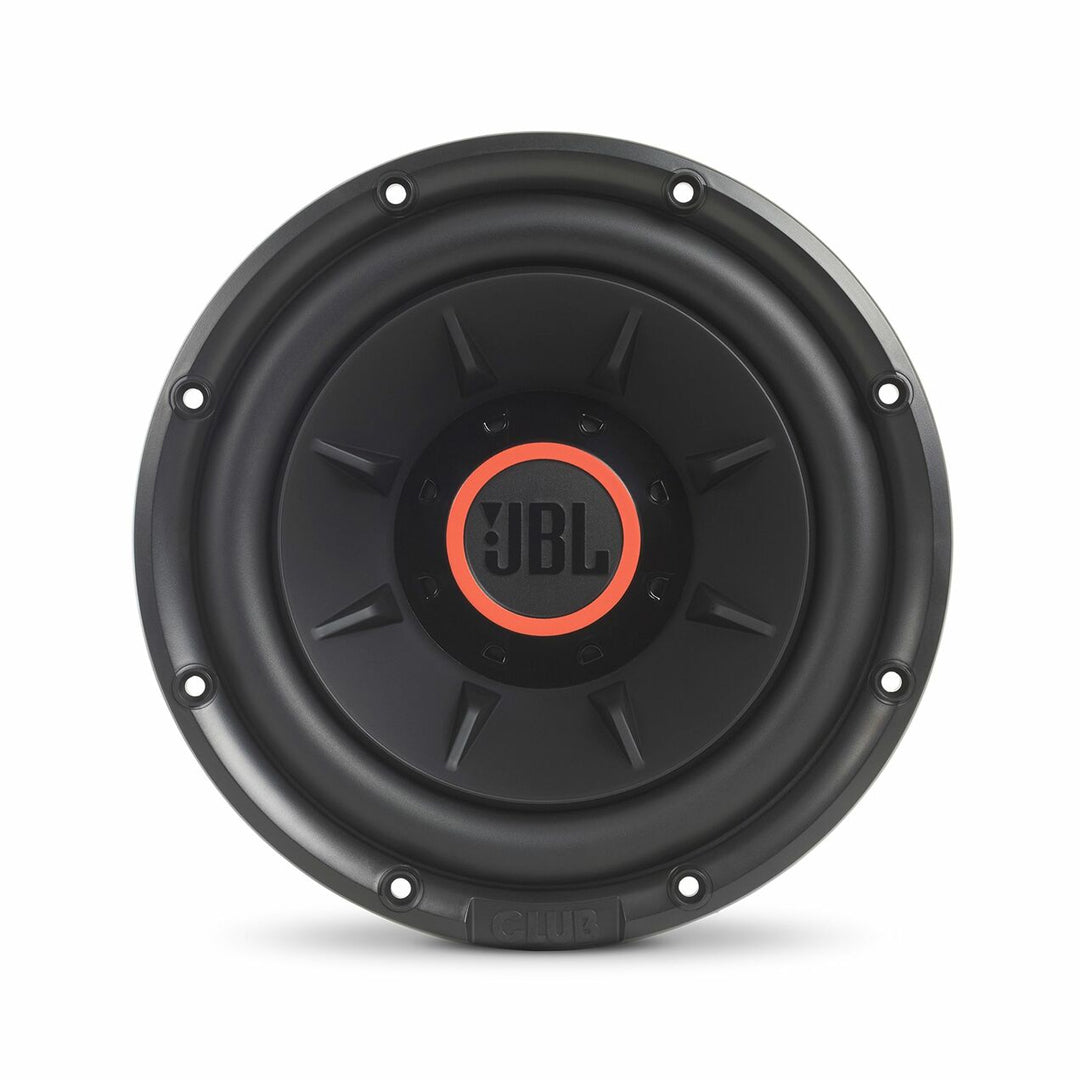

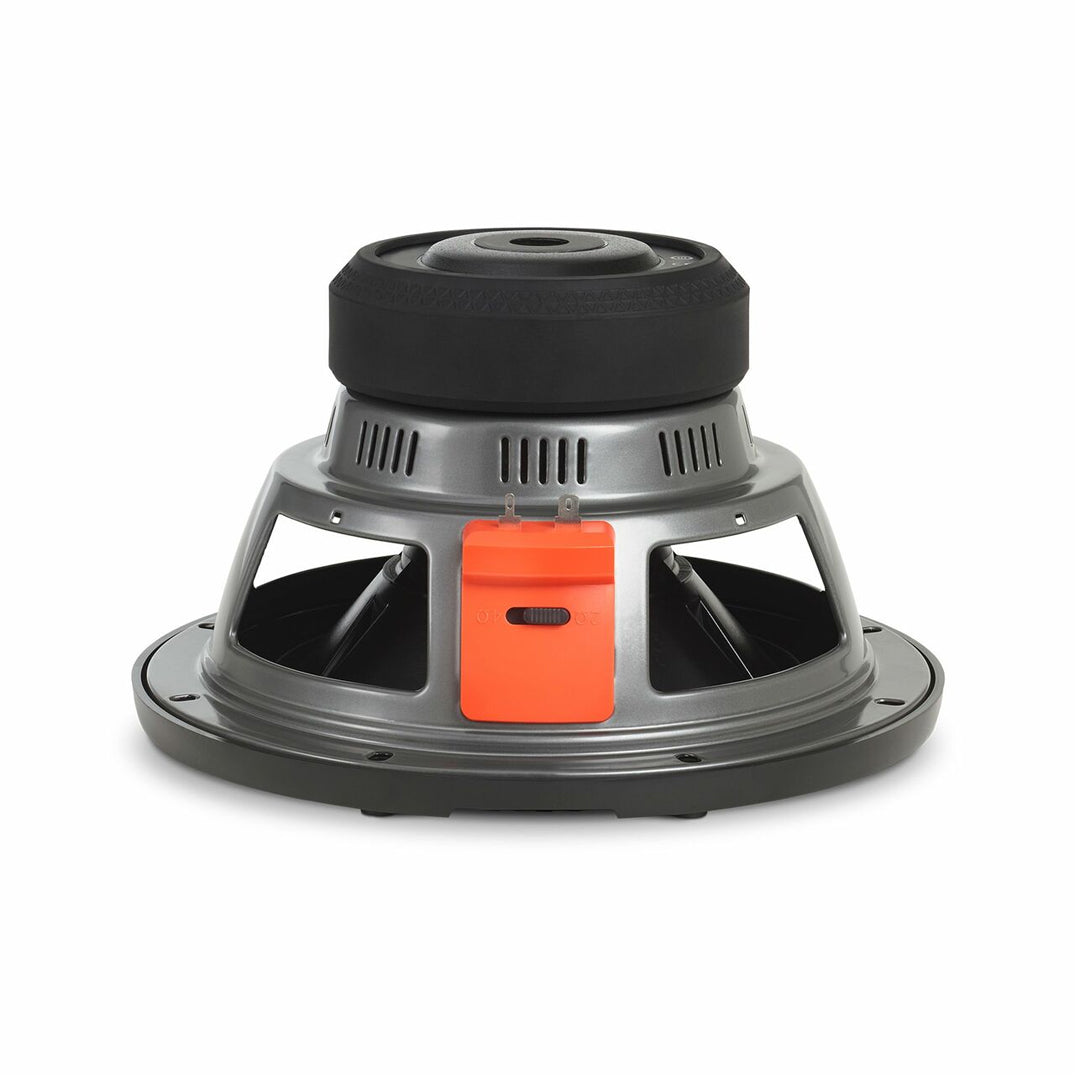

JBL Club 1024AM, Club Series 10" 2 Ohm or 4 Ohm Car Subwoofer w/SSI
Car audio systems rely on powerful bass for great sound. System designers look for configuration flexibility. The Club Series deliver both. Designed to suit a range of applications, these 10- and 12-inch subwoofers produce signature JBL bass performance in sealed or vented enclosures. But the flexibility doesn’t end there. These subwoofers feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system. So you get the powerful JBL bass you want, in the configuration you choose.
- General Specifications
- Description - 10" (250mm) car audio subwoofer
- Power Handling - 250W RMS, 1000W peak
- Sensitivity (@ 2.83V) - 92dB
- Frequency Response - 30Hz – 175Hz
- Voice Coil Diameter - 2" (50mm)
- Impedance - 2 or 4 ohms
Most car audio system designs call for 2- or 4-ohm impedance. Series II subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
- In The Box:
- 1 x subwoofer
- Owner’s manual
|
|
Size |
10-inch |
|
Voice Coil |
|
|
Impedance |
2 Ohm or 4 Ohm |
|
RMS Power Rating (Watts) |
250 |
|
Peak Power Rating (Watts) |
1000 |
| Cone Material |
Polypropylene |
| Surround Material |
Rubber |
| Free Air |
Yes |
| Sensitivity |
92 dB |
| Frequency Response |
30-175 Hz |
|
Top Mount Depth (Inches) |
5.625" |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9" |
| Vas (liters) |
32.3 |
| Fs (Hz) |
29.9 |
| Xmax (millimeters) |
9.25 |
| Warranty |
1 Year |
|
Size |
10-inch |
|
Voice Coil |
|
|
Impedance |
2 Ohm or 4 Ohm |
|
RMS Power Rating (Watts) |
250 |
|
Peak Power Rating (Watts) |
1000 |
| Cone Material |
Polypropylene |
| Surround Material |
Rubber |
| Free Air |
Yes |
| Sensitivity |
92 dB |
| Frequency Response |
30-175 Hz |
|
Top Mount Depth (Inches) |
5.625" |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9" |
| Vas (liters) |
32.3 |
| Fs (Hz) |
29.9 |
| Xmax (millimeters) |
9.25 |
| Warranty |
1 Year |
