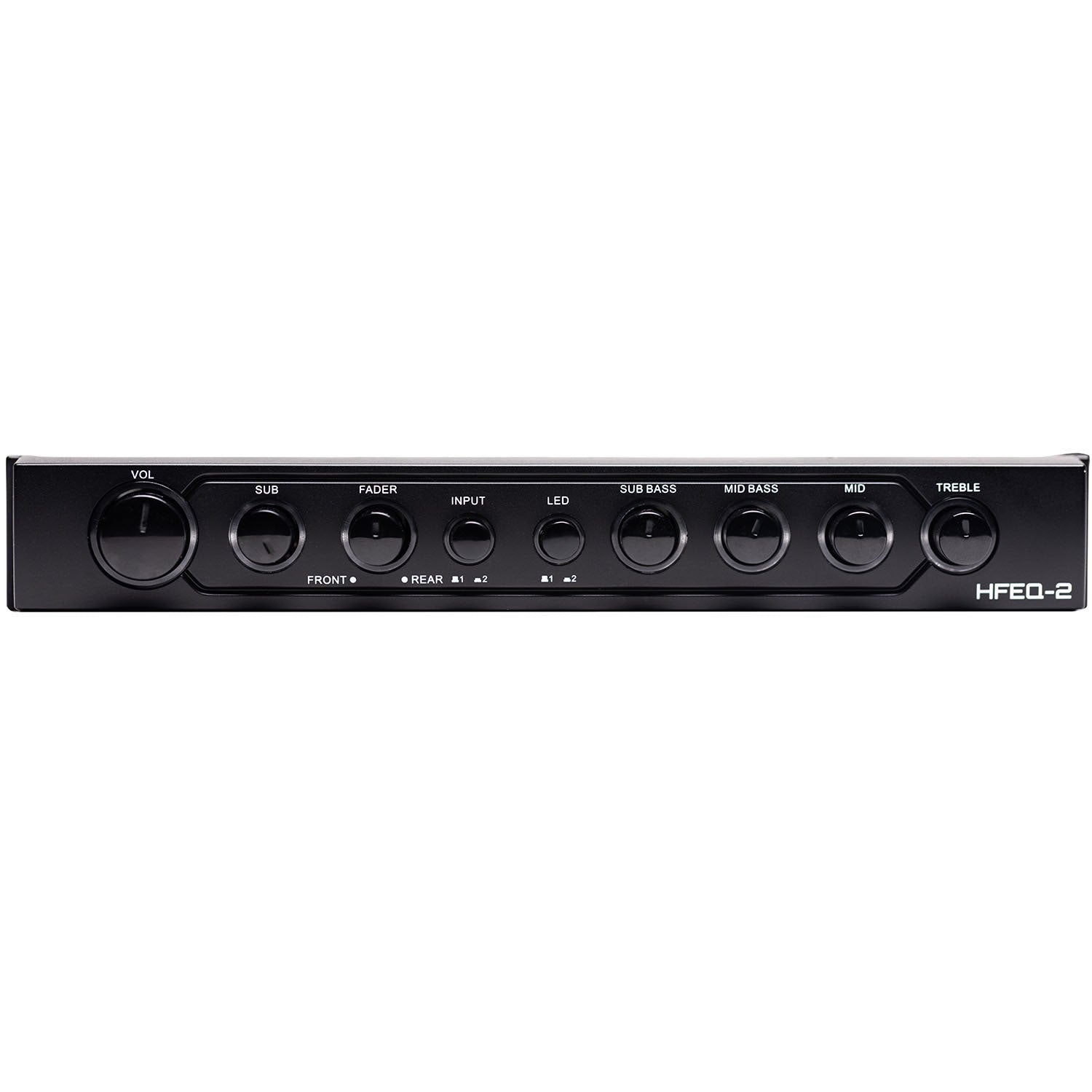

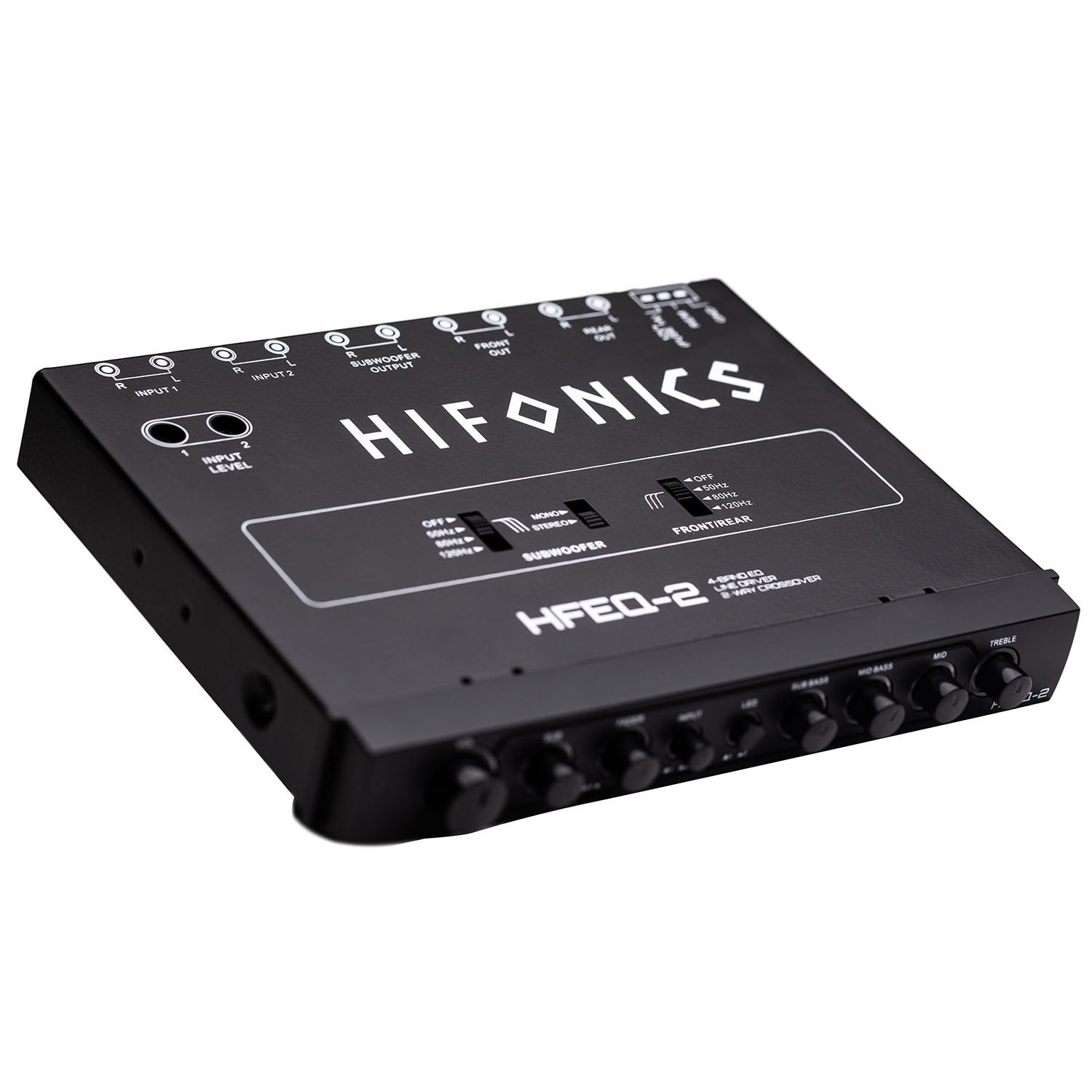

Hifonics HFEQ-2 1/2 DIN 4 Band Equalizer with 9V Line Driver
Take complete control of your vehicle’s audio performance with the Hifonics HFEQ-2 1/2 DIN 4 Band Equalizer. Designed for car audio enthusiasts who want enhanced tuning capability, this advanced preamp equalizer combines a 4-band EQ, active crossover controls, and a 9-volt line driver to deliver improved signal strength, sound customization, and system flexibility.
The compact 1/2 DIN ISO design allows for convenient dash installation while providing easy access to audio adjustments. With multiple inputs, front/rear/subwoofer outputs, and dedicated bass controls, the HFEQ-2 gives you the ability to fine-tune your entire sound system for a more balanced and powerful listening experience.
Key Features
-
1/2 DIN 4-Band Preamp Equalizer for advanced audio tuning
-
Built-in 9V Line Driver for stronger RCA signal output
-

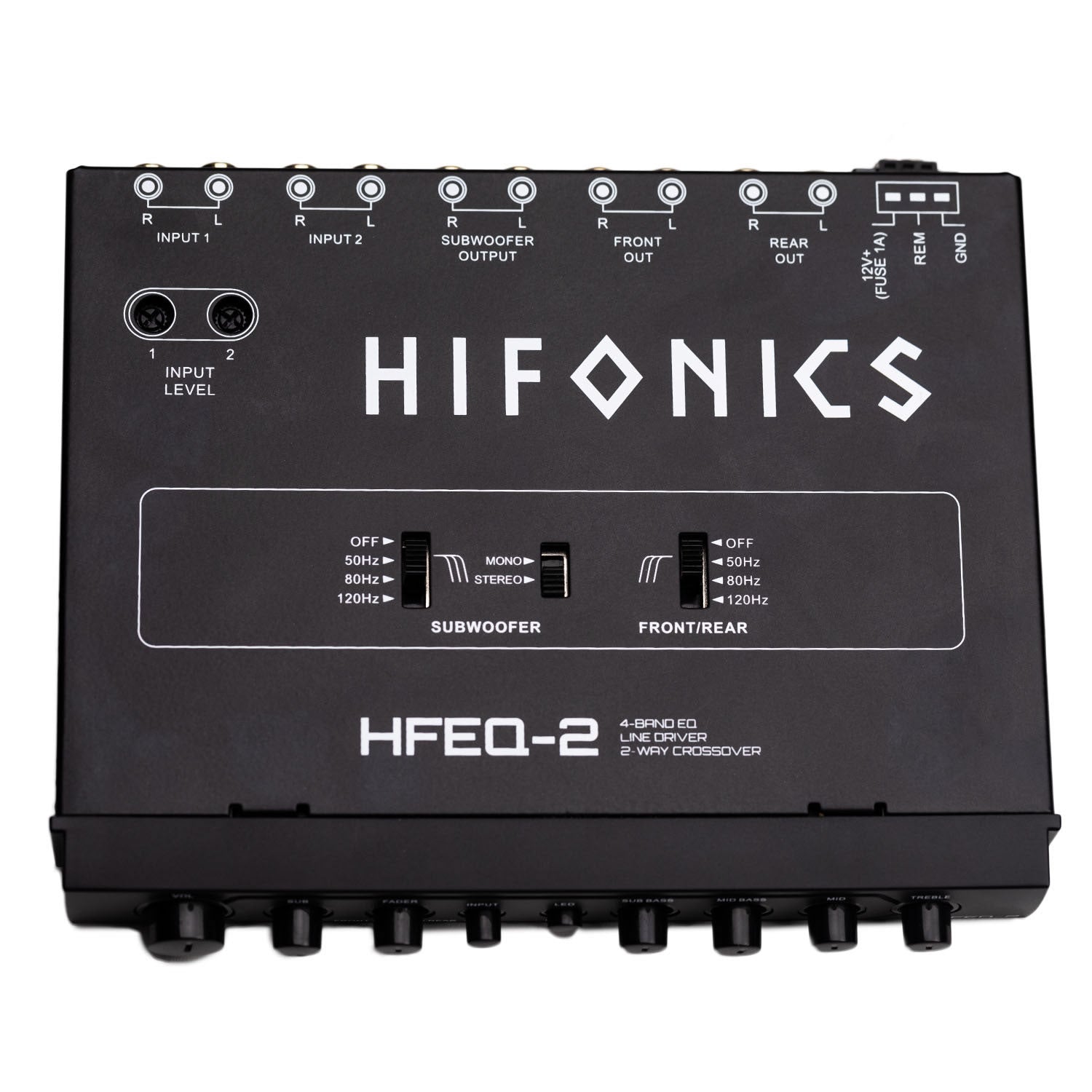

Front, Rear, and Subwoofer Preamp Outputs for multi-amplifier systems
-
Active Front/Rear Crossover Controls for improved system tuning
-
Selectable Audio Input Source for switching between head unit and secondary audio sources
-
Two Audio Inputs with Level Matching for consistent volume between sources
-
Master Volume Control for overall system adjustment
-
Subwoofer Volume Control for quick bass level changes
-
Front-to-Rear Dual Amplifier Fader for sound staging control
-
Variable 4-Band Equalization with adjustable boost/cut control
-

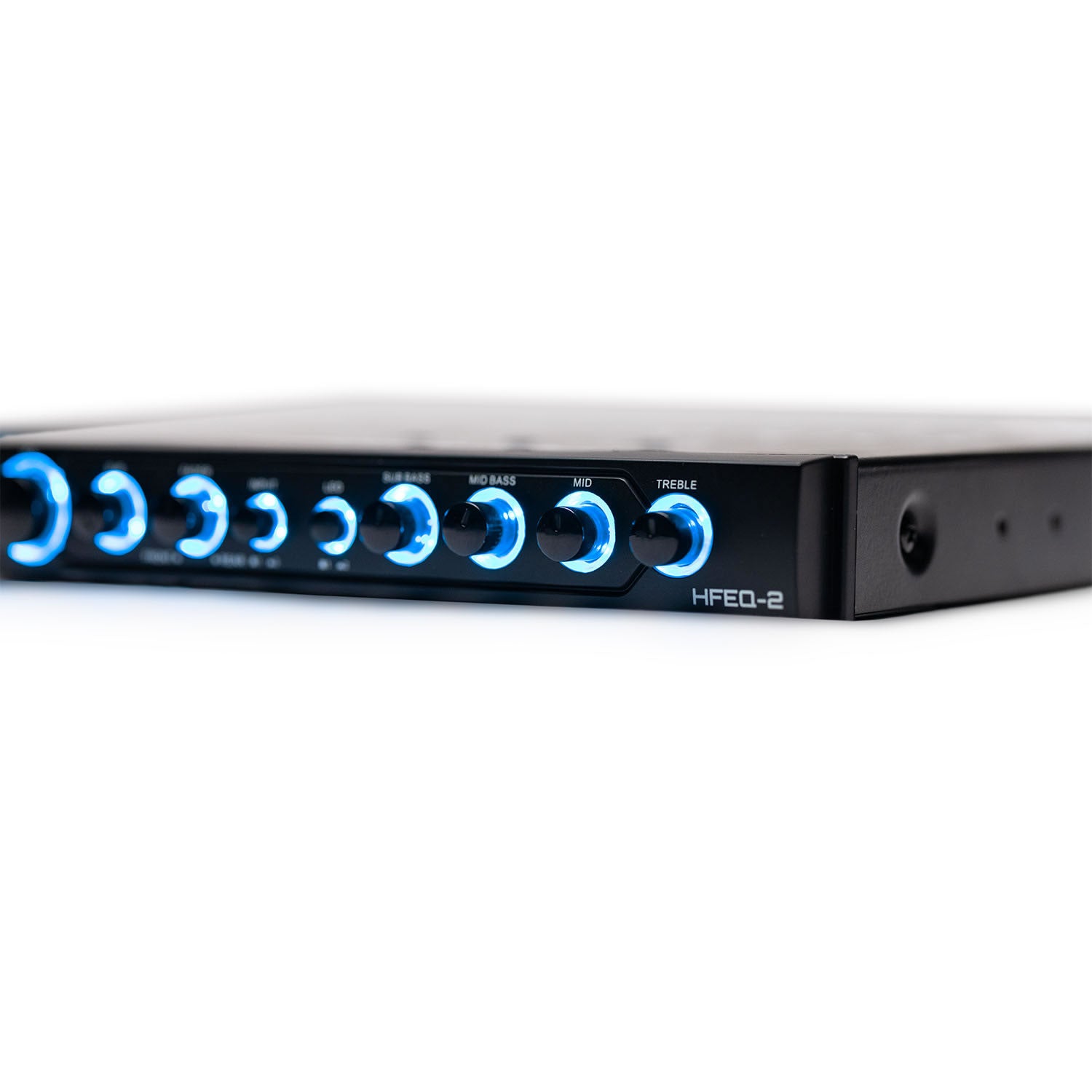

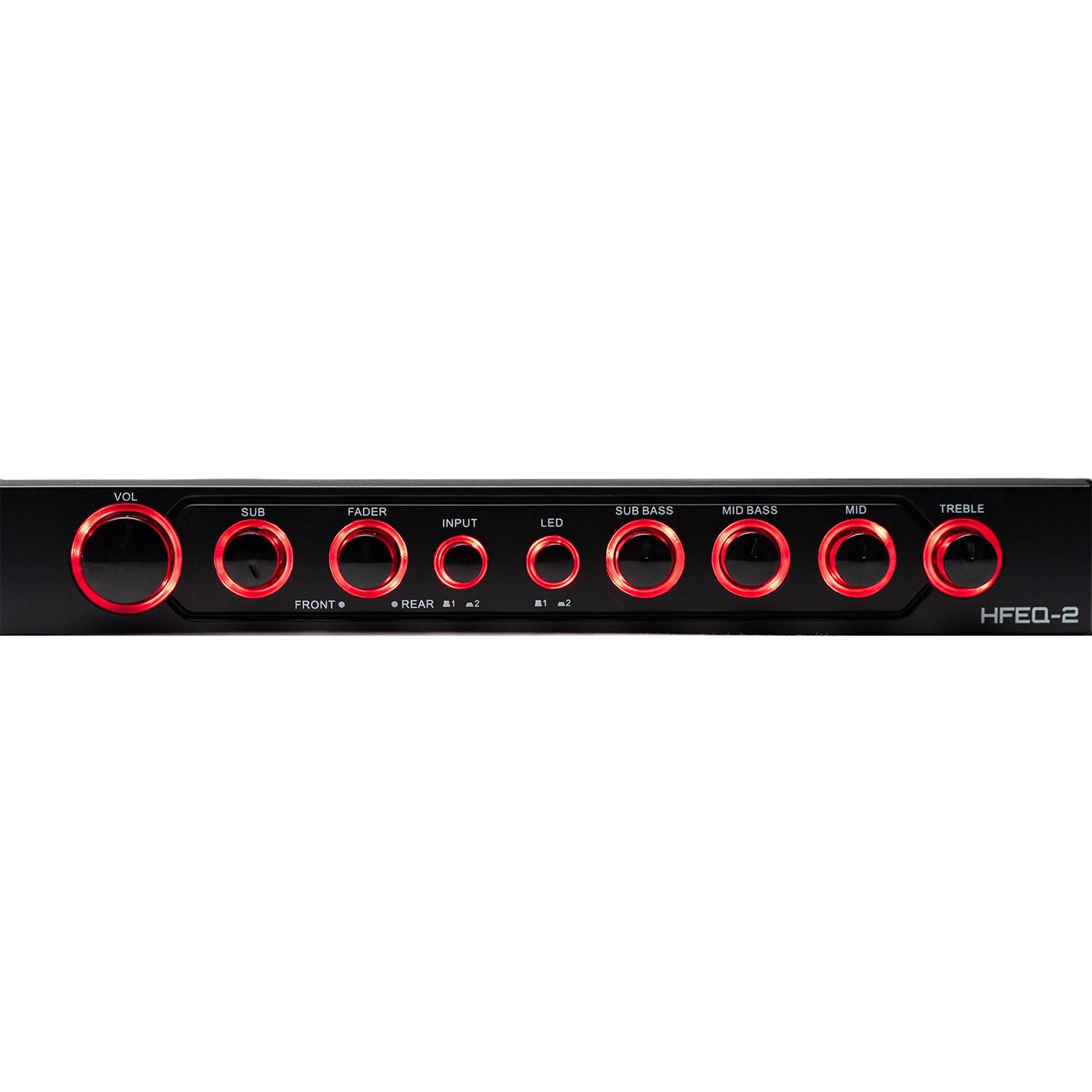

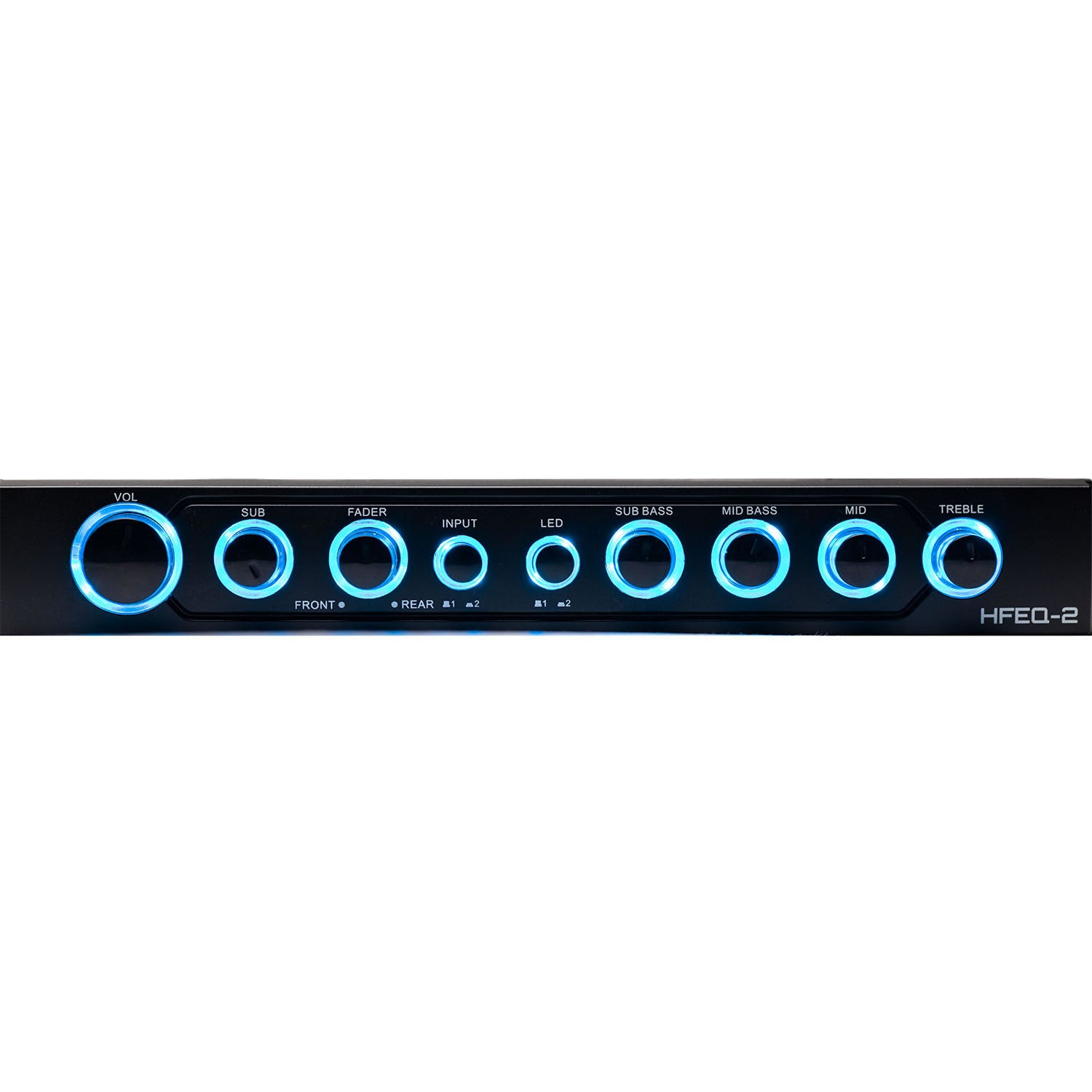

Selectable illumination colors for a customized installation appearance
-

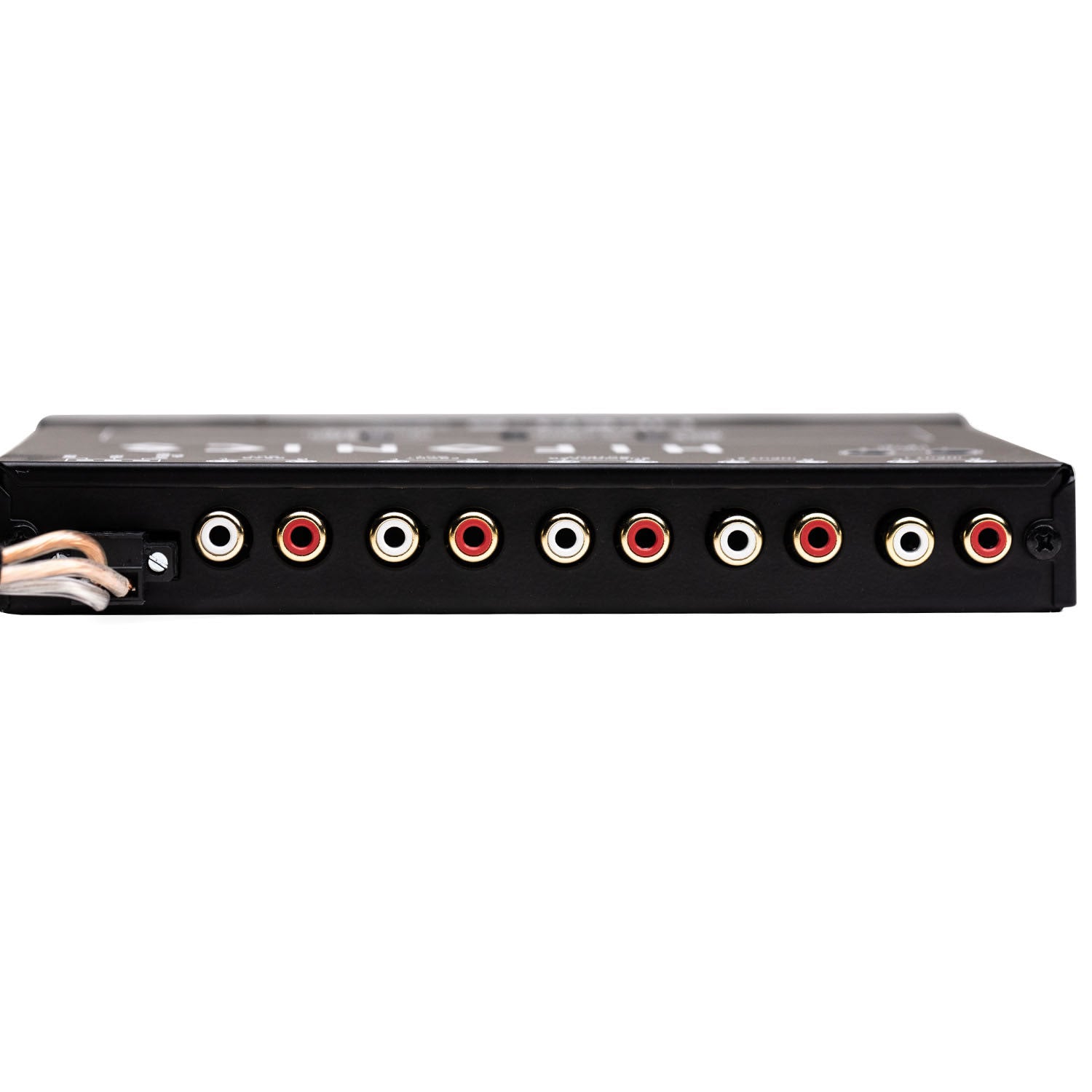

Gold-plated RCA connections and terminals for improved signal transfer
-
Compact dash-mount design with included 1/2 DIN ISO mounting hardware
- Universal vehicle compatibility
Advanced Sound Control
The Hifonics HFEQ-2 allows you to shape your system’s sound with four adjustable frequency bands, giving you control over bass, midrange, and high-frequency response. Dedicated frequency controls include 45Hz sub-bass, 120Hz mid-bass, 2.2kHz midrange, and 12kHz treble adjustments, allowing precise tuning for different speakers, amplifiers, and listening preferences.
The integrated crossover section provides additional control with selectable high-pass and low-pass filtering, while the 9-volt line driver helps deliver a stronger preamp signal to connected amplifiers for improved system performance.
Specifications
-
Brand: Hifonics
-
Model: HFEQ-2
-
Type: 1/2 DIN 4-Band Equalizer Processor
-
Line Driver Output: 9V Maximum
-
Equalizer Bands: 4
-
EQ Frequencies: 45Hz / 120Hz / 2.2kHz / 12kHz
-
EQ Boost/Cut: ±18dB
-
Input Channels: 2 Stereo Inputs
-
Output Channels: Front / Rear / Subwoofer
-
Maximum Output Voltage: >9V
-
Signal-to-Noise Ratio: >100dB
-
Channel Separation: >80dB
-
THD: 0.01% at 1kHz, 1V
-
Frequency Response: 10Hz–50kHz
-

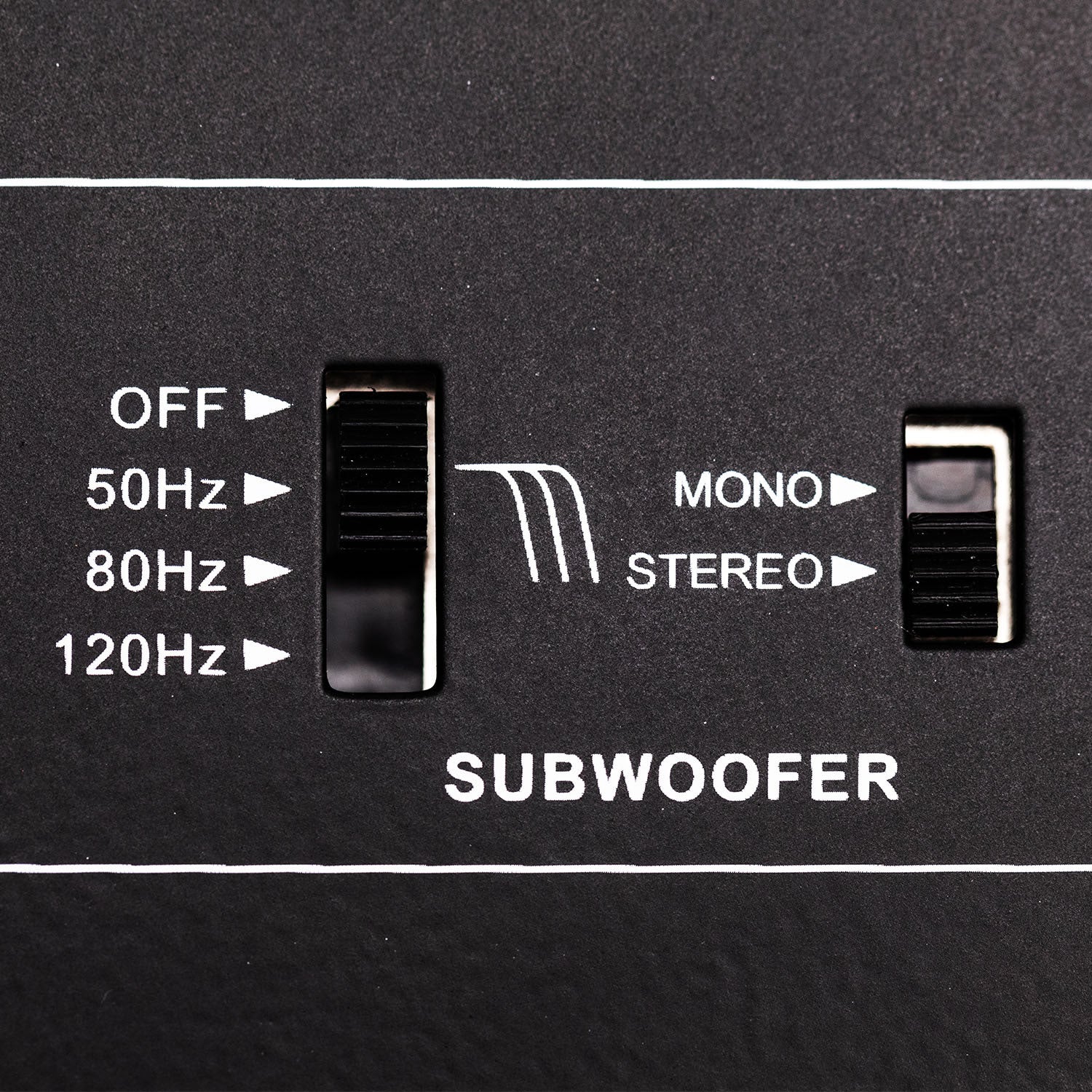

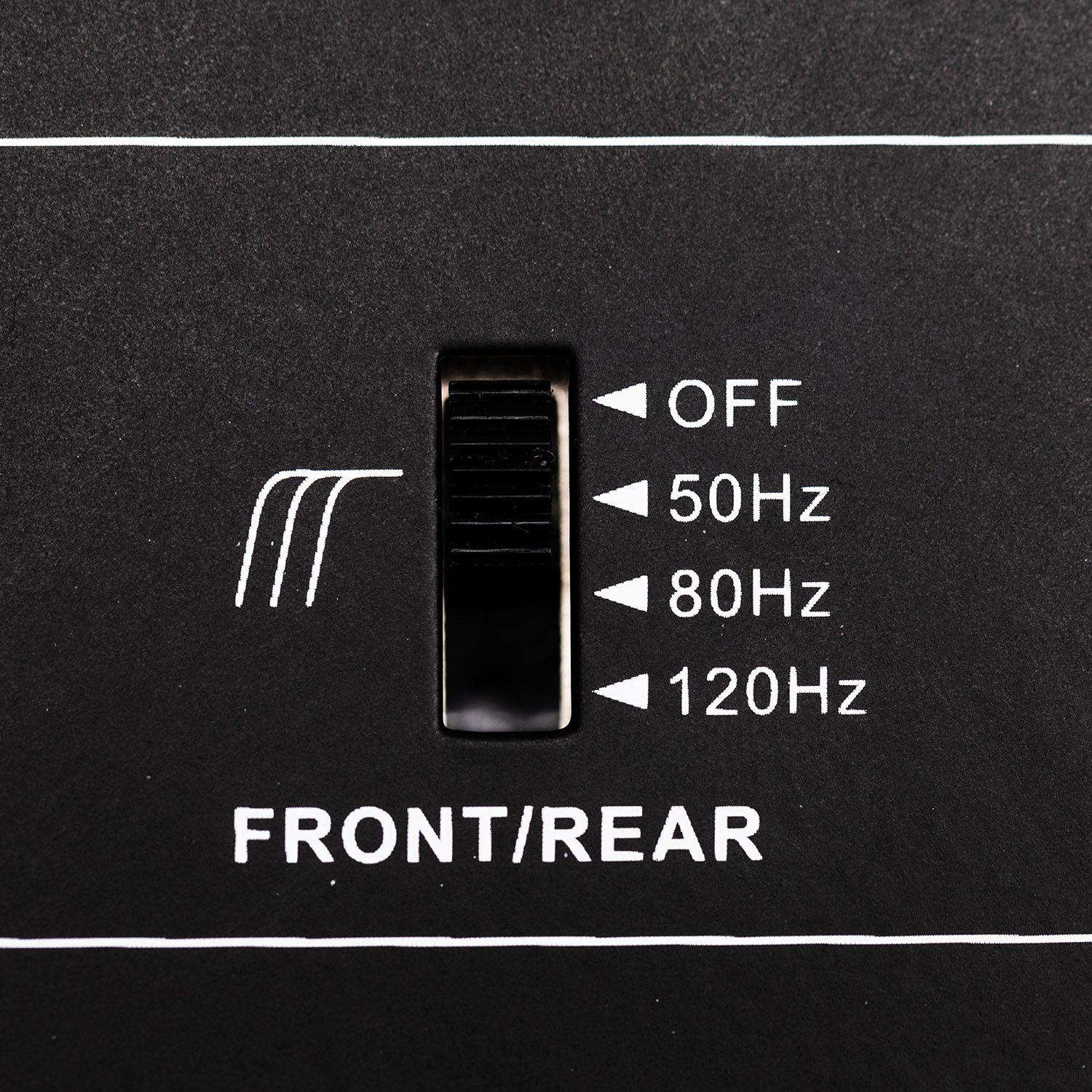

Low-Pass Crossover Frequencies: 50Hz / 80Hz / 120Hz
-
High-Pass Crossover Frequencies: 80Hz / 120Hz / 200Hz
-
Crossover Slope: 12dB/Octave
-
Dimensions: Approximately 11.75" x 8" x 2"
-
Warranty: 1 Year
Why Choose the Hifonics HFEQ-2?
The Hifonics HFEQ-2 is an ideal upgrade for drivers who want more control over their car audio system without replacing their factory or aftermarket source unit. With powerful equalization options, crossover controls, multiple outputs, and a built-in line driver, it provides the flexibility needed for building a cleaner, louder, and more personalized audio experience.
