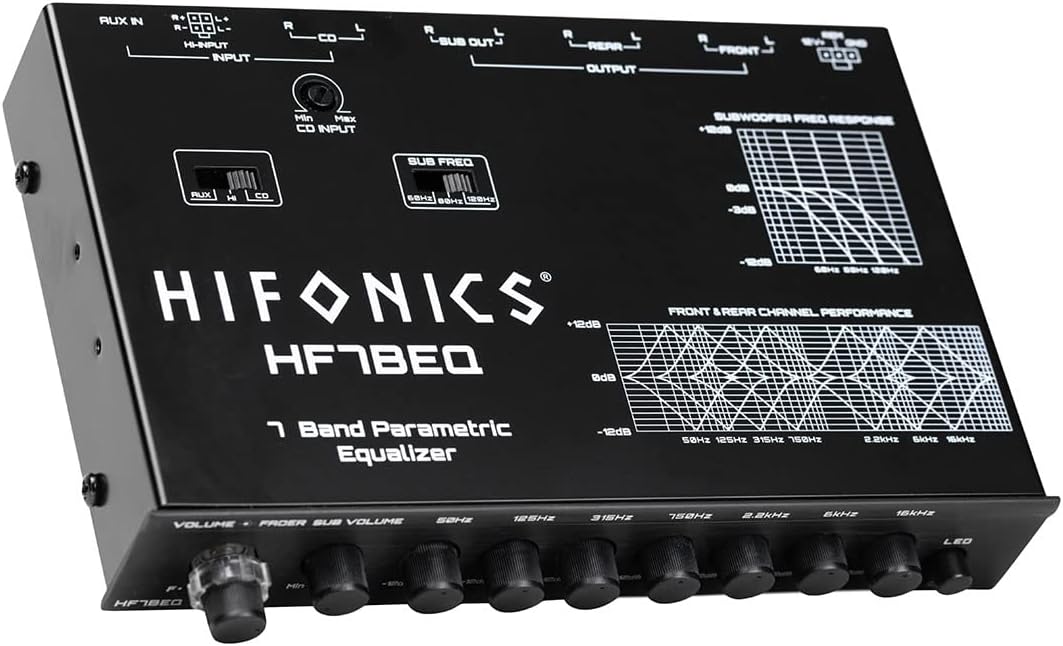

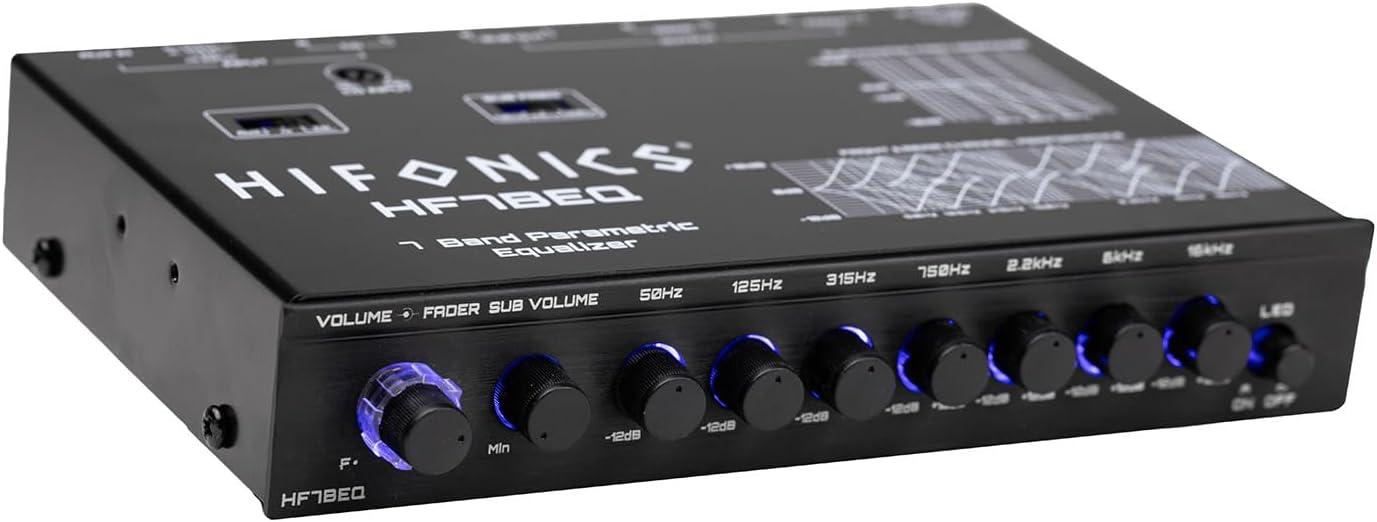

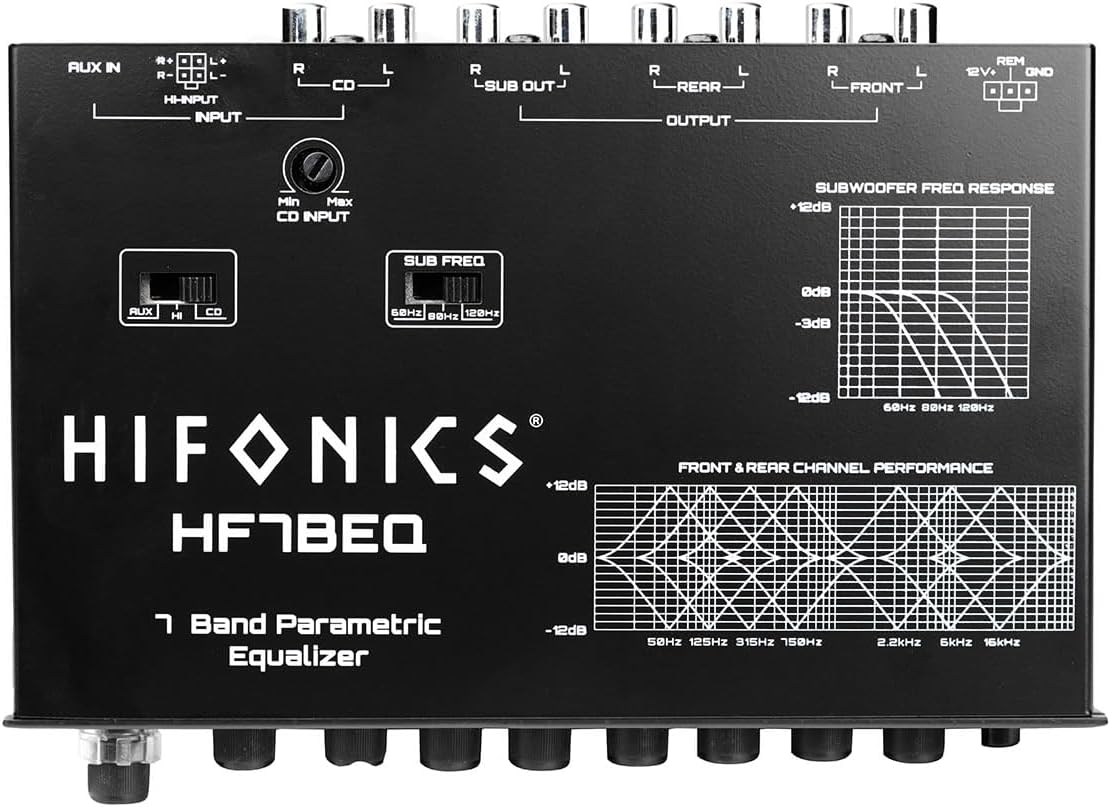

Hifonics HF7BEQ 7 Band Parametric Equalizer with Crossover
Take full control of your vehicle’s audio performance with the Hifonics HF7BEQ 7 Band Parametric Equalizer. Designed for advanced car audio tuning, this compact half-DIN processor combines a 7-band equalizer, two-way crossover, subwoofer controls, and multiple input options to help you achieve a cleaner, more powerful, and precisely tuned sound system.
The HF7BEQ allows you to customize your system’s frequency response with seven adjustable EQ bands, while providing front, rear, and subwoofer outputs for flexible multi-amplifier setups. With high-level and low-level inputs, plus AUX connectivity, it is compatible with a wide range of factory and aftermarket audio systems.
Key Features
-
7-Band Parametric Equalizer for advanced sound customization
-
Built-in Two-Way Crossover for improved system tuning
-
Half DIN Chassis Design for flexible dash installation
-
Front, Rear, and Subwoofer Outputs for multi-channel amplifier systems
-
Low-Level RCA, High-Level Speaker, and AUX Inputs for broad compatibility
-
Dedicated Subwoofer Output with adjustable crossover frequency control
- Seven EQ Bands with ±12dB Boost/Cut Adjustment
-
Blue Illuminated Control Knobs for easy operation and custom appearance
-
Input Level Control Adjustment for proper signal matching
-
Front-to-Rear Fader Control for sound stage adjustment
-
Subwoofer Level Control for convenient bass adjustment
- Selectable Subwoofer Crossover Frequencies (60Hz / 80Hz / 120Hz)
-
Included Mounting Hardware for easy installation
Advanced Audio Tuning Control

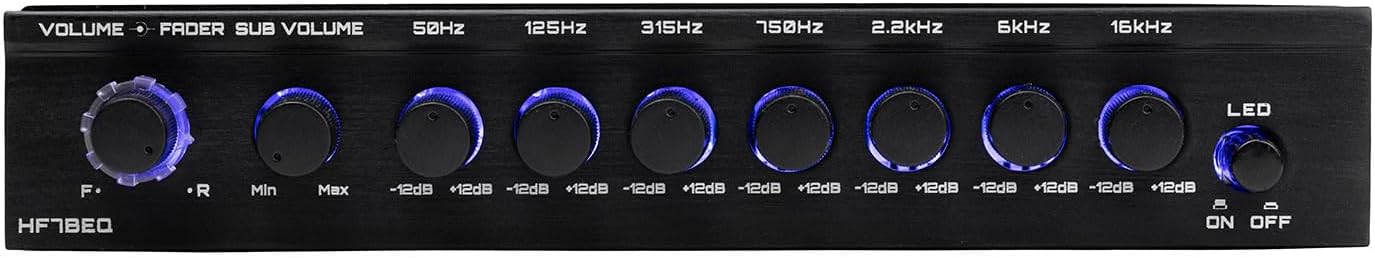

The Hifonics HF7BEQ gives audio enthusiasts the ability to fine-tune their system by adjusting seven dedicated frequency bands: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 16kHz. Each band can be adjusted by up to ±12dB, allowing you to enhance bass impact, improve vocal clarity, and balance high-frequency detail.
The integrated crossover section provides additional control over your subwoofer performance, while the selectable inputs allow easy switching between RCA, high-level, and AUX sources. This makes the HF7BEQ a versatile upgrade for both factory and custom audio systems.
Specifications
-
Brand: Hifonics
-
Model: HF7BEQ
-
Type: 7-Band Parametric Equalizer / Crossover Processor
-
Chassis Size: Half DIN
-

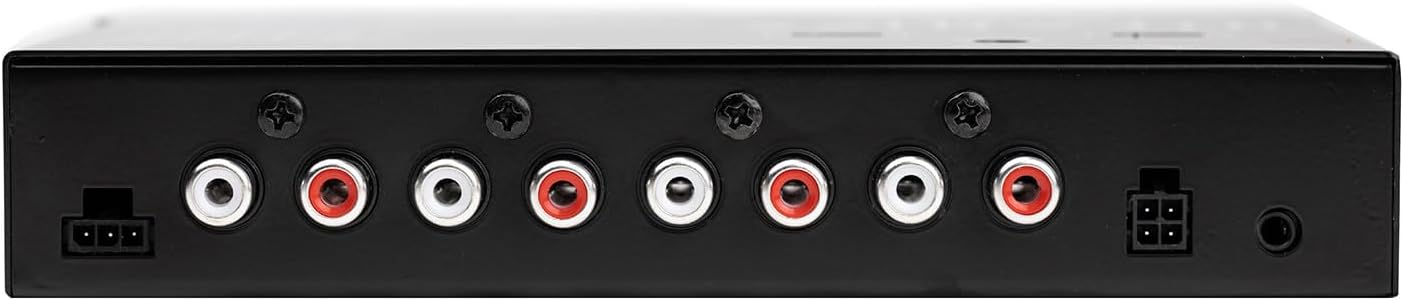

Output Channels: Front / Rear / Subwoofer
-
Input Channels: RCA, High-Level Speaker Input, AUX 3.5mm
-
Equalizer Bands: 7
-
EQ Frequencies:
- 50Hz
- 125Hz
- 315Hz
- 750Hz
- 2.2kHz
- 6kHz
- 16kHz
-
EQ Adjustment: ±12dB
-
Maximum Input Voltage: >10V
-
Maximum Output Voltage: >9V
-
Signal-to-Noise Ratio: >100dB
-
Channel Separation: >80dB
-
THD: 0.01% at 1kHz / 1V
-
Frequency Response: 10Hz–50kHz
-
Subwoofer Crossover: 60Hz / 80Hz / 120Hz
-
Crossover Slope: 12dB/Octave
-
Warranty: 1 Year
Why Choose the Hifonics HF7BEQ?
The Hifonics HF7BEQ 7 Band Parametric Equalizer is an ideal solution for drivers who want professional-level control over their car audio system. With multiple inputs, dedicated subwoofer processing, powerful EQ adjustments, and flexible output options, it provides the tools needed to create a balanced, louder, and more refined listening experience.
