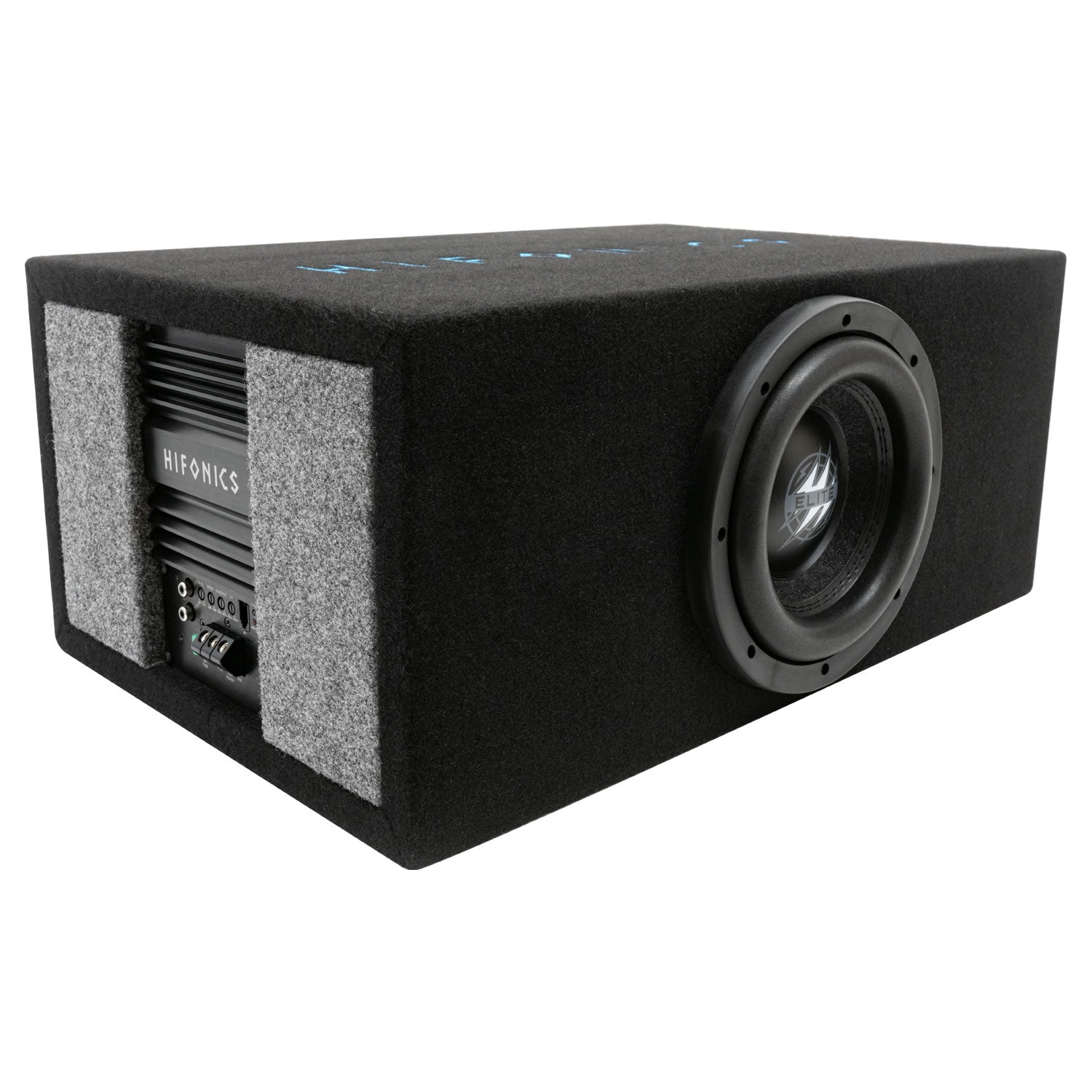

Hifonics HEW8D4-500P Elite 8" Powered Loaded Ported Subwoofer Enclosure – 500 Watts
Add powerful bass to your vehicle with the Hifonics HEW8D4-500P Elite 8" Powered Loaded Ported Subwoofer System. Designed as a complete bass solution, this compact enclosure combines an 8-inch dual voice coil subwoofer with a built-in 500-watt Class-D amplifier inside a tuned ported MDF enclosure. It delivers strong low-frequency performance while eliminating the need for a separate amplifier installation.
The HEW8D4-500P is ideal for drivers who want a simple, space-efficient bass upgrade. Its loaded ported enclosure design provides enhanced bass response, while the integrated amplifier offers dedicated power and tuning controls for a customized listening experience.
Key Features
-
500 Watts Built-In Class-D Amplifier Power for powerful bass output
-
8" Elite Series Dual Voice Coil Subwoofer pre-installed in enclosure
-

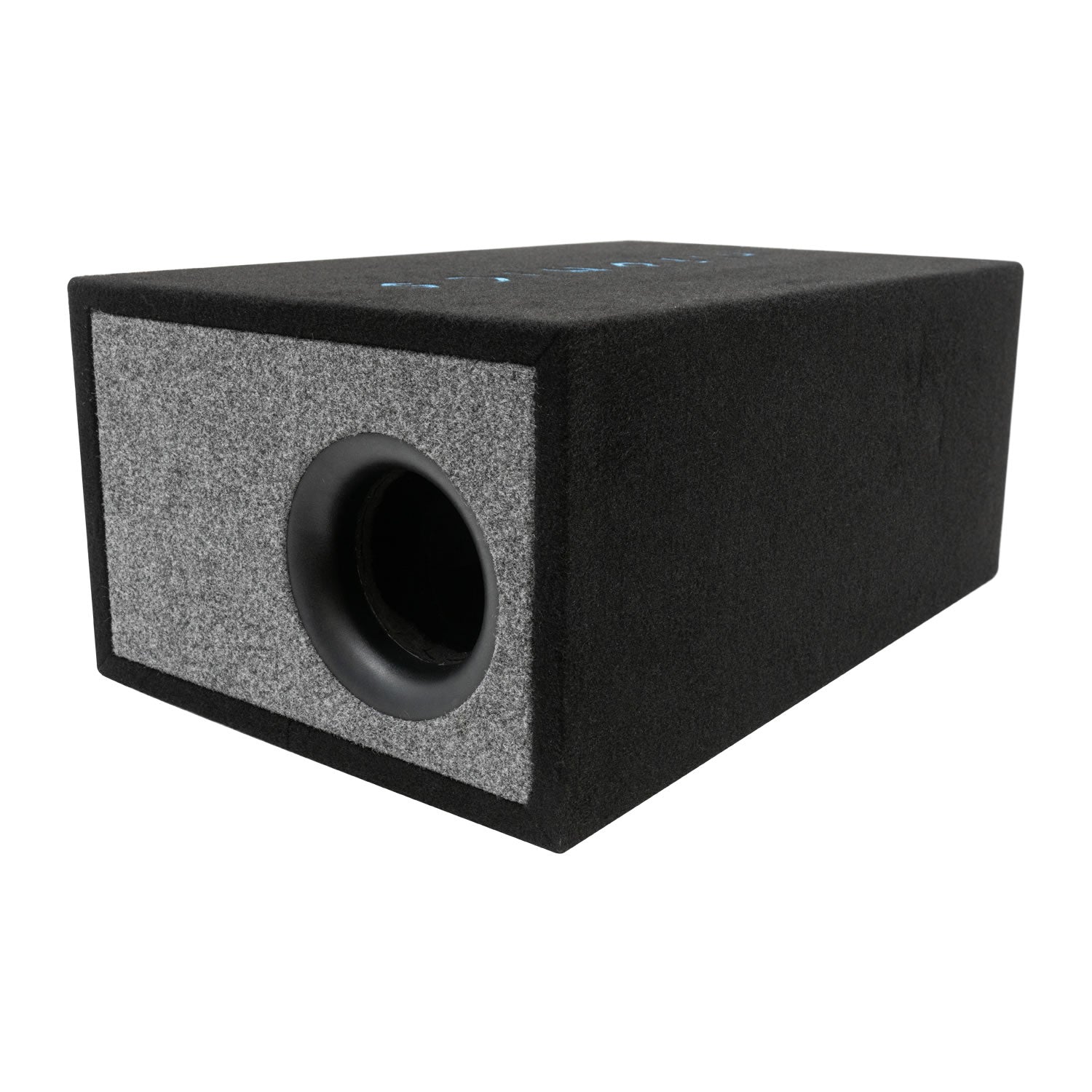

Loaded Ported MDF Enclosure for improved low-frequency performance
-
Dual 4 Ohm Voice Coil Design for efficient amplifier matching
- 500W RMS Power Output @ 2 Ohms
- 250W RMS Power Output @ 4 Ohms
-

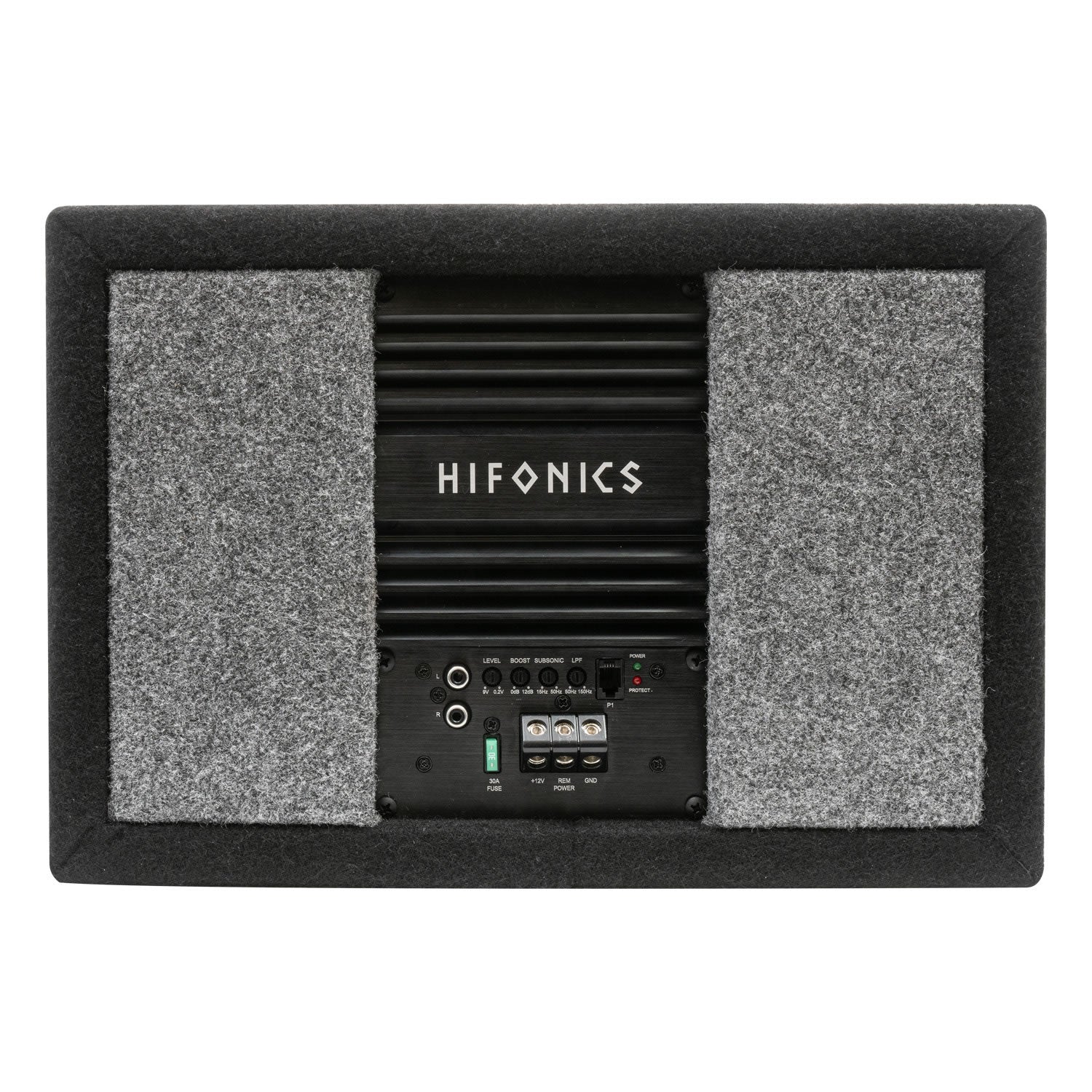

Built-in Mono Class-D Amplifier for space-saving installation
-
Variable Low-Pass Crossover (50Hz–150Hz) for precise bass tuning
-
Adjustable Bass Boost (0–12dB) for customized low-end impact
-
Subsonic Filter (15Hz–50Hz) to control unwanted ultra-low frequencies
-
Included Wired Bass Remote Control for convenient adjustment from the driver’s seat
-
Speaker-level inputs via RCA for compatibility with factory audio systems
-
Rugged MOSFET PWM power supply for efficient amplifier performance
-
LED protection diagnostics for overload and speaker protection
-
Nickel-plated RCA connections for reliable signal transfer
Powerful Bass in a Compact Package
The Hifonics HEW8D4-500P combines the convenience of a powered subwoofer with the performance of a dedicated bass system. The built-in amplifier is matched to the included 8-inch Elite subwoofer, creating an optimized setup that saves installation time and valuable vehicle space.
The ported enclosure design helps maximize bass output, while the durable subwoofer construction—including a heavy-duty aluminum basket, dual poly cotton spider, vented aluminum voice coil former, and stitched foam surround—helps provide reliable performance during demanding listening sessions.
Specifications
-
Brand: Hifonics
-
Series: Elite
-
Model: HEW8D4-500P
-
Type: Powered Loaded Ported Subwoofer Enclosure
-
Subwoofer Size: 8 Inches
-
Voice Coil Configuration: Dual Voice Coil
-
Voice Coil Impedance: Dual 4 Ohm
-
Amplifier Class: Class-D Mono Block
-
Maximum/Rated Amplifier Power: 500 Watts
-
Power Output:
- 500W x 1 @ 2 Ohms
- 250W x 1 @ 4 Ohms
-
Frequency Response: 15Hz–160Hz
-
Sensitivity: 80dB
-
Low-Pass Crossover: 50Hz–150Hz
-
Subsonic Filter: 15Hz–50Hz
-
Bass Boost: 0–12dB
-
Input Sensitivity: 0.2V–9V
-
Signal-to-Noise Ratio: >100dB
-
Fuse Rating: 30A
-
Recommended Power/Ground Wire: 8 AWG
-
Enclosure Type: Ported MDF
-
Enclosure Dimensions: 19.25" W x 13.5" H x 19.25" D
-
Warranty: 1 Year
Why Choose the Hifonics HEW8D4-500P?
The Hifonics HEW8D4-500P Elite Powered Subwoofer System is a complete bass upgrade for anyone looking for powerful sound without the complexity of installing separate subwoofers and amplifiers. With a matched 8-inch subwoofer, built-in Class-D amplifier, ported enclosure design, and convenient remote bass control, it delivers deep, controlled bass in a compact and installation-friendly package.
