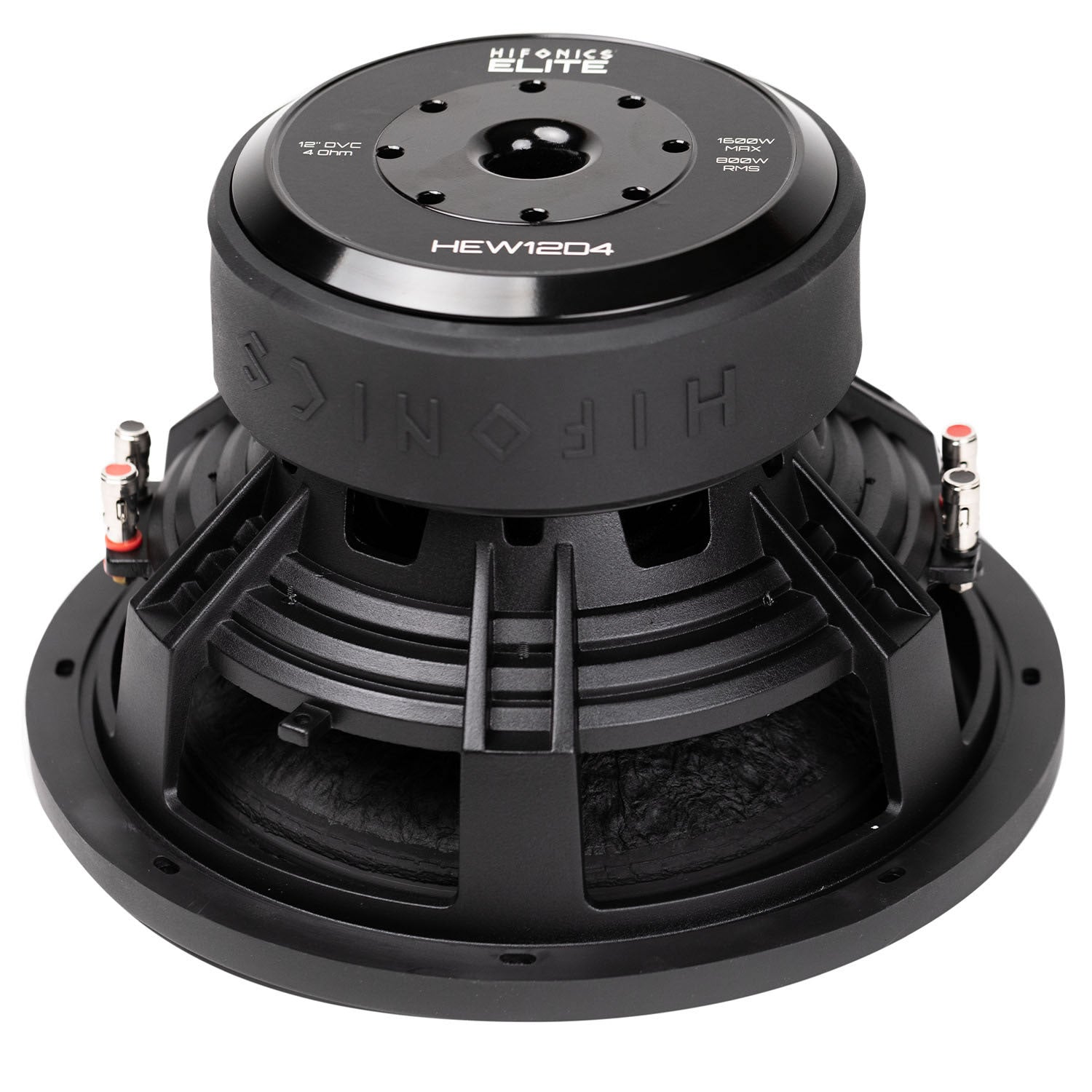

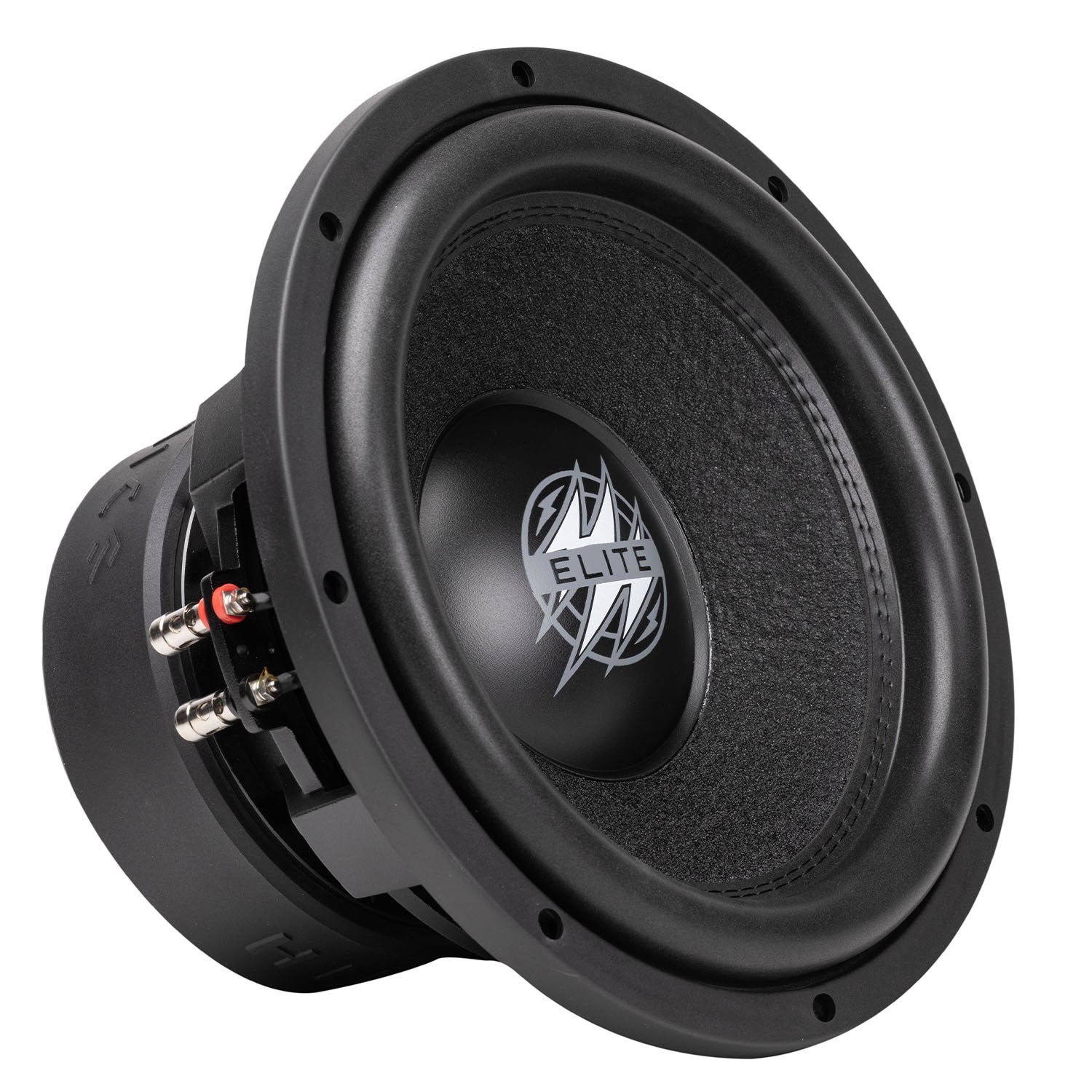

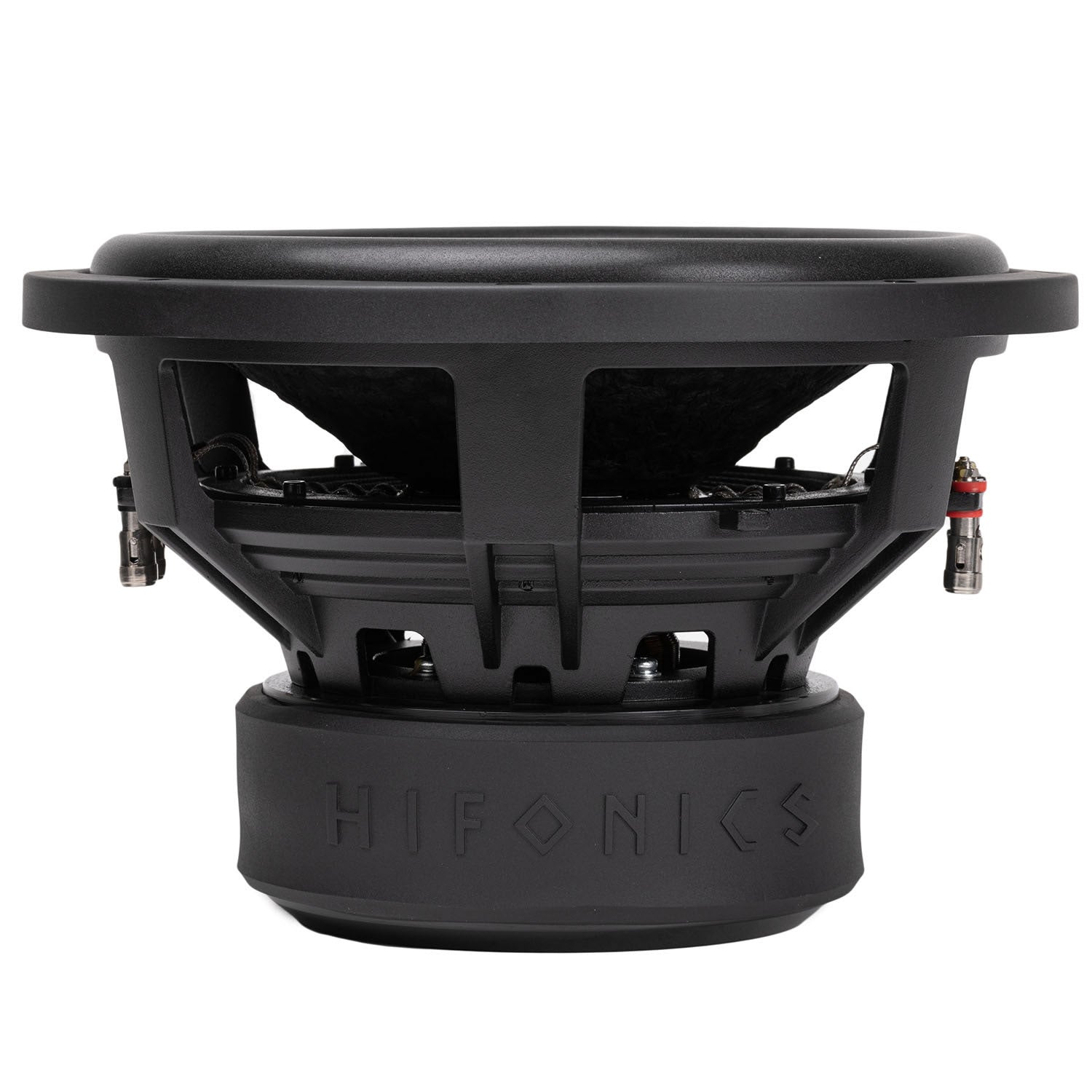

Hifonics HEW12D4 Elite 12" Dual Voice Coil 4 Ohm Subwoofer – 1600 Watts
Experience powerful, deep bass with the Hifonics HEW12D4 Elite 12" Dual Voice Coil 4 Ohm Subwoofer. Designed for serious car audio enthusiasts, this high-performance subwoofer delivers 1,600 watts peak power handling and 800 watts RMS power handling, providing impressive low-frequency output with the durability and reliability needed for custom bass systems.
The HEW12D4 features a dual 4-ohm voice coil configuration for flexible amplifier matching and a rugged Elite Series design built for high-output applications. With a heavy-duty aluminum die-cast basket, vented motor assembly, and advanced cooling components, this subwoofer is engineered to handle demanding playback while maintaining controlled, accurate bass response.
Key Features
-
1600 Watts Maximum Power Handling for powerful bass performance
-
800 Watts RMS Power Handling for reliable continuous output
-
12" Elite Series Subwoofer Design for deep and impactful low frequencies
-
Dual 4 Ohm Voice Coil Configuration for flexible wiring options
-
3" High-Temperature Voice Coil for improved thermal stability
-
Vented Aluminum Voice Coil Former to improve heat dissipation and reduce distortion
-
Double-Stacked Ferrite Magnet Structure for increased motor strength
-
High-Energy Vented Motor Assembly for enhanced cooling and power handling
-
Heavy-Duty Aluminum Die-Cast Basket for strength, durability, and improved airflow
-
Polypropylene Cone for accurate and durable bass reproduction
-
Pressure-Treated Double-Stitched Foam Surround for long-lasting flexibility
-
Dual Poly Cotton Spider System for controlled cone movement and reduced distortion
-
Push & Insert Terminals for secure and convenient wiring
-
Compatible with Medium Sealed to Large Vented Enclosures for installation flexibility
Powerful Bass Built for Custom Systems
The Hifonics HEW12D4 Elite subwoofer is designed to deliver the hard-hitting bass performance expected from a premium 12-inch woofer. Its large cone area, reinforced suspension system, and high-energy motor structure provide strong output while maintaining accurate bass response across a wide range of music styles.
The dual voice coil design gives installers greater flexibility when selecting amplifier configurations, allowing the subwoofer to be matched with a variety of mono block amplifiers and custom audio builds.
Specifications
-
Brand: Hifonics
-
Series: Elite
-
Model: HEW12D4
-
Subwoofer Size: 12 Inches
-
Voice Coil Configuration: Dual Voice Coil
-
Voice Coil Impedance: Dual 4 Ohm
-
Power Handling:
- 800 Watts RMS
- 1600 Watts Peak
-
Sensitivity: 85dB–85.3dB
-
Voice Coil Diameter: 3 Inches
-
Cone Material: Polypropylene
-
Surround Material: Double-Stitched Foam
-
Magnet Type: Double-Stacked Ferrite
-
Xmax: 20mm
-
Mounting Depth: 7.32 Inches
-
Cutout Diameter: 11.4 Inches
-
Outside Diameter: 13 Inches
-
Weight: Approximately 27.4 lbs
-
Recommended Enclosure: Medium Sealed to Large Vented
-
Warranty: 1 Year
Why Choose the Hifonics HEW12D4?
The Hifonics HEW12D4 Elite 12" Subwoofer combines high power handling, durable construction, and flexible installation options for enthusiasts who want serious bass performance. With its reinforced design, efficient cooling system, and dual voice coil flexibility, it is an excellent choice for building a powerful custom car audio system.
Bring your vehicle’s bass system to life with the Hifonics HEW12D4 Elite — engineered for listeners who demand deep, aggressive, and reliable low-frequency performance.
