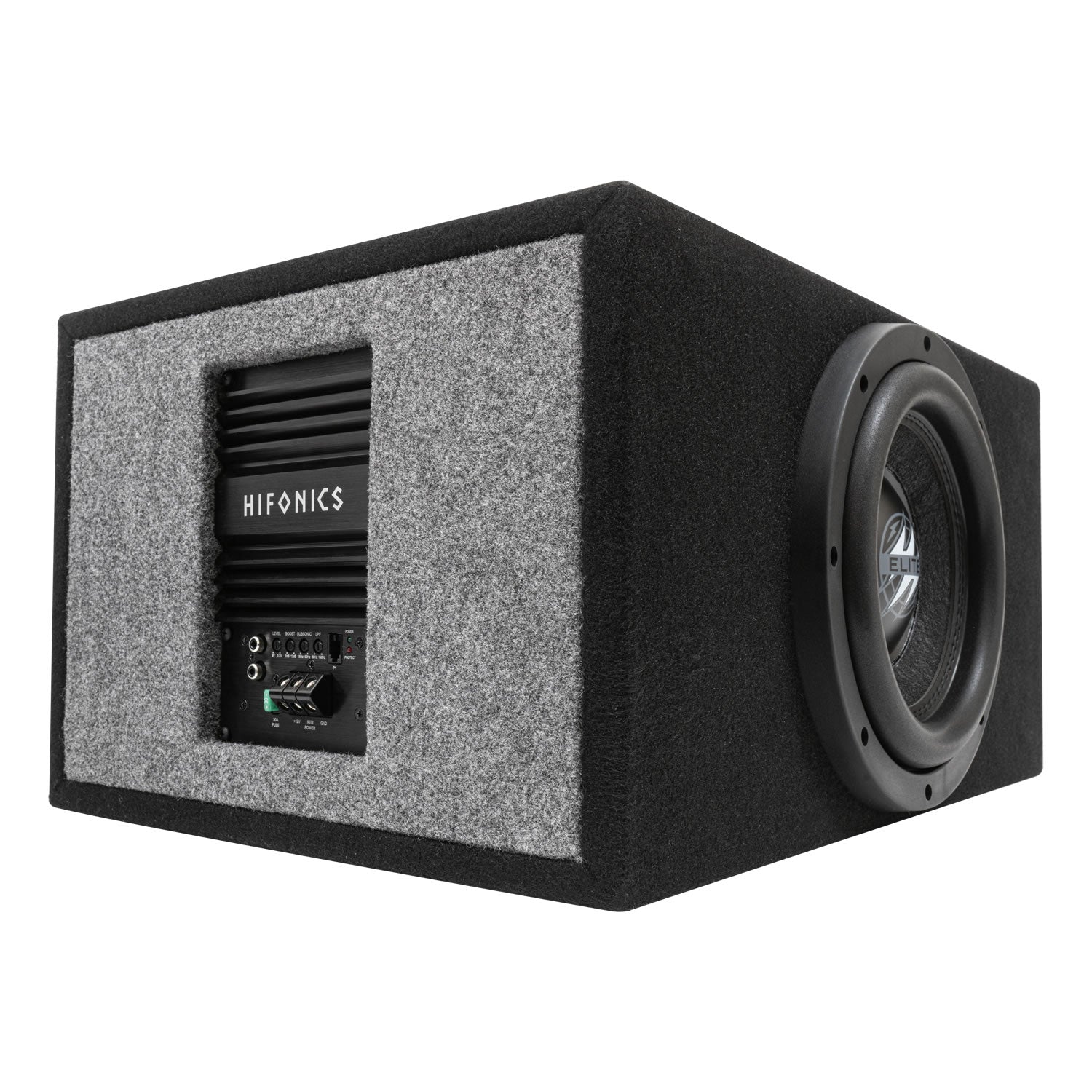

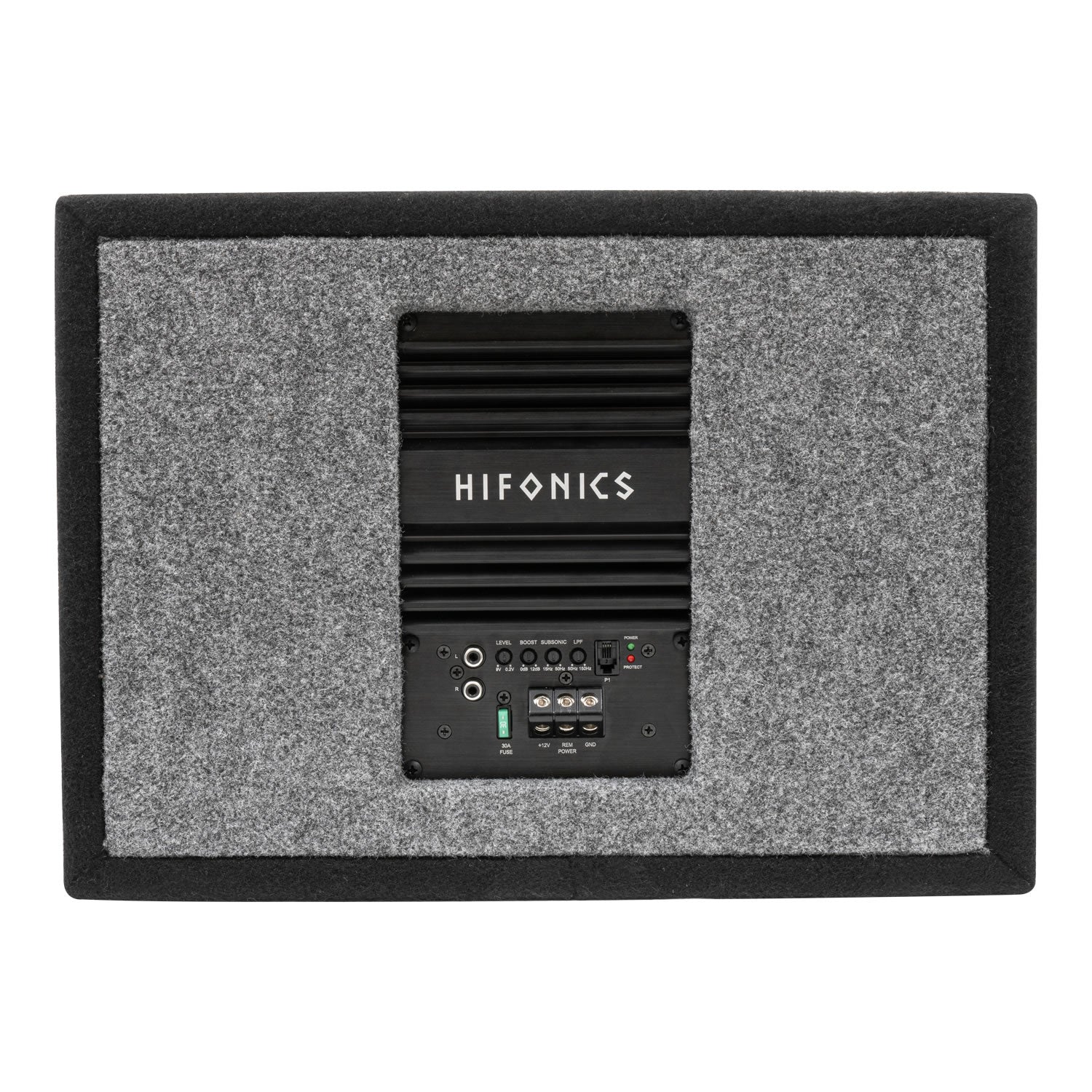

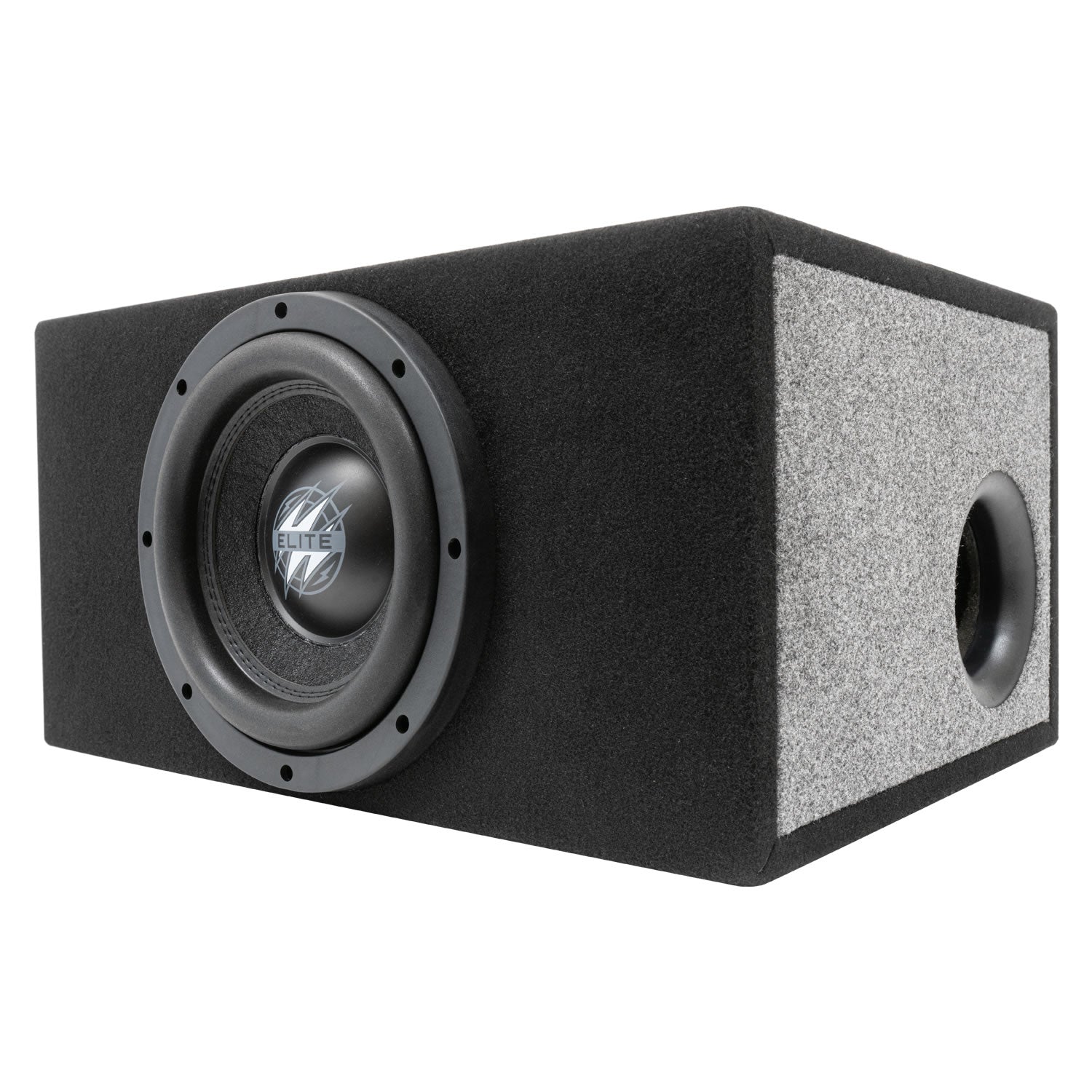

Hifonics HEW10D4-500P Elite 10" Powered Loaded Ported Subwoofer Enclosure – 500 Watts
Upgrade your vehicle’s audio system with the Hifonics HEW10D4-500P Elite 10" Powered Loaded Ported Subwoofer System. Designed as a complete bass solution, this all-in-one enclosure combines a 10-inch dual voice coil subwoofer with a built-in 500-watt Class-D mono amplifier inside a tuned ported MDF enclosure for powerful, efficient bass performance.
The HEW10D4-500P is engineered for enthusiasts who want deep bass without the complexity of installing a separate amplifier and enclosure. The matched subwoofer and amplifier work together to provide strong low-frequency output, flexible tuning controls, and a clean installation solution for a wide range of vehicles.
Key Features
-
500 Watts Maximum Amplifier Output for powerful bass performance
-
10" Elite Series Dual Voice Coil 4 Ohm Subwoofer pre-installed in enclosure
-
Built-In Class-D Mono Amplifier for efficient power delivery
-
Ported and Tuned MDF Enclosure for enhanced bass response and output
-
500W x 1 @ 2 Ohms amplifier output capability
-
250W x 1 @ 4 Ohms amplifier output capability
-
Variable Low-Pass Crossover (50Hz–150Hz) for precise bass adjustment
-
Adjustable Bass Boost (0–12dB) for customized low-end impact
-
Subsonic Filter (15Hz–50Hz) to control unwanted ultra-low frequencies
-
Included Wired Bass Remote Control for convenient adjustment from the driver’s seat
-
Speaker-level inputs via RCA for compatibility with factory audio systems
-
Heavy-duty MOSFET PWM power supply for efficient amplifier operation
-
LED protection indicators for overload and speaker protection
-
8 AWG power and ground wiring recommendation for installation reliability
Deep Bass in a Complete System
The Hifonics HEW10D4-500P combines a high-performance Elite Series subwoofer with a dedicated built-in amplifier, creating an optimized bass package that saves installation time and space. The ported enclosure design increases efficiency and helps deliver stronger low-frequency impact compared with many compact sealed systems.
The included 10-inch subwoofer features a durable polypropylene cone, double-stitched foam surround, dual poly cotton spider assembly, vented aluminum voice coil former, and heavy-duty aluminum die-cast basket for improved reliability and controlled cone movement during high-output playback.
Specifications
-
Brand: Hifonics
-
Series: Elite
-
Model: HEW10D4-500P
-
Type: Powered Loaded Ported Subwoofer Enclosure
-
Subwoofer Size: 10 Inches
-
Voice Coil Configuration: Dual Voice Coil
-
Voice Coil Impedance: Dual 4 Ohm
-
Amplifier Type: Class-D Mono Block
-
Maximum Amplifier Power: 500 Watts
-
Power Output:
- 500W x 1 @ 2 Ohms
- 250W x 1 @ 4 Ohms
-
Subwoofer RMS Power Handling: 500 Watts
-
Frequency Response: 15Hz–160Hz
-
Sensitivity: 80dB
-
Low-Pass Crossover: 50Hz–150Hz
-
Subsonic Filter: 15Hz–50Hz
-
Bass Boost: 0–12dB
-
Input Sensitivity: 0.2V–9V
-
Signal-to-Noise Ratio: >100dB
-
Fuse Rating: 30A
-
Recommended Power Wire: 8 AWG
-
Enclosure Type: Tuned Ported MDF
-
Enclosure Dimensions: Approximately 21" W x 15.5" H x 21" D
-
Weight: Approximately 69.55 lbs
-
Warranty: 1 Year
Why Choose the Hifonics HEW10D4-500P?
The Hifonics HEW10D4-500P Elite Powered Subwoofer System is an ideal choice for drivers looking for a powerful bass upgrade in a convenient, ready-to-install package. With its built-in Class-D amplifier, tuned ported enclosure, adjustable bass controls, and rugged Elite Series construction, it delivers impressive bass performance while simplifying installation.
Add the impact of a dedicated subwoofer system without the need to purchase and match separate components—the Hifonics HEW10D4-500P provides a complete solution built for serious car audio performance.
