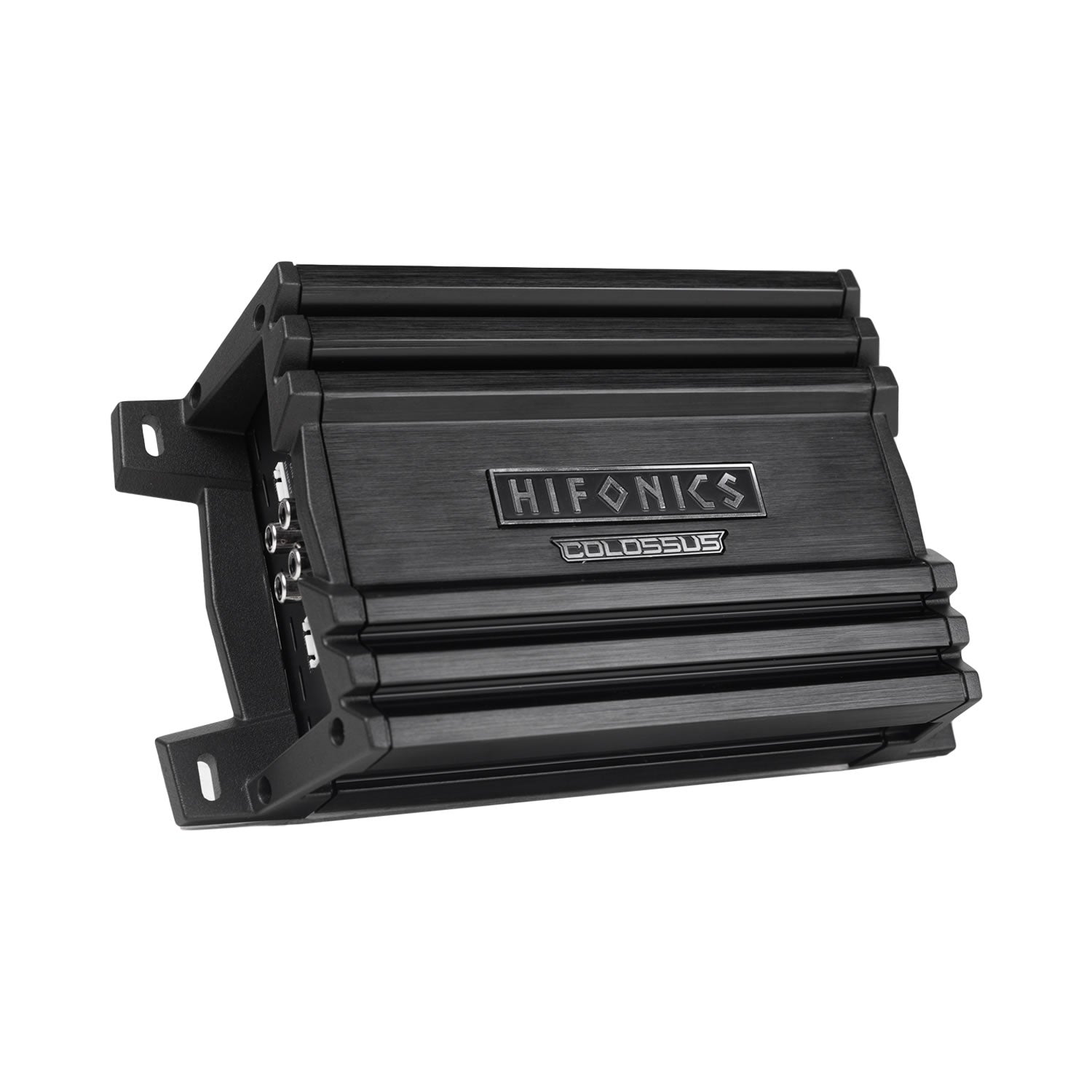

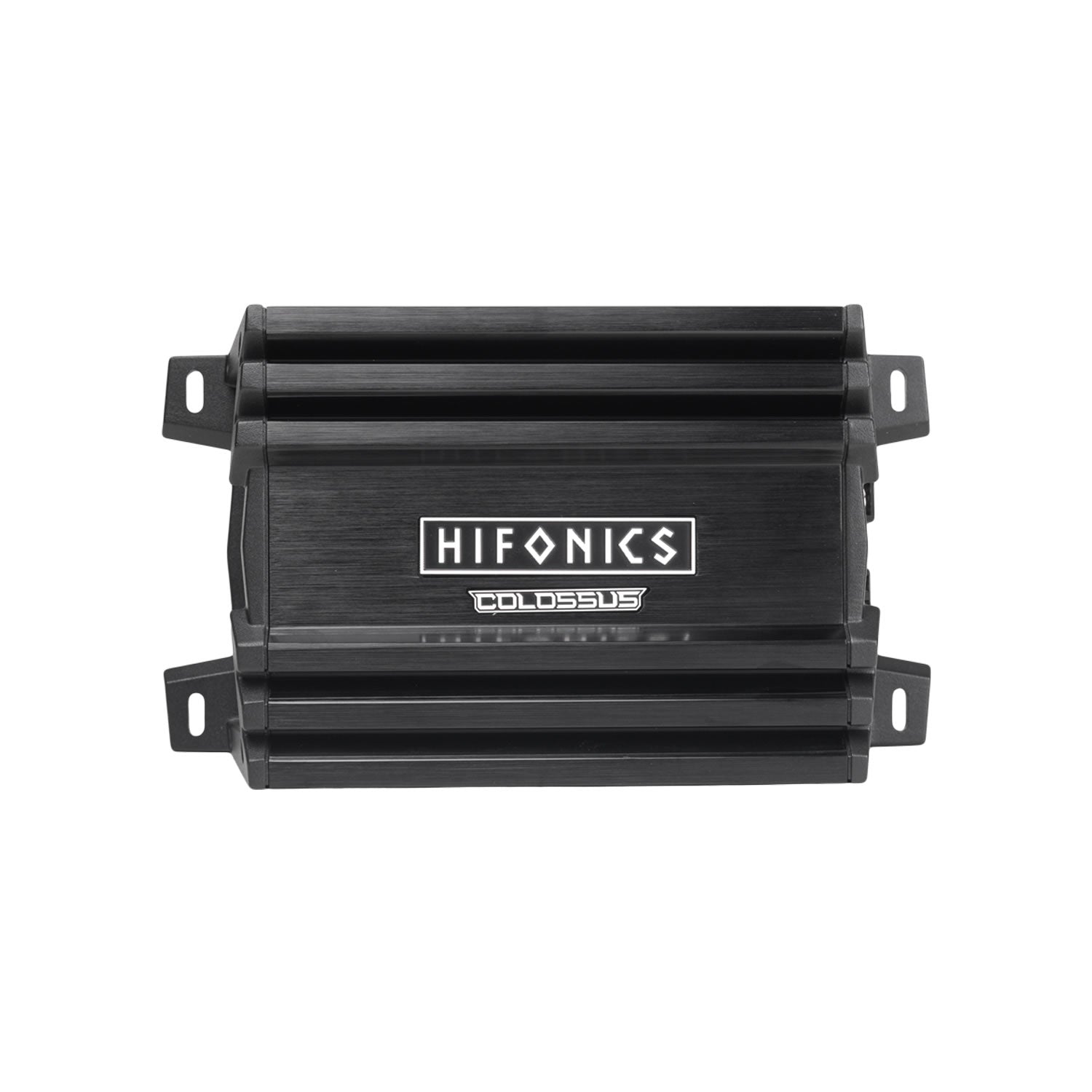

Hifonics HCM-400.4D Colossus Mini Ultra Compact 4 Channel Full Range Amplifier – 400 Watts
Upgrade your vehicle’s sound system with the Hifonics HCM-400.4D Colossus Mini Ultra Compact 4 Channel Full Range Amplifier. Designed to deliver clean, efficient power in a compact chassis, this Full Range Class-D 4-channel amplifier provides 400 watts of total output while fitting into installations where space is limited.
The HCM-400.4D is part of the Hifonics Colossus Mini amplifier series, engineered for automotive, motorcycle, UTV, and custom audio applications. Its efficient Class-D topology, compact footprint, and flexible 4-channel operation make it an excellent choice for powering full-range speakers while maintaining reliable performance.
Key Features
-
400 Watts Maximum Power Output for enhanced full-range audio performance
-
4 Channel Full Range Class-D Design for efficient power delivery
-
Ultra-Compact Colossus Mini Chassis for space-saving installations
-
4 x 100 Watts RMS @ 2 Ohms for high-output speaker setups
-
4 x 50 Watts RMS @ 4 Ohms for standard speaker configurations
-
2 x 200 Watts RMS Bridged @ 4 Ohms for increased system flexibility
-

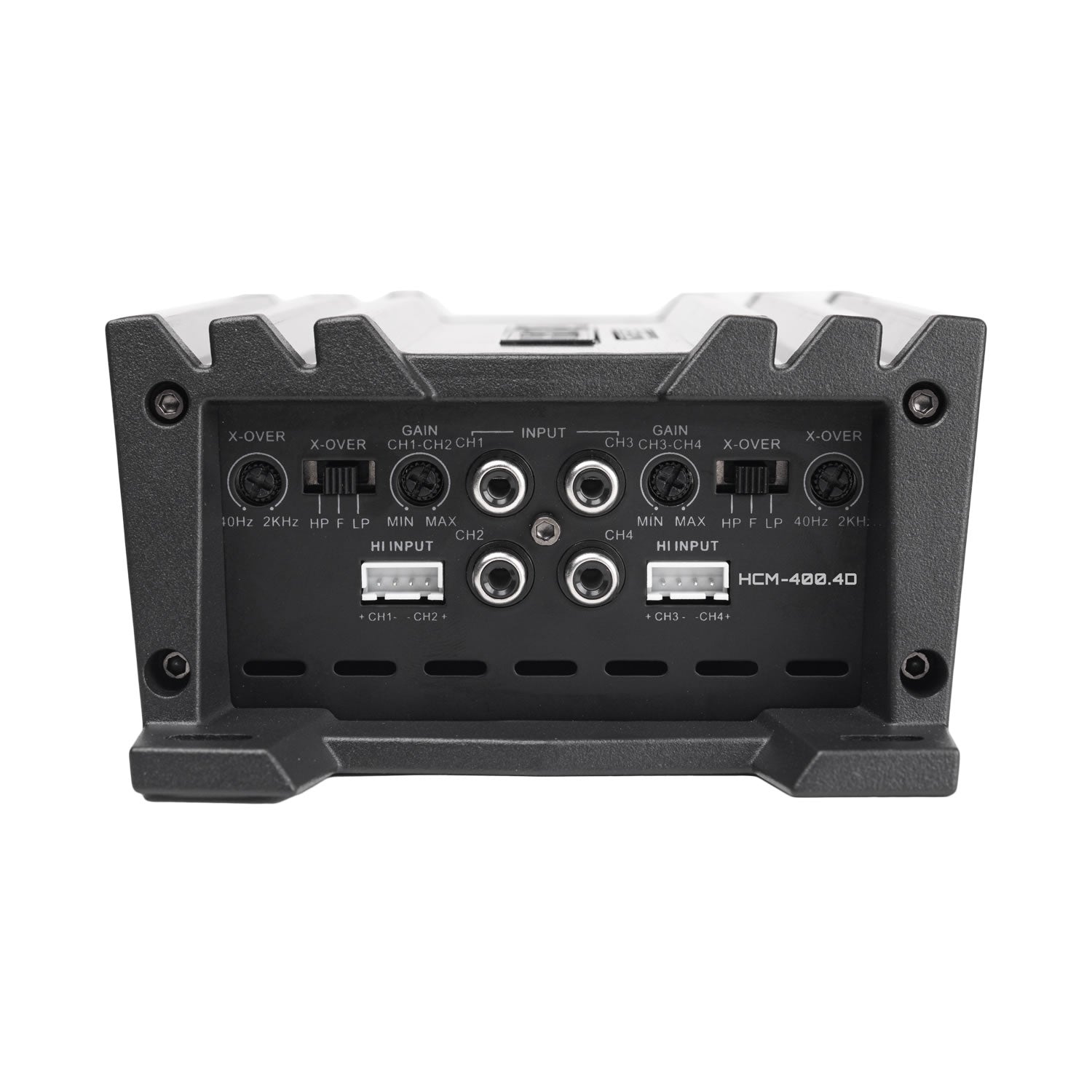

Variable Electronic Crossovers with 12dB per octave slope
-
Variable High-Pass Crossover: 15Hz–1kHz
-
Variable Low-Pass Crossover: 30Hz–2.5kHz
-
Built-in Bass Control for quick sound adjustment
-
High-Level Speaker Inputs for factory radio integration
-
Nickel-Plated RCA Inputs for dependable signal connection
-
Ultra-Fi MOSFET Output Devices for improved thermal performance and power handling
-
Mass-Loaded Extruded Aluminum Heat Sink for efficient cooling without fan noise
-
Delayed Turn-On Circuit to help reduce startup pops and noise
-
Triple Protection Circuitry including thermal, short circuit, and voltage protection
-

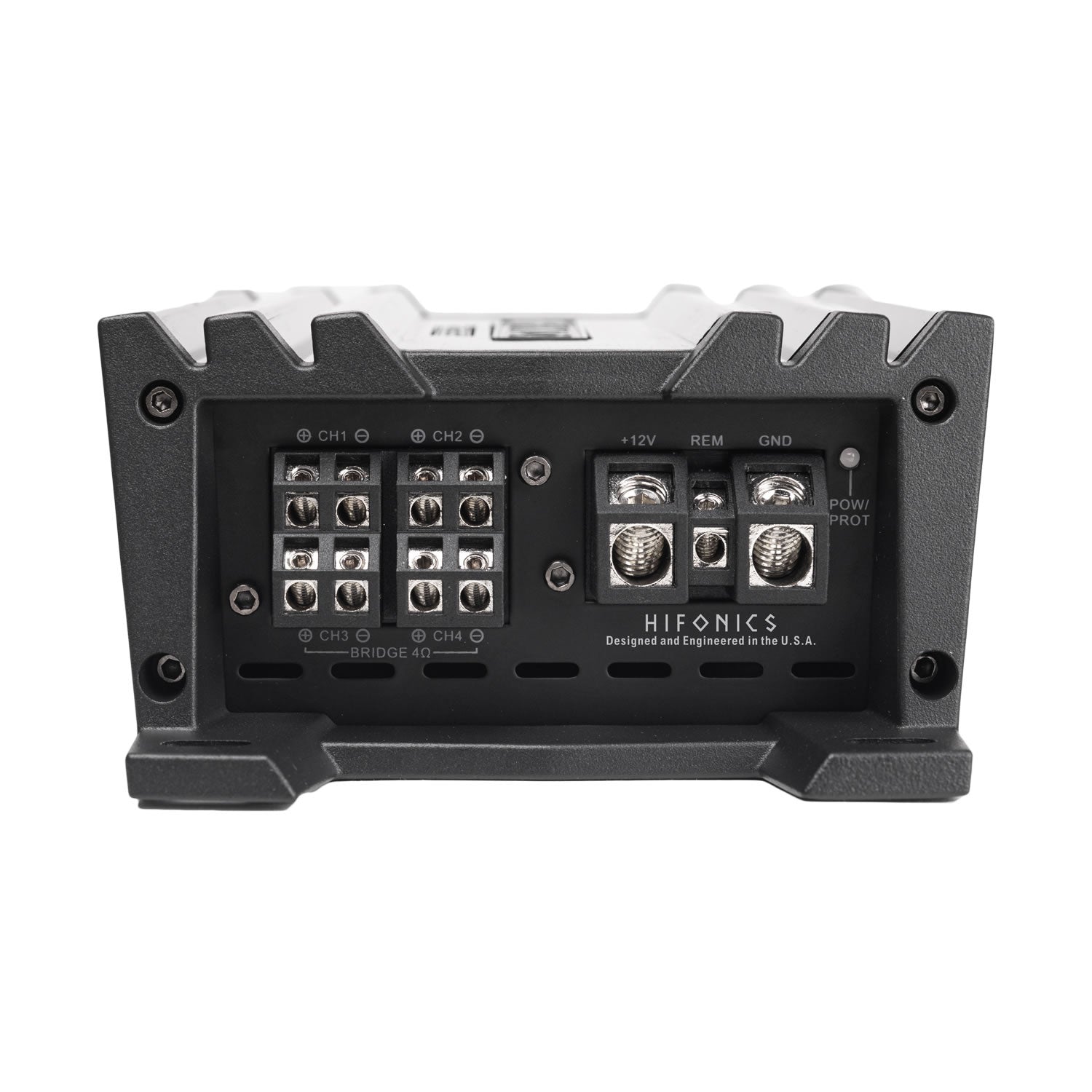

Angled Molded Terminals for cleaner installation and easier wire management
-
CNC-Machined Aluminum Badging for a premium appearance
Compact Power for Any Installation
The Hifonics HCM-400.4D delivers impressive performance from a small footprint, making it ideal for vehicles where amplifier mounting space is limited. Its Full Range Class-D design allows it to efficiently power a variety of speakers, including component systems, coaxial speakers, and pro-style audio drivers.
The amplifier supports multiple operating modes, allowing users to run a complete 4-channel speaker system or bridge channels for additional power when building a custom audio setup.
Specifications
-
Brand: Hifonics
-
Series: Colossus Mini
-
Model: HCM-400.4D
-
Amplifier Type: 4 Channel Full Range Class-D
-
Maximum Power Output: 400 Watts
-
Channels: 4
-
Power Output:
- 4 x 100W @ 2 Ohms
- 4 x 50W @ 4 Ohms
- 2 x 200W Bridged @ 4 Ohms
-
Frequency Response: 10Hz–25kHz
-
Signal-to-Noise Ratio: >85dB
-
Total Harmonic Distortion: <0.5%
-
Crossover Type: Variable Electronic 12dB/Octave
-
High-Pass Crossover: 15Hz–1kHz
-
Low-Pass Crossover: 30Hz–2.5kHz
-
Input Sensitivity: 0.2V–5V
-
Speaker Level Inputs: Yes
-
Power/Ground Wire Requirement: 4 AWG
-
Fuse Rating: External 40A
-
Dimensions: Approximately 9.3" x 5.28" x 2.72"
-
Weight: Approximately 3.75 lbs
-
Warranty: 1 Year
Why Choose the Hifonics HCM-400.4D?
The Hifonics HCM-400.4D Colossus Mini 4 Channel Amplifier combines compact installation flexibility with efficient Class-D power. Whether upgrading factory speakers, building a custom vehicle audio system, or adding high-performance sound to a motorcycle or UTV, this amplifier provides clean output, versatile tuning options, and dependable operation.
Small enough to fit almost anywhere, yet powerful enough to elevate your audio experience, the HCM-400.4D delivers the performance and reliability expected from the Hifonics Colossus Mini series.
