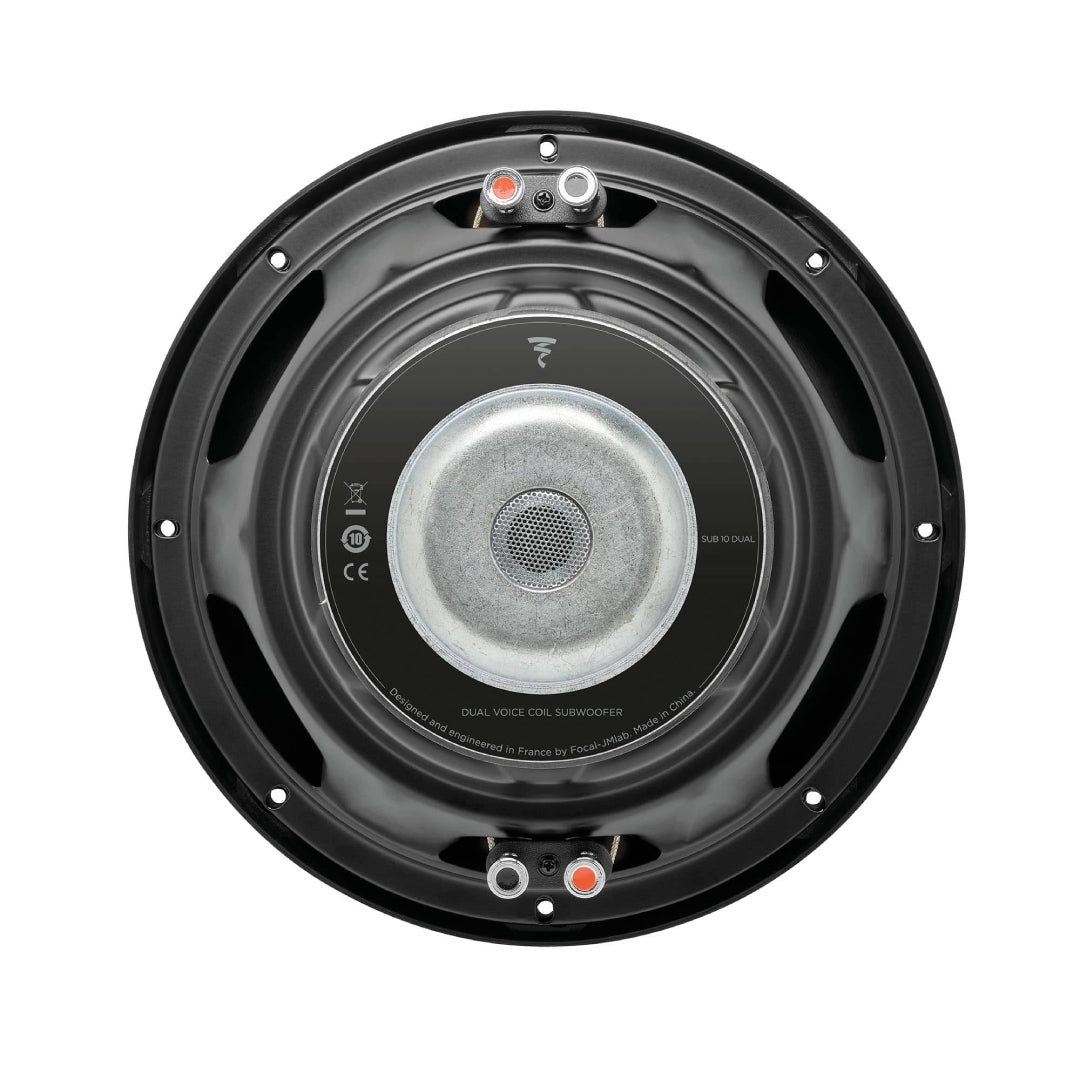

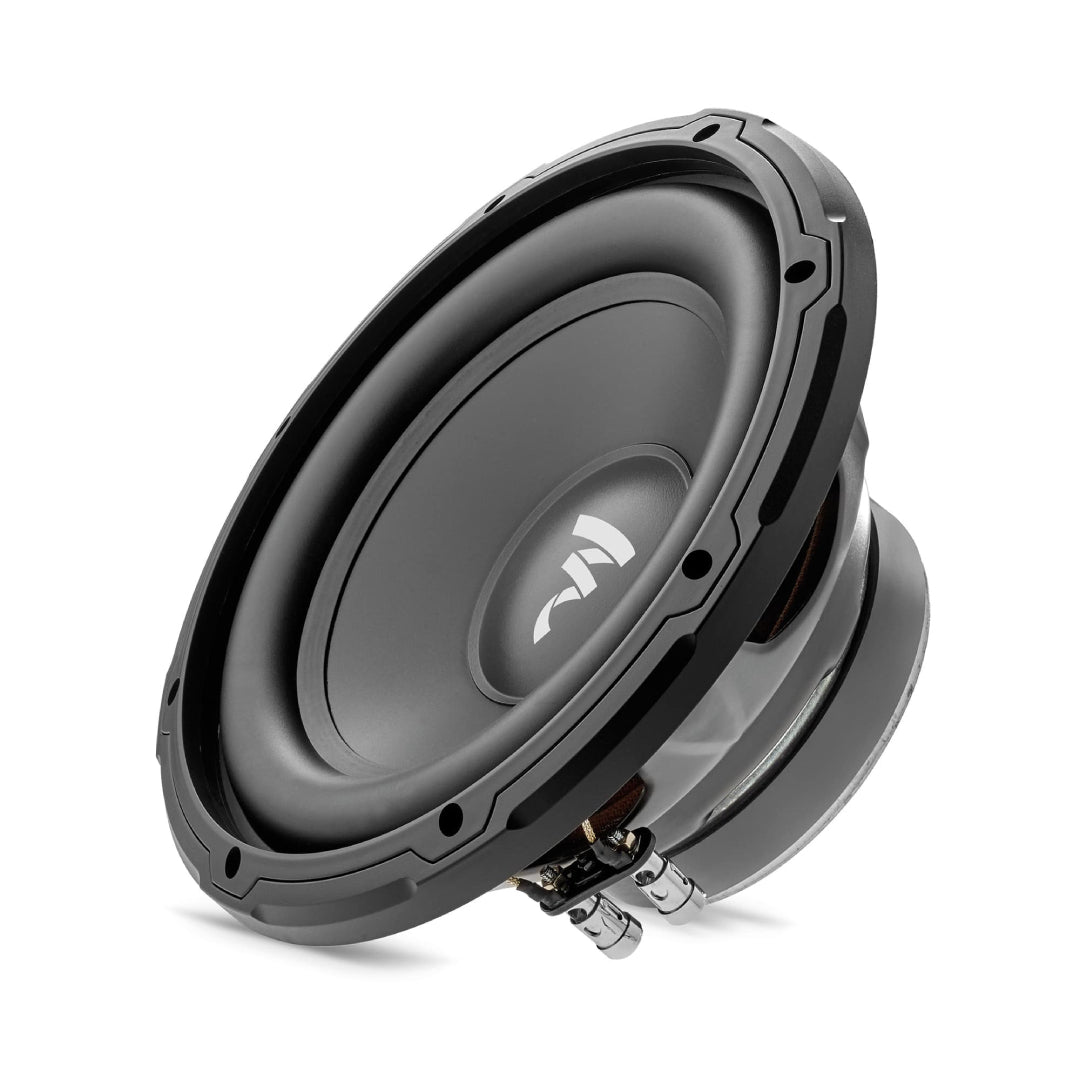

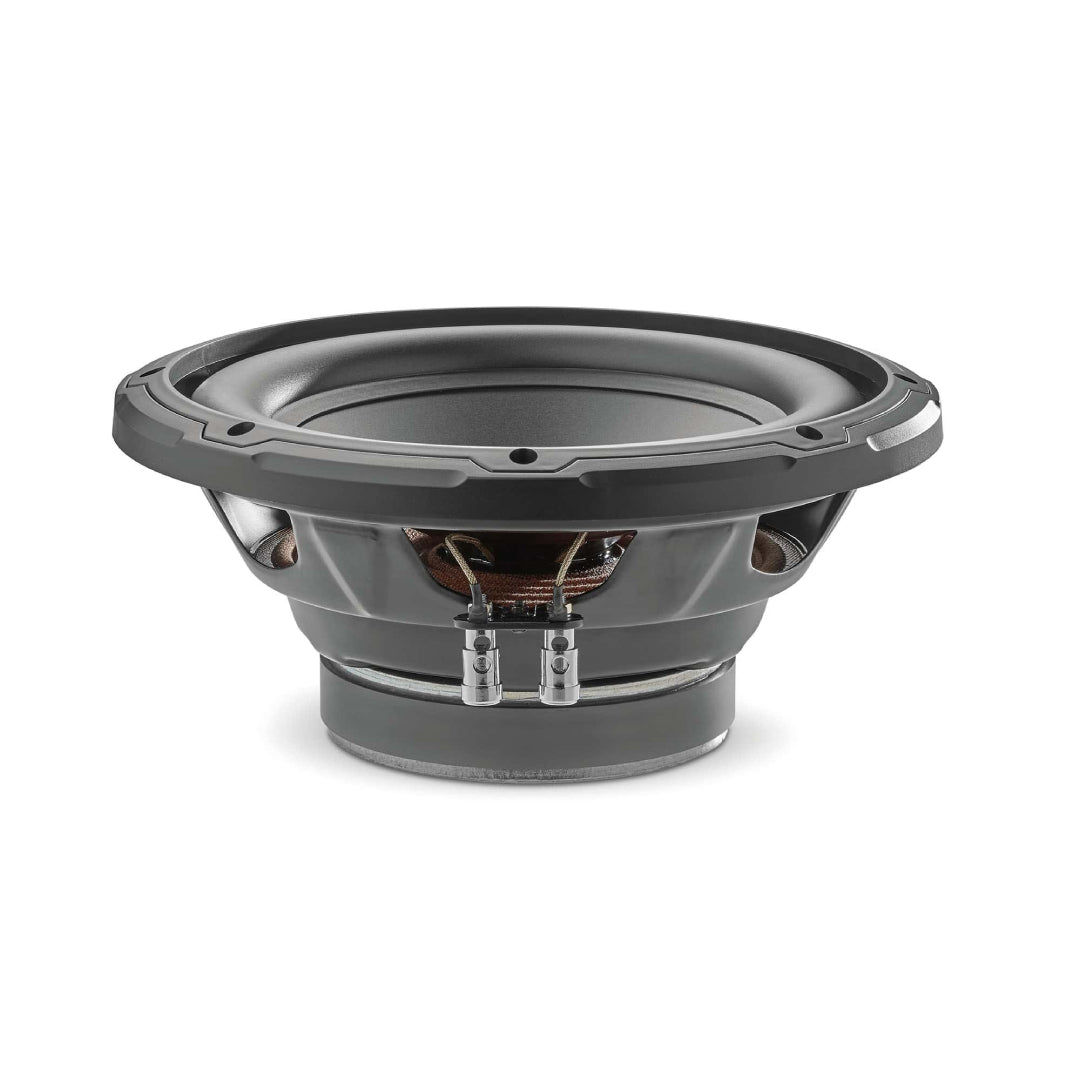

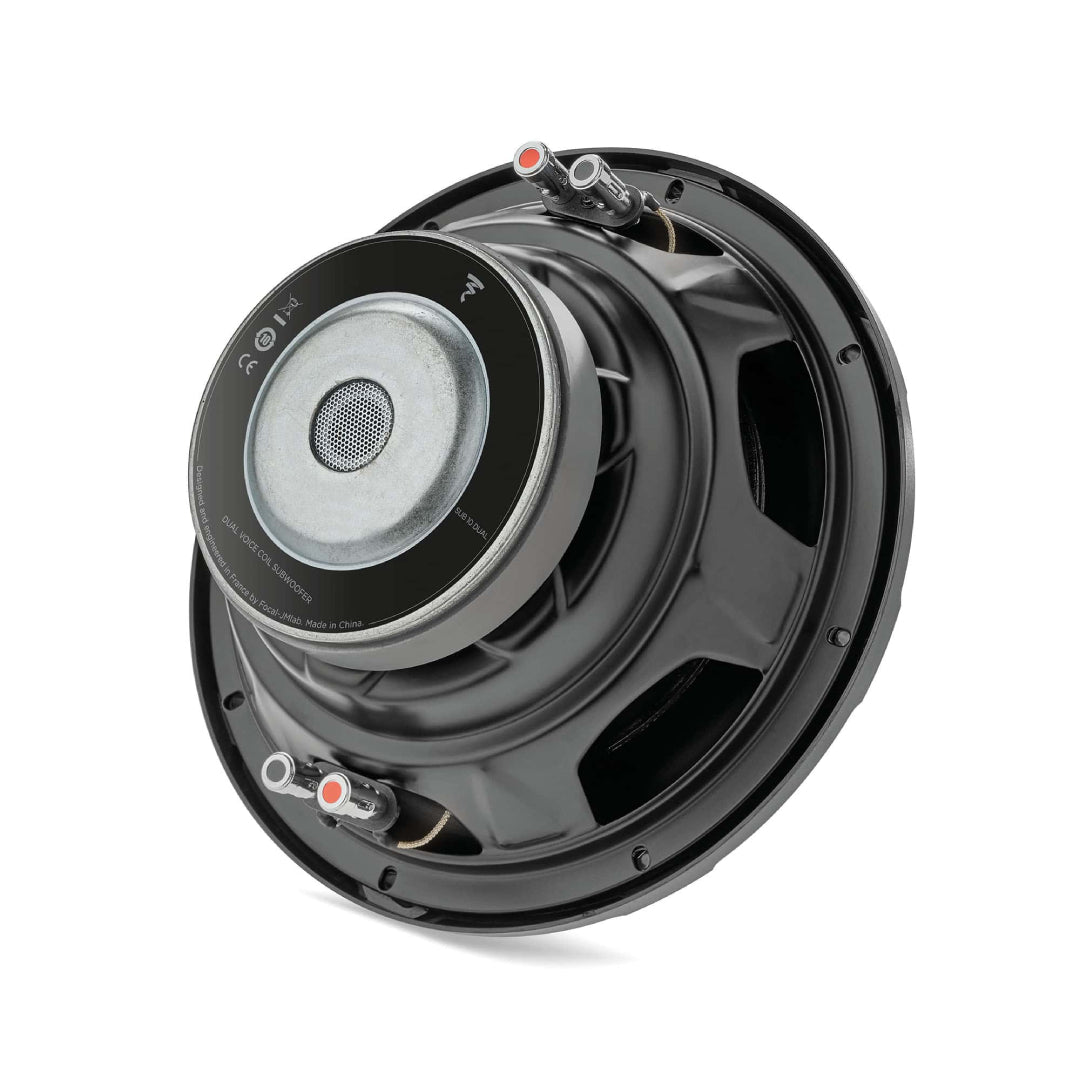

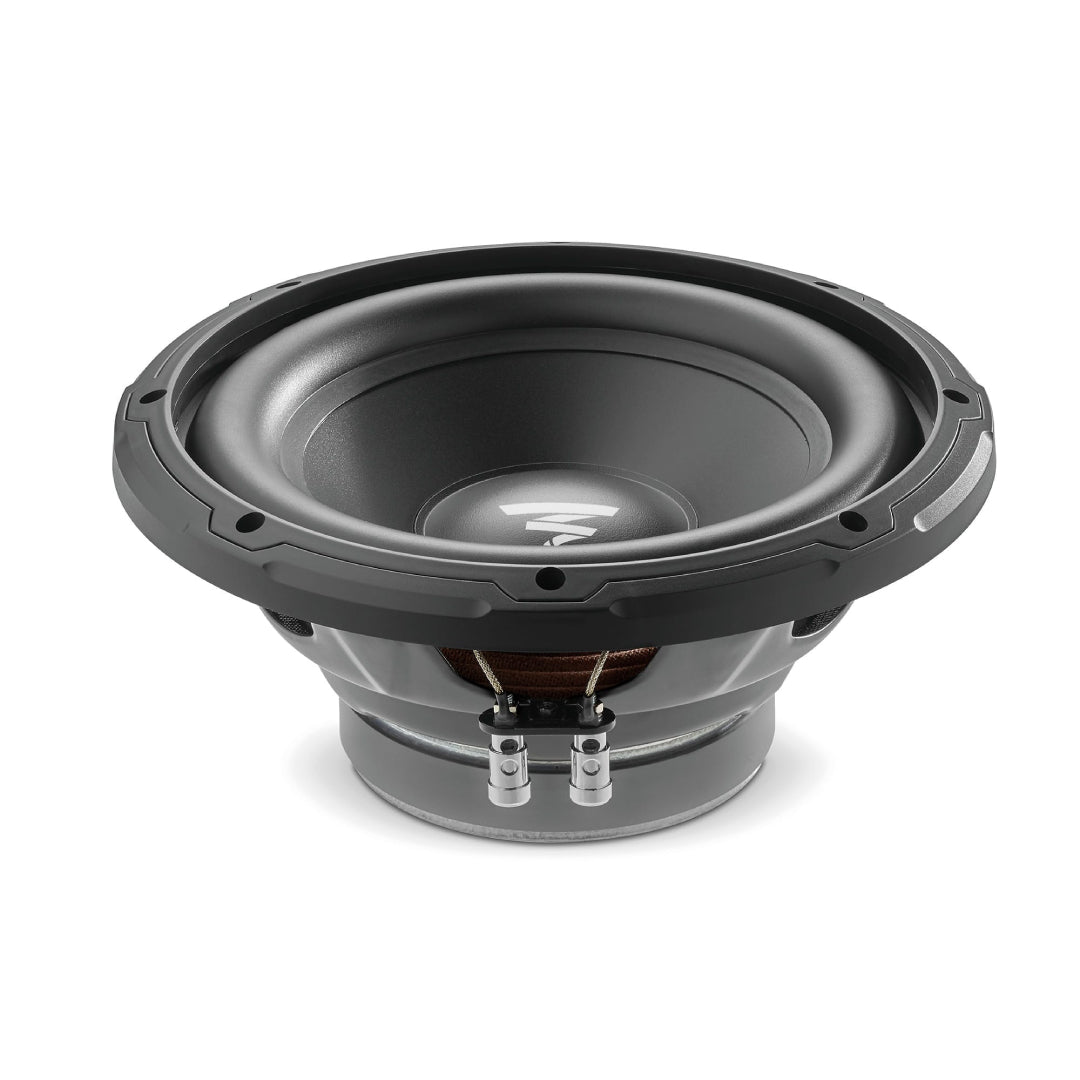

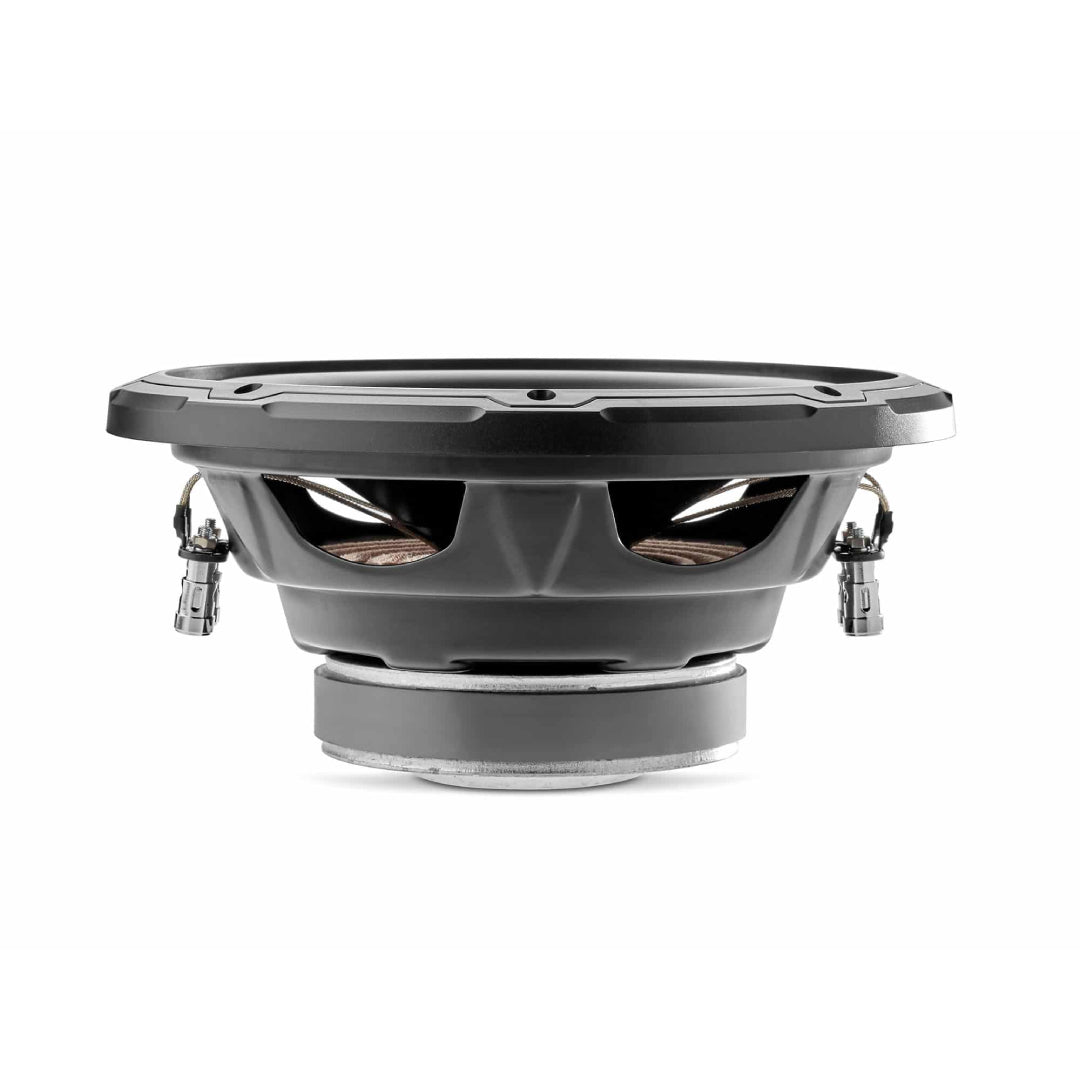

10″ Double Voice Coil Subwoofer
Designed and developed in France, the Sub 10 Dual benefits from Focal’s sound savoir-faire. With its 10” (25 cm) polypropylene cone, this subwoofer provides an excellent bass boost for any on-board audio system. Its double voice coil architecture offers the option to fit it in parallel with a 2-Ohm operation, allowing the amplifier’s maximum power to be exploited.
Key points
• A deep and powerful bass
• Effective as bass-reflex or sealed box
• Sealed box from 10L
• Bass-reflex box from 25L
• Parallel voice coil connection for more SPL
• Robust design; steel chassis
• Excellent power handling
Polypropylene Cone
Using a polypropylene cone in the speaker drivers provides a lot of rigidity which repels distortion at loud volumes, ideal for a subwoofer.
Features & Specifications
Features & Specifications
|
Size |
10" |
|
Voice Coil |
DVC |
|
Impedance |
2, 8 ohms |
|
RMS Power Rating (Watts) |
250 |
|
Peak Power Rating (Watts) |
500 |
| Cone Material |
Polypropylene |
| Surround Material |
Butyl Rubber |
| Free Air |
No |
| Sensitivity |
85dB @ 2.83volts |
| Frequency Response |
|
|
Top Mount Depth (Inches) |
4 3/8" |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 1/8" |
| Vas (liters) |
49 |
| Fs (Hz) |
25Hz |
| Xmax (millimeters) |
|
| Warranty |
1 Year |
