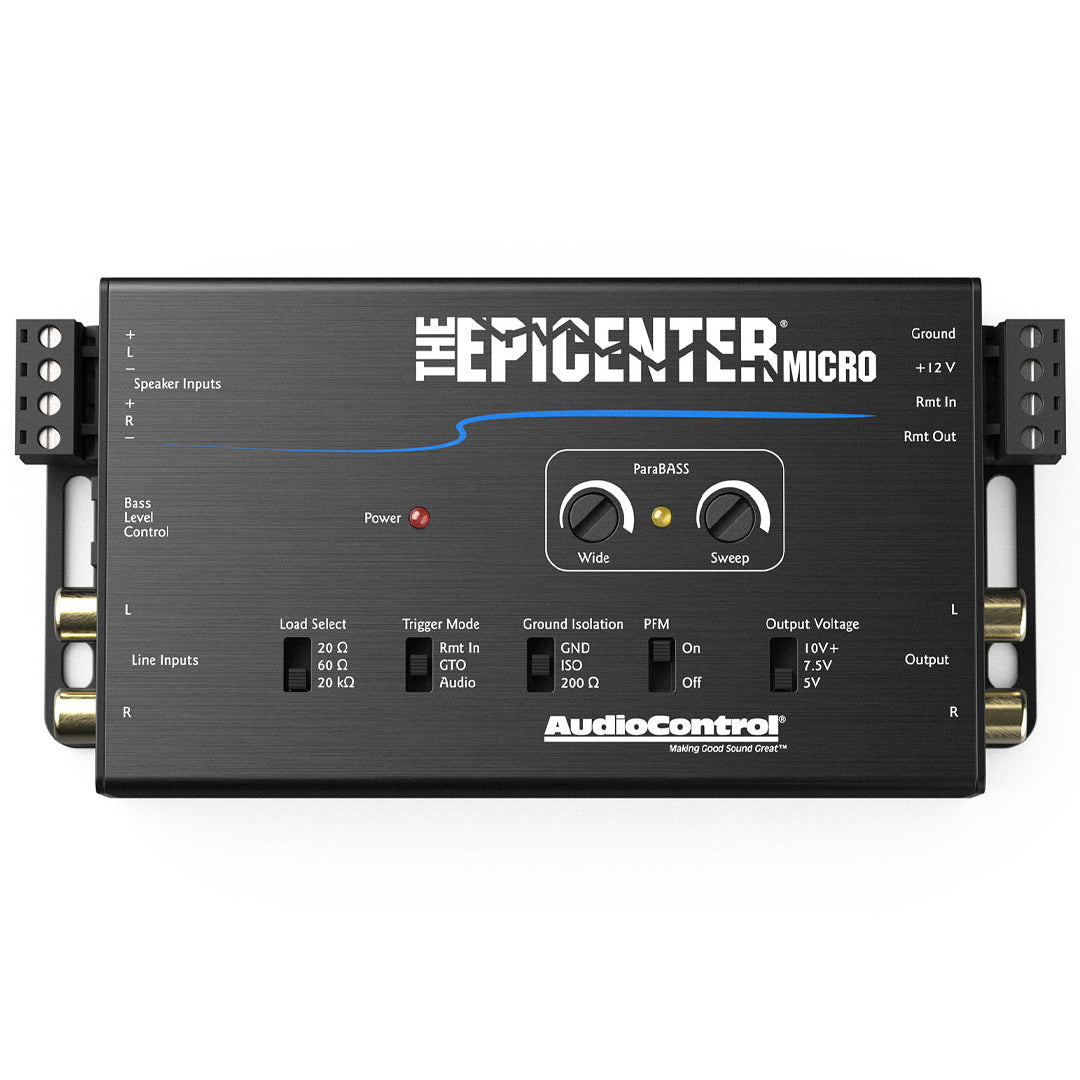

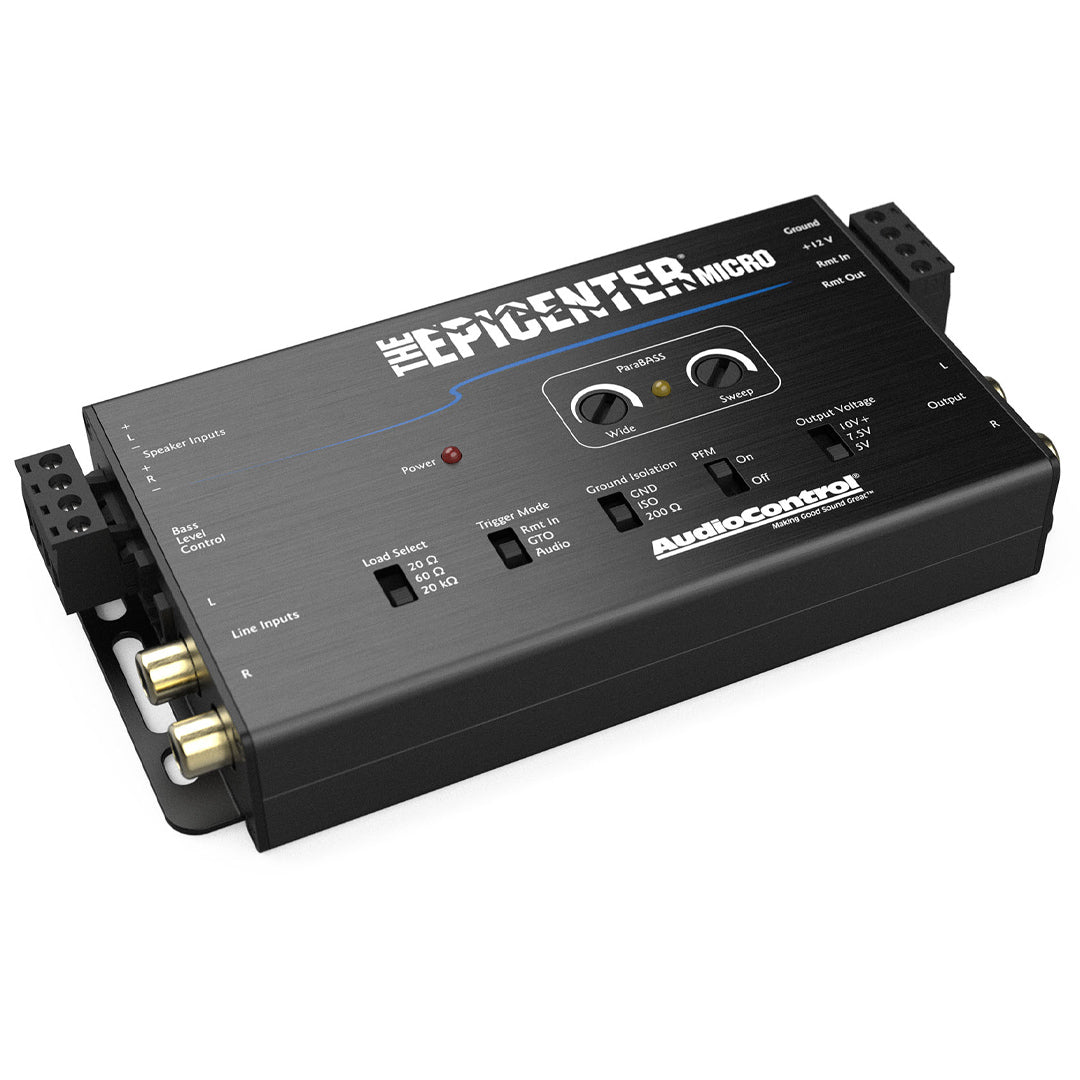

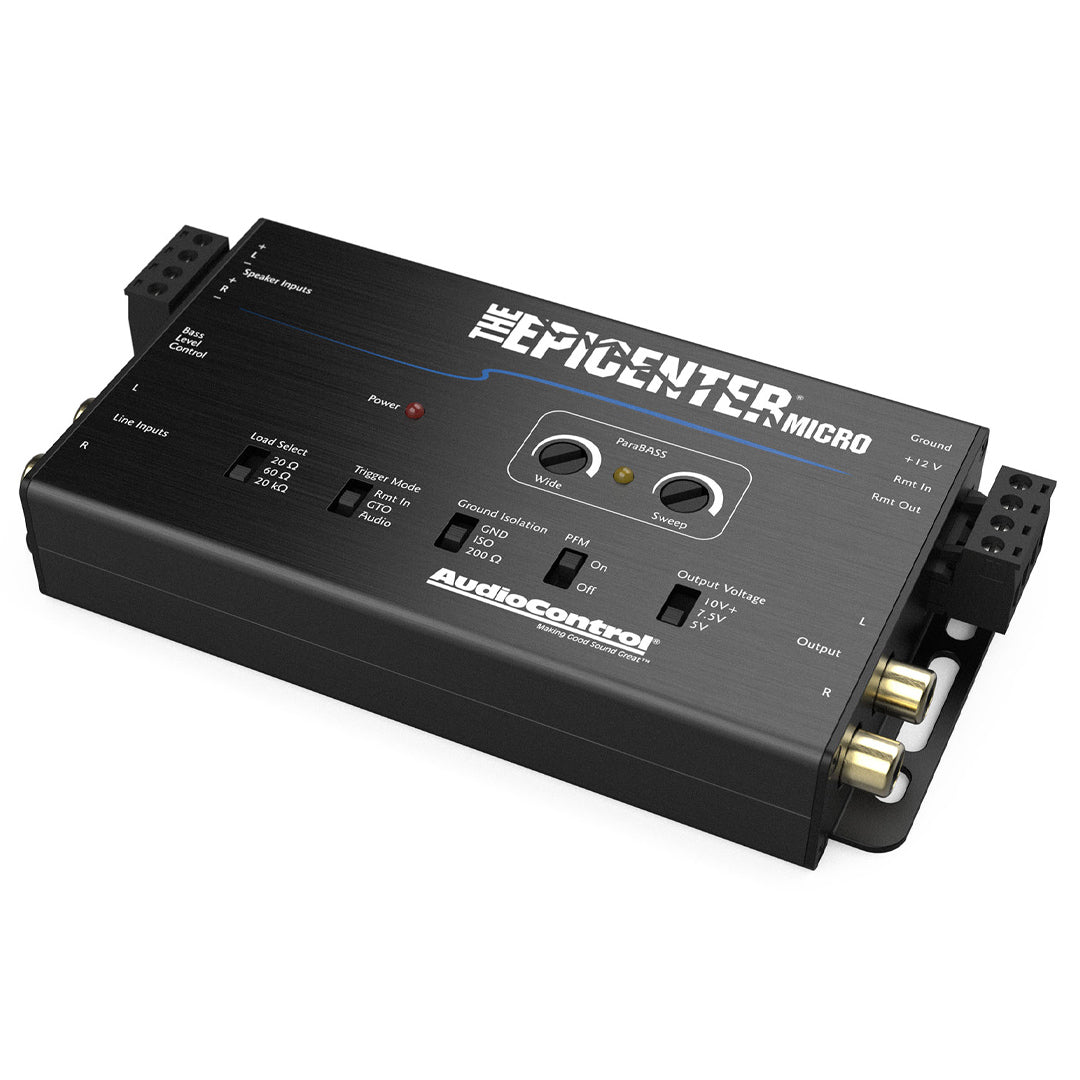

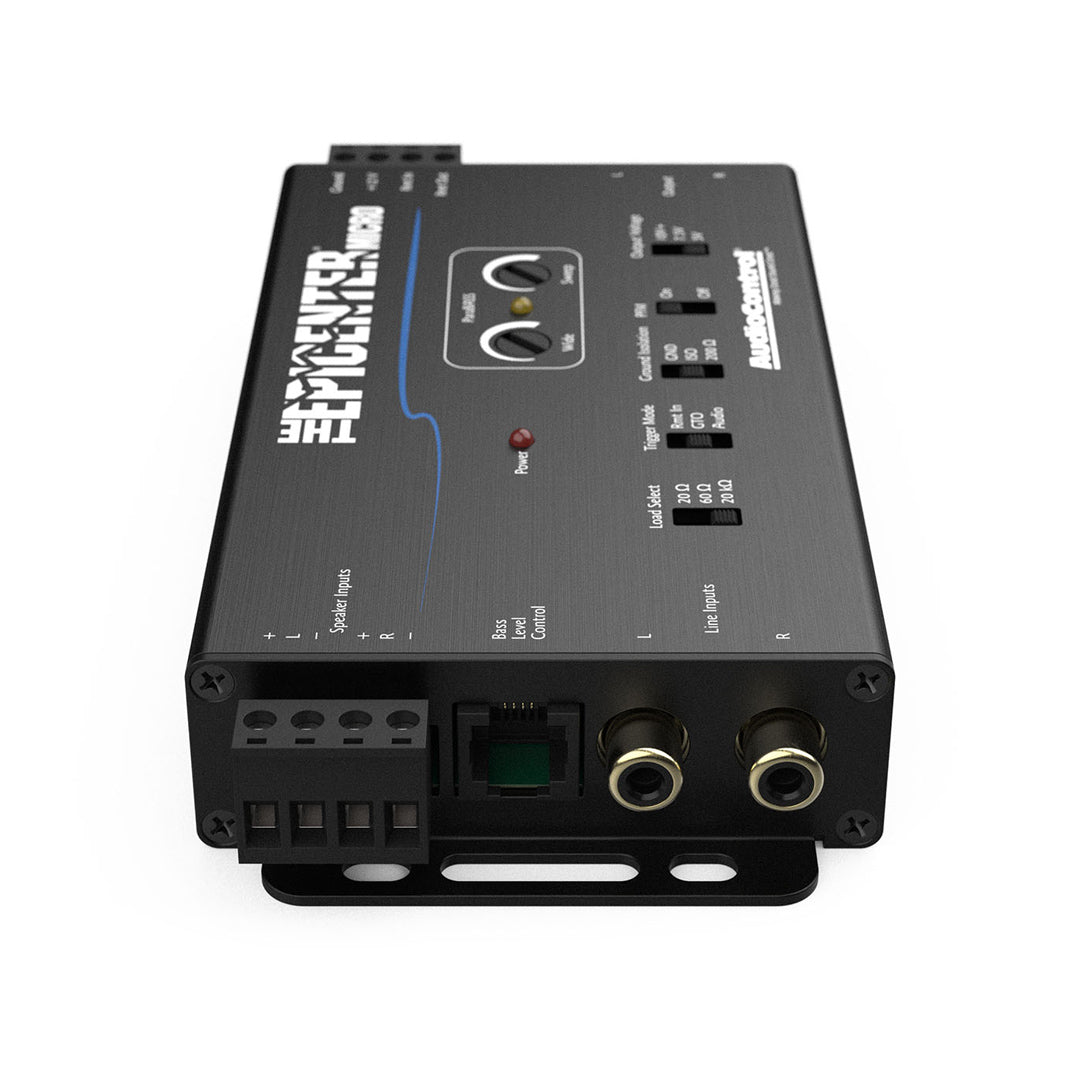

The Epicenter® Micro
Bass Restoration Processor & Line Output Converter
The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
Product Features:
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes

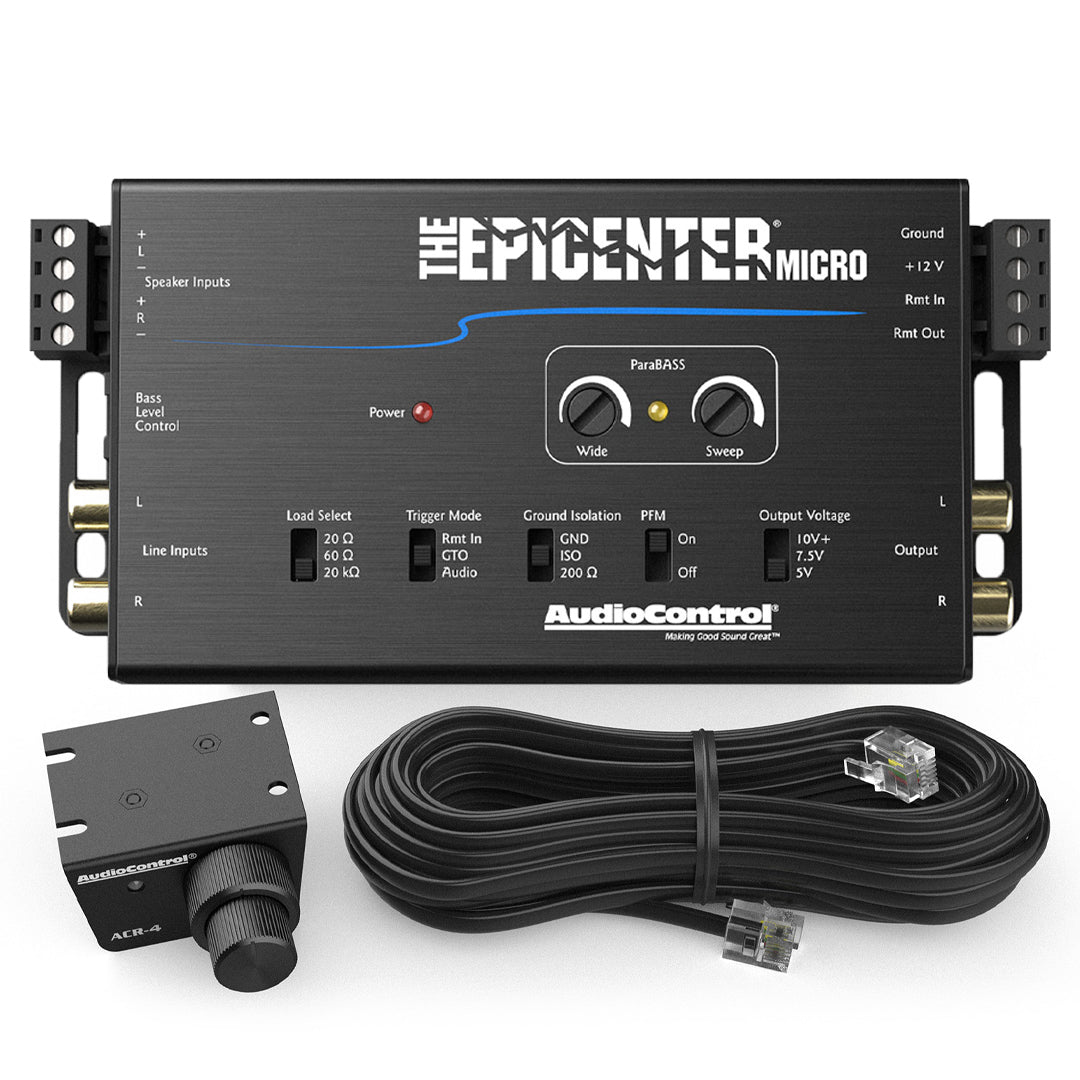

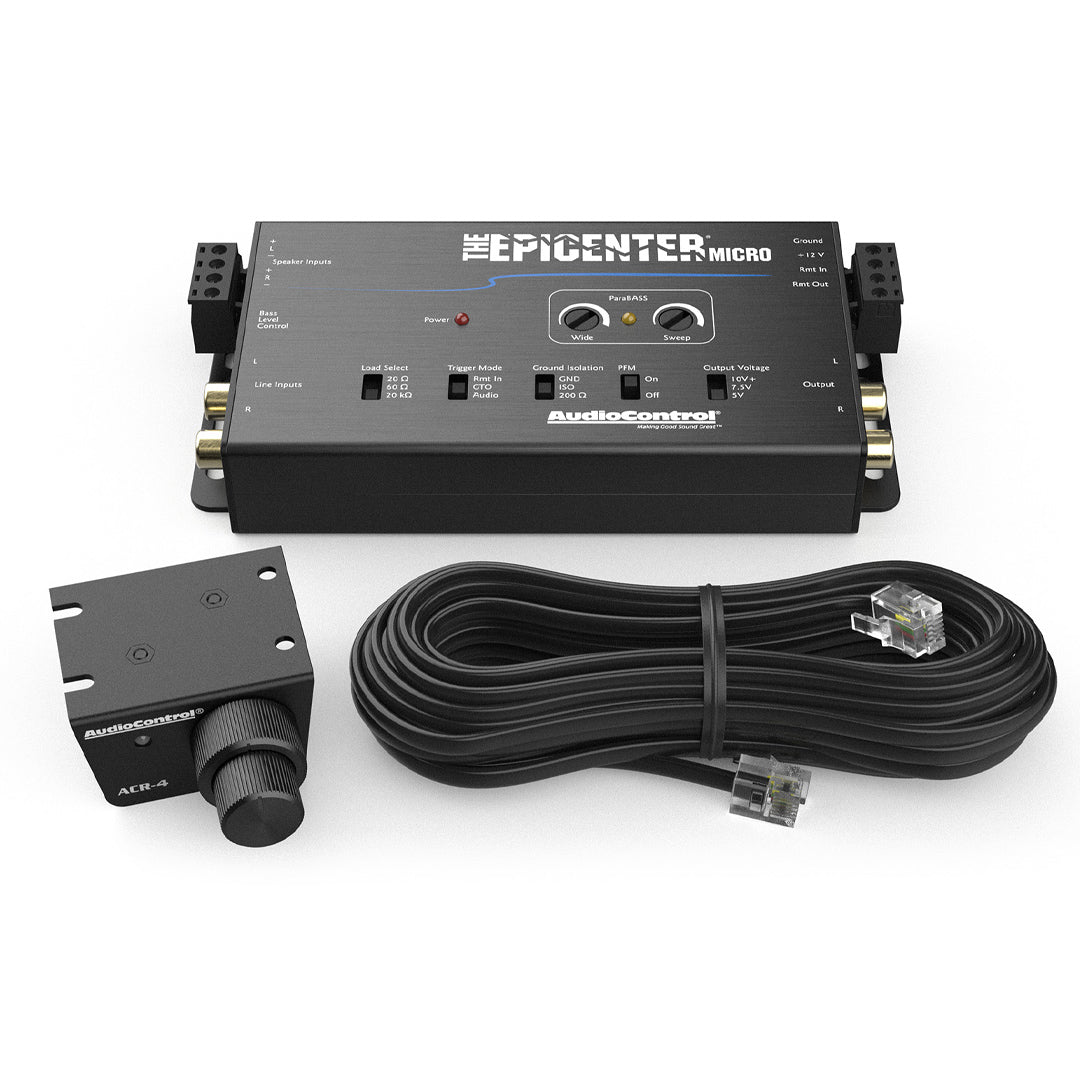

- ACR-4 Dual Knob Dash Mount Control Included
Product Specifications:
- Inputs - Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ
- Outputs - Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150Ω
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)\
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
- Dimensions: 5.9″L x 3″D x 1″H
- Weight: 0.6 lbs. (0.27 kg)
|
| Specification |
AudioControl Epicenter Micro |
| Product Type |
Bass Restoration Processor & Line Output Converter |
| Model |
Epicenter Micro |
| Bass Restoration |
Patented Bass Restoration Technology |
| Signal Processing |
Bass Restoration / Low-Frequency Reconstruction |
| Inputs |
2-Channel RCA |
| Outputs |
2-Channel RCA |
| Line Output Converter |
Integrated |
| Input Signal |
Line-Level / Speaker-Level |
| Maximum Output Voltage |
Up to 9.5 V RMS |
| Frequency Response |
10 Hz–22 kHz |
| Signal-to-Noise Ratio |
>110 dB |
| Total Harmonic Distortion |
<0.01% |
| Bass Restoration Control |
Adjustable |
| Subwoofer Level Control |
Adjustable |
| Remote Control |
Optional ACR-1 Remote Compatible |
| Turn-On |
Signal-Sensing / Remote Turn-On |
| Power Supply |
12 V DC |
| Mounting |
Compact Surface-Mount Design |
| Application |
OEM Audio Integration / Bass Restoration |
