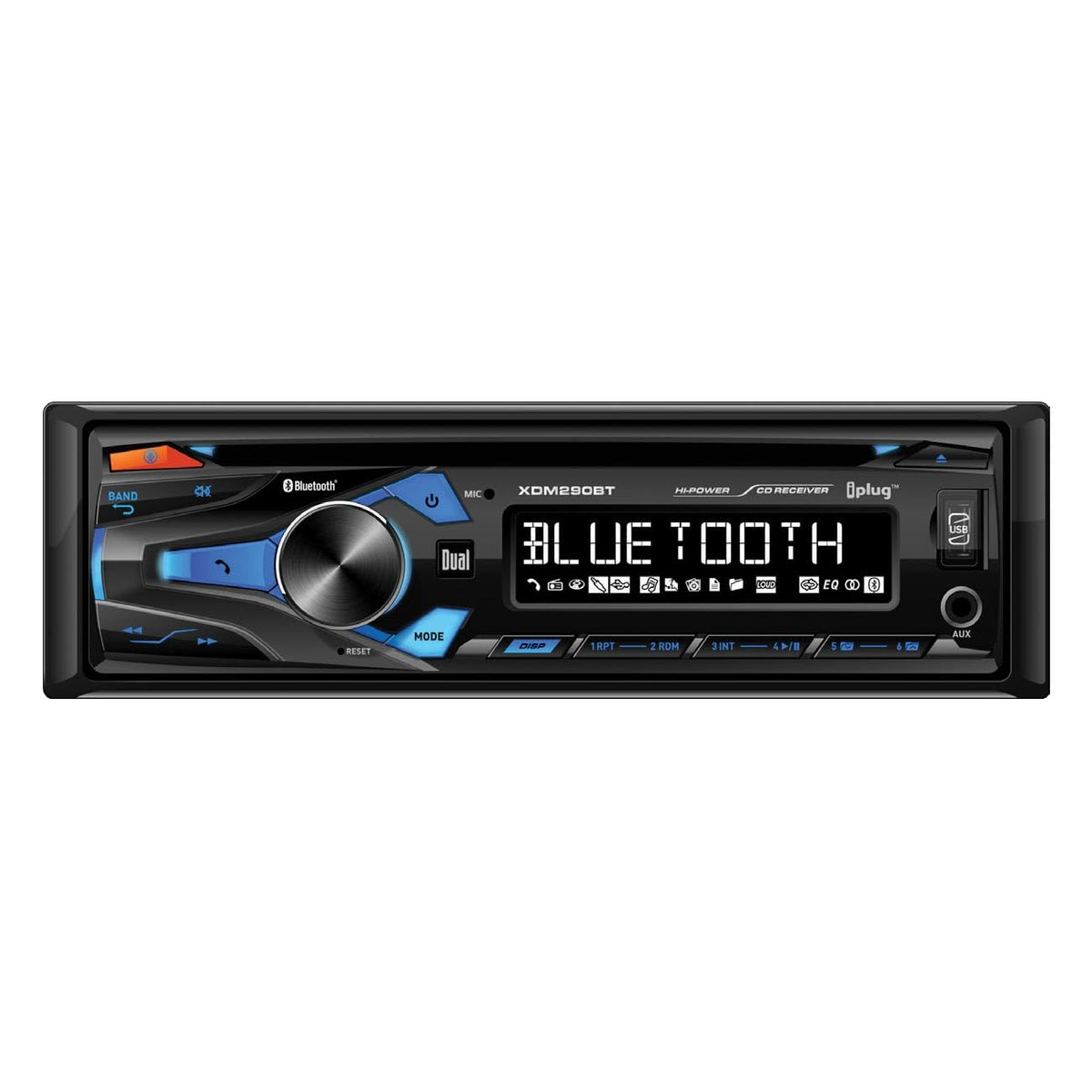

The Dual XDM290BT CD Receiver combines traditional CD playback with modern digital connectivity, making it a versatile upgrade for a wide range of vehicles. With Bluetooth streaming, front USB, and auxiliary inputs, this receiver supports multiple audio sources while maintaining a clean, easy-to-use design.
CD Playback & Digital Media Support
The XDM290BT allows you to enjoy your CD collection while also supporting digital media playback through USB, offering flexibility for both classic and modern listening preferences.
Bluetooth Wireless Streaming
Built-in Bluetooth enables wireless audio streaming from compatible smartphones and devices, letting you enjoy your music without cables while keeping your dashboard uncluttered.
Front USB & Auxiliary Inputs
The front USB input supports media playback and device charging, while the auxiliary input allows direct connection to external audio sources for added convenience.
Simple, Single-DIN Design
Designed to fit standard single-DIN dash openings, this receiver installs easily and provides straightforward controls for daily use.
Reliable Everyday Performance
Whether replacing a factory radio or upgrading an older system, the Dual XDM290BT CD Receiver delivers dependable performance, flexible media options, and modern connectivity for everyday driving.
|
| Specification |
Details |
| Product Type |
CD Receiver |
| Model |
XDM290BT |
| DIN Size |
Single-DIN |
| CD Playback |
Audio CD / MP3 |
| Bluetooth |
Built-in Bluetooth |
| Bluetooth Functions |
Hands-free calling, audio streaming, and player control |
| Microphone |
Built-in |
| Voice Assistant |
Siri® / Google Assistant™ activation button |
| Remote App |
Dual iPlug Smart Remote App |
| AM/FM Tuner |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| Total Radio Presets |
30 |
| Front USB Input |
Yes |
| USB Charging |
1A |
| USB Playback |
MP3 |
| Front Auxiliary Input |
3.5 mm |
| Preamp Outputs |
1 pair, front or rear selectable |
| Line Output Voltage |
1.2V RMS |
| Peak Power |
200W total (50W × 4) |
| RMS Power |
16W × 4 @ 4Ω, <1% THD+N |
| Speaker Impedance |
4–8Ω |
| Equalizer |
7 preset EQ curves |
| EQ Presets |
Pop, Jazz, Classic, Beat, Rock, Flat, User |
| Tone Controls |
2-band: Bass / Treble |
| Display |
10-character LCD |
| Display Illumination |
Blue |
| CD Frequency Response |
20 Hz–20 kHz |
| FM Frequency Response |
30 Hz–13 kHz |
| AM Frequency Response |
30 Hz–2.2 kHz |
| FM Tuning Range |
87.5–107.9 MHz |
| AM Tuning Range |
530–1710 kHz |
| USB Charge |
1A |
| Fuse |
10A |
| Dimensions |
7 × 5.9 × 2 in (178 × 150 × 50 mm) |
