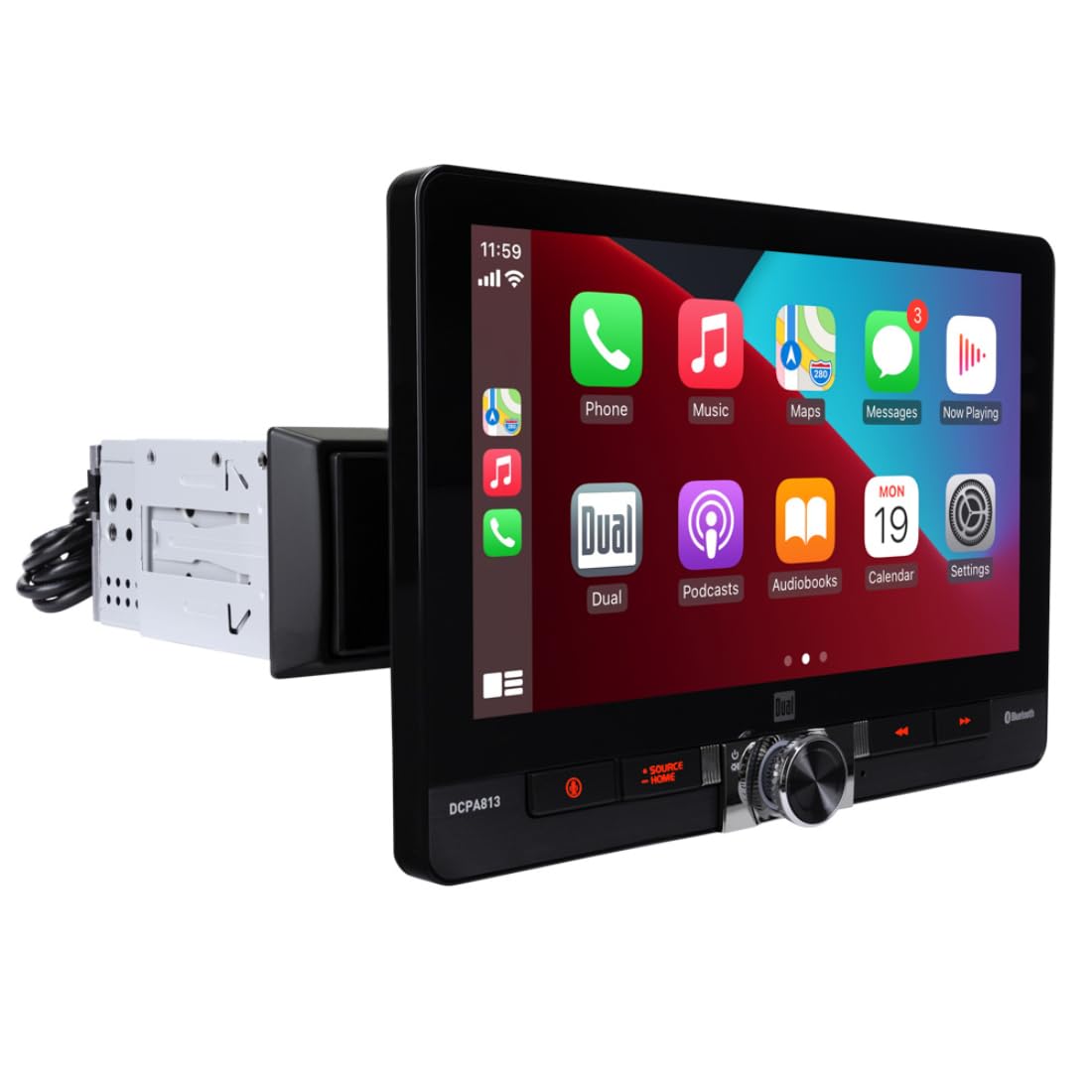

The Dual DCPA813 features a stunning 8" floating touchscreen and comes with Wireless Apple CarPlay and Android Auto, offering seamless integration with your smartphone. Stay connected, enjoy hands-free calls, and access all your apps and music on the road—all with a sleek and modern design.

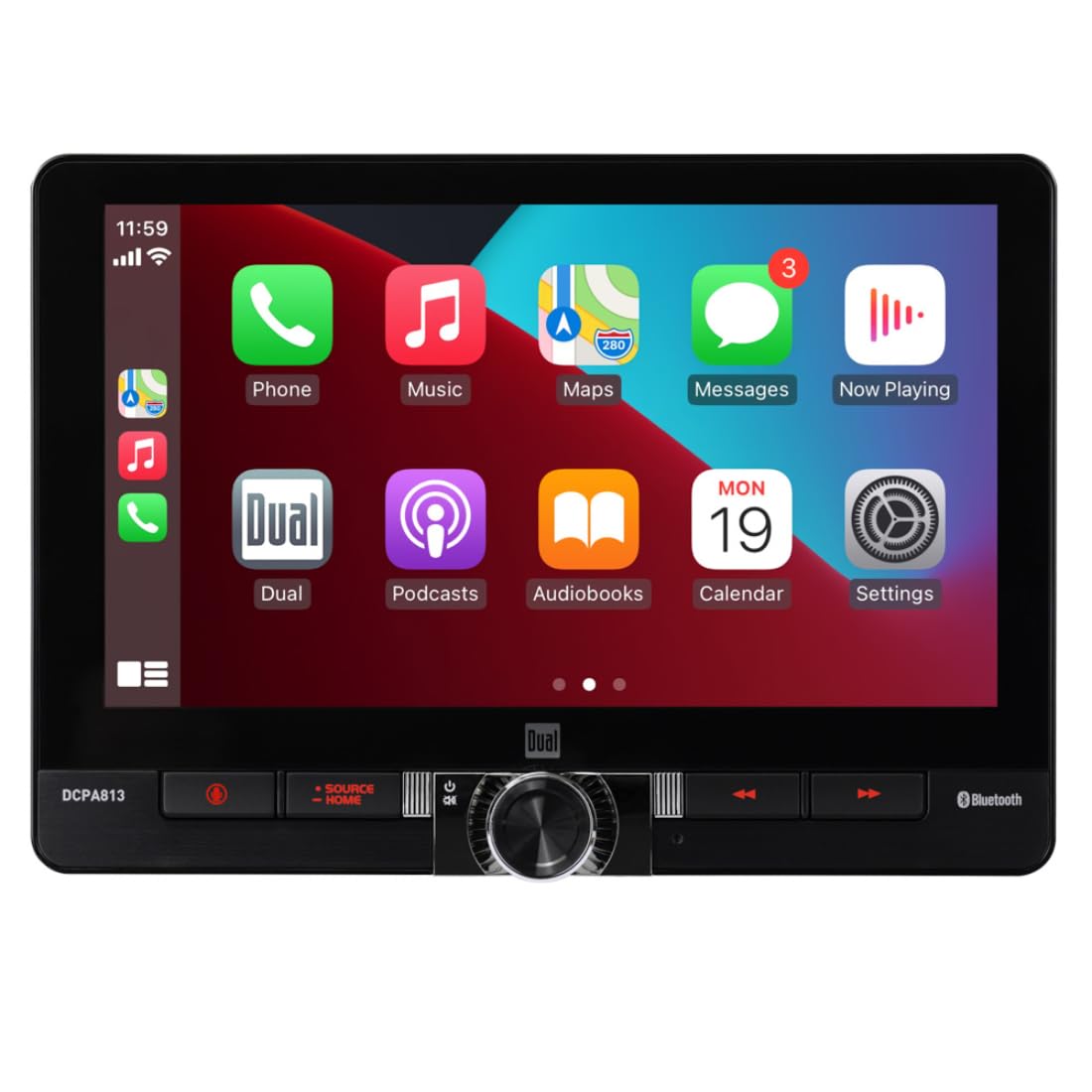

8" Floating Touchscreen Display
The 8" high-resolution floating touchscreen gives you an expansive view and easy access to all your media, navigation, and phone functions.
Wireless Apple CarPlay & Android Auto
Enjoy the convenience of Wireless Apple CarPlay and Android Auto—connect your smartphone wirelessly to access apps, maps, music, and more, all displayed on the large touchscreen.
Flexible Connectivity
Connect and stream your media through Bluetooth®, USB input, or Auxiliary input. The DCPA813 supports multiple sources for a truly versatile multimedia experience.
Customizable Sound Experience
With a built-in equalizer, you can easily adjust your sound settings for crisp highs, punchy bass, and everything in between.
Double DIN Compatibility
The DCPA813 fits most Double DIN slots, offering a modern design that enhances both your car's interior and your driving experience.
|
| Specification |
Details |
| Product Type |
Digital Multimedia Receiver |
| Model |
DCPA813 |
| DIN Compatibility |
Single-DIN / Double-DIN |
| Display |
8" Digital TFT Touchscreen |
| Display Resolution |
1024 × 600 |
| Display Pixels |
1,152,000 |
| Display Brightness |
500 cd/m² |
| Contrast Ratio |
500:1 |
| Screen Adjustment |
Height, Tilt & Pivot |
| Apple CarPlay |
Wireless & Wired |
| Android Auto |
Wireless & Wired |
| Bluetooth |
Built-in Bluetooth |
| Bluetooth Functions |
Hands-free calling and wireless audio streaming |
| Voice Assistant |
Dedicated voice activation button |
| CD Playback |
No — digital multimedia receiver |
| DVD Playback |
No |
| USB Input |
Rear USB |
| USB Standard |
High-Speed USB 2.0 |
| USB Charging |
2.1A |
| Audio Playback |
MP3, FLAC |
| AM/FM Tuner |
Yes |
| FM Presets |
18 |
| AM Presets |
12 |
| Total Presets |
30 |
| FM Tuning Range |
87.5–107.9 MHz |
| AM Tuning Range |
530–1710 kHz |
| Front Camera Input |
Yes |
| Rear Camera Input |
Yes |
| Rear A/V Input |
Yes |
| Preamp Outputs |
3 pairs — Front / Rear / Subwoofer |
| Preamp Output Voltage |
2V RMS |
| Peak Power Output |
240W total (60W × 4) MOSFET |
| RMS Power Output |
16W × 4 @ 4Ω, <1% THD+N |
| Speaker Impedance |
4Ω |
| Equalizer |
10-band graphic EQ |
| EQ Presets |
7 preset curves |
| Button Illumination |
Selectable colors |
| Wallpapers |
3 selectable |
| Steering Wheel Controls |
Compatible; adapter required |
| Signal-to-Noise Ratio |
80 dBA |
| FM Frequency Response |
30 Hz–13 kHz |
| AM Frequency Response |
30 Hz–2.3 kHz |
| FM Stereo Separation |
38 dB @ 1 kHz |
| FM Usable Sensitivity |
10 dBf |
| AM Usable Sensitivity |
24 µV |
| Speaker Output Impedance |
4Ω |
| Chassis Dimensions |
8" × 4.1" × 2" (W × D × H) |
