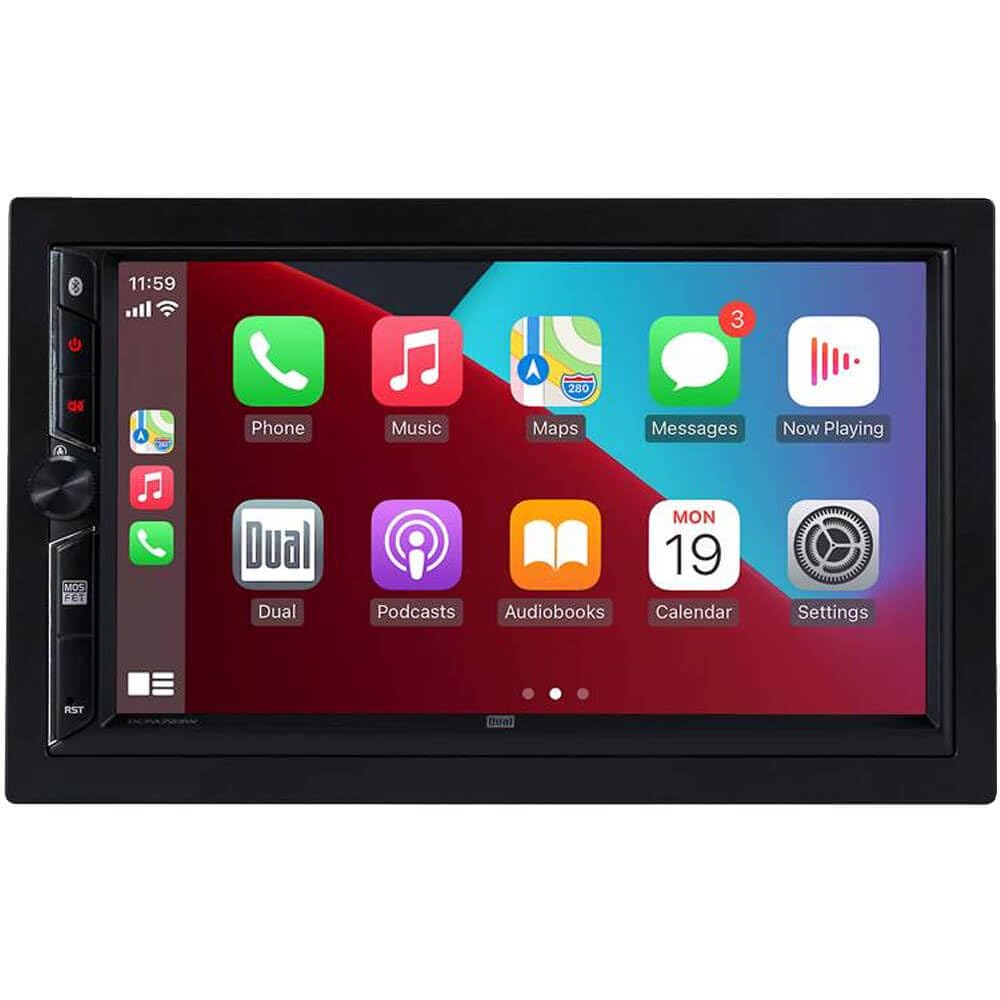

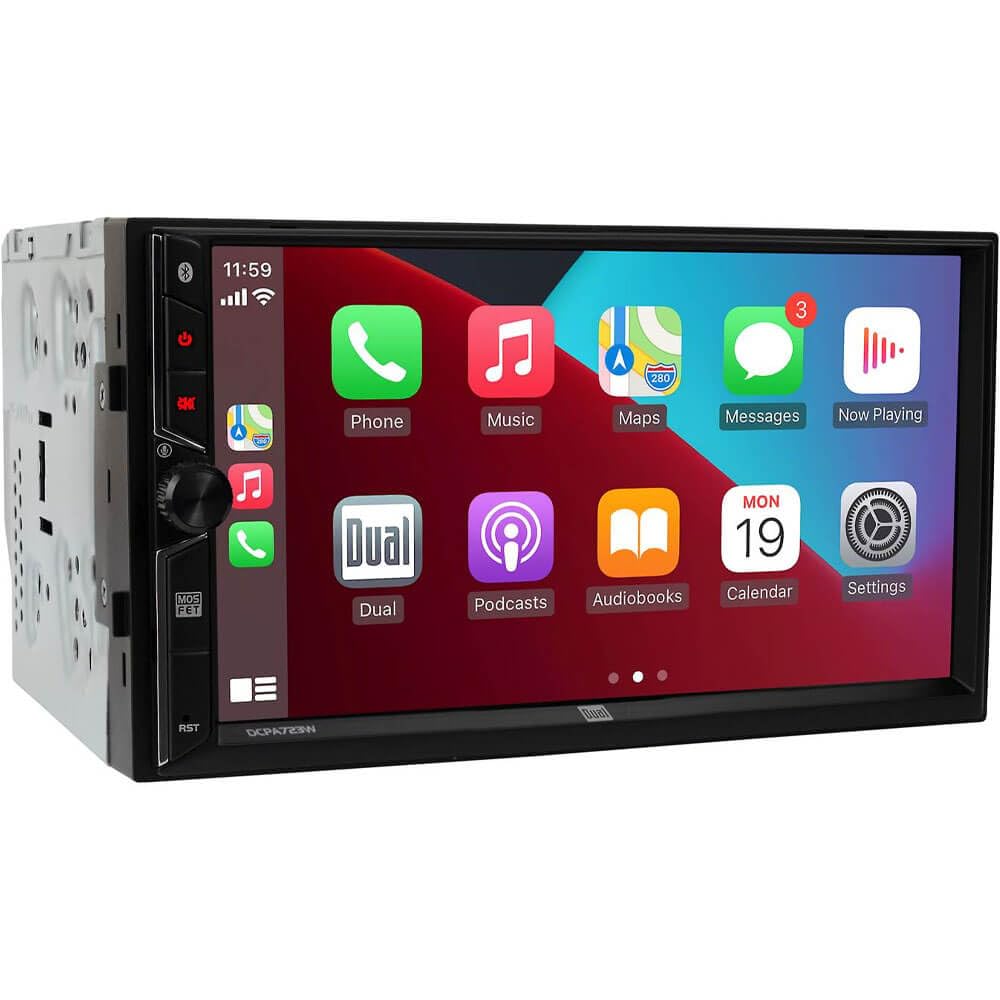

The Dual DCPA723W features a 7" touchscreen and Wireless Apple CarPlay & Android Auto, providing seamless smartphone integration and easy access to your apps, music, and more. With modern connectivity and intuitive controls, this receiver enhances your in-car entertainment and makes your drive smarter and safer.
7" Touchscreen Display
The 7" high-resolution touchscreen offers clear, responsive controls for navigating media, maps, and settings, all at your fingertips.
Wireless Apple CarPlay & Android Auto
Enjoy the convenience of wireless connection for both Apple CarPlay and Android Auto, allowing you to control your phone's apps, messages, navigation, and music from the large screen without needing any cables.
Versatile Connectivity
Stream music, make hands-free calls, or connect other devices using Bluetooth®, USB, or Auxiliary input. The DCPA723W supports multiple sources for endless entertainment options.
Customizable Sound
Tailor your audio experience with the built-in equalizer, adjusting the bass, treble, and balance to match your preferences.

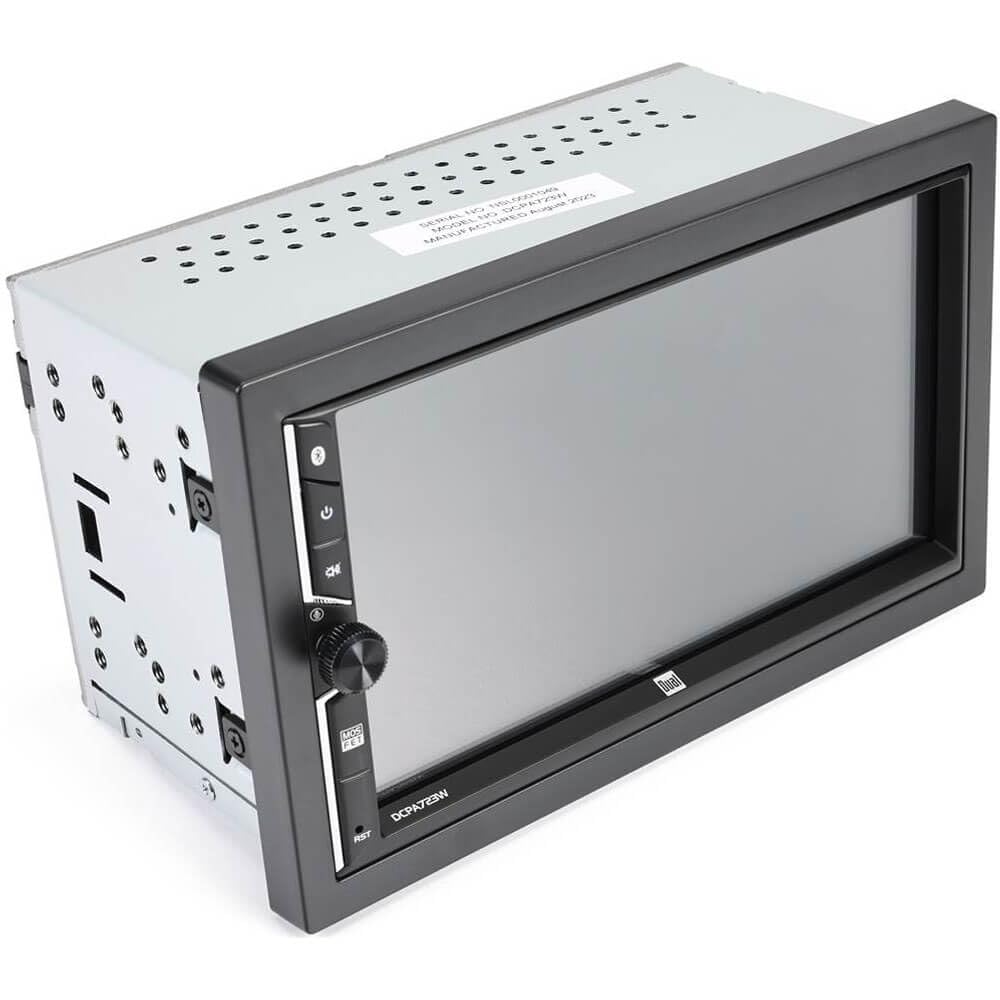

Double DIN Compatibility
Designed to fit in Double DIN slots, the DCPA723W offers a sleek and modern upgrade to your car’s interior, combining advanced features with a stylish look.
|
| Specification |
Details |
| Product Type |
Digital Multimedia Receiver |
| Model |
DCPA723W |
| DIN Size |
Double-DIN |
| Display |
7" Capacitive Touchscreen |
| Display Type |
Digital TFT, LED Backlit |
| Display Resolution |
1024 × 600 |
| Display Brightness |
500 cd/m² |
| Contrast Ratio |
500:1 |
| CD Playback |
No — does not play CDs |
| DVD Playback |
No — does not play DVDs |
| Apple CarPlay |
Wireless & Wired |
| Android Auto |
Wireless & Wired |
| Bluetooth |
Built-in Bluetooth |
| Bluetooth Functions |
Hands-free calling and audio streaming |
| External Microphone |
Included |
| Voice Assistant |
Dedicated voice activation button |
| AM/FM Tuner |
Yes |
| FM Presets |
18 |
| AM Presets |
12 |
| Total Radio Presets |
30 |
| RDS |
Yes |
| USB Input |
1 × Rear USB |
| USB Standard |
High-Speed USB 2.0 |
| USB Playback |
MP3, FLAC |
| Auxiliary Input |
Rear RCA |
| Rear A/V Input |
Yes |
| Front Camera Input |
Yes |
| Backup Camera Input |
Yes |
| Preamp Outputs |
3 pairs — Front / Rear / Subwoofer |
| Preamp Output Voltage |
4V RMS |
| Peak Power Output |
240W total (60W × 4) |
| RMS Power Output |
16W × 4 @ 4Ω |
| Speaker Impedance |
4Ω |
| Equalizer |
10-band graphic EQ |
| EQ Presets |
7 |
| Subwoofer Crossover |
50 / 80 / 120 / 160 Hz / Off |
| Subwoofer Level Control |
Yes |
| Button Illumination |
6 selectable colors |
| Wallpapers |
3 selectable |
| Steering Wheel Control |
Yes; adapter required |
| Signal-to-Noise Ratio |
80 dBA |
| FM Frequency Response |
30 Hz–13 kHz |
| AM Frequency Response |
30 Hz–2.3 kHz |
| FM Stereo Separation |
38 dB @ 1 kHz |
| FM Usable Sensitivity |
10 dBf |
| AM Usable Sensitivity |
24 µV |
| Chassis Depth |
Approx. 3.5" |
| Chassis Dimensions |
Approx. 7" × 4" × 4" (W × D × H) |
