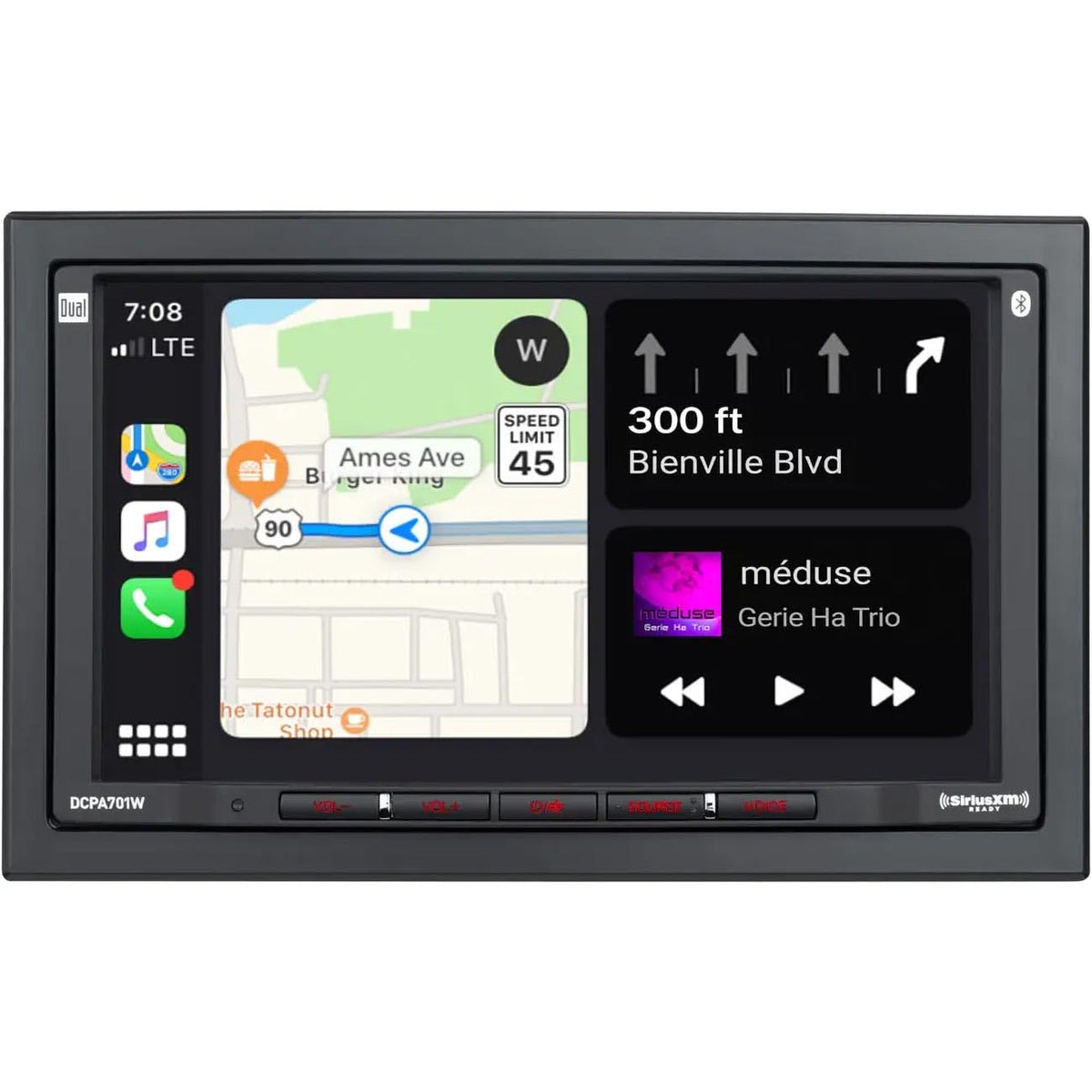

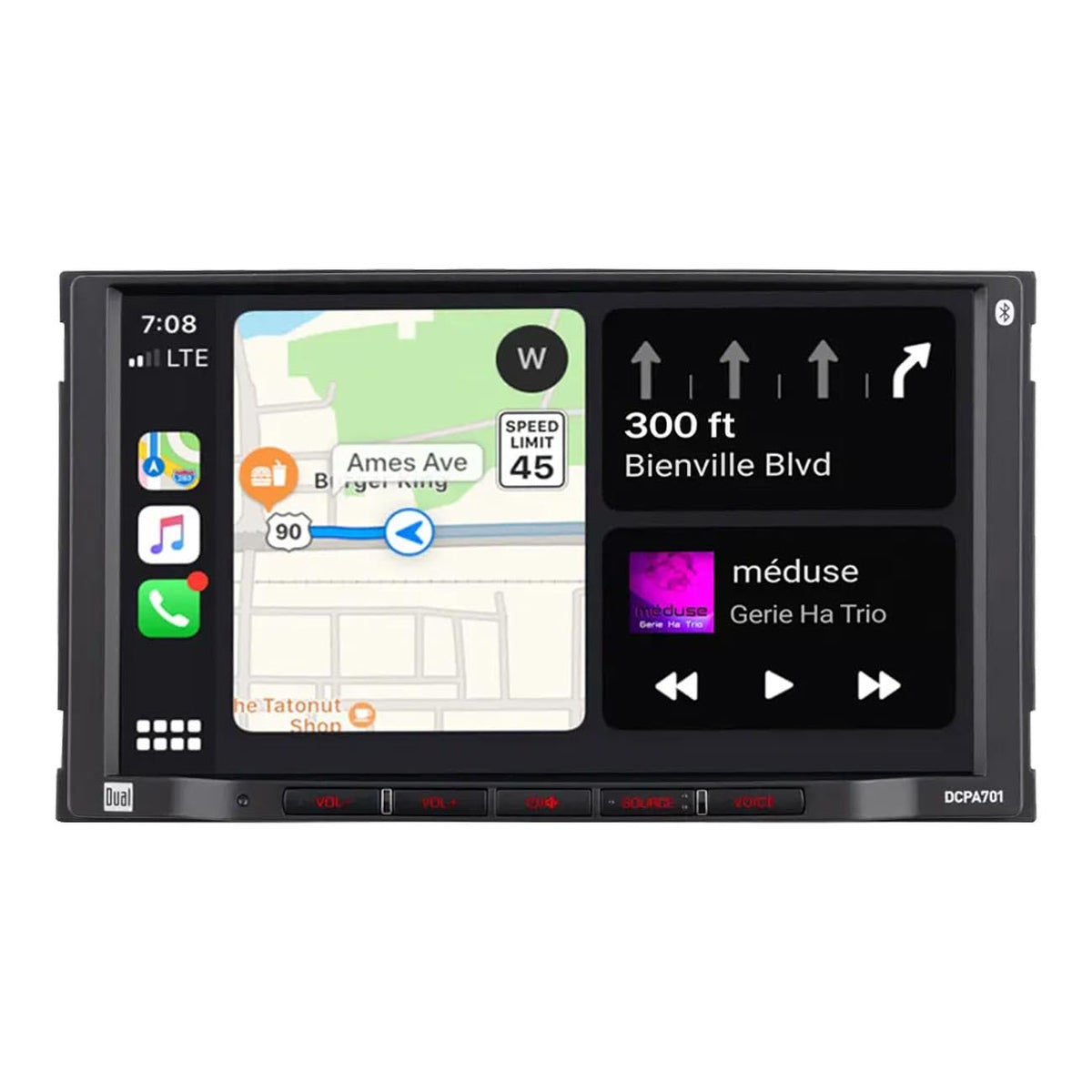

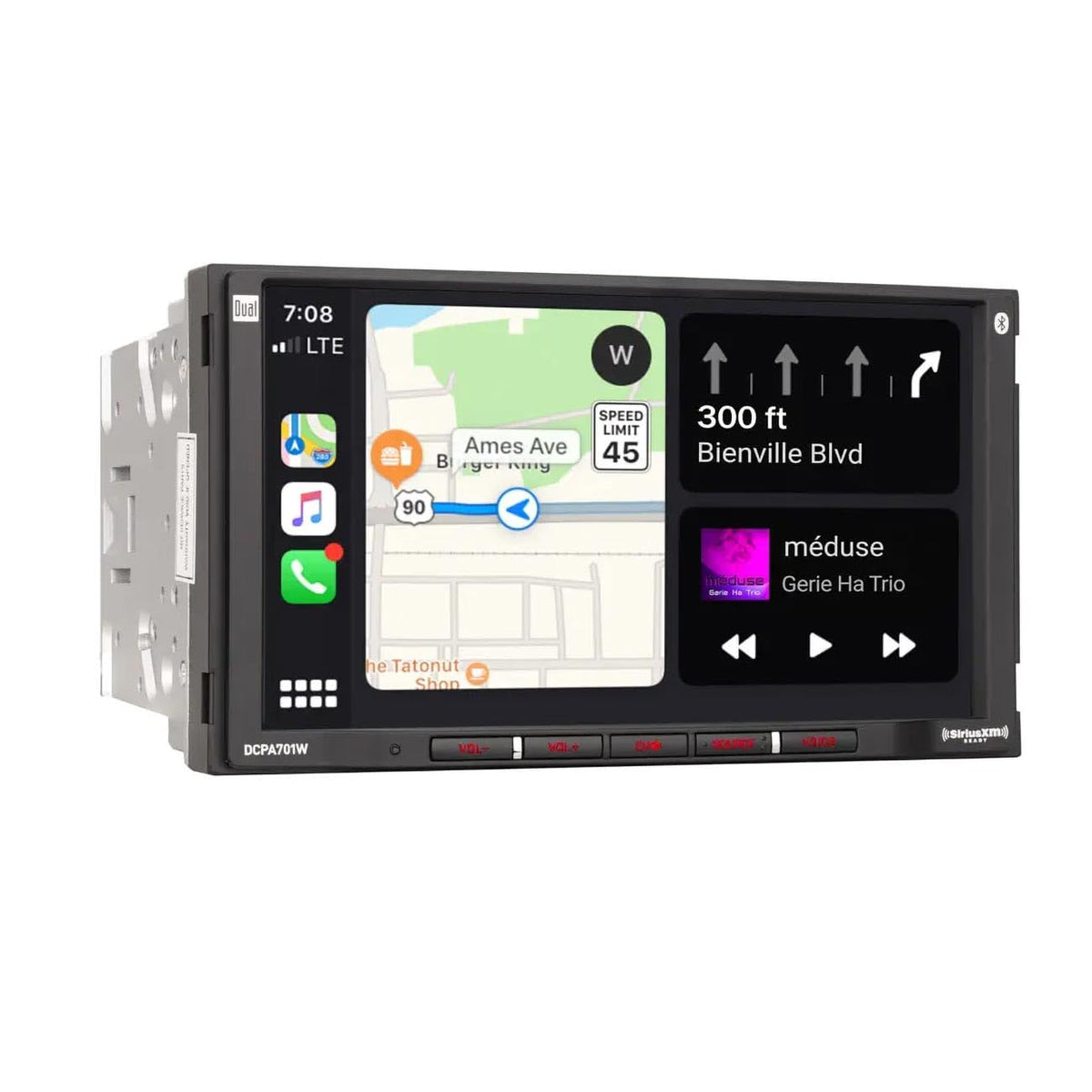

The Dual DCPA701-4 features a 7" touchscreen and supports Apple CarPlay & Android Auto, giving you seamless integration with your smartphone for easy access to apps, music, navigation, and hands-free calling.
7" Touchscreen Display
Enjoy clear, intuitive control with the 7" high-resolution touchscreen for effortless navigation through apps, music, and settings.
Apple CarPlay & Android Auto
Connect your smartphone to use Apple CarPlay or Android Auto, providing wireless or wired access to your favorite apps, music, and maps directly on the touchscreen.
Multiple Connectivity Options
Stream music, make hands-free calls, or plug in external devices via Bluetooth®, USB, or Auxiliary inputs for versatile media options.
Customizable Sound
Tailor your audio experience with the built-in equalizer, adjusting sound settings to fit your listening preferences.
Double DIN Compatibility
Fits Double DIN slots, giving your car a modern upgrade with a sleek design and powerful functionality.
|
| Specification |
Details |
| Product Type |
Digital Multimedia Receiver |
| Model |
DCPA701-4 |
| DIN Size |
Double-DIN |
| Display |
7" Digital TFT Touchscreen |
| Display Resolution |
1024 × 600 |
| Display Brightness |
500 cd/m² |
| Contrast Ratio |
500:1 |
| Apple CarPlay |
Wired |
| Android Auto |
Wired |
| Bluetooth |
Built-in Bluetooth |
| Bluetooth Functions |
Hands-free calling, phonebook support, audio streaming, ID3 tag display & voice activation |
| External Microphone |
Included |
| Voice Assistant |
Dedicated voice activation button |
| CD Playback |
No — does not play CDs |
| DVD Playback |
No — does not play DVDs |
| USB Input |
Rear USB |
| USB Standard |
High-Speed USB 2.0 |
| USB Charging |
1.5A |
| USB Playback |
MP3, FLAC |
| Rear A/V Input |
Yes |
| Backup Camera Input |
Yes |
| AM/FM Tuner |
Yes |
| FM Presets |
18 |
| AM Presets |
12 |
| Total Radio Presets |
30 |
| FM Tuning Range |
87.5–107.9 MHz |
| AM Tuning Range |
530–1710 kHz |
| Preamp Outputs |
3 pairs — Front / Rear / Subwoofer |
| Preamp Output Voltage |
2V RMS |
| Peak Power Output |
200W total (50W × 4) MOSFET |
| RMS Power Output |
16W × 4 @ 4Ω, <1% THD+N |
| Speaker Impedance |
4Ω |
| Equalizer |
8-band graphic EQ |
| EQ Presets |
8 |
| Audio Sources |
Radio, USB, Bluetooth, Apple CarPlay, Android Auto & A/V Input |
| Steering Wheel Control |
Compatible; adapter required |
| Signal-to-Noise Ratio |
80 dBA |
| FM Frequency Response |
30 Hz–13 kHz |
| FM Stereo Separation |
38 dB @ 1 kHz |
| FM Usable Sensitivity |
10 dBf |
| AM Frequency Response |
30 Hz–2.3 kHz |
| AM Usable Sensitivity |
24 µV |
| Chassis Design |
Slim Mount |
| Chassis Depth |
Approx. 4.3" |
| Chassis Dimensions |
Approx. 7" × 5" × 4" (W × D × H) |
