The Dual DCPA1013 features a 10.1" floating touchscreen, offering an immersive multimedia experience with Wireless Apple CarPlay and Android Auto. Enjoy seamless integration with your smartphone, hands-free calls, and high-quality audio—all with a sleek, modern design.
10.1" Floating Touchscreen
Experience a large, high-definition touchscreen for easy navigation, media control, and video playback.
Wireless Apple CarPlay & Android Auto
Connect your phone wirelessly for Apple CarPlay or Android Auto and access apps, music, maps, and more without the clutter of cables.
Flexible Connectivity
Enjoy Bluetooth® streaming, USB inputs, and auxiliary connections for versatile media options.
Customizable Sound & Controls
Adjust audio settings with an integrated equalizer for rich, tailored sound, while intuitive controls keep things simple and safe.
Double DIN Compatibility
Designed to fit most Double DIN slots, the DCPA1013 enhances both your car’s tech and aesthetic.
|
| Specification |
Details |
| Product Type |
Digital Multimedia Receiver |
| Model |
DCPA1013 |
| DIN Compatibility |
Single-DIN / Double-DIN |
| Display |
10.1" Capacitive Touchscreen |
| Display Type |
Digital TFT |
| Display Resolution |
1024 × 600 |
| Display Brightness |
500 cd/m² |
| Contrast Ratio |
500:1 |
| Apple CarPlay |
Wireless & Wired |
| Android Auto |
Wireless & Wired |
| Bluetooth |
Built-in Bluetooth |
| Bluetooth Functions |
Hands-free calling, phonebook support, audio streaming & ID3 tag display |
| External Microphone |
Included |
| Voice Assistant |
Dedicated voice activation button |
| CD Playback |
No — does not play CDs |
| DVD Playback |
No — does not play DVDs |
| USB Inputs |
2 rear USB inputs |
| USB Standard |
High-Speed USB 2.0 |
| USB Charging |
2.1A |
| USB Playback |
MP3, FLAC |
| Rear A/V Input |
Yes |
| Front Camera Input |
Yes |
| Backup Camera Input |
Yes |
| AM/FM Tuner |
Yes |
| FM Presets |
18 |
| AM Presets |
12 |
| Total Radio Presets |
30 |
| RDS Tuner |
Yes |
| Preamp Outputs |
3 pairs — Front / Rear / Subwoofer |
| Preamp Output Voltage |
2V RMS |
| Peak Power Output |
240W total (60W × 4) MOSFET |
| RMS Power Output |
16W × 4 @ 4Ω, ≤1% THD+N |
| Speaker Impedance |
4Ω |
| Equalizer |
10-band graphic EQ |
| EQ Presets |
7 |
| Source Level Volume Control |
Yes |
| Subwoofer Gain Control |
Yes |
| Subwoofer Crossover |
Off / 50Hz / 80Hz / 120Hz / 160Hz |
| Button Illumination |
6 preset colors |
| Wallpapers |
3 selectable |
| Screen Adjustment |

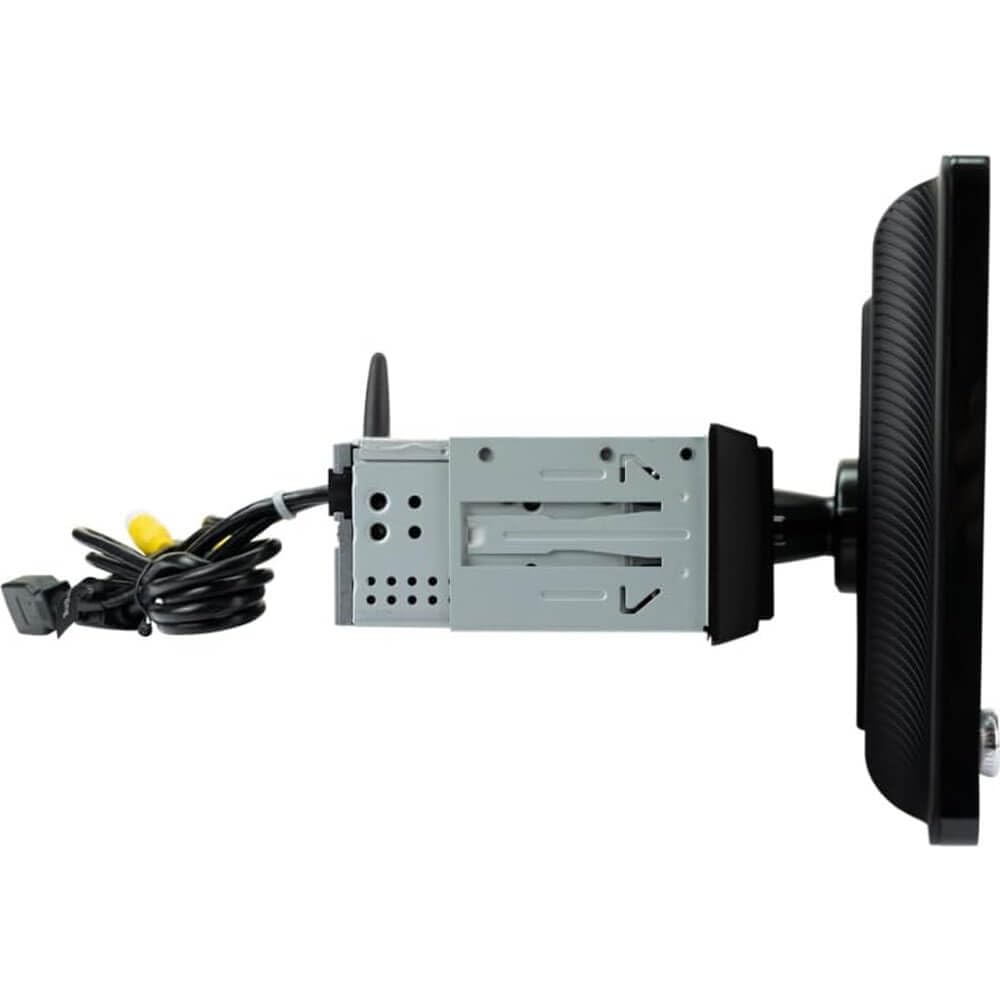

Height, Tilt & Pivot |
| Steering Wheel Control |
Compatible; adapter required |
| FM Tuning Range |
87.5–107.9 MHz |
| AM Tuning Range |
530–1710 kHz |
| FM Frequency Response |
30 Hz–13 kHz |
| FM Usable Sensitivity |
10 dBf |
| FM Stereo Separation |
38 dB @ 1 kHz |
| AM Frequency Response |
30 Hz–2.3 kHz |
| AM Usable Sensitivity |
24 µV |
| Signal-to-Noise Ratio |
80 dBA |
| Chassis Depth |
Approx. 4.1" |
| Chassis Dimensions |
7" × 4.1" × 2" (W × D × H) |
