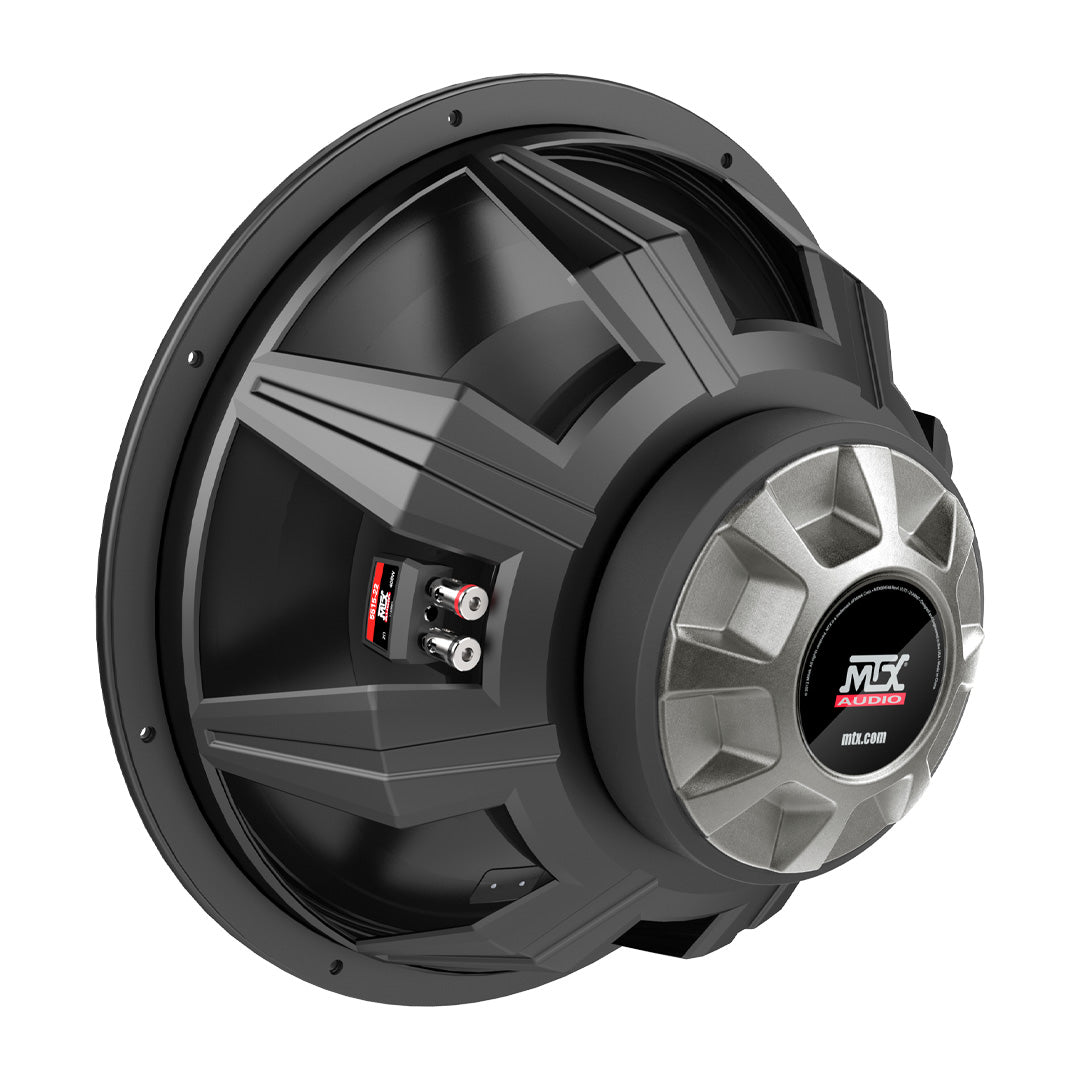

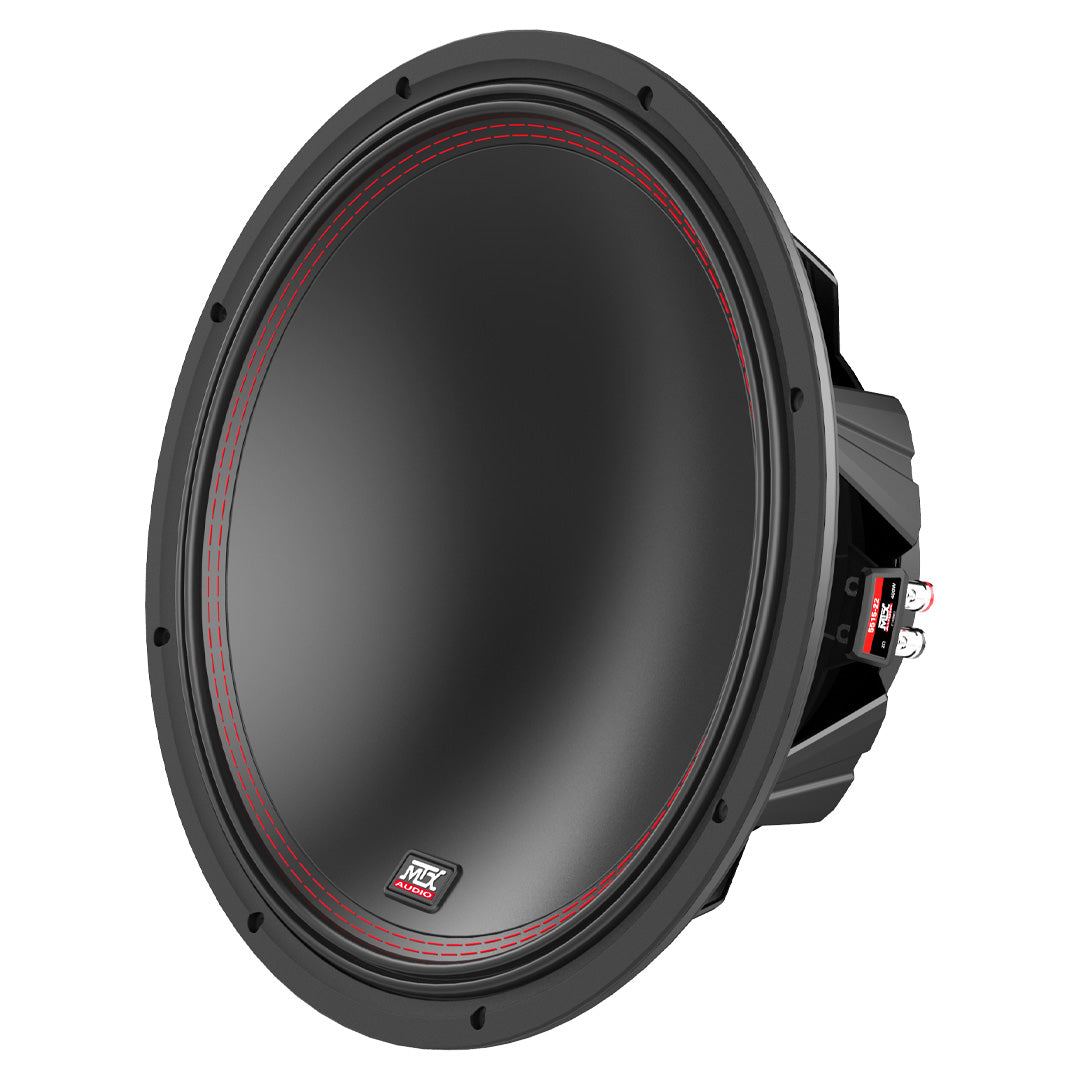

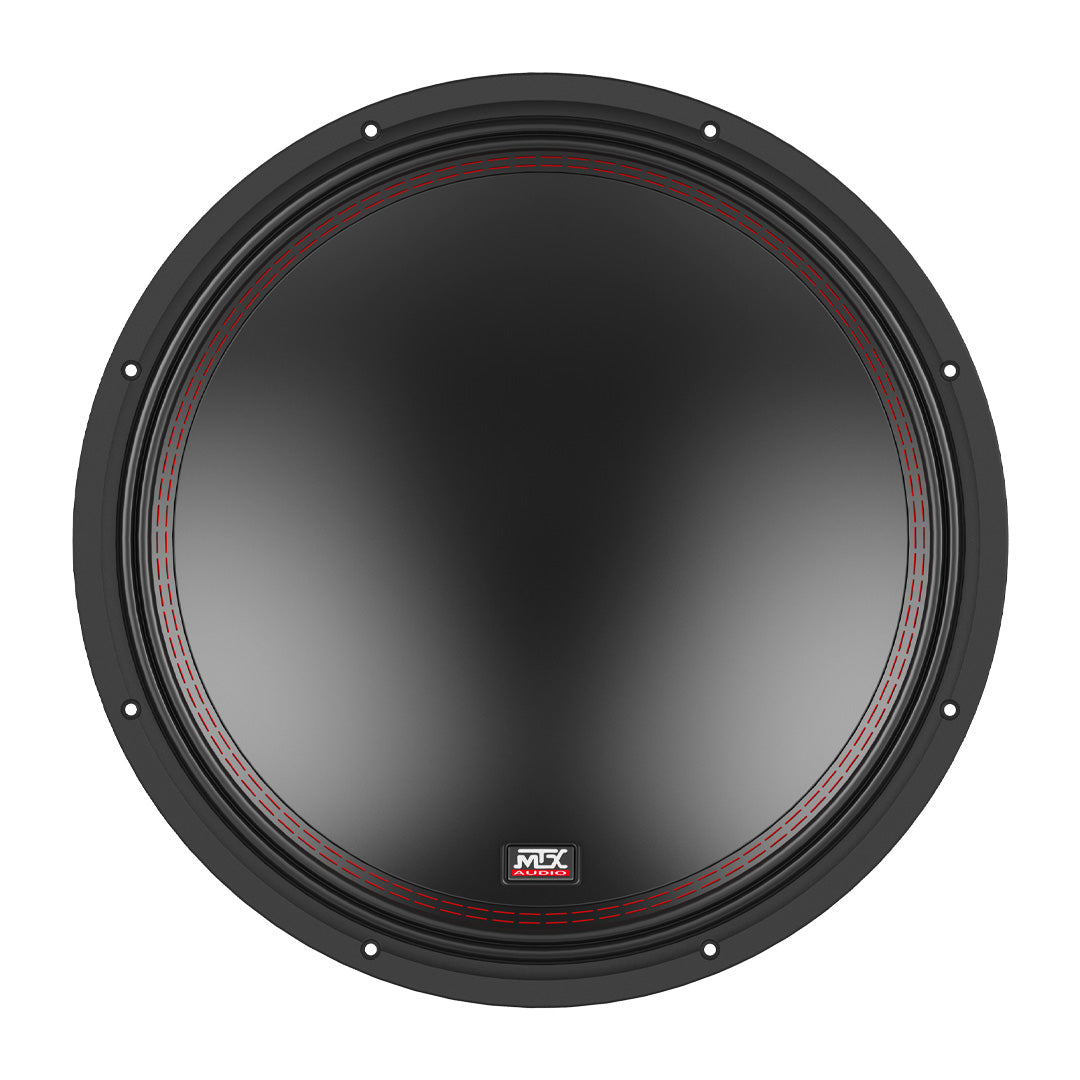

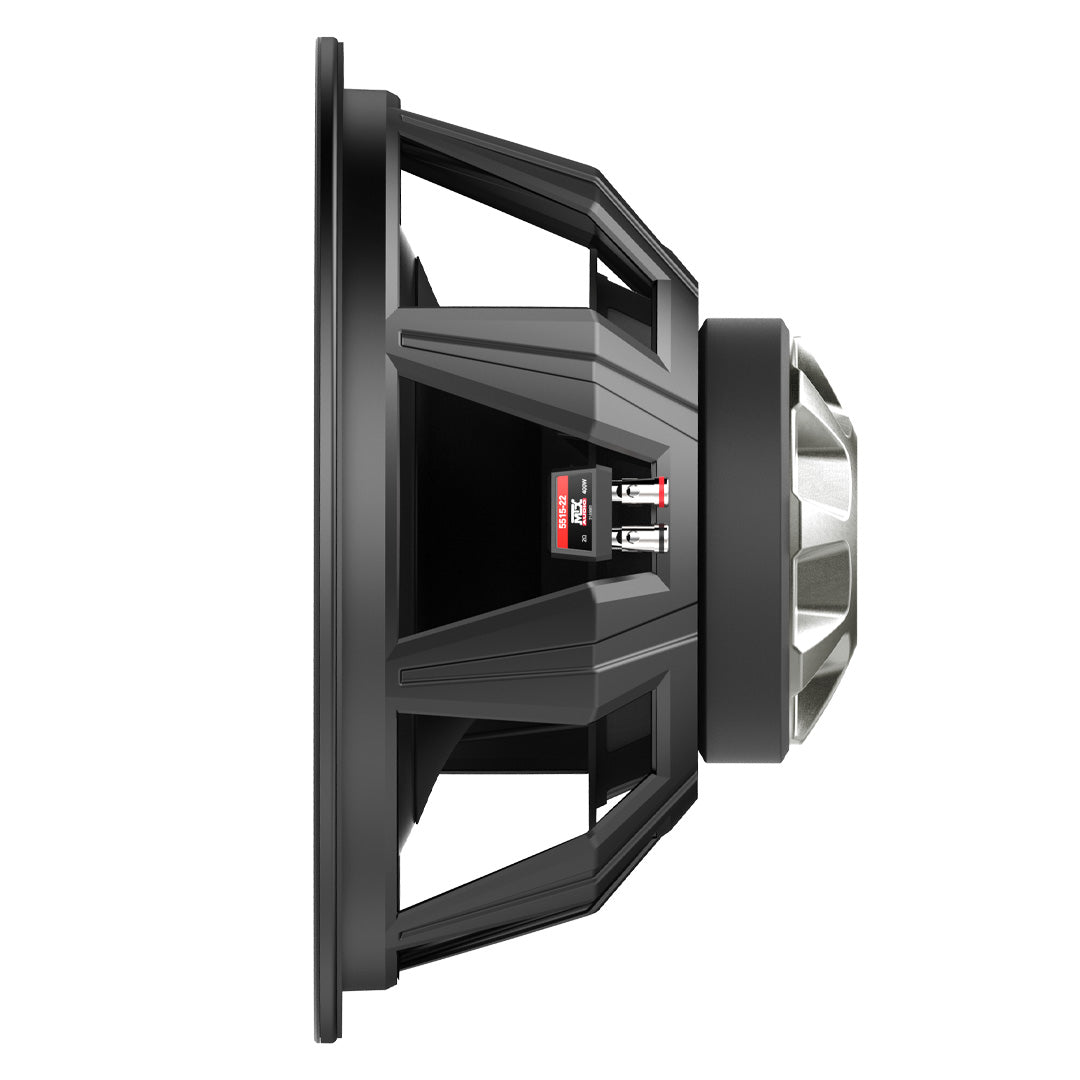

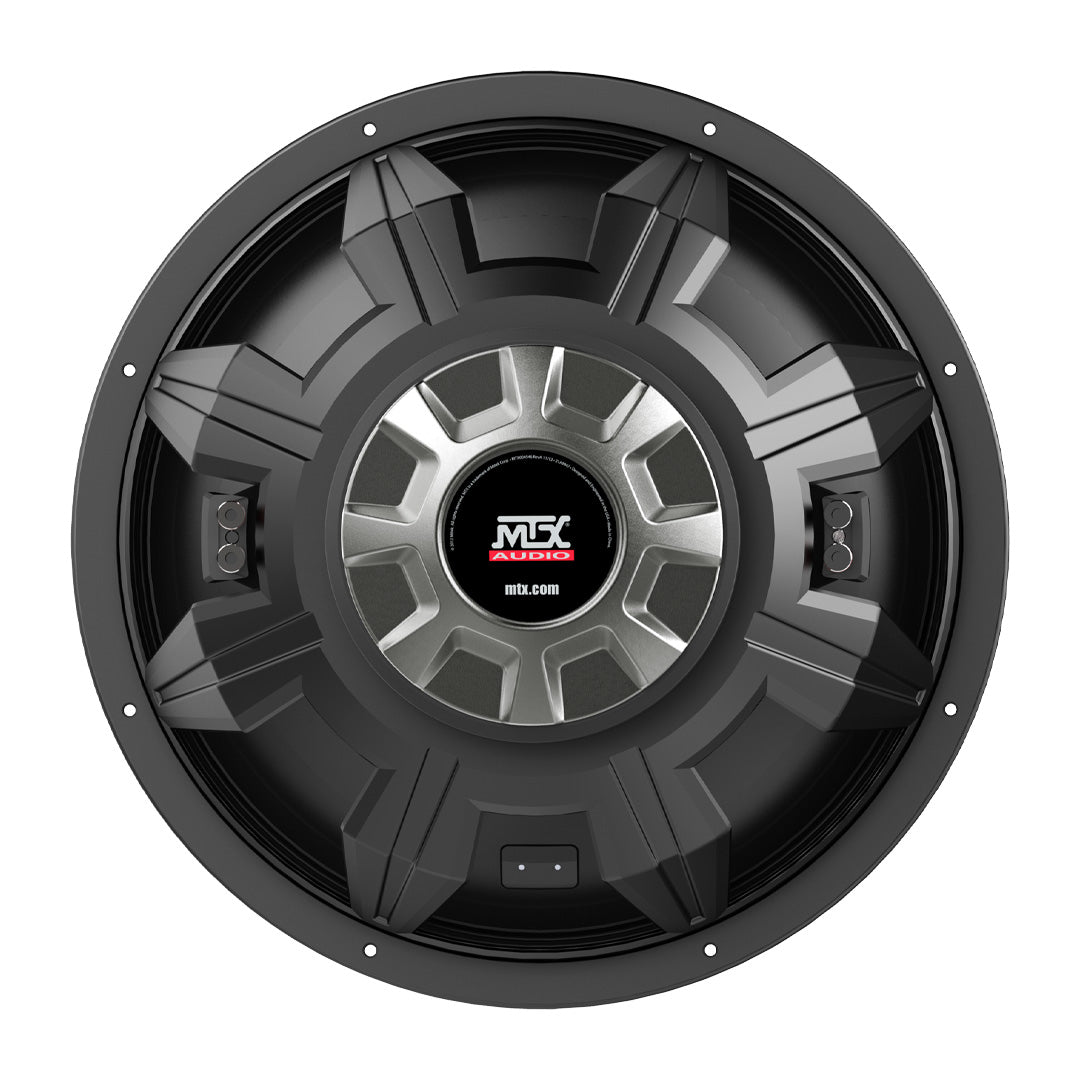

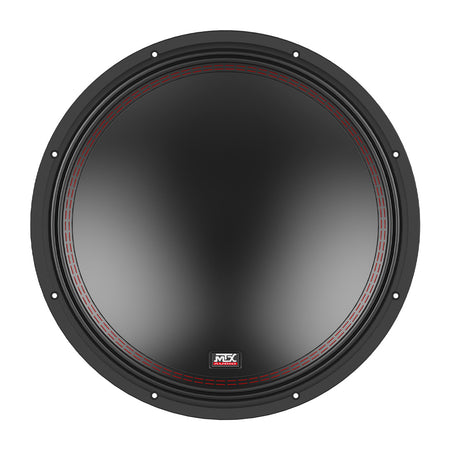

MTX 5510-22 , 10" Dual 2 Ohm Voice Coil Round Subwoofer - 400 Watts (5510-22)
Hard And Loud
55 Series Subwoofers are high SPL subwoofers that deliver the most bass for your buck.
Implementing many of the same features found on our 75 & 95 Series SuperWoofers, the 55 Series can rock hard and loud for extended periods of time, while maintaining accurate and clean bass throughout the party. You will be impressed.
The 5510-22 is a 10″ dual voice coil, 400 watt, 2 ohm subwoofer built on the MTX tradition of getting more than expected. The 55 Series subs are often used in applications where bass levels are the most important factor. These subwoofers are designed to move air and go boom! They are true monsters of bass and are a great choice for anyone that really wants to be heard.
The 55 Series Legacy
The 55 Series, MTX's best selling subwoofer family, is a perfect mix of performance and value for enthusiasts that want to add extreme bass to their system without breaking the bank. We have squeezed an oversized cone into the standard 10", 12" and 15" frames, so the sub moves more air and gives you more bass. The woofer's movement cools the sub as it plays, so it doesn't overheat when you're rocking out. The special suspension exerts extra control when you're pushing the sub hard. Some would say that we've once again out done ourselves, but it only gets better and better.
The MTX Inverted Apex Surround
This subwoofer features the MTX Inverted Apex Surround. This is a departure from a traditional half roll surround. The Inverted Apex is narrower thereby increasing the surface diameter of the subwoofer cone enabling it to displace more air and generate higher SPL. The 55's are designed with a progressive suspension that lowers distortion resulting in improved sound quality even at high volume.
55 Series Spider Plateau Venting
This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil and a radial ribbed t-yoke that acts as a heat sink effectively managing the subwoofer temperature for long term rocking performance.
FEATURES
- Inverted Apex Surround - Increases Surface Area Resulting in Increased Volume Displacement and SPL
- Spider Plateau Venting - Targets Cool Air at Voice Coil for Improved Thermal Performance
- Progressive Suspension - Controls Excursion at High Power Reducing Distortion Resulting in Better Sound Quality
- Radial Ribbed T-Yoke - Helps Dissipates Heat and Decreases Distortion Improving Sound Quality
- 2.0" High Temperature Voice Coil
Size |
12-inch |
Voice Coil |
DVC |
Impedance |
2 ohm |
RMS Power Rating (Watts) |
400 |
Peak Power Rating (Watts) |
800 |
Cone Material |
Polypropylene |
Surround Material |
Rubber |
Free Air |
No |
Sensitivity |
83.1dB @ 1 Watt |
Frequency Response |
29-130hz |
Top Mount Depth (Inches) |
5 11/16 |
Bottom Mount Depth (Inches) |
6 1/16 |
Cutout Diameter (Inches) |
9 3/16 |
Vas (liters) |
23.55 |
Fs (Hz) |
35 |
Xmax (millimeters) |
15.24 |
Warranty |
1 Year |
Size |
12-inch |
Voice Coil |
DVC |
Impedance |
2 ohm |
RMS Power Rating (Watts) |
400 |
Peak Power Rating (Watts) |
800 |
Cone Material |
Polypropylene |
Surround Material |
Rubber |
Free Air |
No |
Sensitivity |
83.1dB @ 1 Watt |
Frequency Response |
29-130hz |
Top Mount Depth (Inches) |
5 11/16 |
Bottom Mount Depth (Inches) |
6 1/16 |
Cutout Diameter (Inches) |
9 3/16 |
Vas (liters) |
23.55 |
Fs (Hz) |
35 |
Xmax (millimeters) |
15.24 |
Warranty |
1 Year |
