Axxess AXSUB-GM4 Add-A-Sub Data Interface for Select GM Vehicles
Upgrade your factory audio system with deeper, more impactful bass using the Axxess AXSUB-GM4 Add-A-Sub Data Interface. Designed for select 2019 and newer GM vehicles with non-amplified factory audio systems, this vehicle-specific interface provides a simple plug-and-play solution for adding an aftermarket subwoofer and amplifier while keeping the factory radio in place.
The AXSUB-GM4 utilizes Axxess Add-A-Sub™ technology to restore low-frequency audio that is often limited by factory sound systems. It provides a 2-channel non-fading 5V RMS output with a fixed 234Hz low-pass crossover, delivering a dedicated bass signal for an aftermarket subwoofer amplifier without affecting the rest of the factory audio system.
Designed for a clean installation, the AXSUB-GM4 installs directly at the radio location using the included vehicle-specific T-harness, eliminating the need to cut factory wiring. A dash-mountable bass control knob is included, allowing convenient adjustment of subwoofer output levels from the driver's seat.
The interface also provides a 250mA remote turn-on output for activating an aftermarket amplifier and features Micro-B USB update capability to support future software updates. On select vehicles equipped with Active Noise Cancellation (ANC), an additional ANC bypass harness may be required for proper operation.
Before purchasing, vehicle compatibility should always be verified. The AXSUB-GM4 is designed for select 2019 and newer Chevrolet and GMC vehicles equipped with compatible non-amplified factory audio systems, including applications with the GM IOR radio platform.
Whether adding a powered subwoofer, enhancing factory bass response, or building a custom audio system, the Axxess AXSUB-GM4 provides a clean, reliable, and professional solution for integrating aftermarket bass with compatible GM factory radios.
Key Features
- Vehicle-specific GM Add-A-Sub™ interface
-
Designed for select 2019 and newer GM vehicles
- Designed for non-amplified factory audio systems
- Adds an aftermarket subwoofer while retaining the factory radio
- 2-channel non-fading 5V RMS output
- Fixed 234Hz low-pass crossover
- 250mA remote turn-on output
- Includes dash-mountable bass level control knob
- Vehicle-specific plug-and-play T-harness included
- Installation performed at the radio location
- Micro-B USB update capability
-
Compatible with select Chevrolet and GMC vehicles
-
May require an ANC bypass harness on vehicles equipped with Active Noise Cancellation
-

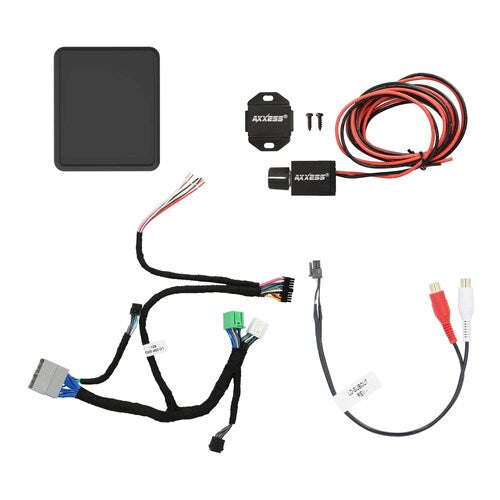

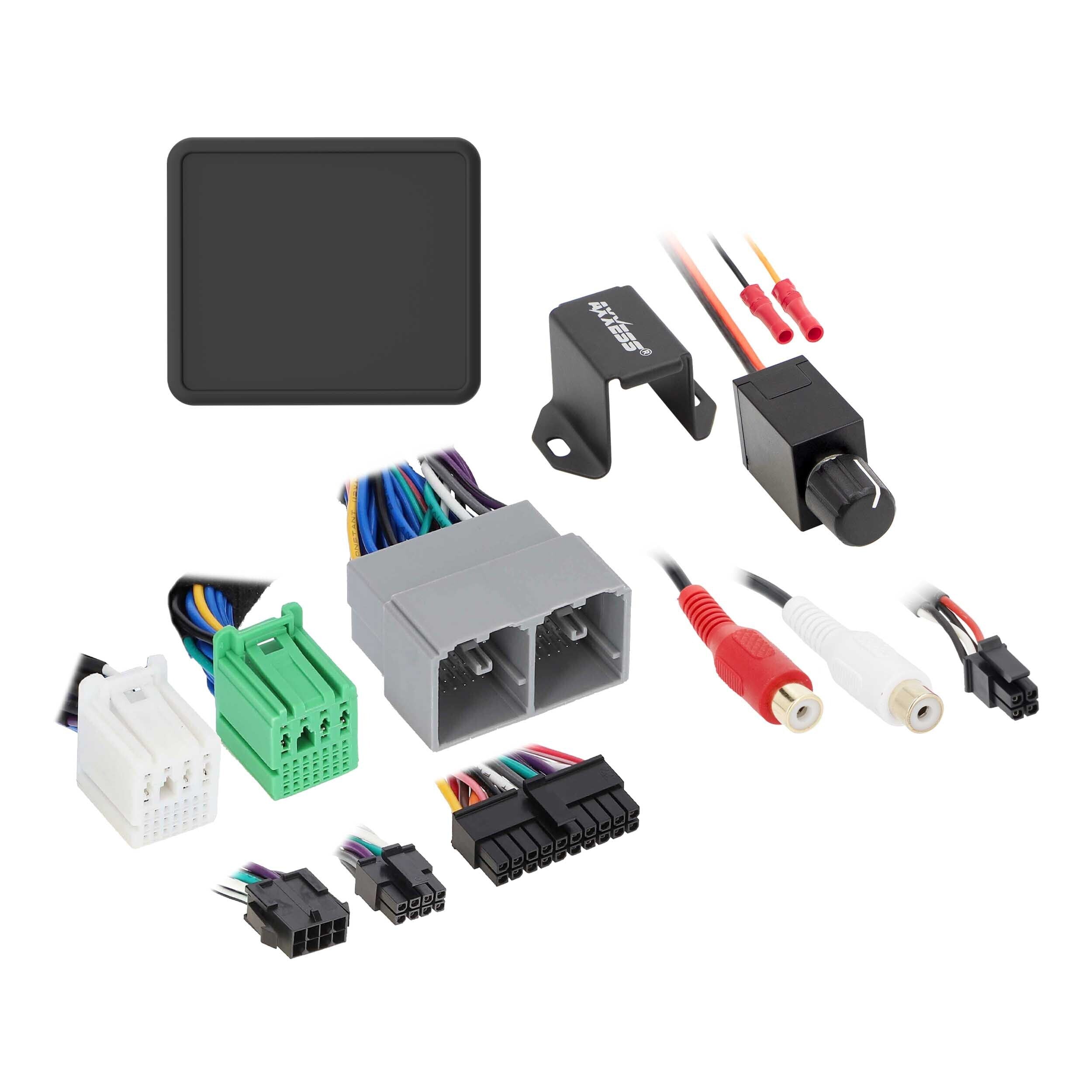

Includes:
- AXSUB-GM4 interface
- Vehicle-specific T-harness
- Bass control knob
- Ideal for adding aftermarket bass while maintaining the factory audio system
