Axxess AXSUB-FD1 Add-A-Sub Data Interface for Select Ford Vehicles
Upgrade your factory audio system with richer, more dynamic bass using the Axxess AXSUB-FD1 Add-A-Sub Data Interface. Designed for select 2011-2017 Ford vehicles with non-amplified factory audio systems, this vehicle-specific interface provides a simple plug-and-play solution for adding an aftermarket subwoofer and amplifier while retaining the factory radio and its original functionality.
The AXSUB-FD1 utilizes Axxess Add-A-Sub™ technology to extract a dedicated low-frequency signal from the factory audio system without replacing the original radio. It features a 2-channel non-fading 5V RMS output with a fixed 234Hz low-pass crossover, delivering a clean, optimized bass signal for an aftermarket subwoofer amplifier while maintaining the performance of the factory speakers.
Installation is quick and straightforward using the included vehicle-specific T-harness, allowing the interface to connect directly at the radio location without cutting or modifying factory wiring. A dash-mountable bass level control knob is included, providing convenient adjustment of subwoofer output from the driver's seat.
The AXSUB-FD1 also features a 250mA remote turn-on output to activate an aftermarket amplifier and includes Micro-B USB update capability for future firmware updates and expanded compatibility with supported vehicles.
Before purchasing, vehicle compatibility should always be verified. The AXSUB-FD1 is designed for select 2011-2017 Ford vehicles equipped with compatible non-amplified factory audio systems, including many Ford cars, trucks, and SUVs.
Whether adding a powered subwoofer, improving factory bass response, or building a custom sound system, the Axxess AXSUB-FD1 provides a clean, reliable, and professional solution for integrating aftermarket bass while retaining the factory radio.
Key Features
- Vehicle-specific Ford Add-A-Sub™ interface
-
Designed for select 2011-2017 Ford vehicles
- Designed for non-amplified factory audio systems
- Adds an aftermarket subwoofer while retaining the factory radio
- 2-channel non-fading 5V RMS output
- Fixed 234Hz low-pass crossover
- 250mA remote turn-on output
- Includes dash-mountable bass level control knob
- Vehicle-specific plug-and-play T-harness included
- Installation performed at the radio location
- Micro-B USB update capability
- Maintains factory radio operation while adding aftermarket bass
-

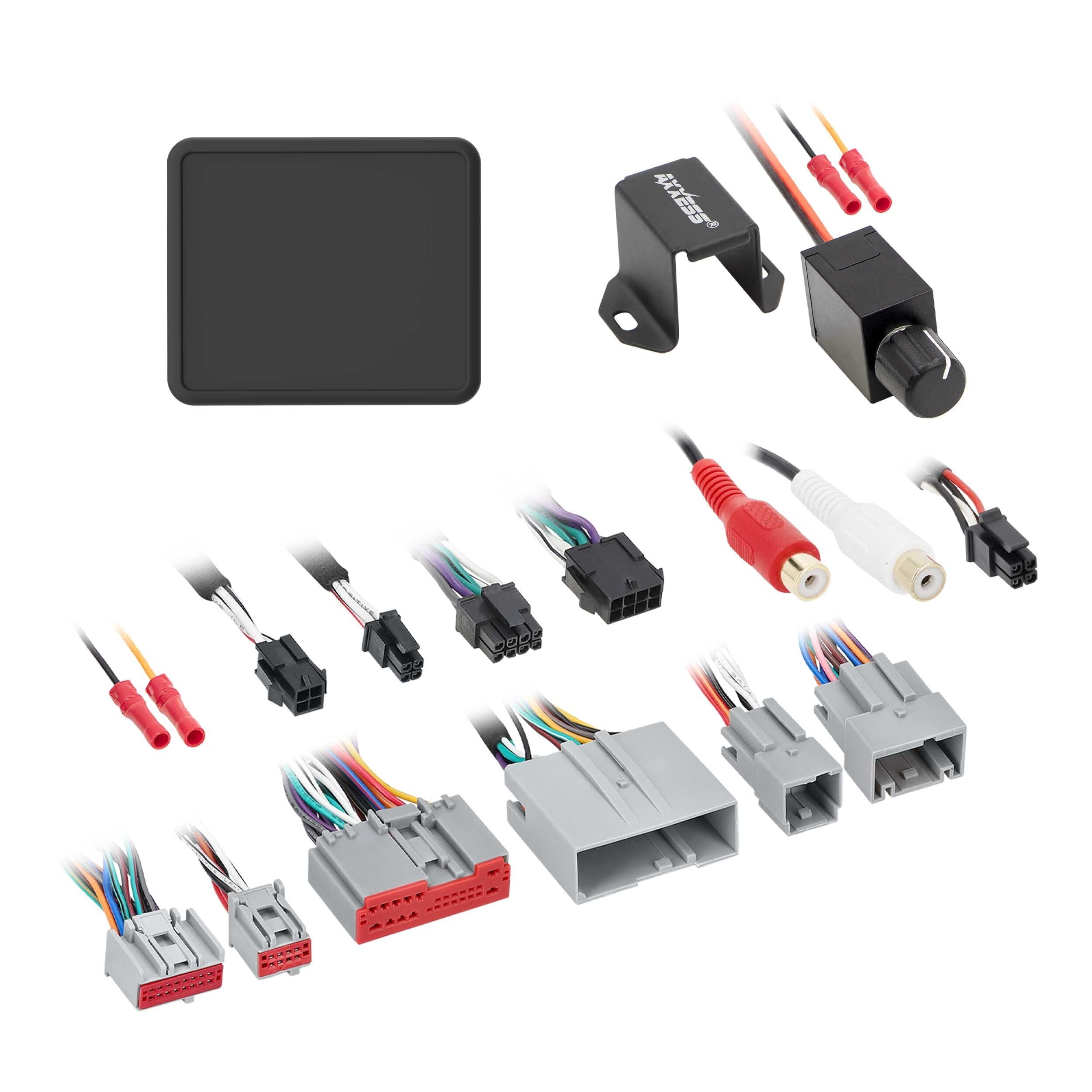

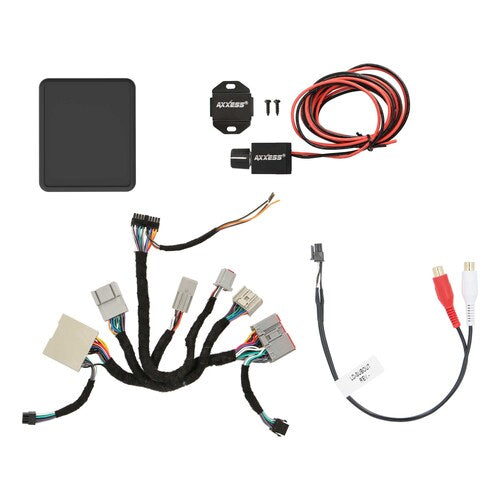

Includes:
- AXSUB-FD1 interface
- Vehicle-specific T-harness
- Bass control knob
- Ideal for factory audio system bass upgrades
