Autotek MM-3025.4D Mean Machine Compact Bridgeable 4-Channel Full Range Amplifier – 3000 Watts
The Autotek MM-3025.4D Mean Machine Compact 4-Channel Amplifier is engineered to deliver powerful, efficient full-range audio performance in a space-saving design. Featuring advanced Class D technology, PRO-FI™ High Speed MOSFET output devices, and flexible bridgeable operation, this amplifier provides the power and control needed for high-performance speaker systems and custom car audio builds.
Designed for enthusiasts who demand strong output without sacrificing installation flexibility, the MM-3025.4D delivers up to 3,000 watts of maximum power. Its compact chassis, high-efficiency PWM power supply, and advanced thermal management make it an ideal choice for vehicles where space is limited but powerful amplification is required.
Key Features
- 3,000 Watts Max Power Output
- 4-Channel Full Range Class D Amplifier
- Bridgeable Channel Design
- 2 Ohm Stable Operation
- 4 x 750 Watts @ 2 Ohms
- 4 x 375 Watts @ 4 Ohms
- 2 x 1,500 Watts Bridged @ 4 Ohms
- PRO-FI™ High Speed MOSFET Technology
- TCID™ (Twin Coil Isolation Design) Output Technology
- High-Energy PWM Power Supply
- Variable Electronic Crossovers
- Adjustable High-Pass & Low-Pass Filters
- Built-In Bass Control

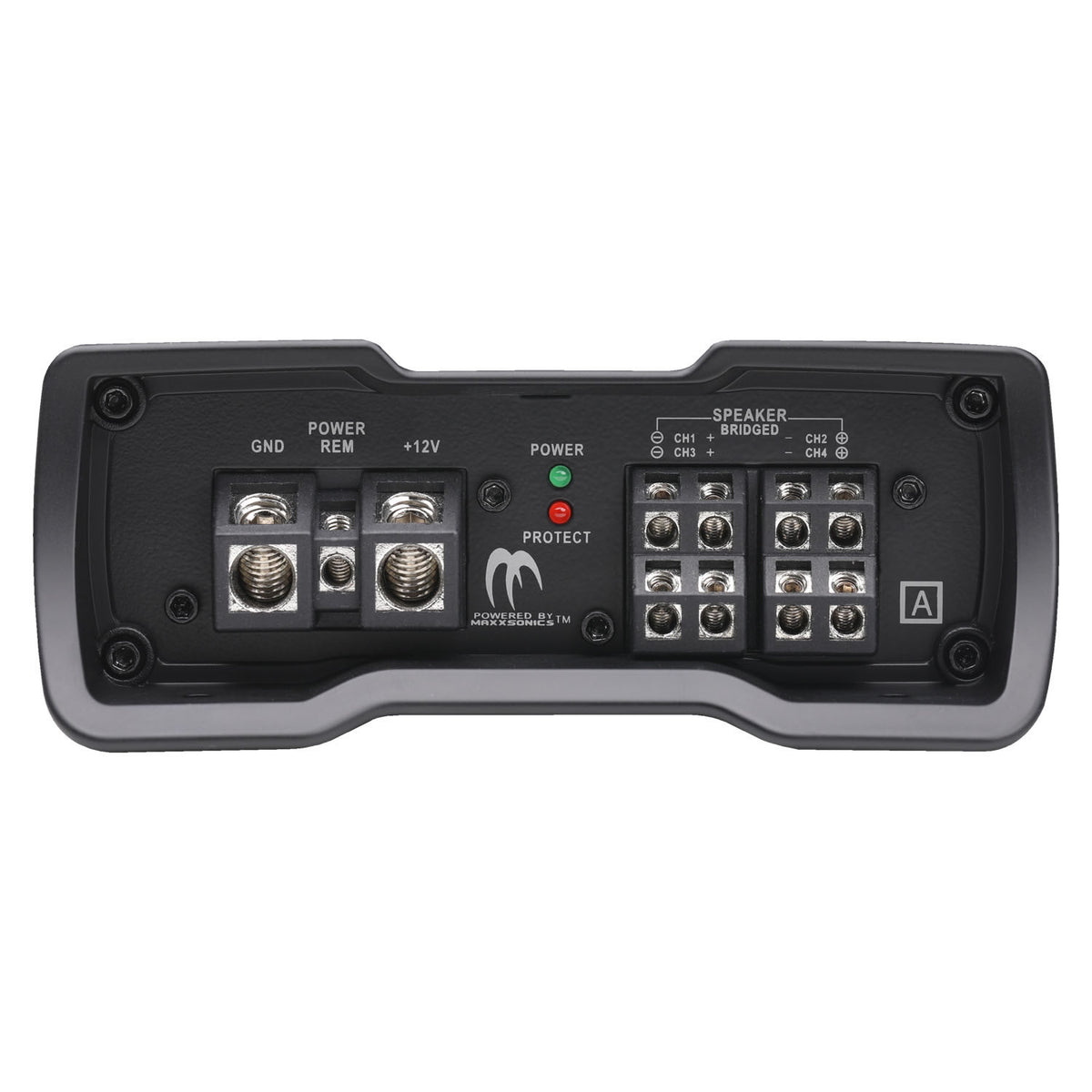

- RCA Inputs and Full-Range RCA Outputs
- Low Noise Preamplifier Circuit
- Nickel-Plated Brass Connection Terminals
- Heavy-Duty Aluminum Alloy Heat Sink with Illuminated Logo
- Thermal, Overload & Speaker Short Protection
- LED System Protection Indicators
- Compact Mean Machine Series Design
Compact Power Performance
The MM-3025.4D combines efficient Class D amplification with advanced MOSFET technology to deliver high output while maintaining a smaller installation footprint. The amplifier’s high-energy PWM power supply helps provide reliable power delivery, while the aluminum heat sink helps manage operating temperatures during demanding listening sessions.
Flexible System Configuration
With four full-range channels and bridgeable operation, the MM-3025.4D allows multiple system designs. It can power a complete speaker system, run bridged channels for increased output, or be integrated into custom builds requiring flexible channel configurations.

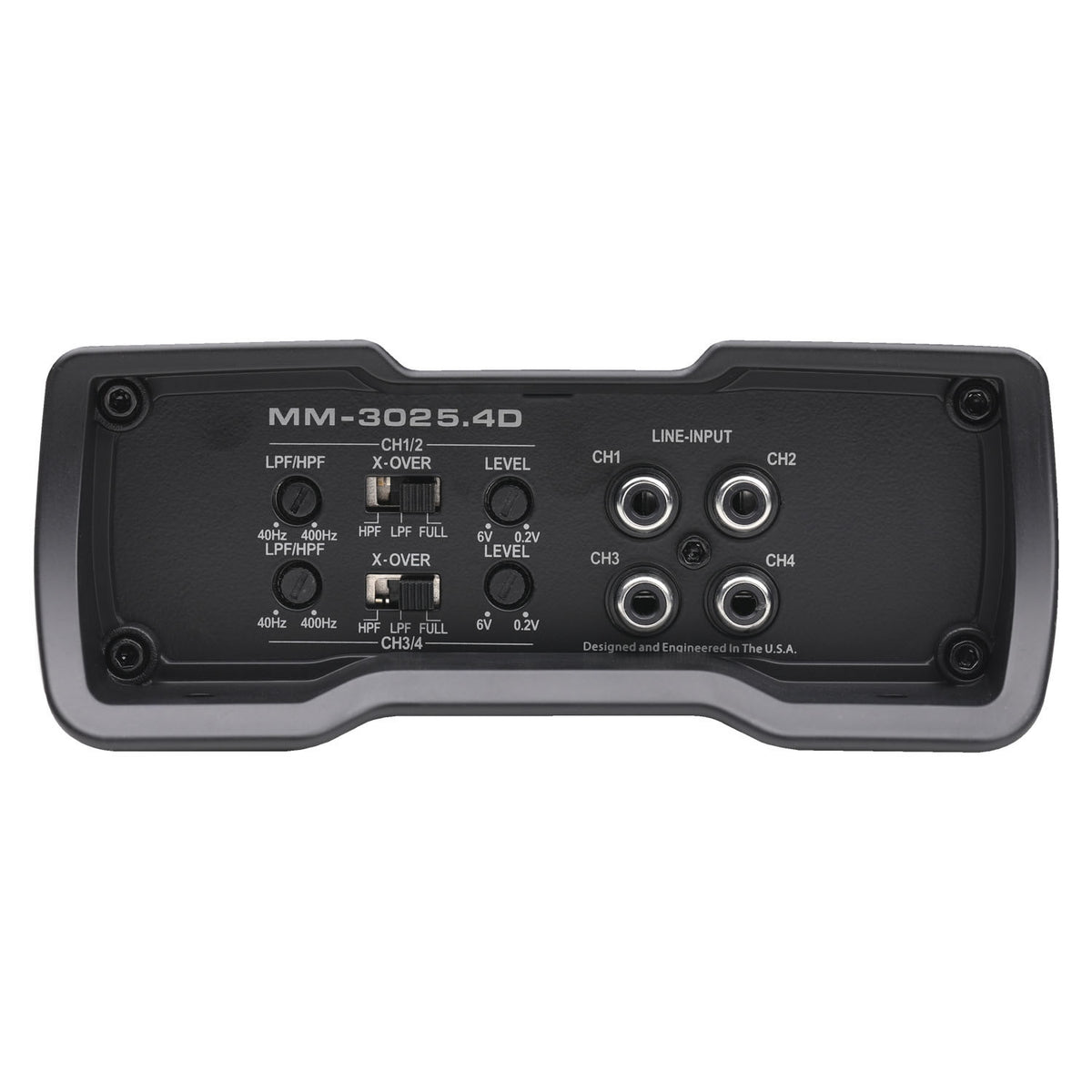

Precision Audio Control
Customize your system’s sound with onboard tuning features, including:
- Variable High-Pass Crossover (40Hz–400Hz)
- Variable Low-Pass Crossover (40Hz–400Hz)
- Electronic Equalizer Controls
- Adjustable Input Sensitivity
- Full-Range Operation Mode
- Bridgeable Output Configuration
Advanced Connectivity
The MM-3025.4D includes RCA inputs and full-range RCA outputs for easy system expansion. The pass-through outputs allow additional amplifiers to be connected while reducing the need for long signal cable runs, helping simplify multi-amplifier installations.
Specifications
- Amplifier Class: Class D
- Channels: 4
- Maximum Power Output: 3,000 Watts
- Power Output @ 4 Ohms: 375 Watts x 4
- Power Output @ 2 Ohms: 750 Watts x 4
- Bridged Power @ 4 Ohms: 1,500 Watts x 2
- Frequency Response: 10Hz–22kHz
- Total Harmonic Distortion: <0.05%
- Variable Crossover Range: 40Hz–400Hz
- Input Sensitivity: 0.2V–6V
- Power Wire Size: 4 AWG
- Speaker Wire Size: 12 AWG
- Fuse Rating: External 80A
- Dimensions: 16" x 7" x 3.25"
What's Included
- Autotek MM-3025.4D Mean Machine 4-Channel Amplifier
- Installation Hardware
- User Documentation
Perfect For
- Full-range speaker upgrades
- Component speaker systems
- High-output car audio builds
- Custom multi-channel installations
- Cars, trucks, SUVs, and performance audio systems
Upgrade your vehicle’s sound system with the Autotek MM-3025.4D Mean Machine 4-Channel Amplifier and experience powerful Class D performance, flexible configuration options, and compact high-output amplification built for serious car audio enthusiasts.
