Autotek MM-2025.4D Mean Machine Compact Bridgeable 4-Channel Full Range Amplifier – 2000 Watts
The Autotek MM-2025.4D Mean Machine Compact 4-Channel Amplifier is designed to deliver powerful, efficient full-range audio performance in a compact and versatile chassis. Featuring advanced Class D technology, PRO-FI™ High Speed MOSFET output devices, and bridgeable operation, this amplifier provides high-output performance with minimal distortion for custom car audio systems.
Built for enthusiasts who demand serious power in a space-saving design, the MM-2025.4D delivers up to 2,000 watts of maximum output. Its compact footprint, high-energy PWM power supply, and advanced circuit design make it an excellent choice for powering multiple speakers, component systems, or custom full-range installations.
Key Features
- 2,000 Watts Max Power Output
- 4-Channel Full Range Class D Amplifier
- Bridgeable Channel Design
- 2 Ohm Stable Operation
- 500 Watts x 4 @ 2 Ohms
- 250 Watts x 4 @ 4 Ohms
- 1,000 Watts x 2 Bridged @ 4 Ohms
- PRO-FI™ High Speed MOSFET Technology
- TCID™ (Twin Coil Isolation Design) Output Technology
- High-Energy PWM (Pulse Width Modulated) Power Supply
- Variable Electronic 12dB Per Octave Crossovers
- Adjustable High-Pass & Low-Pass Filters
- Built-In Bass Control
- RCA Inputs & Full-Range Signal Pass-Through Outputs
- Low Noise Preamplifier Circuit
- Nickel-Plated Brass Connection Terminals
- Heavy-Duty Aluminum Alloy Heat Sink with Illuminated Logo
- LED Power & Protection Indicators
- Overload and Speaker Short Protection
- Compact Mean Machine Series Design
Compact Power Performance
The MM-2025.4D combines efficient Class D amplification with Autotek’s PRO-FI™ High Speed MOSFET technology to provide strong, clean output while maintaining a compact installation size. The high-efficiency power supply helps maximize performance while reducing electrical strain and heat buildup during demanding listening sessions.
Flexible Full-Range Audio Control
With four independent channels and bridgeable capability, the MM-2025.4D allows multiple system configurations. It can power front and rear speakers, component speaker sets, or be bridged for increased output in custom audio builds.

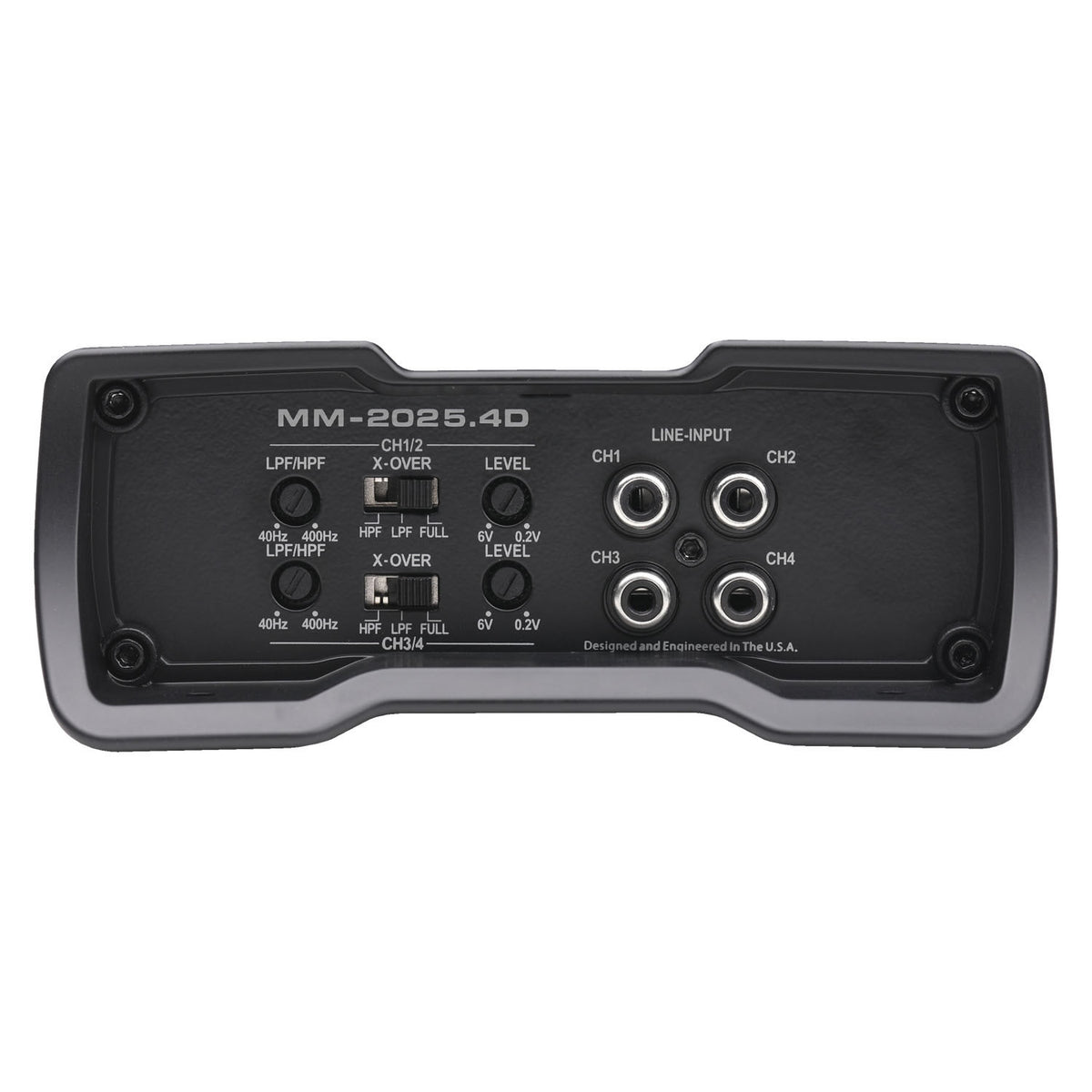

Fine-tune your system with onboard controls including:
- Variable High-Pass Crossover: 40Hz–400Hz
- Variable Low-Pass Crossover: 40Hz–400Hz
- Full-Range Operation Mode
- Adjustable Input Sensitivity
- Electronic Equalizer Controls for System Tuning
Advanced Connectivity
The MM-2025.4D includes RCA inputs and full-range RCA pass-through outputs, allowing additional amplifiers to be connected without running extra signal cables throughout the vehicle. This makes it ideal for multi-amplifier installations and expanded custom audio systems.
Specifications
- Amplifier Class: Class D
- Channels: 4
- Maximum Power Output: 2,000 Watts
- Power Output @ 4 Ohms: 250 Watts x 4
- Power Output @ 2 Ohms: 500 Watts x 4
- Bridged Power @ 4 Ohms: 1,000 Watts x 2
- Frequency Response: 10Hz–22kHz
- Total Harmonic Distortion: <0.05%
- Variable Crossover Range: 40Hz–400Hz
- Input Sensitivity: 0.2V–6V
- Power Wire Size: 4 AWG
- Speaker Wire Size: 12 AWG
- Fuse Rating: External 60A
- Dimensions: 8.25" L x 5.5" W x 2.25" H
What's Included
- Autotek MM-2025.4D Mean Machine 4-Channel Amplifier
- Installation Hardware
- User Manual
Perfect For
- Full-range speaker upgrades
- Component speaker systems
- Front and rear speaker installations
- Custom multi-channel audio builds
- Factory audio system upgrades
- Cars, trucks, SUVs, and performance vehicle sound systems
Upgrade your vehicle’s audio system with the Autotek MM-2025.4D Mean Machine 4-Channel Amplifier and experience compact Class D power, flexible tuning options, and reliable high-output performance designed for serious car audio enthusiasts.
