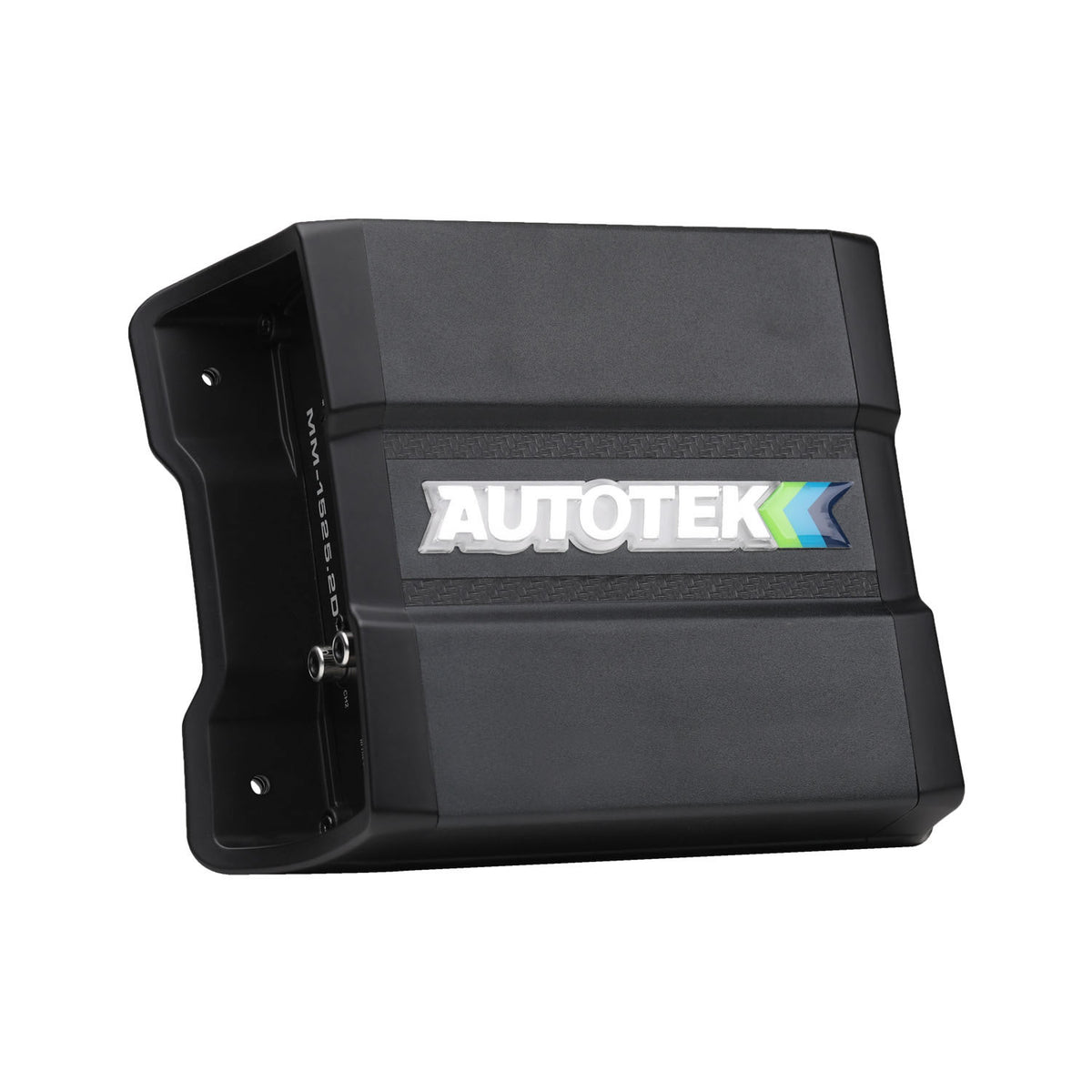

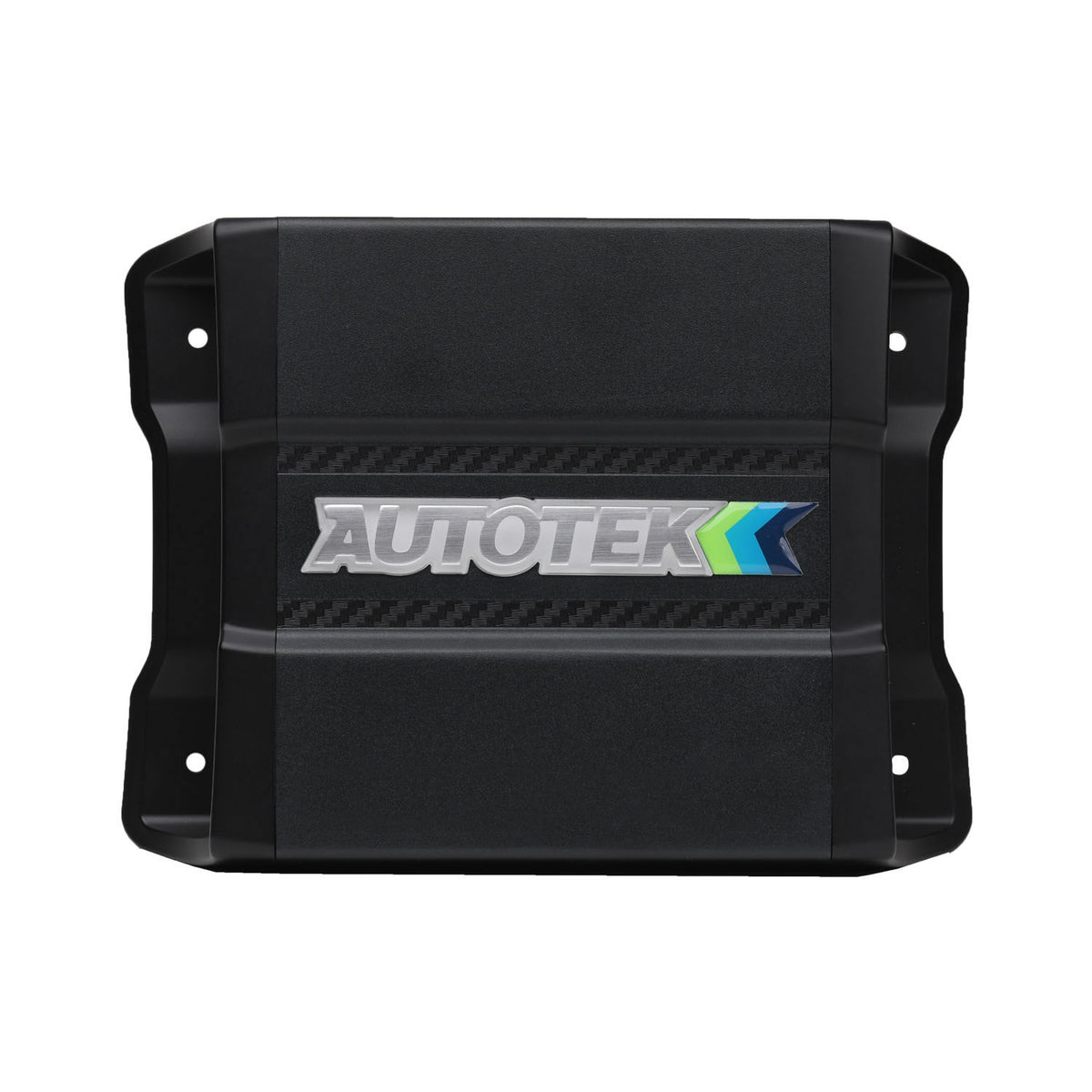

Autotek MM-1525.2D Mean Machine Compact Bridgeable 2-Channel Amplifier – 1500 Watts
The Autotek MM-1525.2D Mean Machine Compact 2-Channel Amplifier is built to deliver powerful, efficient audio performance in a compact and versatile design. Featuring advanced Class D technology, PRO-FI™ High Speed MOSFET output devices, and bridgeable operation, this amplifier provides high-output power with minimal distortion for custom car audio systems.
Designed for enthusiasts who need serious power without taking up valuable installation space, the MM-1525.2D delivers up to 1,500 watts of maximum power output. Its compact chassis, high-efficiency PWM power supply, and advanced circuit design make it an excellent choice for powering full-range speakers, component systems, or bridged applications.
Key Features
- 1,500 Watts Max Power Output
- 2-Channel Full Range Class D Amplifier
- Compact Mean Machine Series Design
- Bridgeable Channel Configuration
- 750 Watts x 2 @ 2 Ohms
- 375 Watts x 2 @ 4 Ohms
- 1,500 Watts x 1 Bridged @ 4 Ohms
- PRO-FI™ High Speed MOSFET Technology
- TCID™ (Twin Coil Isolation Design) Output Technology
- High-Energy PWM Power Supply
- Variable Electronic 12dB Per Octave Crossovers
- Adjustable High-Pass & Low-Pass Filters
- Built-In Bass Control

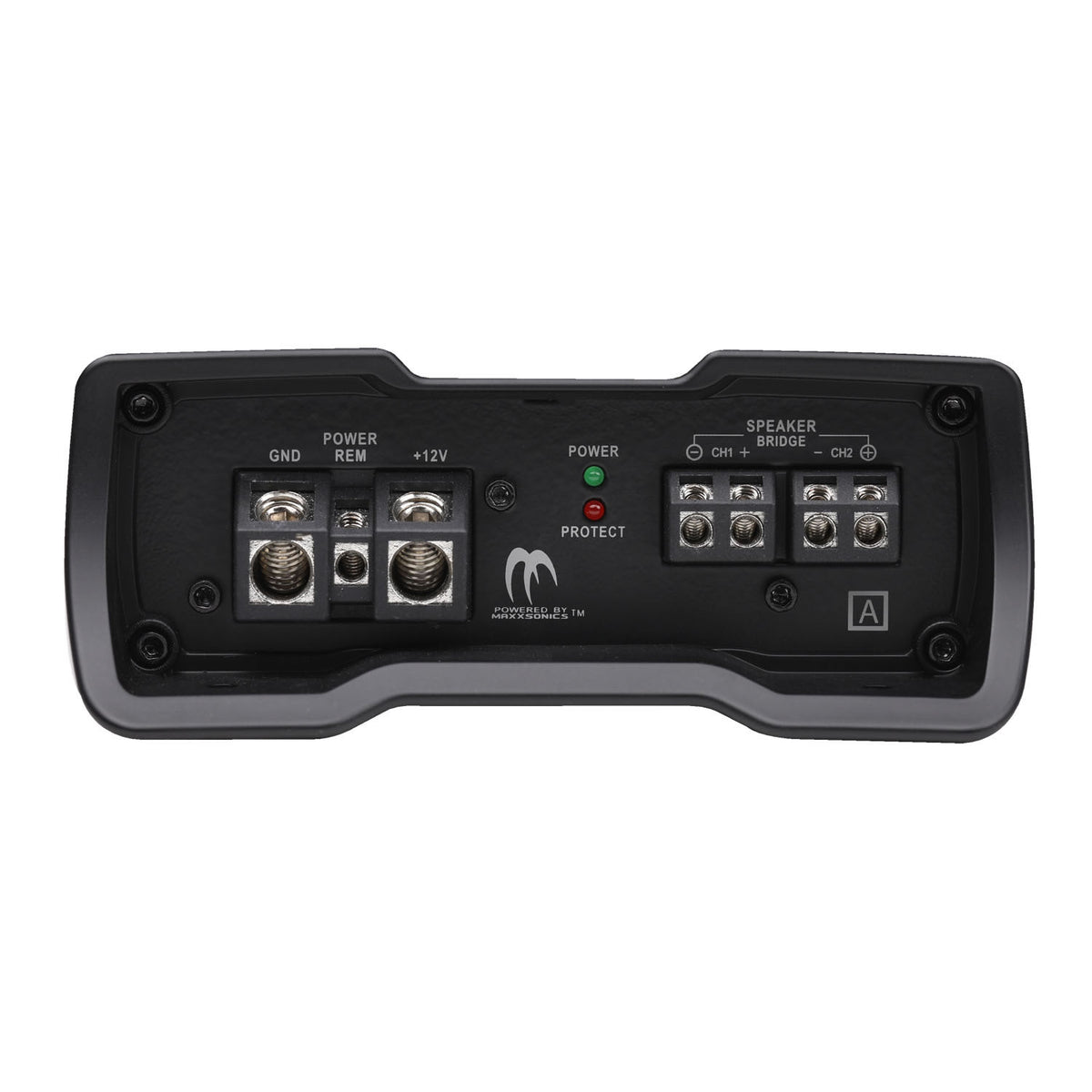

- RCA Inputs & Full-Range RCA Pass-Through Outputs
- Low Noise Preamplifier Circuit
- Nickel-Plated Brass Connection Terminals
- Heavy-Duty Aluminum Alloy Heat Sink with Illuminated Logo
- Thermal, Overload & Speaker Short Protection
- LED Power and Protection Indicators
Compact High-Output Performance
The MM-1525.2D combines efficient Class D amplification with Autotek’s PRO-FI™ High Speed MOSFET technology to deliver strong, clean power while maintaining a smaller installation footprint. The efficient design helps reduce heat buildup and power consumption, making it ideal for vehicles where space is limited but performance is a priority.
Flexible System Configuration
With two full-range channels and bridgeable operation, the MM-1525.2D offers multiple installation options. Use it as a traditional stereo amplifier for speakers or bridge the channels together for increased output in a custom audio setup.

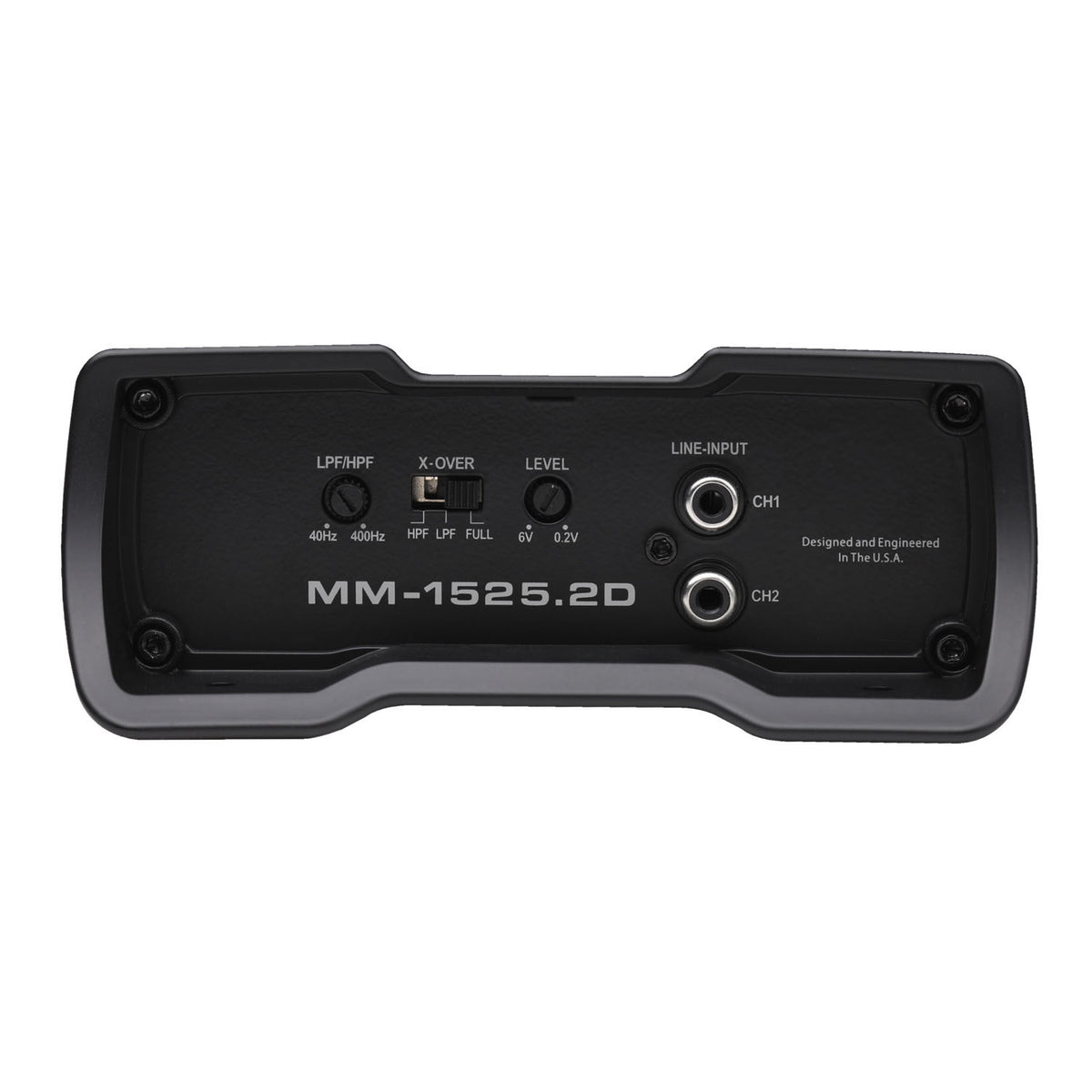

Precision Audio Control
Customize your system using built-in tuning features:
- Variable High-Pass Crossover: 40Hz–400Hz
- Variable Low-Pass Crossover: 40Hz–400Hz
- Adjustable Input Sensitivity
- Full-Range Operation Mode
- Bridgeable Mono Output Configuration
- Electronic Equalizer Controls for system tuning
Advanced Connectivity
The MM-1525.2D includes RCA inputs and full-range RCA pass-through outputs, allowing additional amplifiers to be connected for expanded audio systems. The pass-through design helps simplify multi-amplifier installations by reducing the need for additional signal cable runs.
Specifications
- Amplifier Class: Class D
- Channels: 2
- Maximum Power Output: 1,500 Watts
- Power Output @ 2 Ohms: 750 Watts x 2
- Power Output @ 4 Ohms: 375 Watts x 2
- Bridged Power @ 4 Ohms: 1,500 Watts x 1
- Frequency Response: 10Hz–22kHz
- Total Harmonic Distortion: <0.05%
- Variable Crossover Range: 40Hz–400Hz
- Input Sensitivity: 0.2V–6V
- Power Wire Size: 4 AWG
- Speaker Wire Size: 12 AWG
- Fuse Rating: External 50A
- Compact Chassis Design
What's Included
- Autotek MM-1525.2D Mean Machine 2-Channel Amplifier
- Installation Hardware
- User Manual
Perfect For
- Full-range speaker upgrades
- Component speaker systems
- Bridged amplifier applications
- Custom car audio builds
- Factory audio system upgrades
- Cars, trucks, SUVs, and performance vehicle sound systems
Upgrade your vehicle’s audio system with the Autotek MM-1525.2D Mean Machine 2-Channel Amplifier and experience compact Class D power, flexible installation options, and powerful performance designed for serious car audio enthusiasts.
