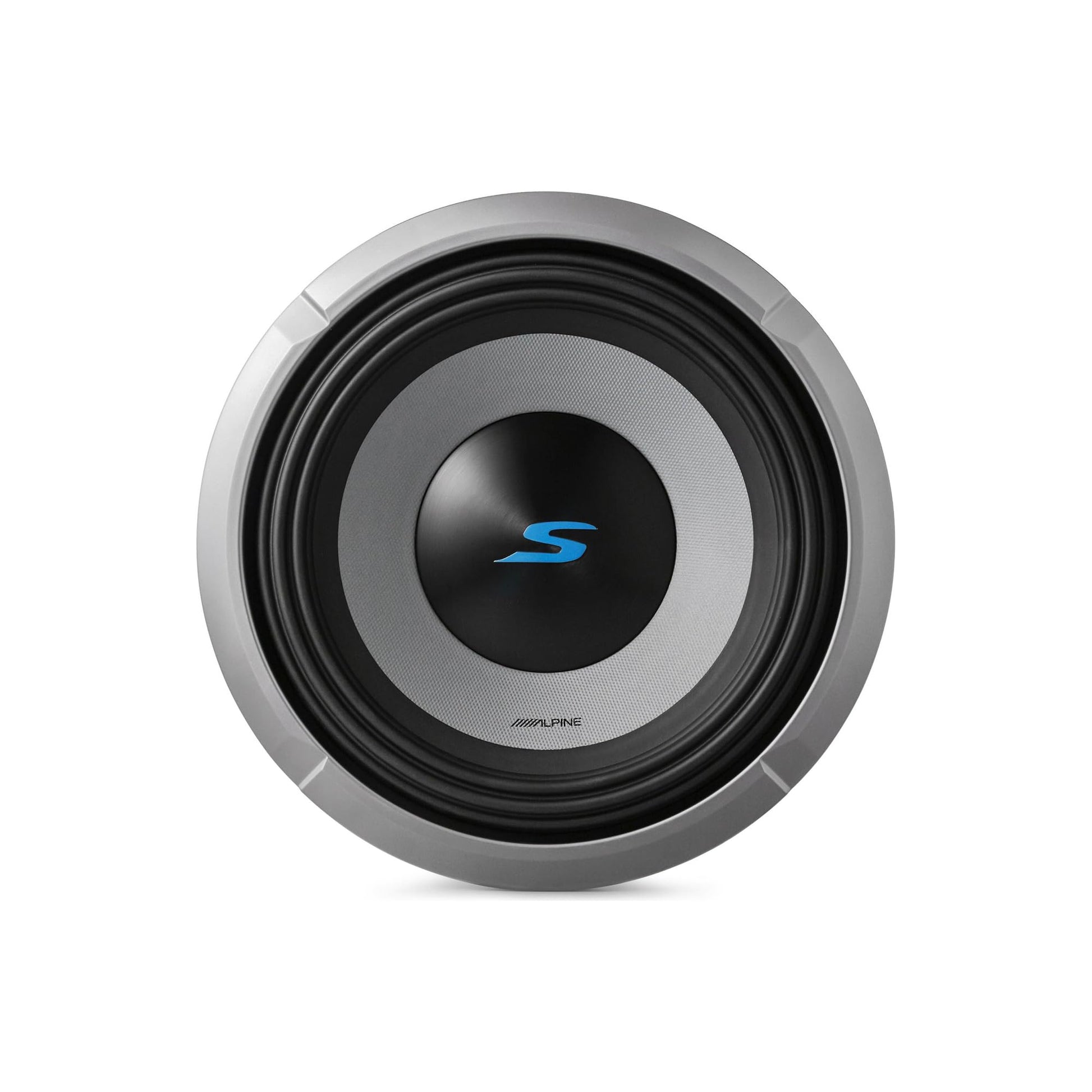

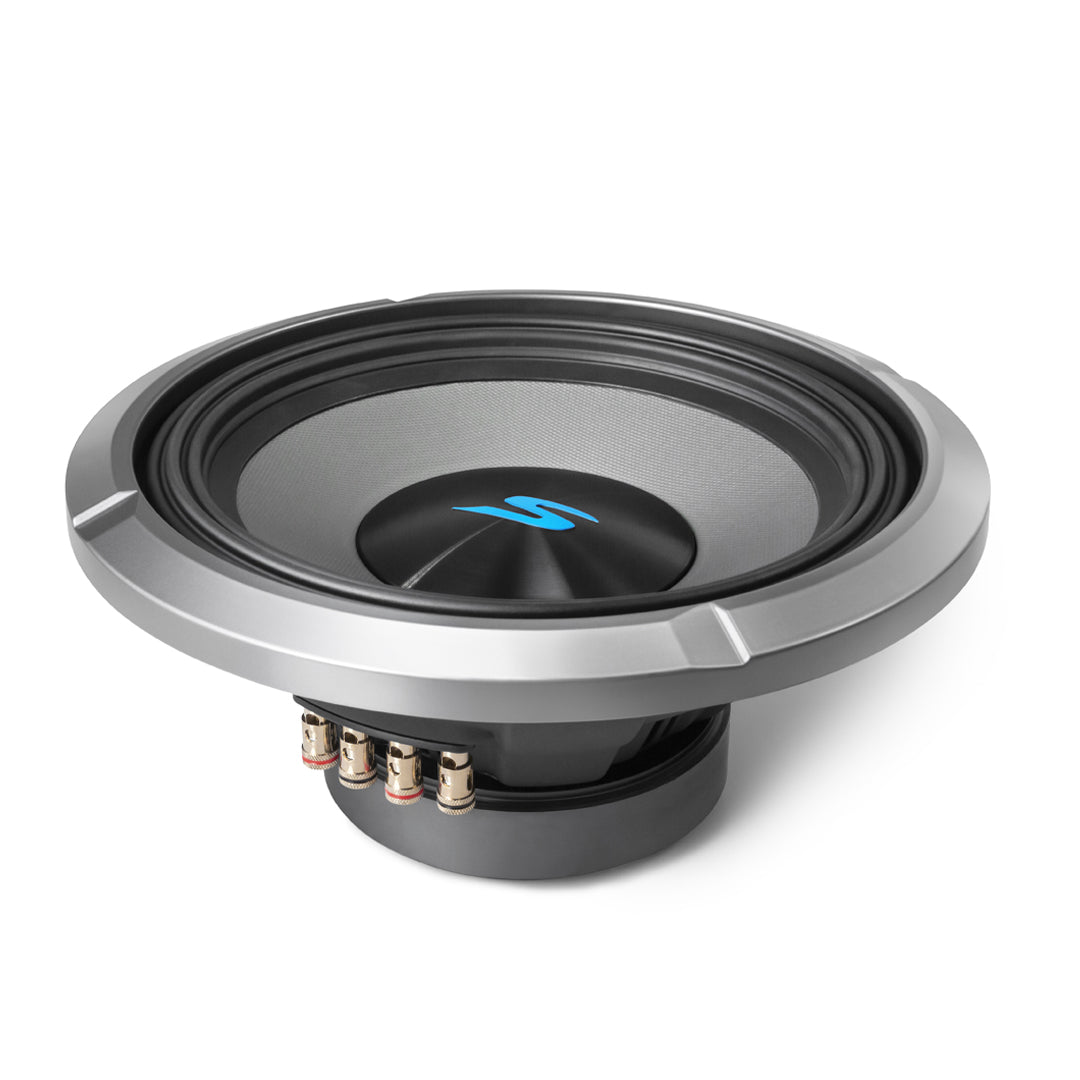

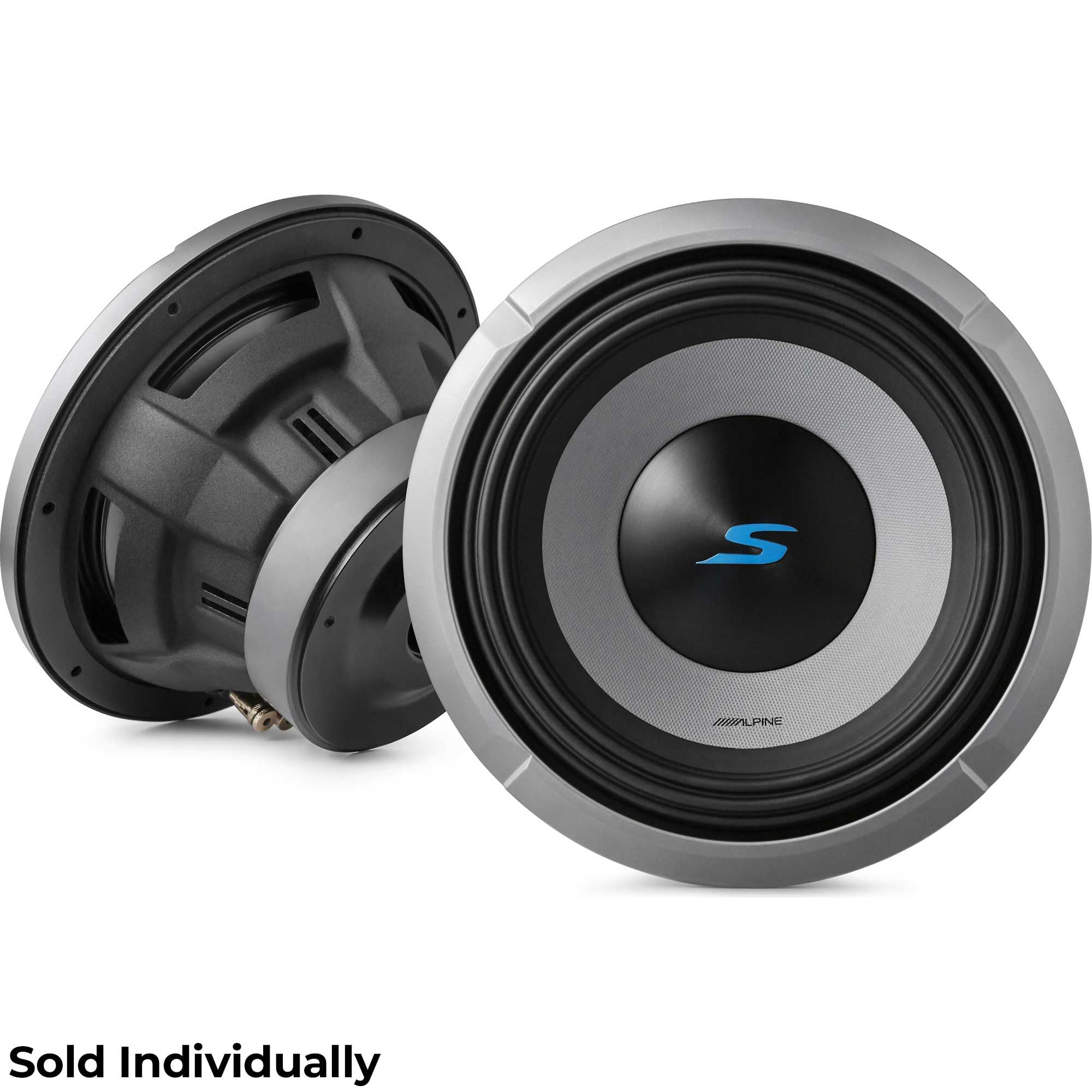

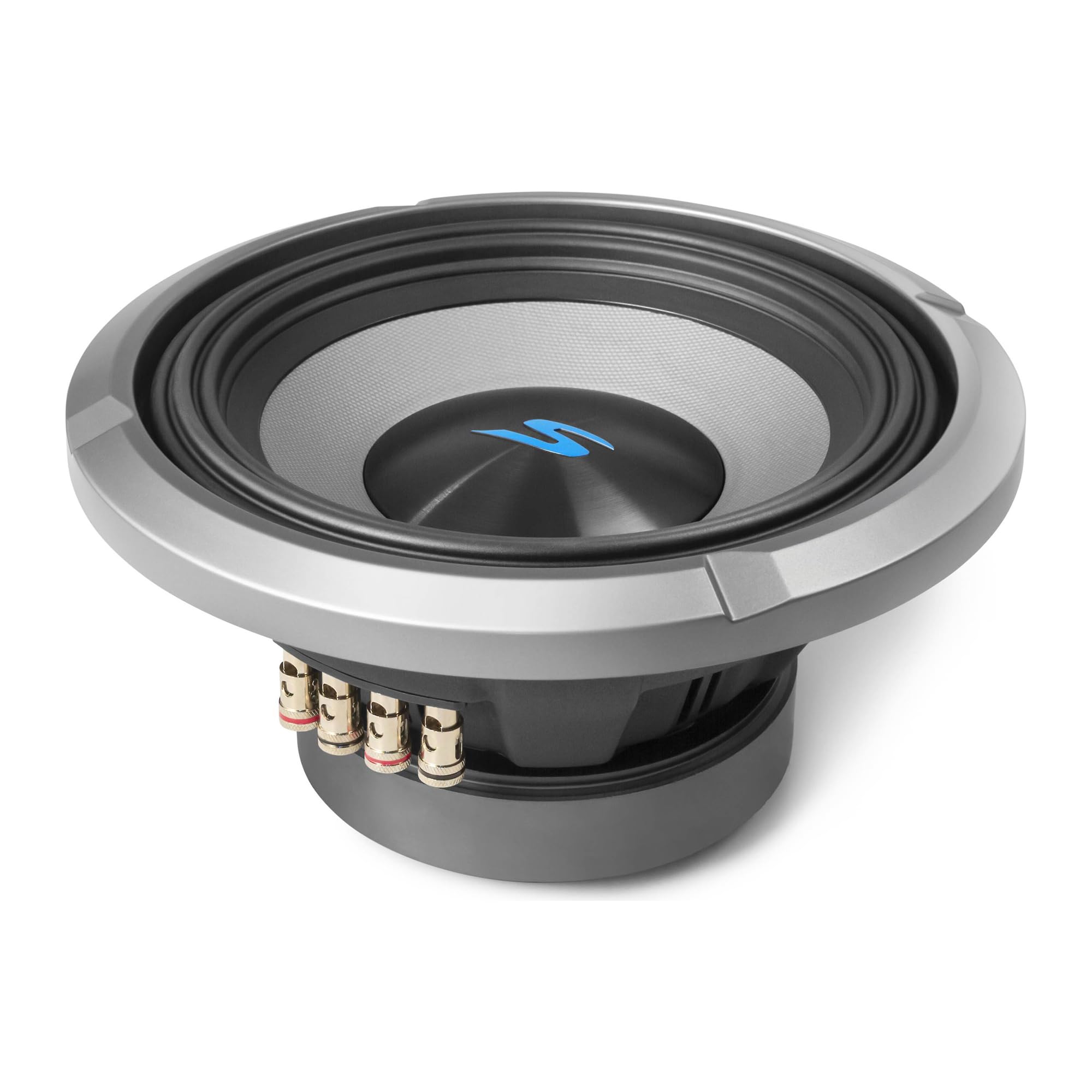

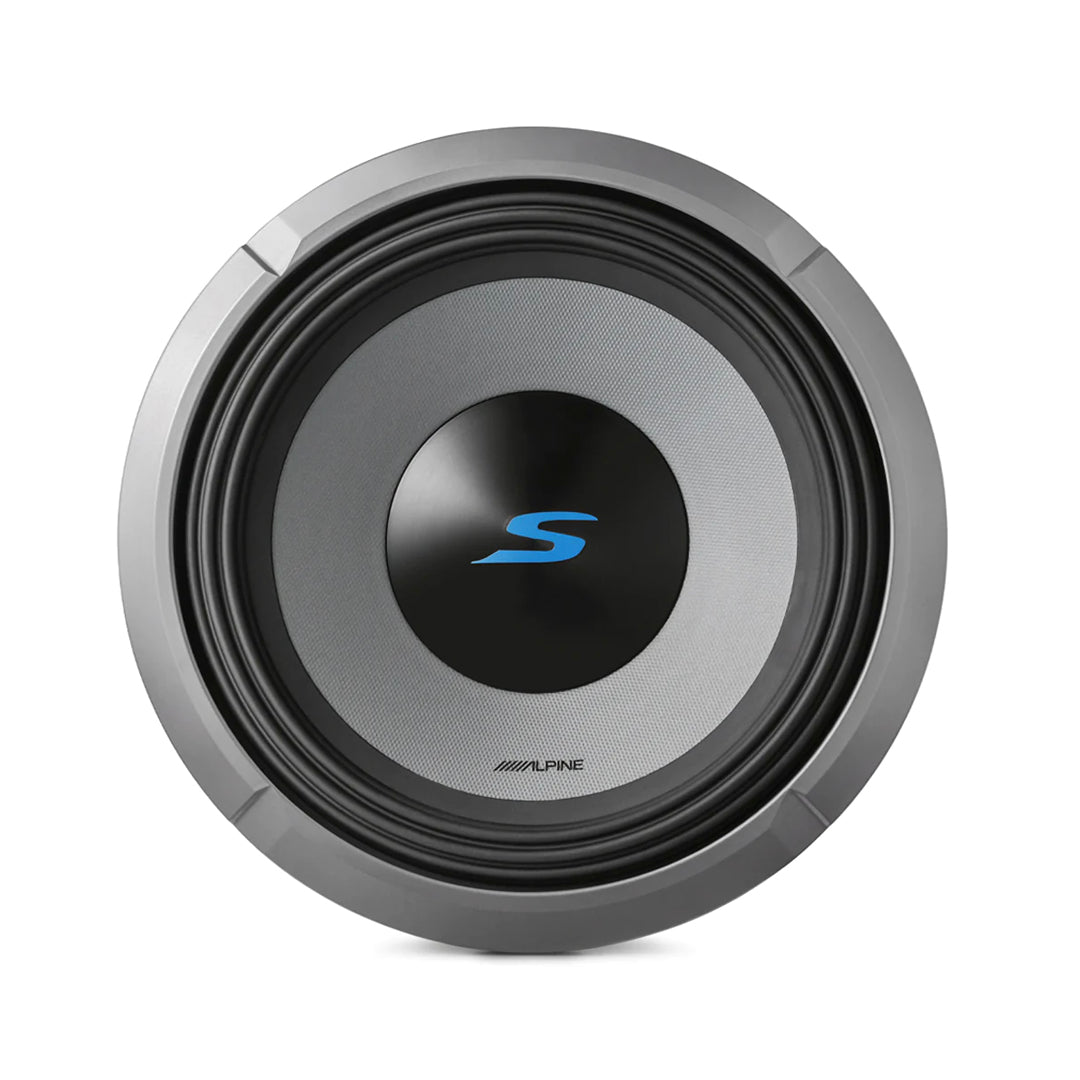

Alpine S2-W10D4 10" S-Series Dual 4-Ohm Subwoofer
Deep Bass. Powerful Performance. Exceptional Value.
The Alpine S2-W10D4 10" S-Series Subwoofer is engineered to deliver deep, accurate bass with impressive power handling and installation flexibility. Built using advanced materials and technology inspired by Alpine's premium subwoofer platforms, the S2-W10D4 offers the performance enthusiasts demand at an exceptional value.
Key Features
-
10" S-Series Subwoofer – Delivers impactful low-frequency performance with exceptional musical accuracy.
-
600W RMS / 1,800W Peak Power Handling – Handles substantial power while maintaining control and reliability.
-
Dual 4-Ohm Voice Coils – Provides flexible wiring options for a wide variety of amplifier configurations.
-
Carbon Fiber & Polypropylene Cone – Combines lightweight responsiveness with exceptional rigidity for reduced distortion.
-
High-Amplitude Multi-Roll (H.A.M.R.) Surround – Allows greater cone excursion for deeper bass and increased output.
-
Polypropylene/Ceramic Dust Cap – Enhances durability and structural integrity.
-

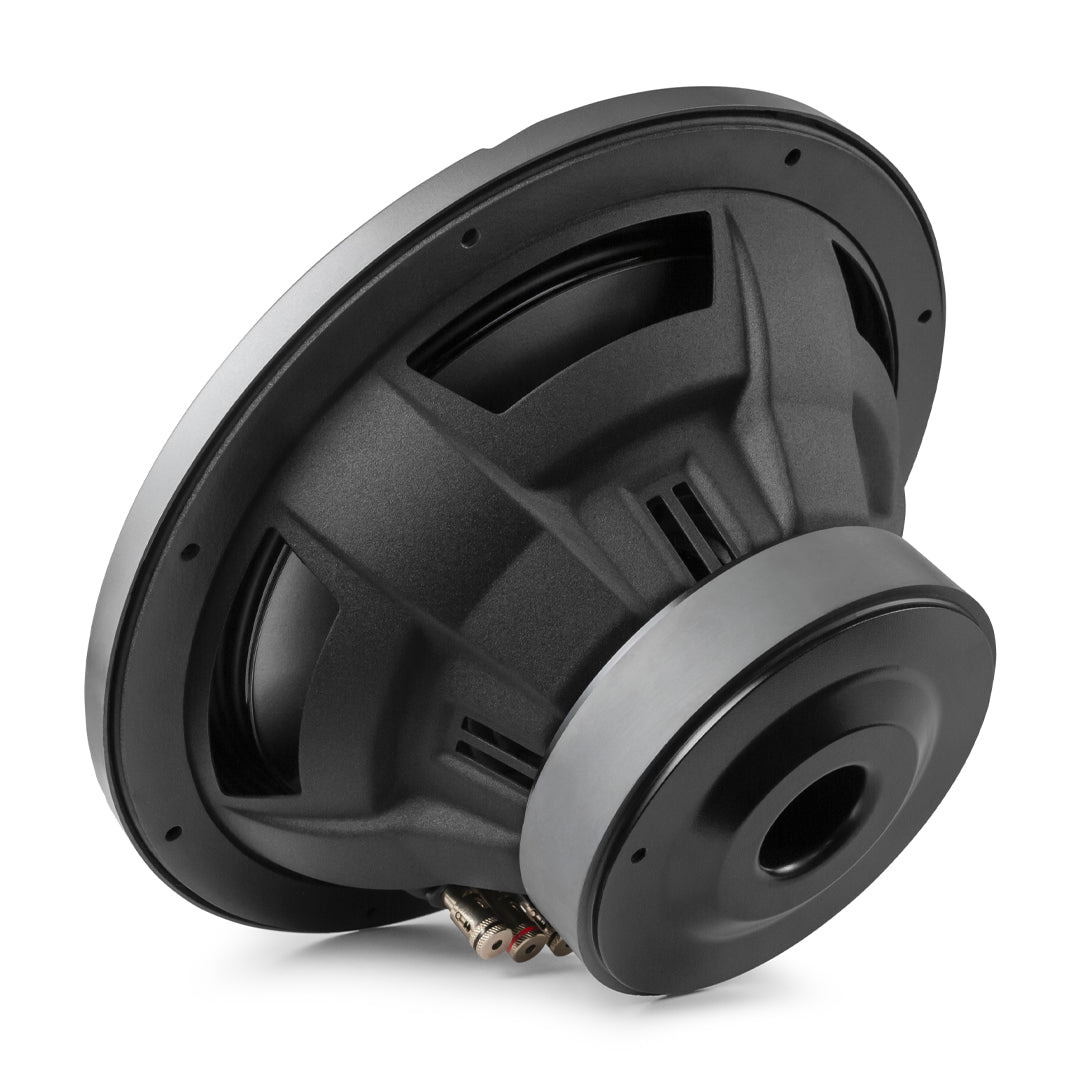

High-Grade Strontium Ferrite Magnet – Delivers strong motor force and precise cone control.
-
Configuration Jumpers Included – Simplifies voice coil wiring and installation.
-
Twist-Lock Grille Mount System – Supports optional grille installation without exposed mounting hardware.
-

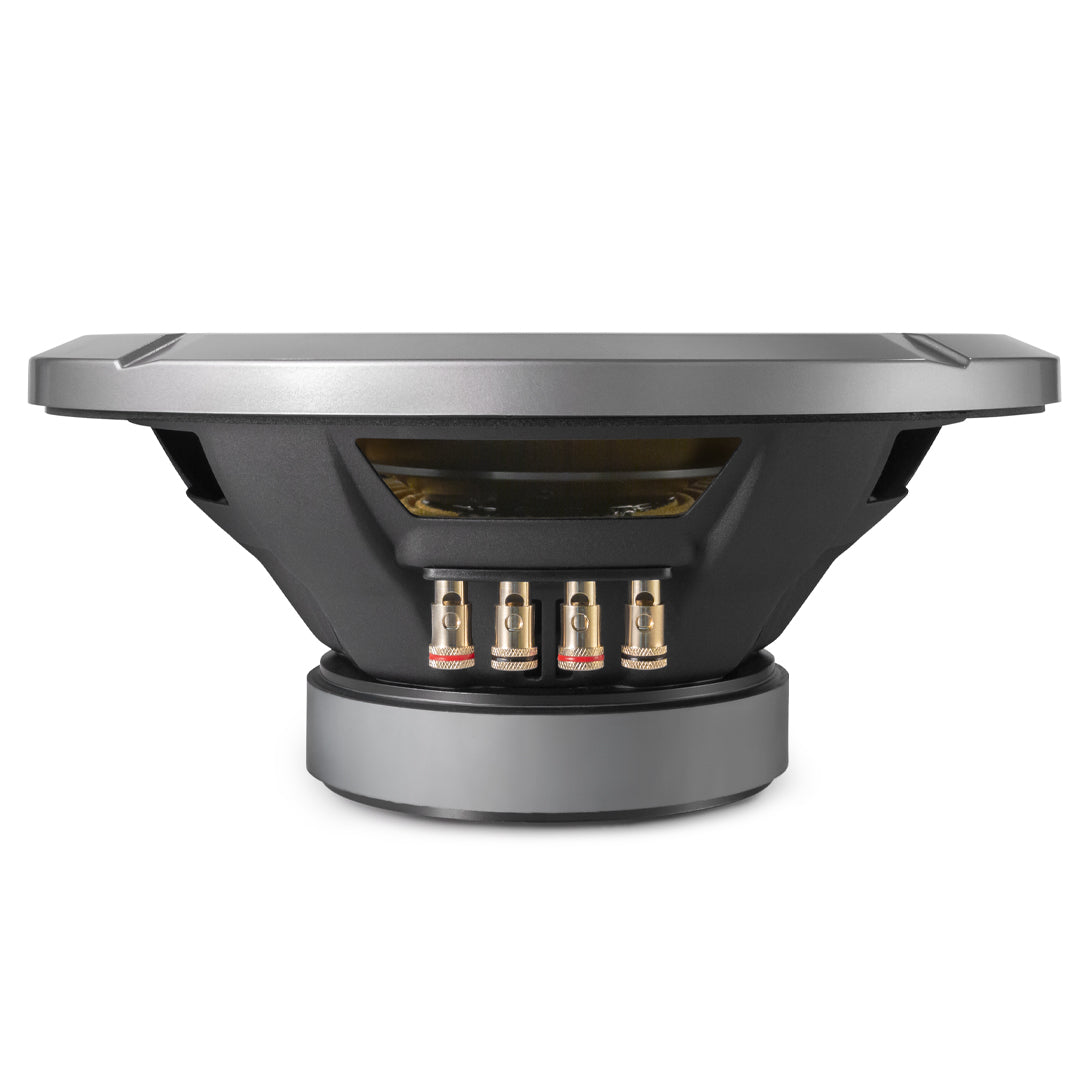

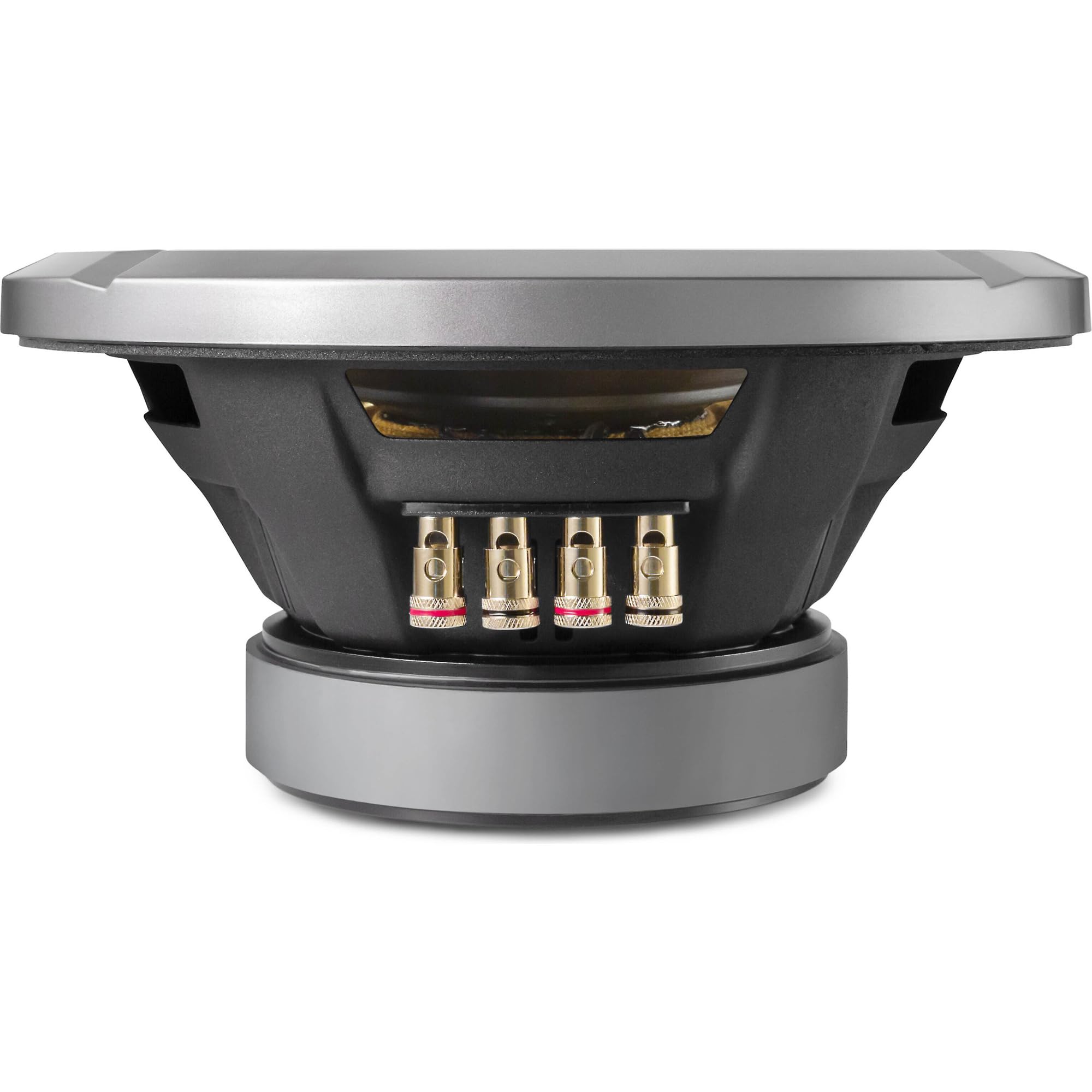

Push-Type Speaker Terminals – Accepts up to 8 AWG speaker wire for secure, reliable connections.
Powerful Bass with Precision
Whether you're listening to rock, hip-hop, EDM, or country, the S2-W10D4 delivers clean, dynamic bass that enhances every track. Its advanced motor structure and lightweight cone design provide outstanding low-frequency response while maintaining accuracy and control.
Advanced Cone Technology
The carbon fiber and polypropylene cone is engineered to maximize strength while minimizing weight. This combination improves efficiency, reduces distortion, and delivers consistent performance even under demanding conditions.
H.A.M.R. Surround for Greater Output
Alpine's High-Amplitude Multi-Roll (H.A.M.R.) surround technology enables up to 15mm of one-way excursion, allowing the subwoofer to move more air and produce deeper, more powerful bass while maintaining precise control.
Flexible System Integration
The dual 4-ohm voice coil design provides multiple impedance options to match a wide range of amplifier setups. Included configuration jumpers make installation easier and help ensure optimal system performance. The S2-W10D4 performs exceptionally well in both sealed and ported enclosure applications.

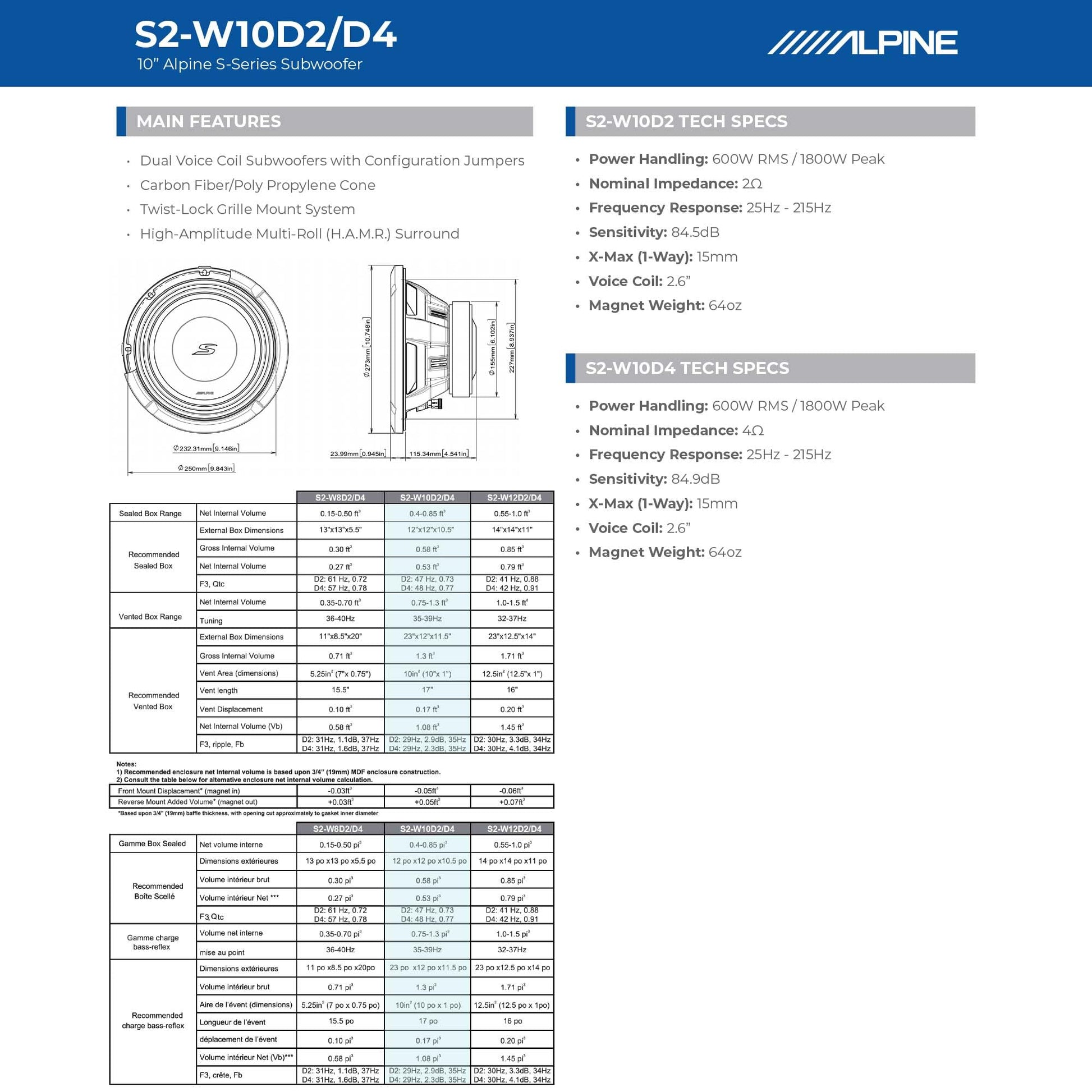

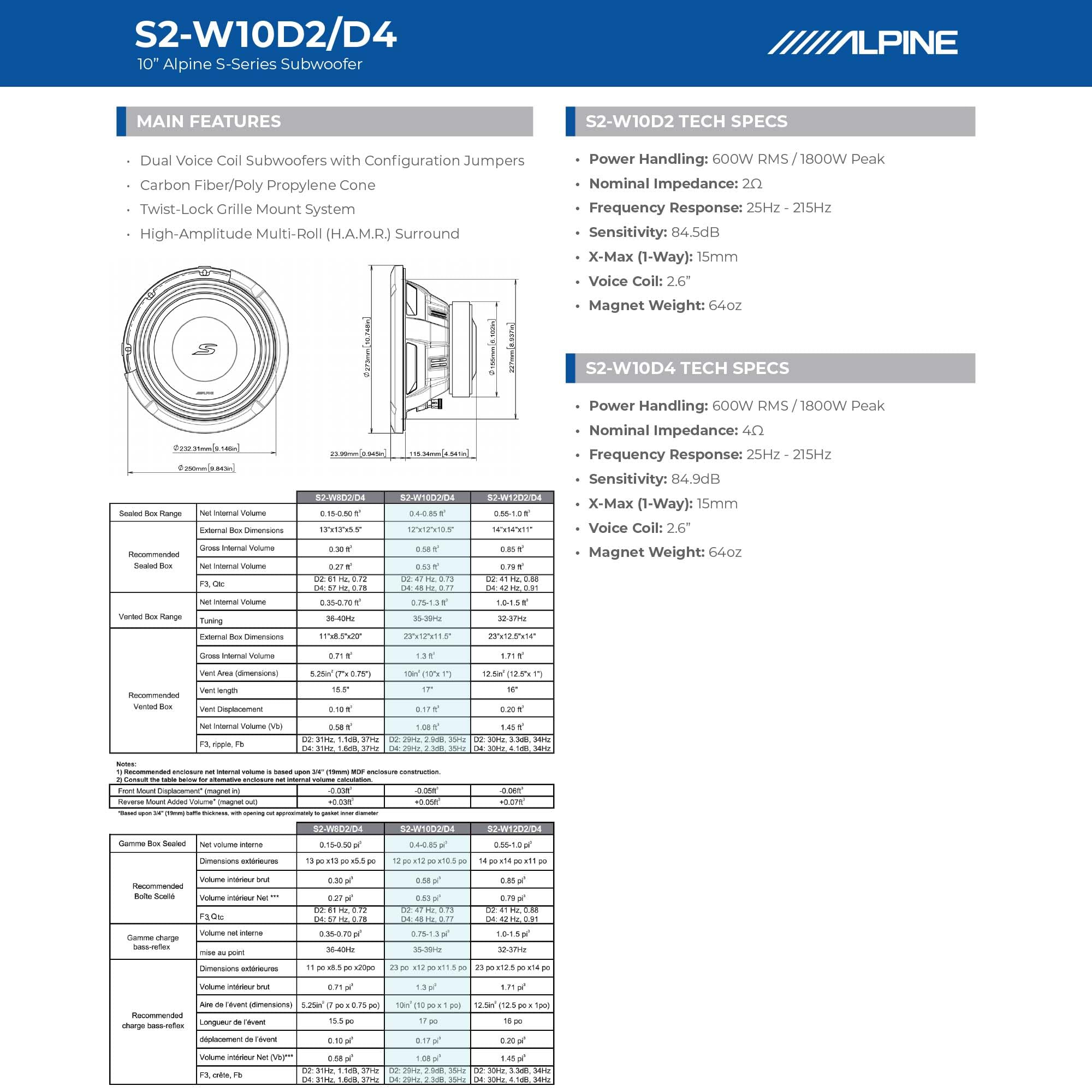

Specifications
| Specification |
Value |
| Speaker Size |
10" |
| Power Handling |
600W RMS / 1,800W Peak |
| Voice Coil Configuration |
Dual 4-Ohm |
| Frequency Response |
25Hz – 215Hz |
| Sensitivity |
84.9dB |
| Voice Coil Diameter |
2.6" |
| X-Max (One-Way) |
15mm |
| Magnet Type |
Strontium Ferrite |
| Cone Material |
Carbon Fiber / Polypropylene |
| Surround Type |
H.A.M.R. Rubber Surround |
Ideal Applications
- Sealed enclosures
- Ported enclosure systems
- Factory audio upgrades
- High-performance bass systems
- Daily-driven and enthusiast installations
What's Included
- S2-W10D4 10" Subwoofer
- Configuration jumpers
- Installation hardware
- Owner's manual
Experience the next generation of S-Series bass performance with the Alpine S2-W10D4 designed to deliver deep, controlled lows, flexible installation options, and outstanding value for any car audio system.
