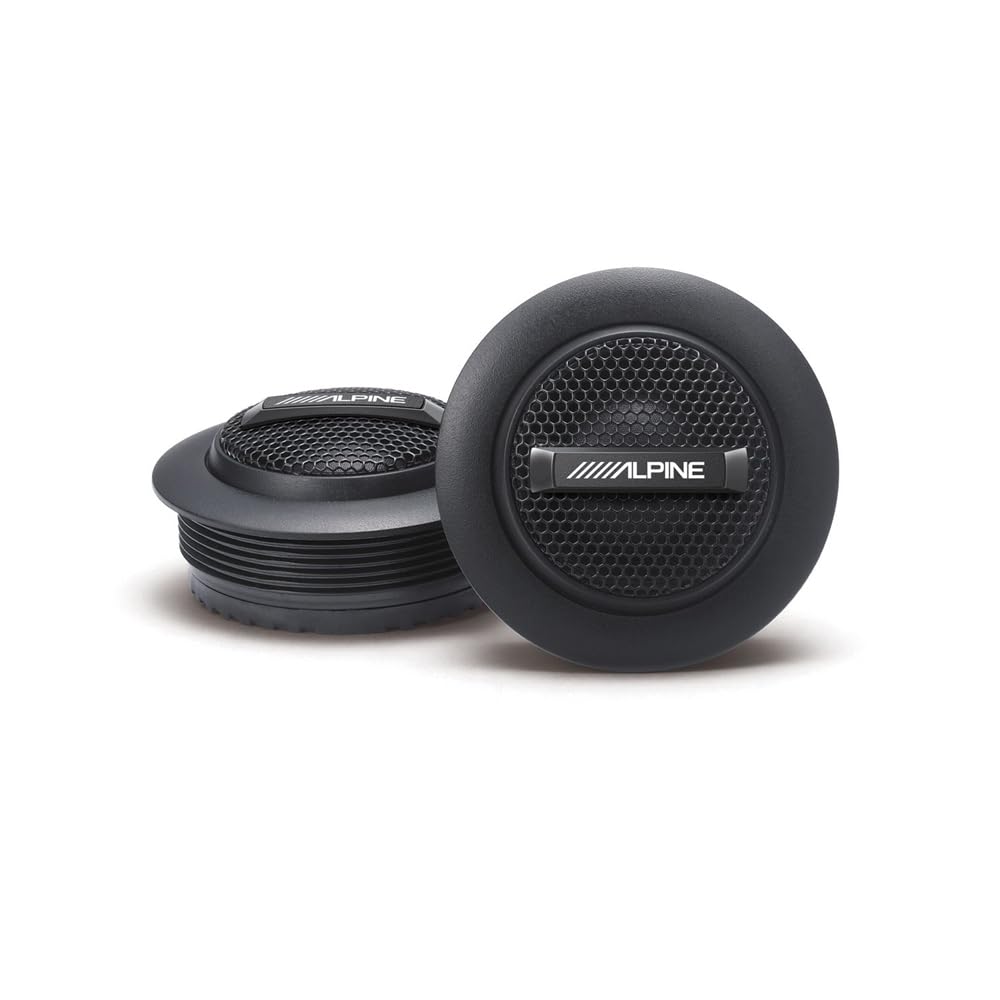

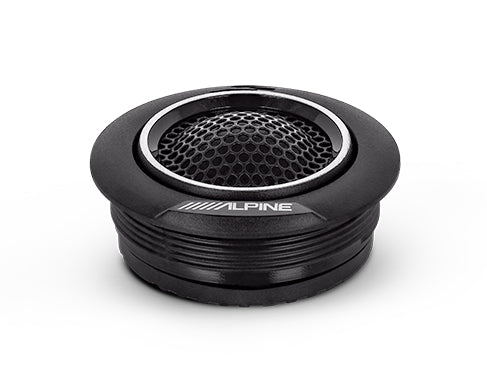

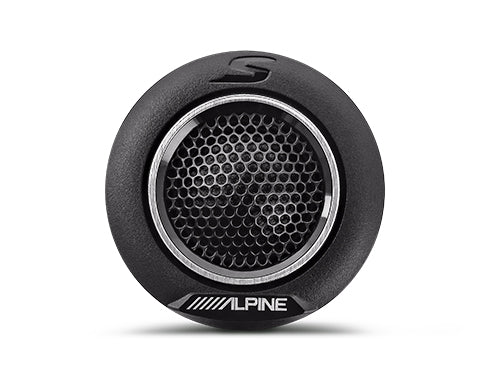

Alpine S2-S10TW S-Series 1" Tweeters
Crisp Highs with Hi-Res Clarity
The Alpine S2-S10TW 1" Cloth Dome Tweeters are designed to bring detail, clarity, and precision to your audio system. Built as part of Alpine’s S-Series lineup, these tweeters reproduce high frequencies with smooth response and wide dispersion, helping create a more natural and immersive soundstage.
Key Features
-
1" Cloth Dome Tweeters – Delivers smooth, detailed high-frequency response without harshness
-
Hi-Res Audio Certified – Extended frequency response up to 40kHz for ultra-detailed sound reproduction
-
80W RMS / 240W Peak Power Handling – Clean, reliable performance for factory or aftermarket systems
-
4-Ohm Impedance – Compatible with most OEM and aftermarket amplifiers and head units
-
Wide Dispersion Wave Guide – Improves imaging and expands the listening sweet spot
-

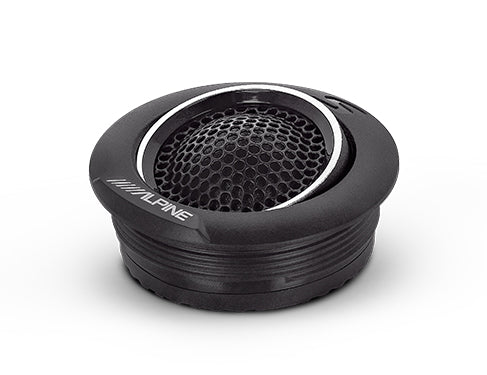

Swivel Flush Mount Design – Allows precise aiming for better sound staging
-
Compact Installation Depth – Fits easily into factory locations or custom builds
-
In-Line Passive Crossovers Included – Simplifies installation and protects the tweeter from low frequencies
Clear, Natural High-Frequency Detail
The S2-S10TW tweeters are tuned to enhance vocals, cymbals, and instrument detail without introducing harshness. The cloth dome design helps maintain a warm, natural tonal balance while still revealing fine audio details often lost in factory systems.
Flexible Installation Options
Designed for versatility, these tweeters can be flush mounted or surface mounted using the included hardware. The swivel housing allows you to aim the tweeter toward the listening position, improving imaging and stereo separation.
Hi-Res Audio Performance
With a frequency response extending up to 40kHz, the S2-S10TW is capable of reproducing high-resolution audio formats with greater accuracy and spatial detail, making music feel more open and lifelike.
Seamless System Integration
The included in-line crossovers make installation straightforward while ensuring proper frequency filtering. This allows the tweeters to integrate smoothly with Alpine S-Series speakers or other compatible systems.
Specifications
| Specification |
Value |
| Speaker Size |
1" |
| Type |
Cloth Dome Tweeter |
| Power Handling |
80W RMS / 240W Peak |
| Frequency Response |
1kHz – 40kHz |
| Sensitivity |
87dB |
| Impedance |
4 Ohms |
| Mounting Depth |
0.75" |
| Cutout Diameter |
2" |
Ideal Applications
- Factory tweeter upgrades
- Custom A-pillar or dash installations
- Component speaker system builds
- Hi-Res audio upgrades
What's Included
- Two 1" S2-S10TW tweeters
- Flush mount housings
- Swivel mounting hardware
- In-line crossovers
- Installation accessories
The Alpine S2-S10TW delivers refined, high-resolution sound for listeners who want cleaner highs and a more detailed, immersive listening experience.
