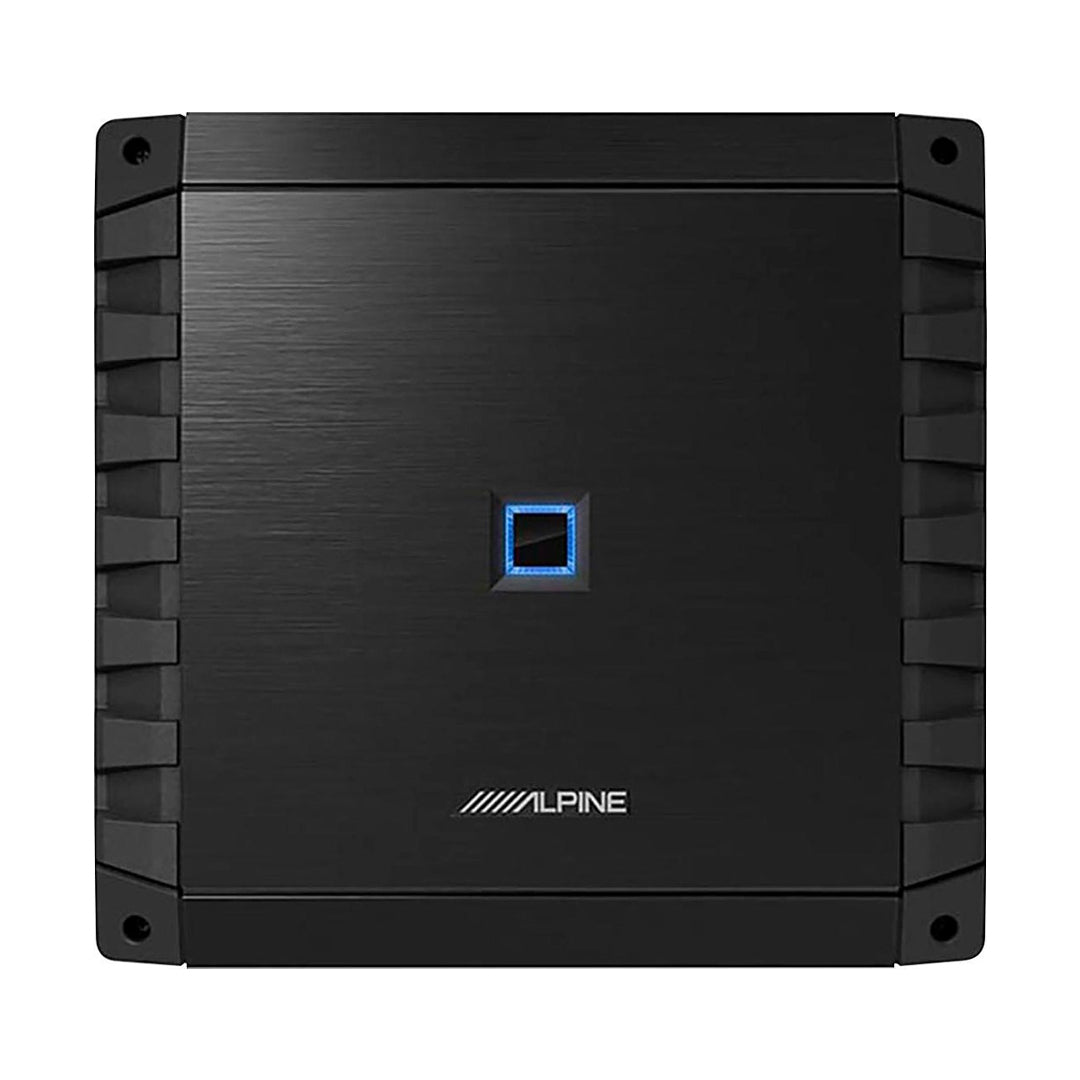

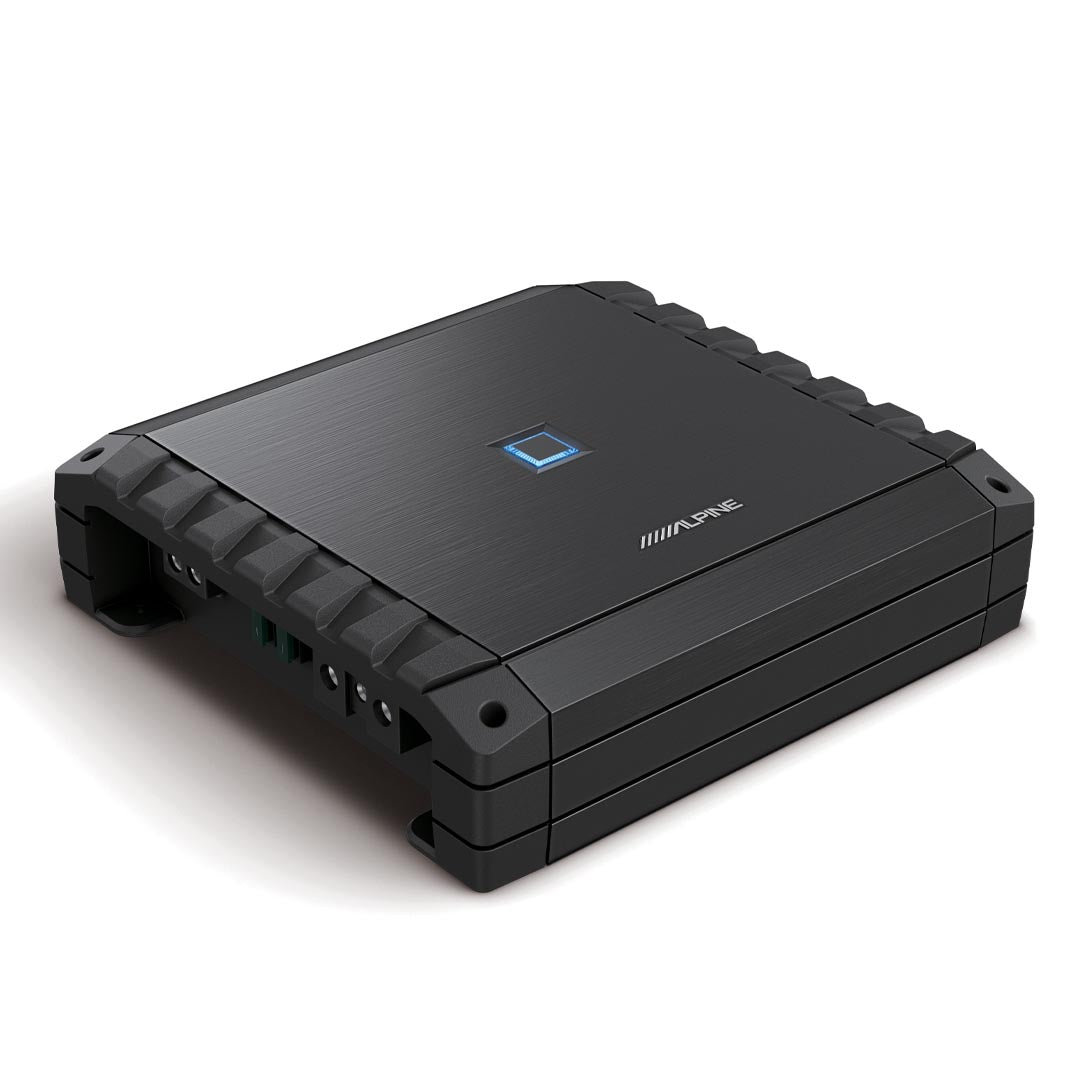

Alpine S2-A60M, S Series Monoblock Class D Subwoofer Amplifier - 600W (Open Box)

Overview

Alpine S2-A60M S Series Monoblock Class D Subwoofer Amplifier – 600W

Name: Alpine S2-A60M, S Series Monoblock Class D Subwoofer Amplifier - 600W (Open Box)
Brand: Alpine
SKU: AL-S2-A60M-OB
Price: 269.95 USD
Availability: OutOfStock

Power your subwoofer with the Alpine S2-A60M S Series monoblock Class D amplifier. Designed specifically for bass applications, the S2-A60M delivers up to 600 watts RMS while maintaining a compact footprint that makes it easy to integrate into a wide range of vehicle audio systems.

The Class D amplifier design provides efficient power delivery in a compact chassis, while the single-channel configuration is purpose-built for powering subwoofers. With 600 watts RMS available at both 2 ohms and 1 ohm, the S2-A60M offers flexible impedance matching for a variety of subwoofer configurations.

Built-in adjustable controls give you the ability to tailor the amplifier to your system. The variable low-pass filter can be adjusted from 50Hz to 400Hz with a steep 24 dB/octave slope, while the variable bass EQ provides up to 12 dB of additional boost at 50Hz.

The S2-A60M also features selectable remote turn-on circuitry to help integrate the amplifier with modern factory and aftermarket systems. Its side-mounted controls and connections make adjustments easier when the amplifier is installed in tight or concealed locations.

With its combination of 600-watt output, flexible impedance support, compact size, and dedicated subwoofer controls, the Alpine S2-A60M is an excellent choice for building a powerful and efficient bass system.

Key Features

600W RMS monoblock Class D amplifier
600W RMS x 1 at 2 ohms
600W RMS x 1 at 1 ohm
330W RMS x 1 at 4 ohms
Variable low-pass filter from 50Hz–400Hz
24 dB/octave low-pass filter slope
Variable bass EQ from 0 to +12 dB at 50Hz
RCA input with selectable input sensitivity
Optional remote bass control compatibility

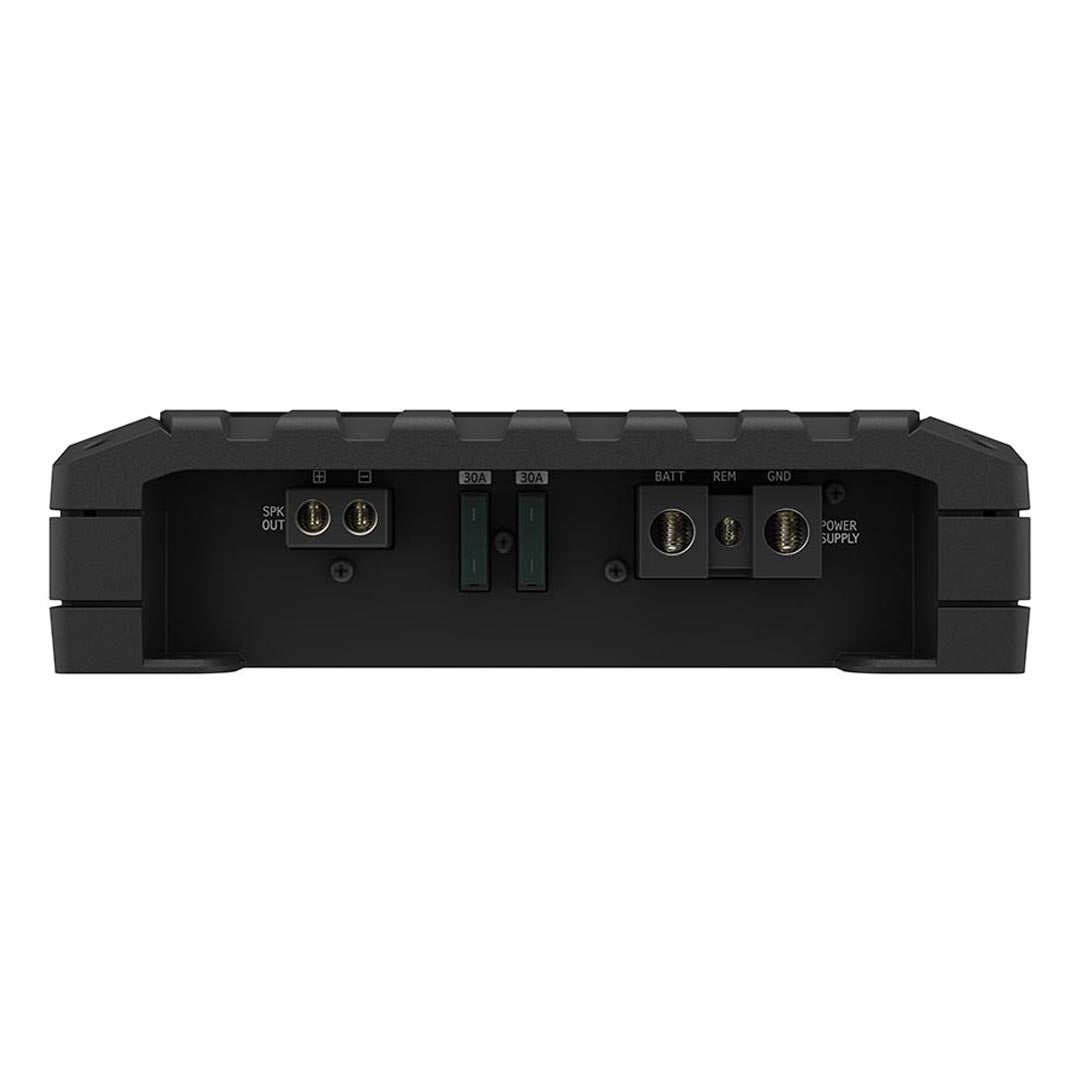

Compact chassis with side-mounted controls and connections

Features & Specifications

Technical Specification	Details
Model	S2-A60M
Series	S Series
Amplifier Class	Class D
Channels	1 (Monoblock)
RMS Power @ 4 Ohms	330W x 1
RMS Power @ 2 Ohms	600W x 1
RMS Power @ 1 Ohm	600W x 1
Frequency Response	10Hz–400Hz (+0/−3dB)
Low-Pass Filter	Variable, 50Hz–400Hz
Low-Pass Filter Slope	−24 dB/octave
Bass EQ	0 to +12dB @ 50Hz
RCA Input Sensitivity	0.2–4.0V (Low) / 0.5–10V (High)
Signal-to-Noise Ratio	>85dB
Damping Factor	>1,000
Input Impedance	>10kΩ
Preamp Output	4V maximum
Remote Bass Control	Compatible with optional RUX-KNOB.2
Dimensions (W × H × D)	8-11/16" × 2-1/4" × 8-1/4"
Weight	4 lb 13 oz
Power Reference	14.4V
