Alpine S2-A55V, S Series 5-Channel Class D Hi-Res Amplifier (Open Box)

Overview

Alpine S2-A55V S Series 5-Channel Class D Hi-Res Amplifier

Name: Alpine S2-A55V, S Series 5-Channel Class D Hi-Res Amplifier (Open Box)
Brand: Alpine
SKU: AL-S2-A55V-OB
Price: 449.95 USD
Availability: OutOfStock

Upgrade your entire vehicle audio system with the Alpine S2-A55V S Series 5-channel Class D amplifier. Designed to power four speakers plus a subwoofer from a single amplifier, the S2-A55V delivers a clean, efficient solution for building a complete aftermarket sound system.

The S2-A55V combines Alpine's Class D amplifier technology with Hi-Res Audio certification and a frequency response extending up to 40kHz. It delivers 40 watts RMS x 4 plus 200 watts RMS x 1 at 4 ohms, or 60 watts RMS x 4 plus 300 watts RMS x 1 at 2 ohms, giving you the flexibility to match a wide range of speakers and subwoofers.

For systems requiring additional power to the main speakers, the four full-range channels can also be bridged to produce 120 watts RMS x 2 at 4 ohms. Built-in adjustable crossovers allow you to properly divide frequencies between your speakers and subwoofer, while the bass EQ provides up to 12dB of boost at 50Hz.

The S2-A55V also features high-level speaker inputs with automatic turn-on, making it suitable for integration with many factory audio systems. Three selectable turn-on modes provide additional flexibility when connecting to modern factory or aftermarket head units.

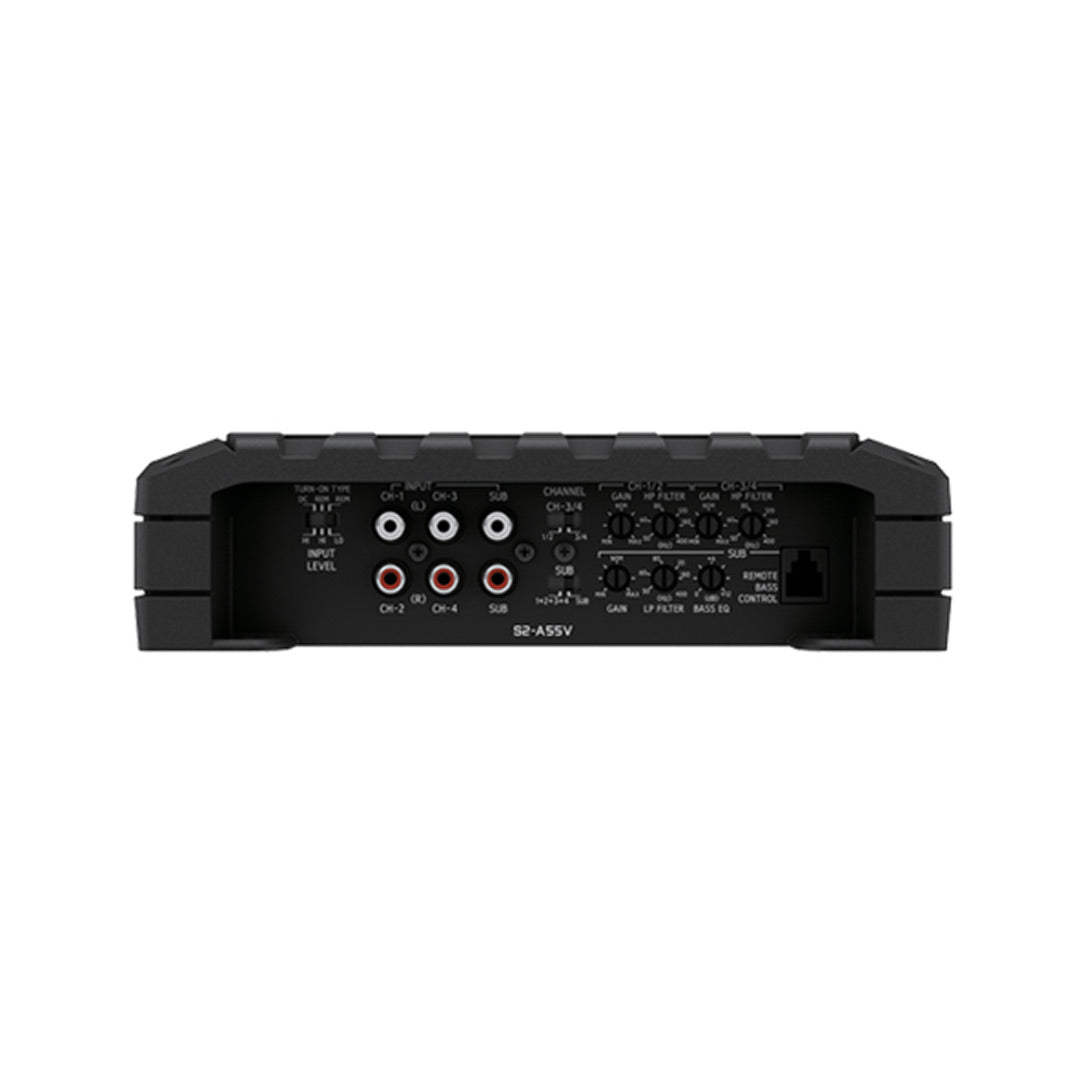

With controls and connections positioned on the side panels, the amplifier is designed for easier access when installed under a seat or in another tight location. Removable terminal covers provide a clean, finished appearance after installation.

Key Features

5-channel Class D amplifier
Hi-Res Audio Certified with response up to 40kHz
Powers four speakers plus one subwoofer from a single chassis
60W RMS x 4 + 300W RMS x 1 at 2 ohms
40W RMS x 4 + 200W RMS x 1 at 4 ohms
120W RMS x 2 bridged at 4 ohms
Variable high-pass and low-pass crossovers
Subwoofer LPF adjustable from 50Hz–400Hz with 24dB/octave slope
Bass EQ provides up to +12dB at 50Hz
High-level speaker input with automatic power-on
Three selectable turn-on modes
Optional remote bass control compatible with RUX-KNOB.2
Side-mounted controls for easier installation access

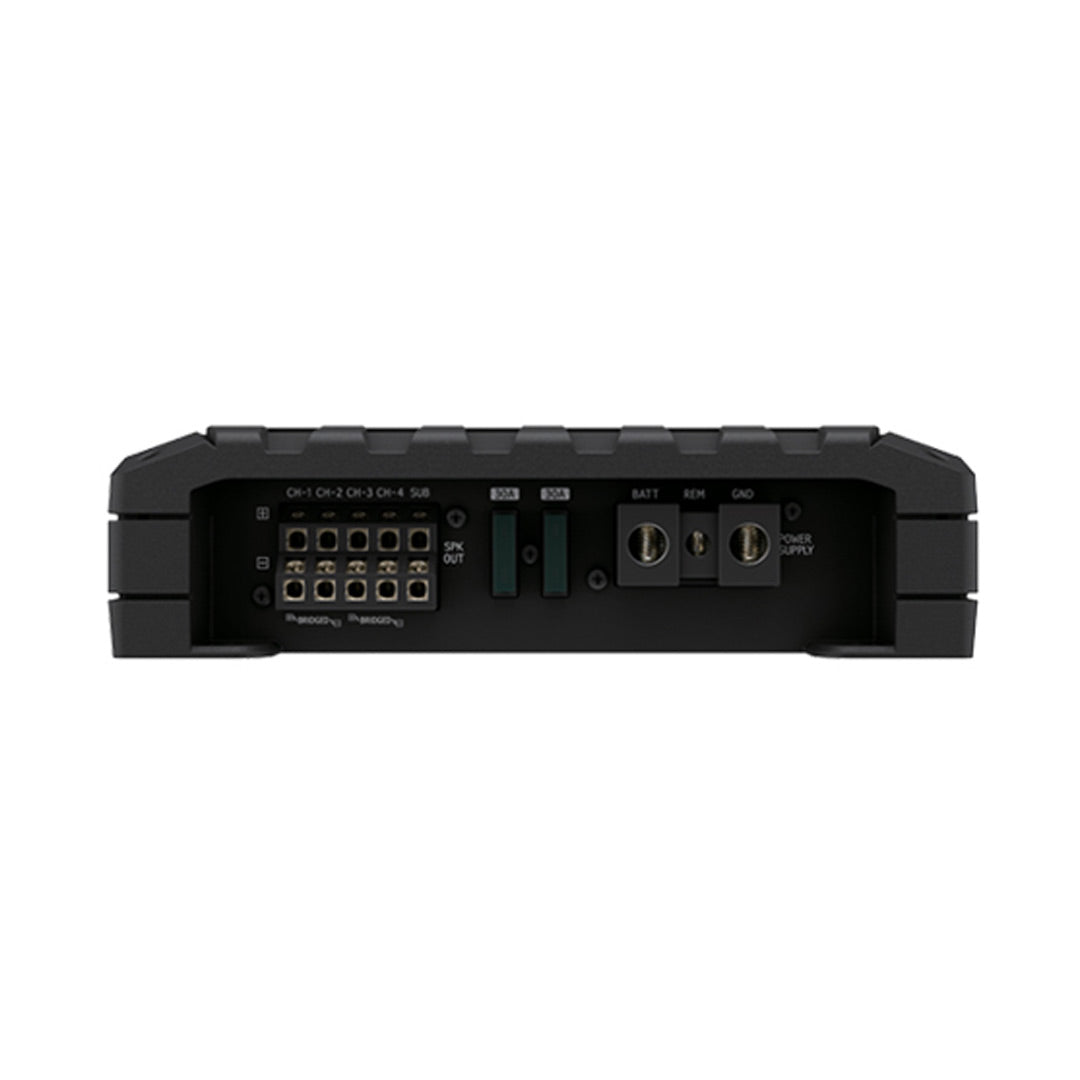

Two-sided terminal layout with included terminal covers

Features & Specifications

Technical Specification	Details
Model	S2-A55V
Series	S Series
Amplifier Class	Class D
Number of Channels	5
Configuration	4-Channel Full-Range + 1-Channel Subwoofer
Power Output @ 4 Ohms	40W RMS x 4 + 200W RMS x 1
Power Output @ 2 Ohms	60W RMS x 4 + 300W RMS x 1
Bridged Power @ 4 Ohms	120W RMS x 2
Full-Range Frequency Response	50Hz–40kHz (+0/−3dB)
Subwoofer Frequency Response	10Hz–400Hz
High-Pass Filter	Variable 50Hz–400Hz
Low-Pass Filter	Variable 50Hz–400Hz
Full-Range Crossover Slope	12dB/octave
Subwoofer Crossover Slope	24dB/octave
Bass EQ	0 to +12dB @ 50Hz
Signal-to-Noise Ratio	>83dB
THD+N	≤0.03% @ 10W into 4 Ohms
Damping Factor	>100 (speaker channels) / >750 (subwoofer channel)
RCA Input Sensitivity	0.2–4.0V Low / 0.5–10V High
Speaker-Level Input	Yes
Automatic Turn-On	Yes
Turn-On Modes	DC HI / Remote HI / Remote LO
Remote Bass Control	Compatible with optional RUX-KNOB.2
Power Requirement	14.4V DC
Allowable Voltage Range	9–16V DC
Dimensions (W × H × D)	11-7/8" × 2-1/4" × 8-1/4"
Weight	7 lbs
Hi-Res Audio Certified	Yes, up to 40kHz
