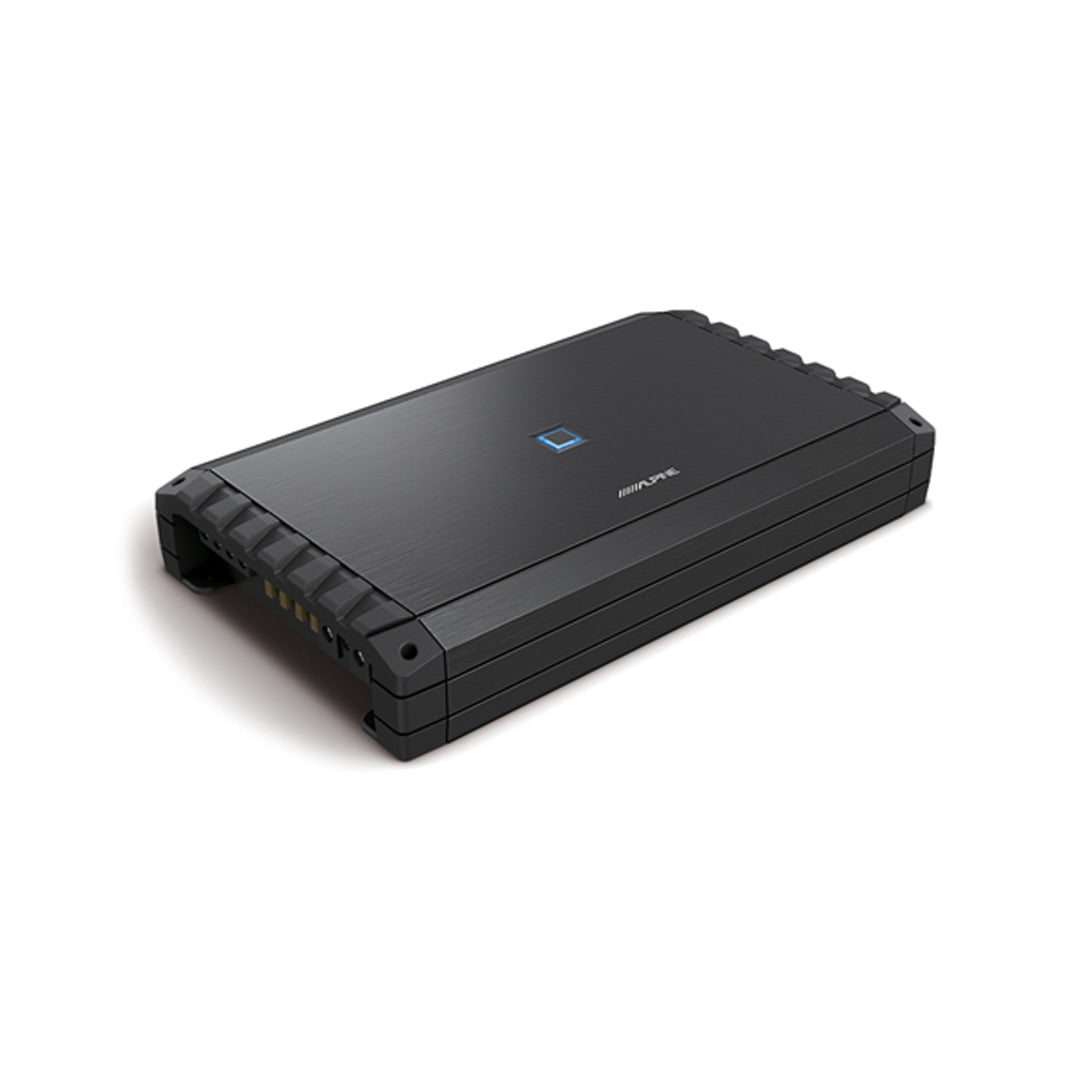

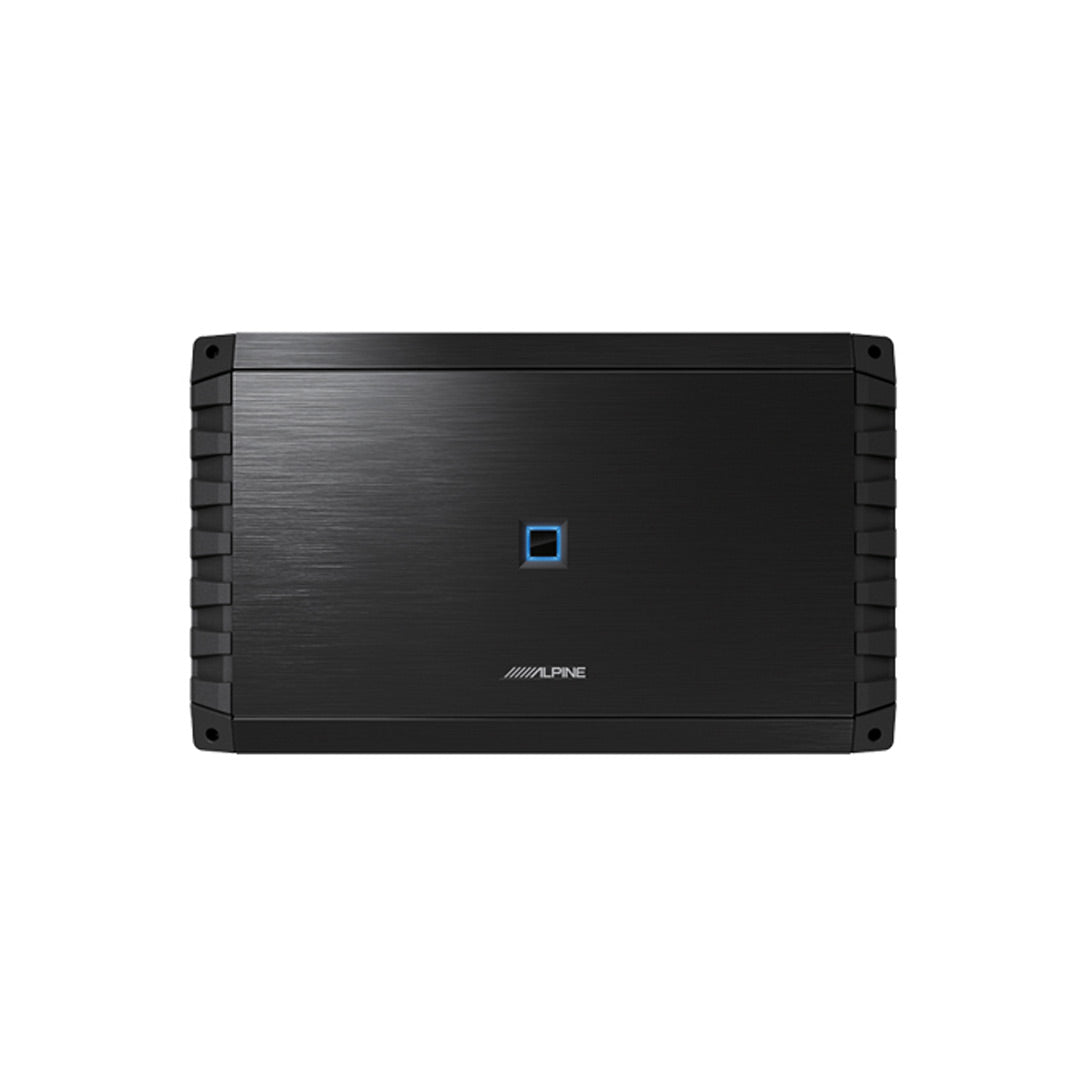

Alpine S2-A120M, S Series Monoblock Class D Subwoofer Amplifier - 1200W (Open Box)

Overview

Alpine S2-A120M S Series Monoblock Class D Subwoofer Amplifier – 1200W

Name: Alpine S2-A120M, S Series Monoblock Class D Subwoofer Amplifier - 1200W (Open Box)
Brand: Alpine
SKU: AL-S2-A120M-OB
Price: 494.96 USD
Availability: OutOfStock

Bring serious power to your subwoofer system with the Alpine S2-A120M S Series monoblock Class D amplifier. Designed specifically for low-frequency applications, the S2-A120M delivers up to 1,200 watts RMS while maintaining a compact design for flexible vehicle installation.

The S2-A120M produces 600 watts RMS at 4 ohms and 1,200 watts RMS at both 2 ohms and 1 ohm, giving you the flexibility to match a wide range of subwoofer configurations. Its Class D amplifier design provides efficient power delivery while keeping the chassis relatively compact.

Built-in adjustable controls make it easy to tailor the amplifier to your subwoofer system. The variable low-pass filter can be adjusted from 50Hz to 400Hz with a 24 dB/octave slope, while the variable bass EQ provides up to 12dB of additional boost at 50Hz.

The S2-A120M also features a selectable remote turn-on circuit with three modes, helping it integrate with both factory and aftermarket audio systems. Side-mounted controls and connections make setup and adjustment more accessible when the amplifier is installed under a seat or in another space-conscious location.

With 1,200 watts of RMS power at 1 or 2 ohms, the S2-A120M is an ideal choice for powering a high-output subwoofer system or multiple compatible subwoofers.

Key Features

1,200W monoblock Class D amplifier
1,200W RMS x 1 at 1 ohm
1,200W RMS x 1 at 2 ohms
600W RMS x 1 at 4 ohms
Variable low-pass filter from 50Hz–400Hz
24 dB/octave low-pass filter slope
Variable bass EQ from 0 to +12dB at 50Hz
Three selectable remote turn-on modes
RCA inputs with selectable input sensitivity
Optional remote bass control compatibility

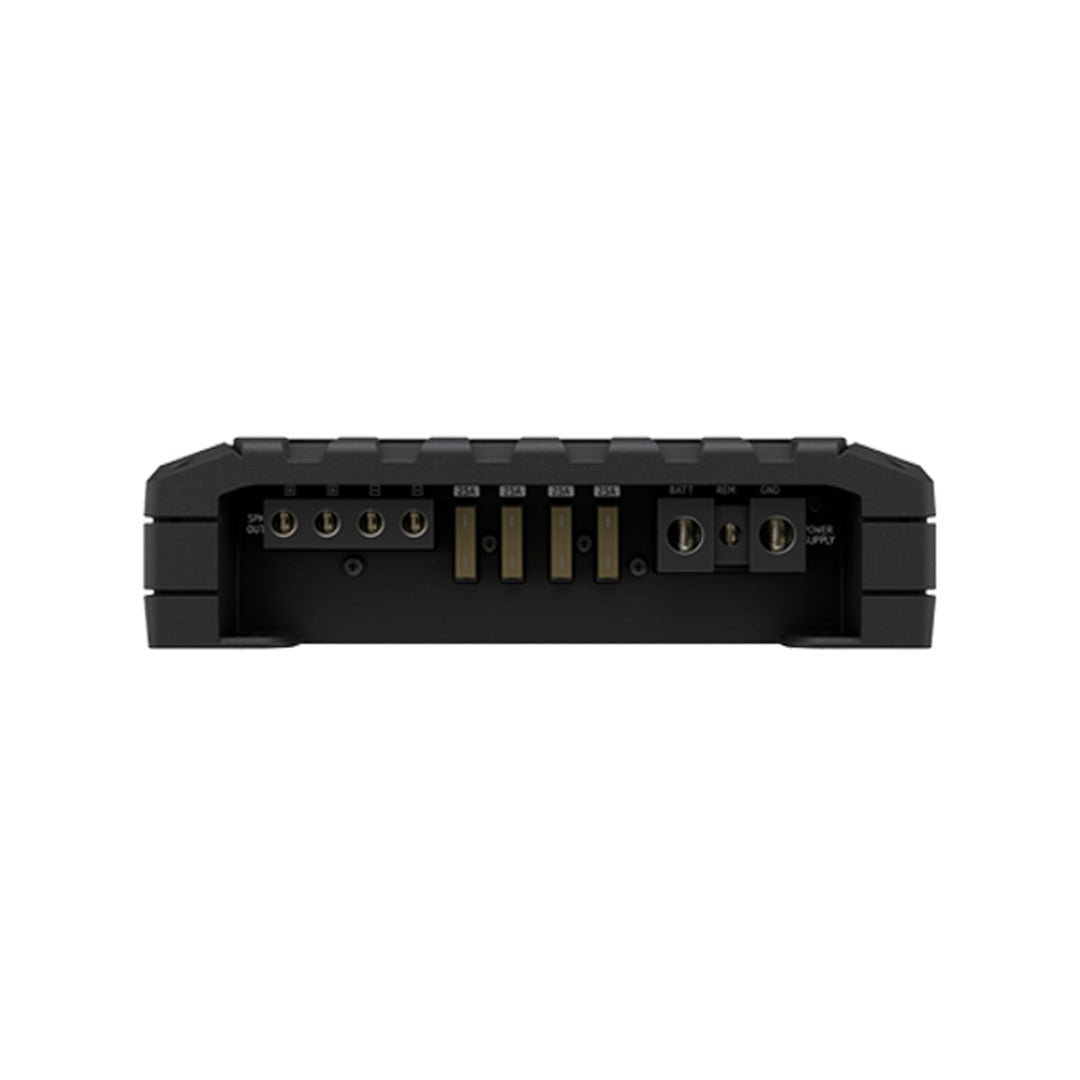

Two-sided terminal layout

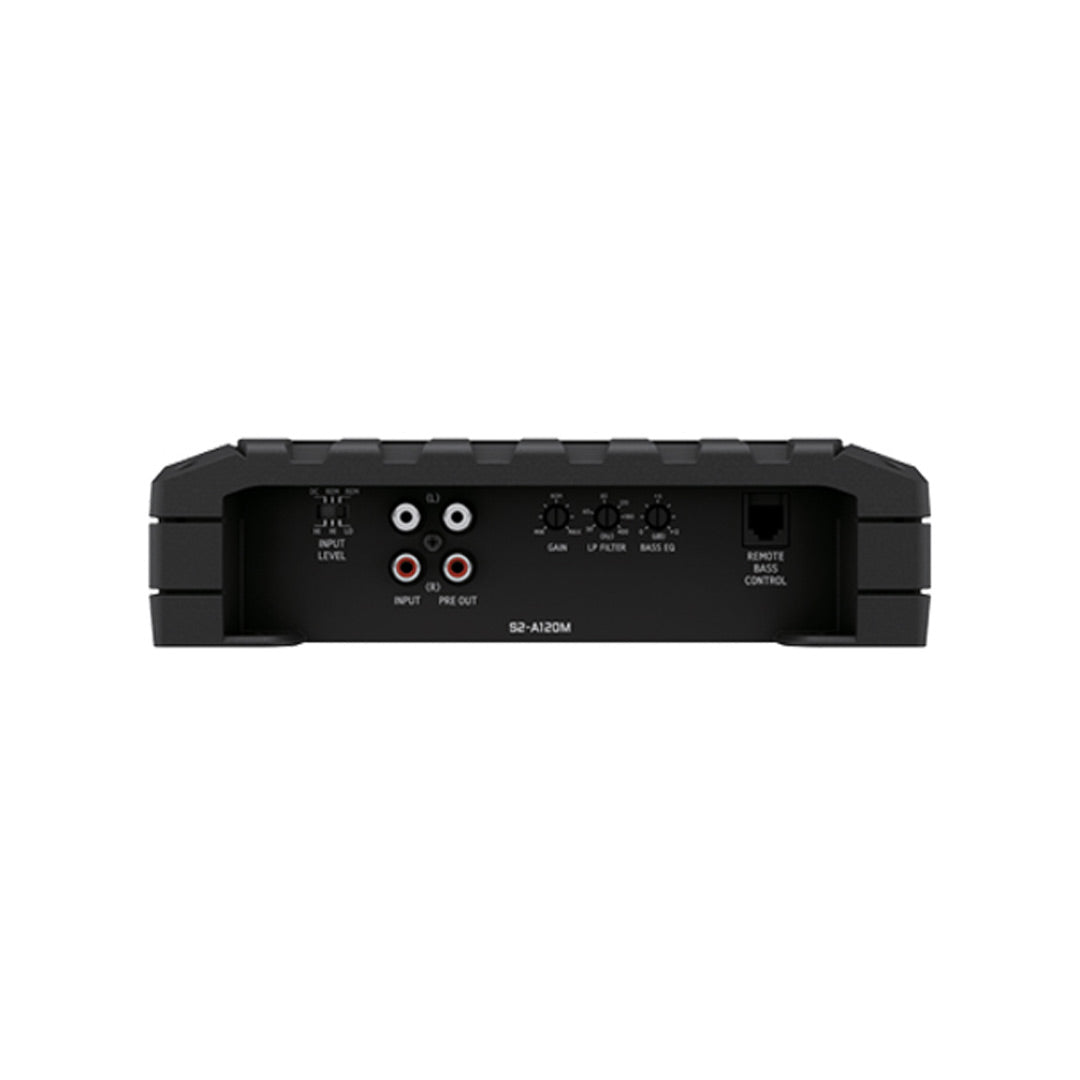

Side-mounted controls for easier installation access
Removable connection covers for a clean installation

Features & Specifications

Technical Specification	Details
Model	S2-A120M
Series	S Series
Amplifier Class	Class D
Amplifier Type	Monoblock
Number of Channels	1
RMS Power @ 4 Ohms	600W x 1
RMS Power @ 2 Ohms	1,200W x 1
RMS Power @ 1 Ohm	1,200W x 1
Frequency Response	10Hz–400Hz (+0/−3dB)
Low-Pass Filter	Variable, 50Hz–400Hz
Low-Pass Filter Slope	−24 dB/octave
Bass EQ	0 to +12dB @ 50Hz
RCA Input Sensitivity	0.2–4.0V Low / 0.5–10V High
Signal-to-Noise Ratio	>85dB
Damping Factor	>750
Input Impedance	>10kΩ
Preamp Output	4V maximum
Remote Bass Control	Compatible with optional RUX-KNOB.2
Remote Turn-On	Selectable DC HI / Remote HI / Remote LO
Power Reference	14.4V
Dimensions (W × H × D)	13-1/8" × 2-1/4" × 8-1/4"
Weight	8 lb 11 oz
