Alpine RUX-C810 Status DSP Remote Control for HDP-D90
Take convenient control of your Alpine Status sound system with the Alpine RUX-C810 remote controller. Designed specifically for the Alpine HDP-D90 Status Hi-Res digital sound processor and amplifier, the RUX-C810 provides an easy way to adjust your system without reaching for the main DSP amplifier.

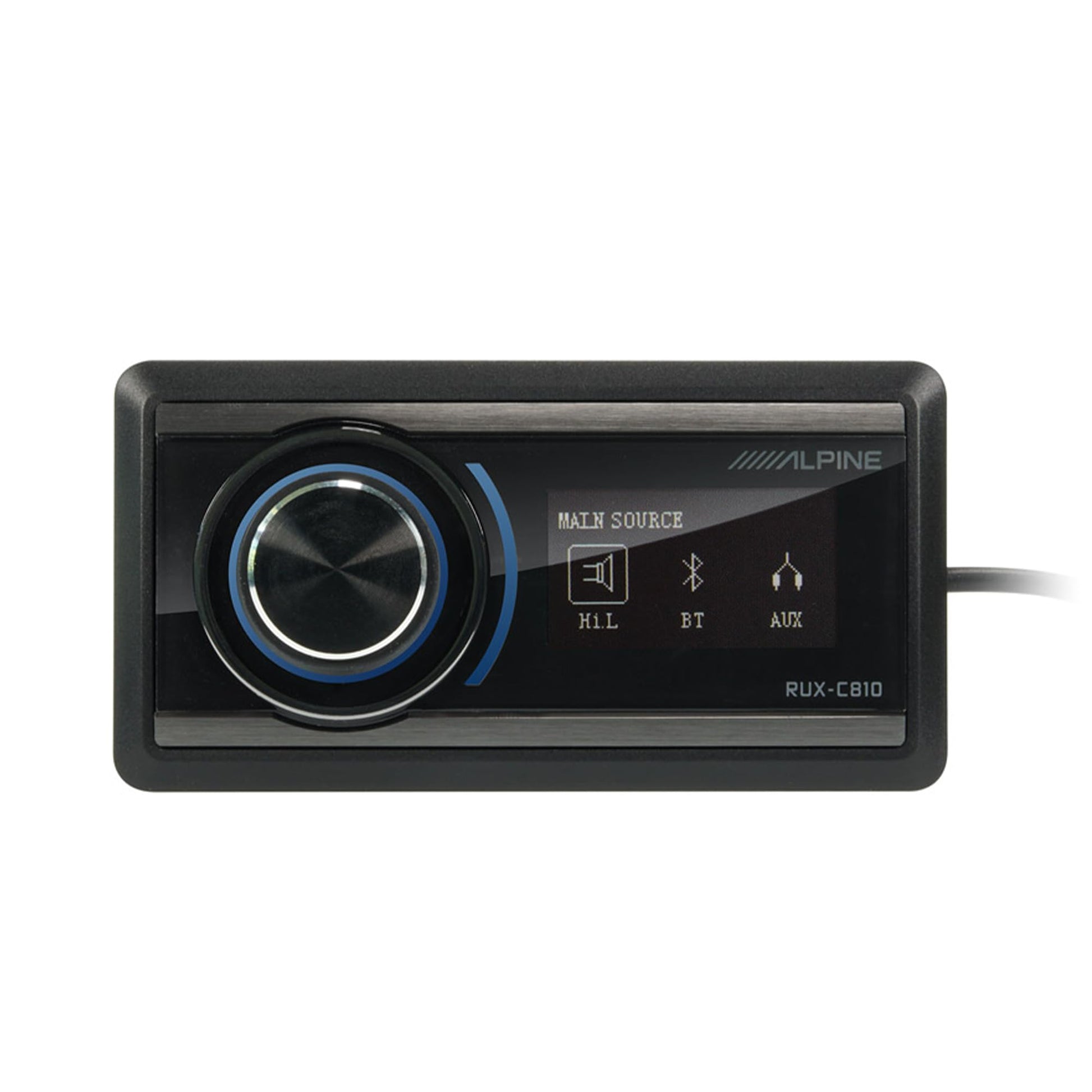

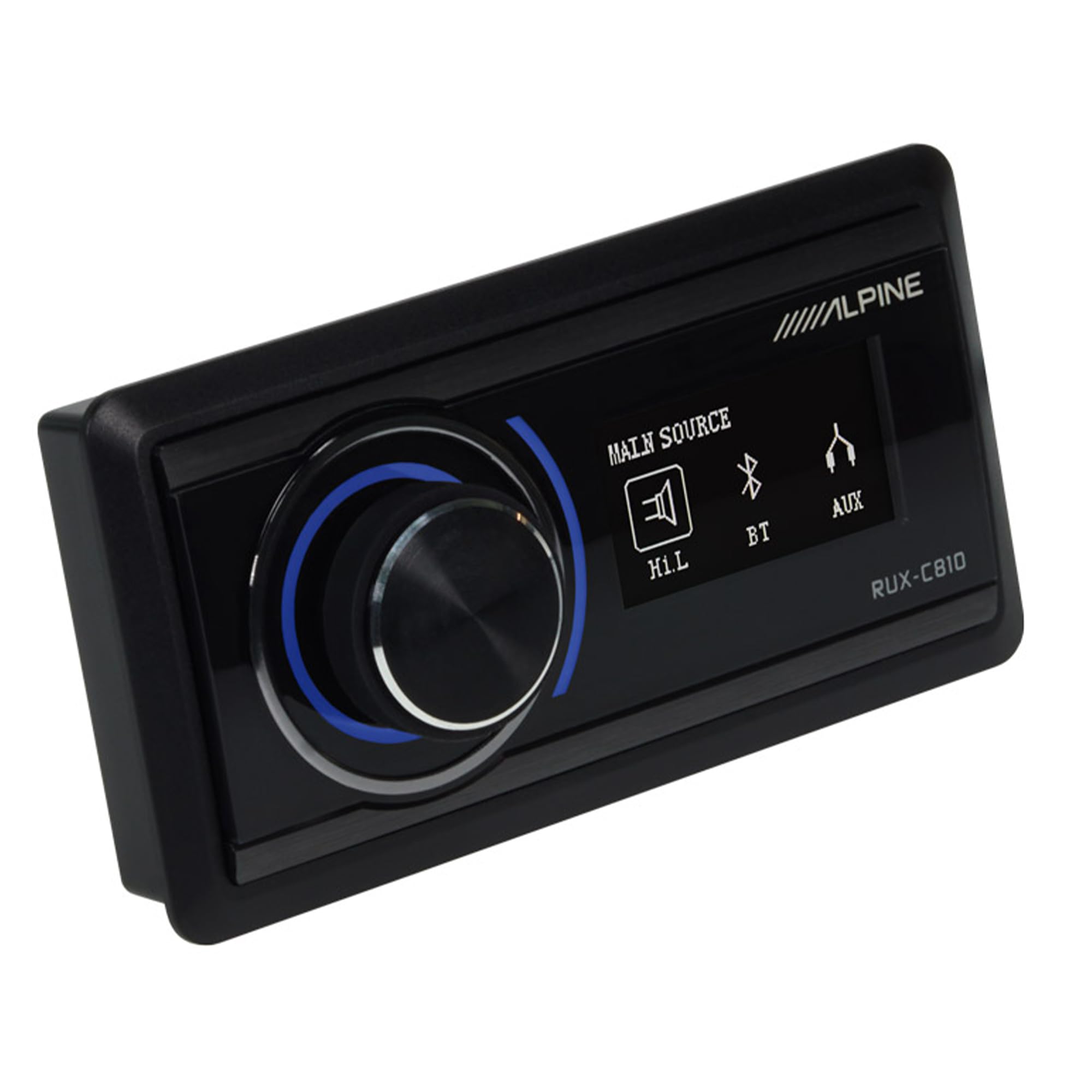

The RUX-C810 features a rotary encoder with blue illumination and a black-and-white LCD display. The rotary control makes it simple to adjust volume and bass levels, select your audio source, and recall customized sound presets.
The RUX-C810 is especially useful when the HDP-D90 is installed out of reach or hidden away in the vehicle. Its compact design allows it to be mounted conveniently in the dashboard or center console for easy access while driving.
For standalone HDP-D90 installations without the Alpine HDS-990 media player, the RUX-C810 is required for basic system operation. It provides essential controls while keeping the main DSP amplifier installed discreetly.
Key Features
- Designed for Alpine Status HDP-D90 DSP amplifier
- Required for standalone HDP-D90 operation when HDS-990 is not used
- Adjusts system volume
- Adjusts bass level
- Selects main and auxiliary input sources
- Recalls customized sound presets
- Rotary encoder for easy control
- Blue-illuminated control knob
- Black-and-white LCD display
- Compact design for dashboard or center-console installation
- Includes controller cable and installation bracket
|
| Technical Specification |
Details |
| Model |
RUX-C810 |
| Product Type |
DSP Remote Controller |
| Compatible Product |
Alpine Status HDP-D90 |
| Control Type |
Rotary Encoder |
| Display |
Black-and-White LCD |
| Illumination |
Blue |
| Volume Control |
Yes |
| Bass Level Control |
Yes |
| Source Selection |
Main / Auxiliary |
| Preset Selection |
Yes |
| Connection |
Wired |
| Controller Cable |
Included |
| Cable Length |
5m / 16.5 ft |
| Installation |
Dashboard or Center Console |
| Mounting Bracket |
Included |
| Standalone HDP-D90 Required |
Yes, when HDS-990 is not used |
| Controller Dimensions (W × H × D) |
3.64" × 1.90" × 1.06" |
