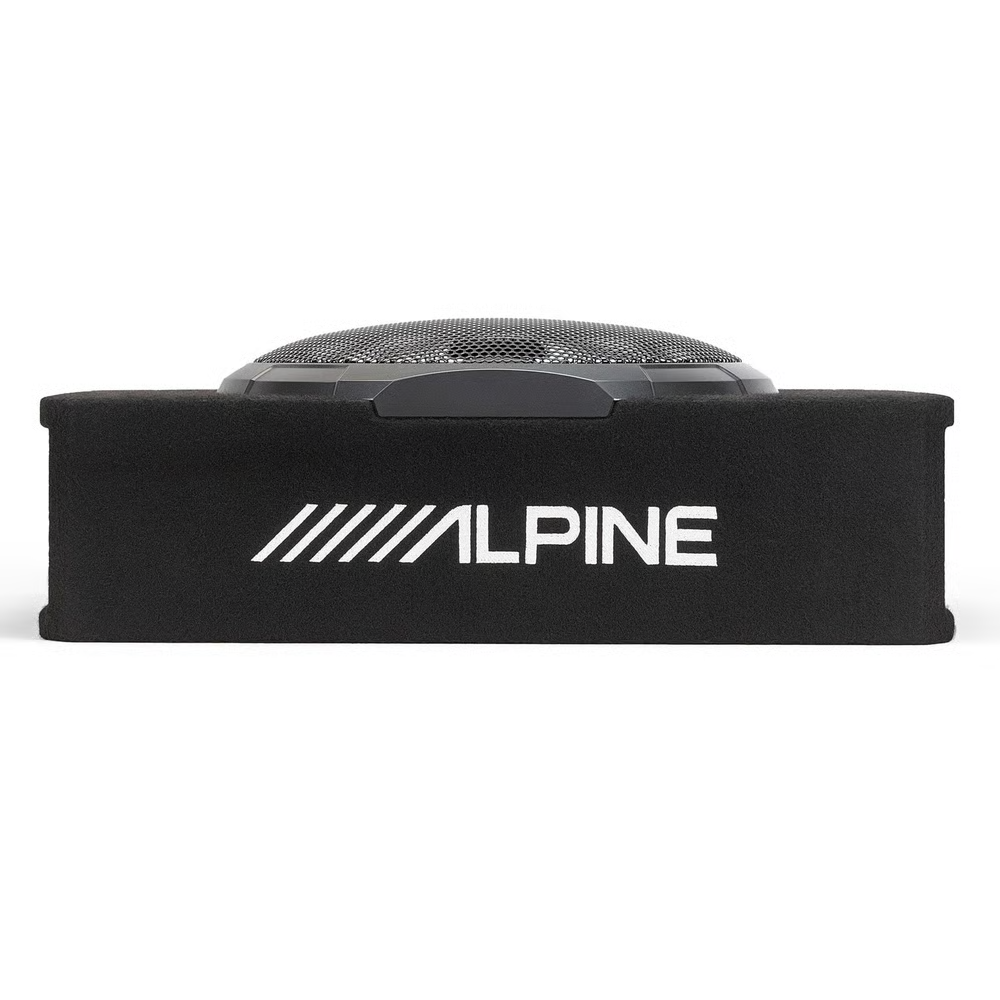

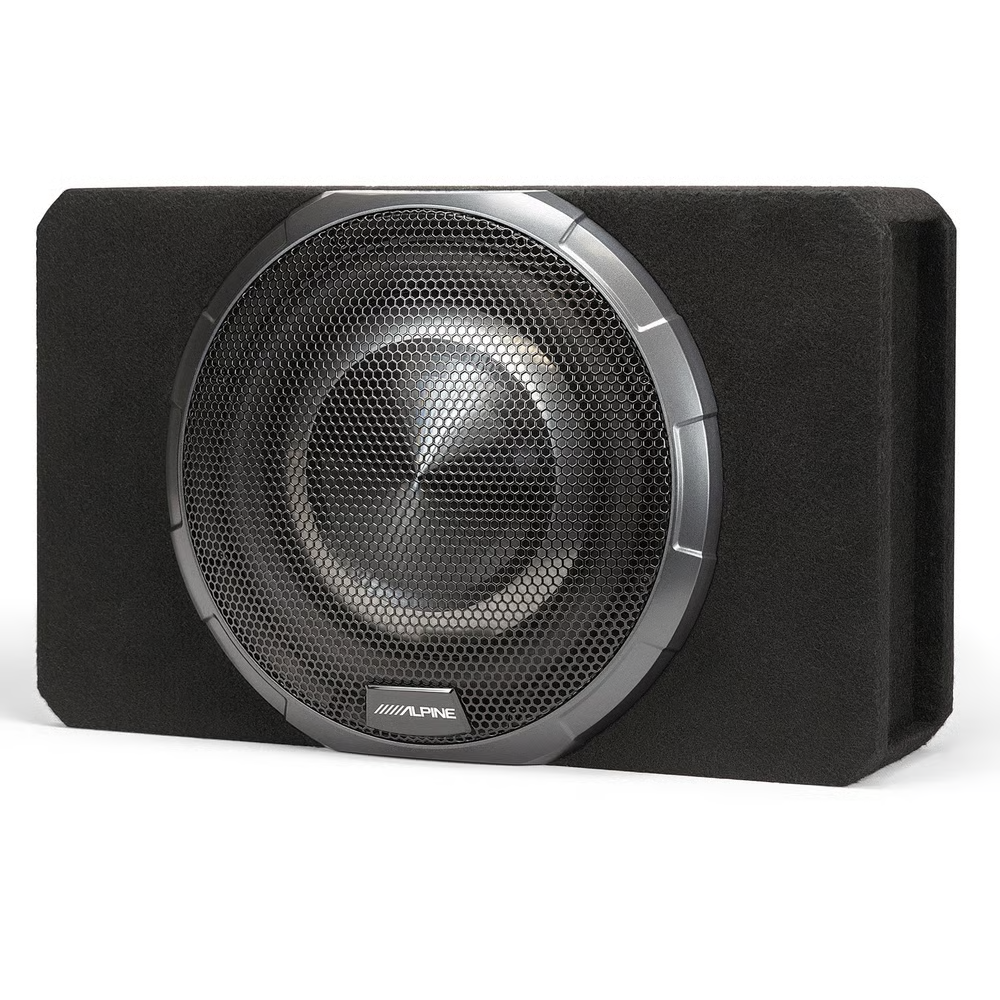

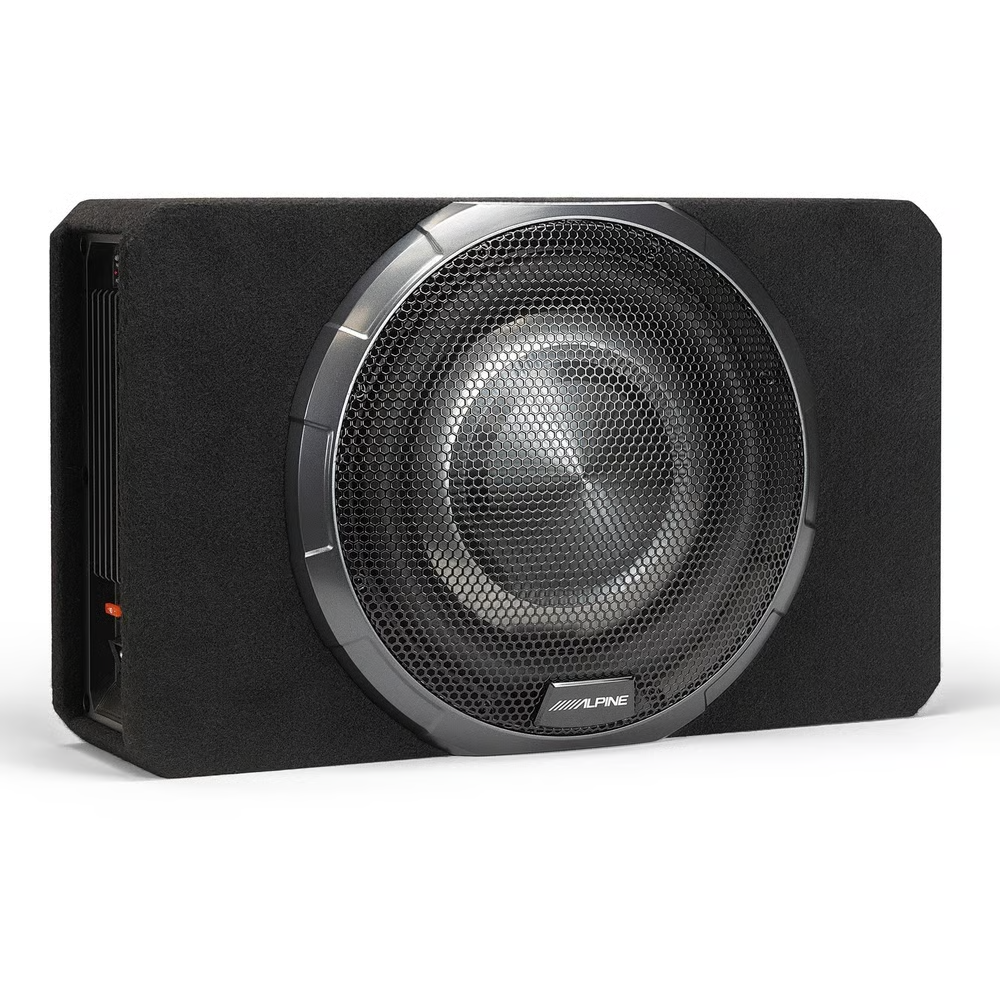

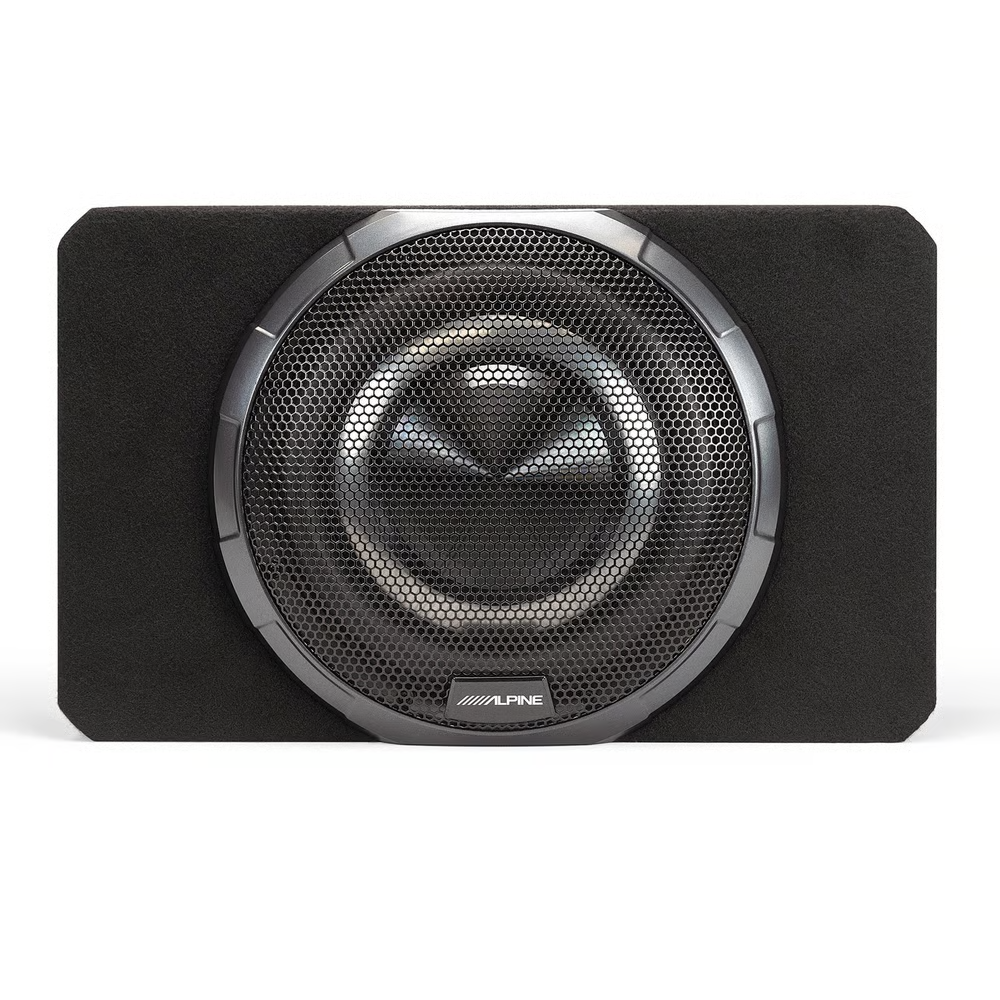

Alpine PWV-SB10
BassRev™ 10" Loaded Active Subwoofer Enclosure
Bring powerful, deep bass to your vehicle without sacrificing valuable space with the Alpine PWV-SB10 BassRev™ 10" Loaded Active Subwoofer Enclosure. Combining a preloaded 10-inch BassRev™ subwoofer, built-in 400W RMS amplification, and Alpine OPTIM™ Sync DSP technology, the PWV-SB10 delivers impressive low-frequency performance from a compact, shallow enclosure.
With a sealed enclosure measuring only 5 inches deep, the PWV-SB10 is designed for installations where space is limited. Its compact profile makes it well suited for under-seat installations, trunk areas, hatchbacks, and other locations where a conventional subwoofer enclosure may not fit.
Powerful Bass in a Compact Design
The PWV-SB10 is engineered to deliver the impact and depth of a larger subwoofer system while maintaining a compact footprint. The built-in 400W RMS amplifier provides dedicated power to the 10-inch BassRev™ subwoofer, creating strong and controlled bass response without requiring a separate amplifier.
The sealed enclosure design helps produce tight, controlled low-frequency performance while the shallow profile minimizes the amount of interior space required.
OPTIM™ Sync DSP Technology
Alpine's OPTIM™ Sync technology is integrated into the PWV-SB10's amplifier to help maximize the performance of the shallow 10-inch subwoofer.
Using dynamic bass boost and pre-EQ processing, OPTIM™ Sync is designed to enhance low-frequency output and help create the powerful bass response expected from a larger enclosure.
5-Inch Shallow Profile
When installation space is at a premium, the PWV-SB10 provides a practical solution. The enclosure measures just 5 inches deep, allowing it to fit into locations where traditional subwoofer boxes would be too large.
Its compact design makes it possible to add substantial bass performance while preserving valuable passenger and cargo space.
Durable Enclosure Construction
The PWV-SB10 features a carpeted MDF enclosure with a double-brace structure for added rigidity. The extended grille design helps protect the subwoofer from accidental contact with cargo and other objects inside the vehicle.
An Alpine-embroidered top provides a finished, premium appearance that complements the rest of the system.
Factory and Aftermarket Compatibility
The PWV-SB10 can be integrated into a variety of audio systems using its high-level and RCA inputs. High-level inputs allow connection to compatible factory audio systems, while RCA inputs provide a convenient connection option for aftermarket receivers.
An included wired remote level control allows the driver to adjust subwoofer output from the front of the vehicle. The remote provides a 0 to -20 dB adjustment range for convenient bass-level control.

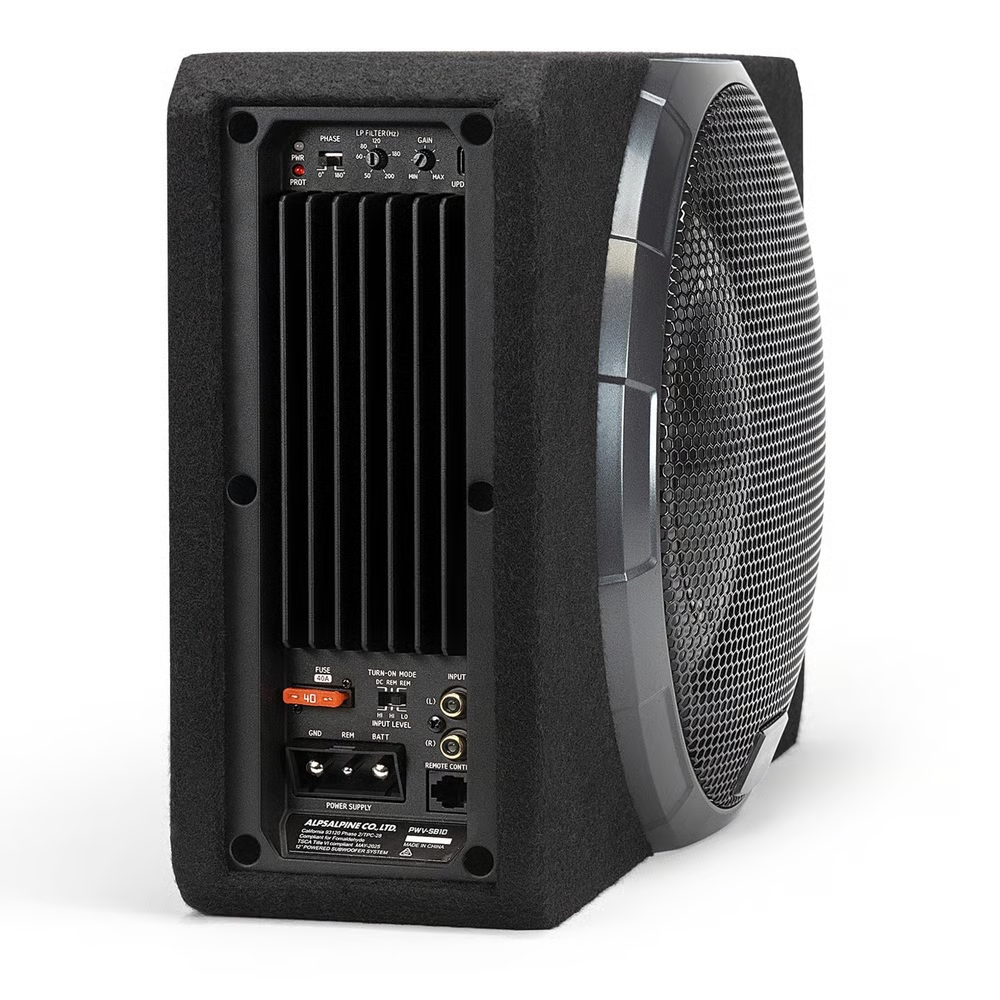

Flexible System Tuning
The PWV-SB10 provides several controls for dialing in its performance. A variable low-pass filter can be adjusted from 50Hz to 200Hz with a steep -24 dB/octave slope, while selectable 0°/180° phase control helps optimize integration with the vehicle's other speakers.
These controls allow the PWV-SB10 to be tuned to the specific vehicle and audio system for a smoother, more balanced overall sound.
Built for Big Bass Without the Big Box
The Alpine PWV-SB10 is an ideal solution for anyone who wants serious bass performance without giving up valuable interior space. Its combination of a 10-inch BassRev™ subwoofer, 400W RMS built-in amplifier, OPTIM™ Sync DSP processing, and ultra-shallow enclosure makes it a powerful addition to both factory and aftermarket audio systems.
Whether you're upgrading an existing system or building a new one, the PWV-SB10 delivers deep, impactful bass in a package designed to fit into tight spaces.
|
| Specification |
Details |
| Brand |
Alpine |
| Model |
PWV-SB10 |
| Product Type |
Loaded Active / Powered Subwoofer Enclosure |
| Series |
BassRev™ |
| Subwoofer Size |
10" |
| Subwoofer |
Preloaded 10" BassRev™ |
| Voice Coil Configuration |
Dual 4Ω voice coils |
| Power Handling |
400W RMS / 800W Peak |
| Built-In Amplifier |
400W RMS |
| DSP Technology |
Alpine OPTIM™ Sync |
| Enclosure Type |
Sealed, shallow profile |
| Frequency Response |
31Hz – 200Hz |
| Low-Pass Filter |
50Hz – 200Hz, -24 dB/octave, variable |
| Phase Control |
0° / 180° |
| Inputs |
High-Level and RCA |
| High-Level Input Range |
0.5V – 10V |
| RCA Input Range |
0.2V – 2.0V |
| Remote Level Control |
Included |
| Remote Level Adjustment |
0 to -20 dB |
| Enclosure Construction |
Carpeted MDF with double-brace structure |
| Grille Design |
Extended grille |
| Branding |
Alpine embroidered top |
| Enclosure Dimensions |
18-1/2" W × 11-1/8" H × 5" D |
| Enclosure Weight |
21 lbs (9.7 kg) |
