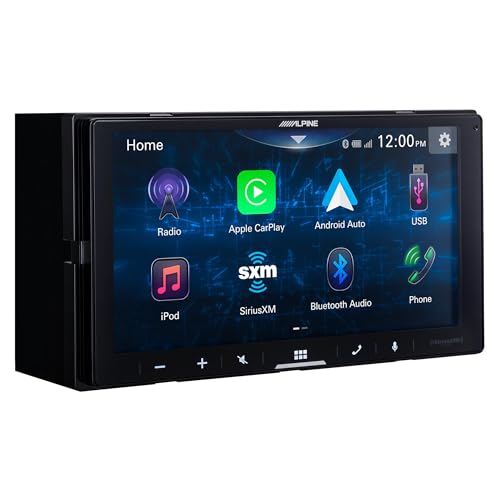

Alpine iLX-W770-M 7" Ultra-Shallow Multimedia Receiver
Wireless Smartphone Control with Clean OEM-Style Integration
The Alpine iLX-W770-M is a 7-inch ultra-shallow multimedia receiver designed to deliver modern smartphone connectivity, strong audio tuning capability, and flexible system expansion. With wireless Apple CarPlay and Android Auto, plus high-voltage pre-outs and advanced audio controls, it provides a complete upgrade for factory or custom audio systems.
Key Features
-
7" Capacitive Touchscreen Display – Responsive interface with clear visuals and intuitive control
-

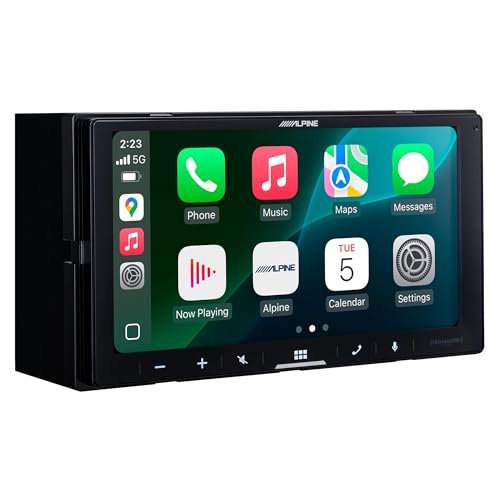

Wireless Apple CarPlay and Android Auto – Seamless smartphone integration for navigation, calls, and music
-
3 Sets of 4V Pre-Outs (Front, Rear, Subwoofer) – Clean signal output for external amplifiers
-
Built-In 50W x 4 Amplifier – Strong internal power for factory speaker setups
-
13-Band Graphic EQ – Detailed sound tuning for customized audio performance
-

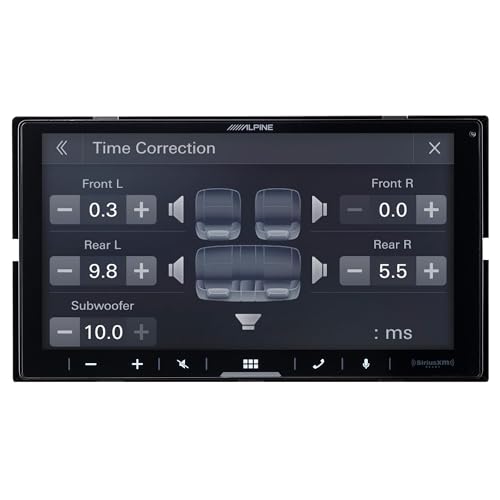

6-Channel Time Correction – Improves imaging and soundstage accuracy
-
Independent Crossovers – Flexible high-pass, low-pass, and subwoofer control
-
Bluetooth Hands-Free and Audio Streaming – Reliable wireless communication and media playback
-

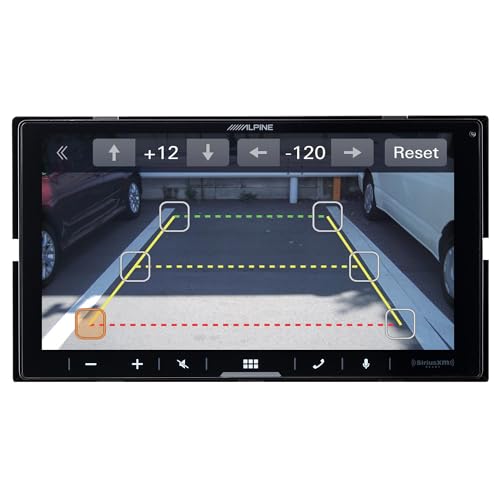

Dual Camera Inputs – Supports front and rear camera integration
-
iDatalink Maestro Compatibility – Enables advanced OEM system integration (vehicle dependent)
-
Ultra-Shallow Chassis Design (approx. 2.4") – Easier installation in tight dash spaces
-
PowerStack Compatible – Works with Alpine Power Pack amplifiers for expanded system output
Wireless Convenience, Built In

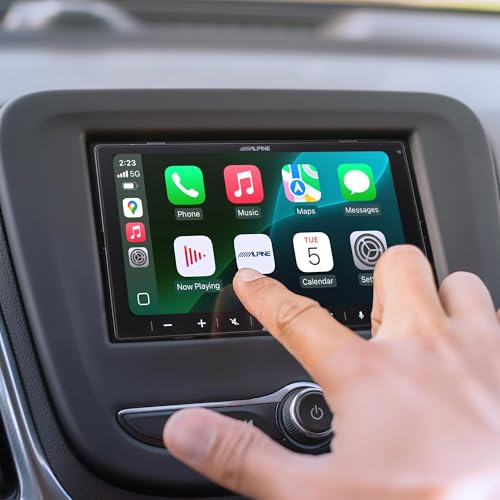

The iLX-W770-M brings full wireless smartphone integration to your dash, allowing you to access apps, maps, messages, and music without plugging in your phone. The interface is designed for fast response and minimal distraction.
Strong Audio Foundation
With 4V pre-outs and a built-in 50W x 4 amplifier, the W770-M is designed to support both simple speaker upgrades and full amplified systems. Its internal tuning tools help create a balanced, clean soundstage.
Advanced Sound Control
Alpine includes a full suite of tuning tools, including a 13-band EQ, time alignment, and flexible crossover settings. These features allow precise system tuning for improved clarity, imaging, and bass control.
Flexible System Expansion
The W770-M is built to grow with your system. Whether adding subwoofers, external amplifiers, or integrating factory vehicle data through Maestro, it serves as a capable foundation for more advanced builds.
Specifications
| Specification |
Value |
| Screen Size |
7" (6.75" viewable) |
| Resolution |
800 x 480 |
| Built-In Amplifier |
50W x 4 |
| Pre-Out Voltage |
4V (Front, Rear, Subwoofer) |
| EQ |
13-Band Graphic EQ |
| Time Alignment |
6-Channel |
| Crossovers |
High-Pass / Low-Pass / Subwoofer |
| Smartphone Integration |
Wireless Apple CarPlay / Android Auto |
| Camera Inputs |
2 |
| Chassis Depth |
Ultra-shallow (~2.4") |
Ideal Applications
- Factory infotainment upgrades
- Wireless CarPlay / Android Auto builds
- Entry to mid-level amplified systems
- OEM-style clean dash replacements
- Space-limited dashboard installations
What's Included
- iLX-W770-M receiver unit
- Wiring harness
- External microphone
- Mounting hardware
- Installation guide
The Alpine iLX-W770-M delivers a modern, wireless infotainment experience with strong tuning tools and flexible system expansion in a compact, installer-friendly design.
