Alpine HDS-990 Alpine Status Hi-Res Digital Media Player
High-Resolution Source Audio for Ultimate System Control
The Alpine HDS-990 is a flagship Hi-Res digital media player designed as the dedicated source unit for the Alpine Status system. Built for audiophile-grade in-car playback, it delivers extremely high-resolution audio, advanced system integration, and flexible tuning options for serious car audio builds.
Key Features
-
Hi-Res Audio Playback up to 192kHz / 24-bit – Studio-grade digital audio reproduction for maximum detail and clarity
-

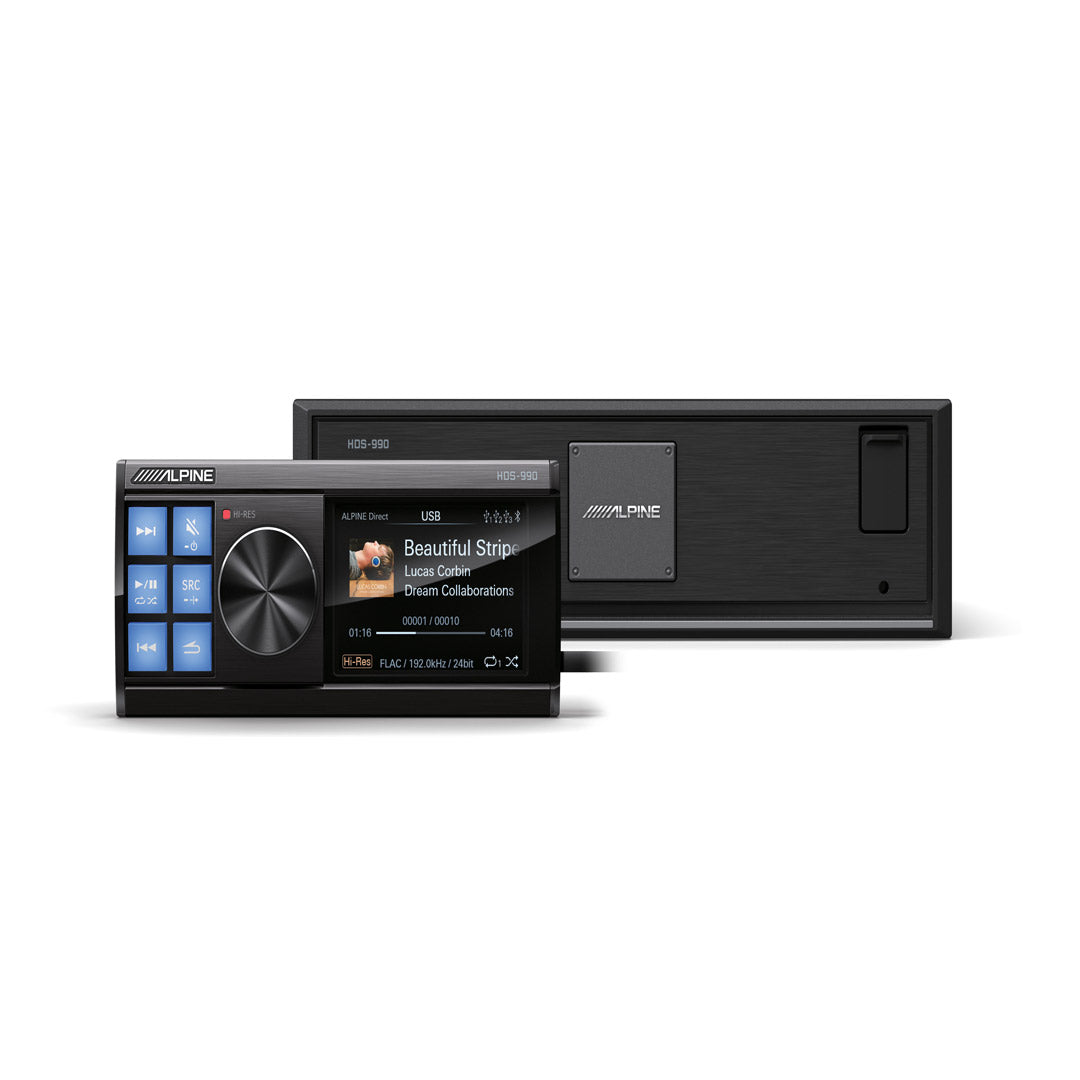

Separate Two-Piece Design – Includes a dash-mounted commander unit and hidden black box for flexible installation
-
Multiple High-Quality Digital Inputs – USB audio, Bluetooth streaming, and external device support
-
High-Voltage 4V Pre-Outs (3 sets) – Clean signal output for external amplifiers and system expansion
-
Built-In 4-Channel Amplifier (25W RMS x 4) – Supports direct speaker drive for simplified system setups
-
Advanced DSP Functions – Built-in EQ, crossover control, and time alignment for system tuning without external DSP
-
High-Resolution Bluetooth Streaming – Supports LDAC and other high-quality codecs for wireless playback
-
Multi-Format Audio Support – Plays FLAC, WAV, ALAC, DSD, and other high-resolution formats
-
Flexible System Integration – Works as a standalone source or as part of a full Alpine Status ecosystem
-
Digital Outputs for System Expansion – Optical and coaxial outputs for advanced DSP integration
Built as the Core of a High-End System
The HDS-990 is designed to be the central source unit in a complete high-resolution car audio system. It is not just a head unit replacement but a dedicated audio source engineered for maximum fidelity when paired with matching Status components.
Reference-Level Sound Quality
With support for 192kHz/24-bit playback, the HDS-990 delivers extremely detailed sound reproduction, capturing subtle musical textures, spatial cues, and dynamic range that standard head units often compress or omit.
Flexible Installation Architecture
The system uses a two-piece layout, separating the control interface from the main processing unit. This allows discreet installation of the main chassis while keeping full user control accessible on the dashboard via the commander display.
System Integration and Expansion
With multiple pre-outs, digital outputs, and both wired and wireless inputs, the HDS-990 integrates easily into complex audio systems. It can drive a full system directly or act as a high-end source feeding external amplifiers and DSP units.
Designed for the Alpine Status Ecosystem
The HDS-990 is optimized to work with other Alpine Status components such as the HDP-D90 DSP amplifier and Status speakers, forming a complete high-resolution audio chain from source to output.
Specifications
| Specification |
Value |
| Audio Resolution |
Up to 192kHz / 24-bit |
| Built-In Amplifier |
25W RMS x 4 |
| Pre-Out Voltage |
4V (3 sets: front, rear, sub) |
| DSP Functions |
EQ, crossover, time alignment |
| Bluetooth |
Hi-Res supported (LDAC and similar codecs) |
| Digital Outputs |
Optical and coaxial |
| Inputs |
USB, Bluetooth, analog high-level |
| System Design |
Two-piece (commander + black box) |
| Supported Formats |
FLAC, WAV, ALAC, DSD, MP3, AAC, and more |
Ideal Applications
- High-end audiophile car audio systems
- Full Alpine Status system builds
- Dedicated Hi-Res audio source setups
- Systems using external DSP and amplifiers
- Enthusiast and competition-grade installations
What's Included
- HDS-990 commander display unit
- Black box source unit
- Wiring harness
- Mounting hardware
- Installation guide
The Alpine HDS-990 is a dedicated high-resolution source unit built for uncompromising sound quality and full-system control in advanced car audio installations.
