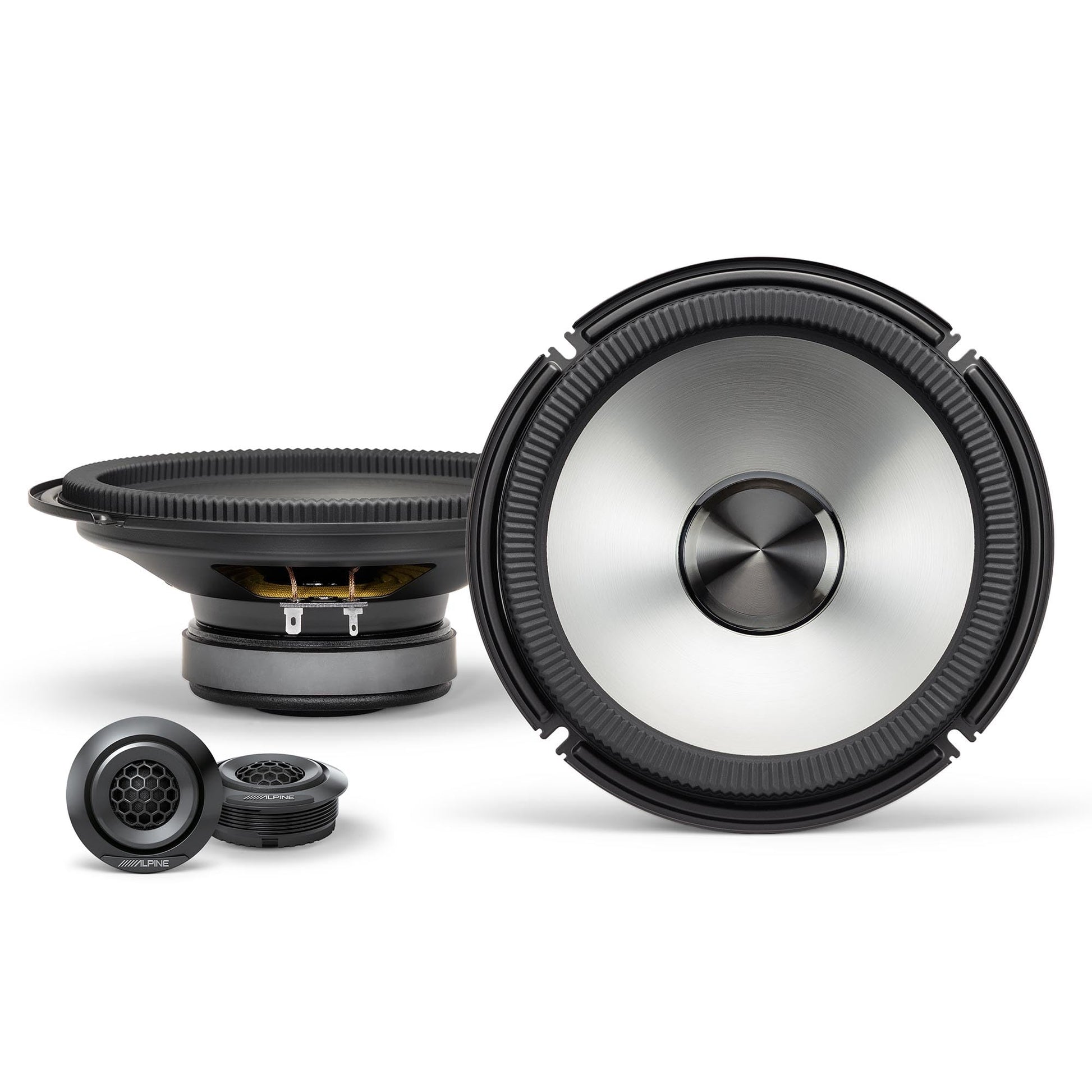

Alpine BRV-S80C, BassRev 8" 2-Way Component Speaker System (Open Box)

Overview

Alpine BRV-S80C

BassRev™ 8" 2-Way Component Speaker System

Experience powerful, dynamic sound with the Alpine BRV-S80C BassRev™ 8" 2-Way Component Speaker System. Designed to deliver impressive bass performance from a dedicated component speaker system, the BRV-S80C combines an 8-inch woofer with a separate 3/4-inch component tweeter to provide strong low-frequency impact and detailed high-frequency reproduction.

With Alpine's H.E.D.G.E. Surround design, proprietary cone construction, and OPTIM™ Sync compatibility, the BRV-S80C is engineered to deliver significantly greater bass performance than conventional speakers while maintaining a clean, balanced sound.

Bass Performance That Goes Beyond a Conventional Speaker

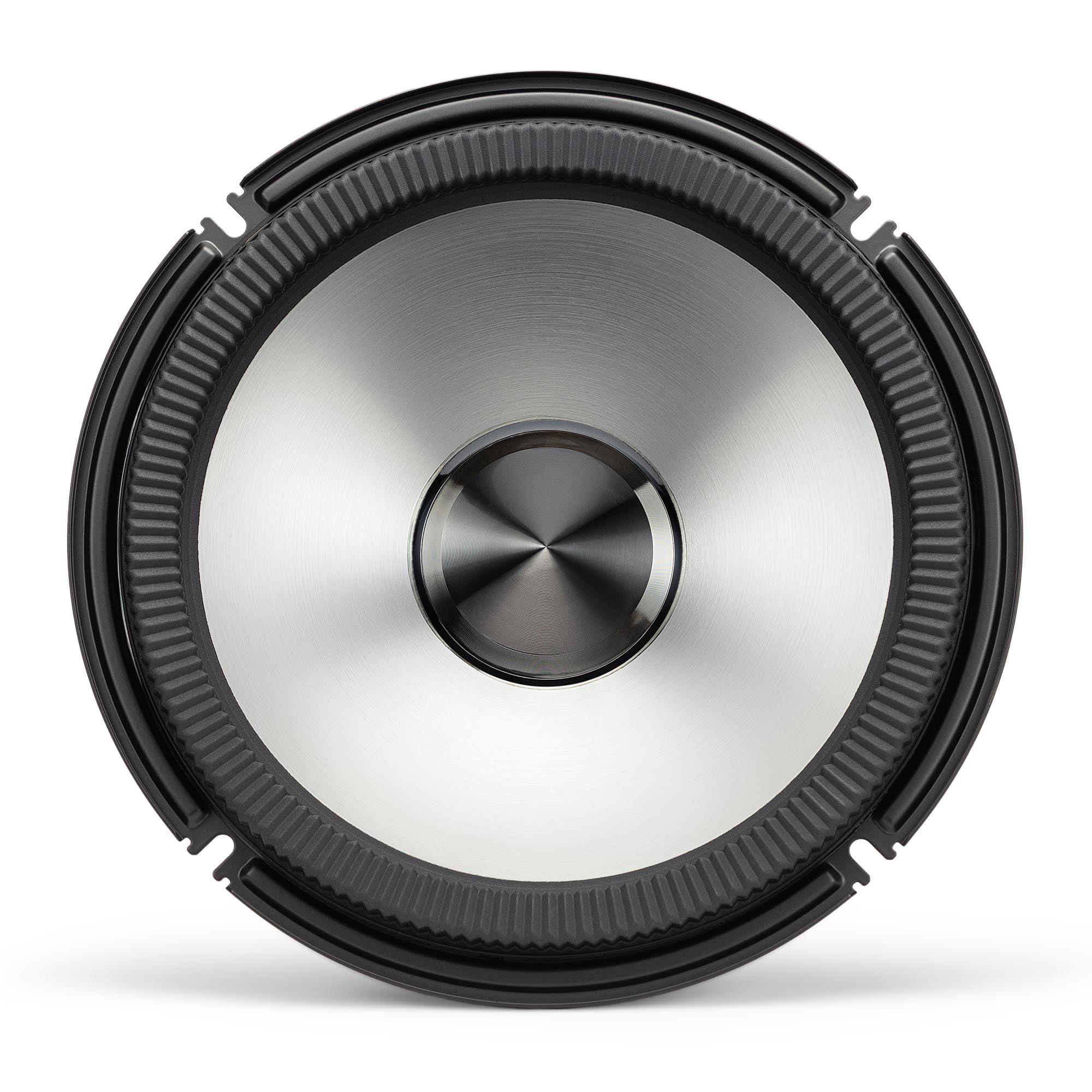

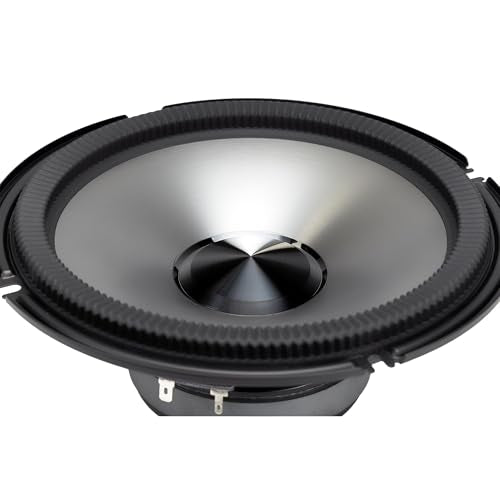

The BRV-S80C is built around an 8-inch woofer designed for increased excursion and output. Its unique lapel-shaped cone allows greater cone movement compared with a traditional speaker design, helping the woofer produce stronger low-frequency energy.

The polypropylene and mica cone construction adds rigidity to the woofer, helping provide a cleaner and more controlled response.

H.E.D.G.E. Surround Technology

Alpine's High Excursion Design Gathered Edge, or H.E.D.G.E. Surround, uses a symmetrical rubber surround designed to allow the woofer to operate more symmetrically and linearly.

This design increases usable excursion while helping extend low-frequency performance, giving the BRV-S80C the ability to deliver substantial bass from a door-mounted speaker system.

Detailed High-Frequency Performance

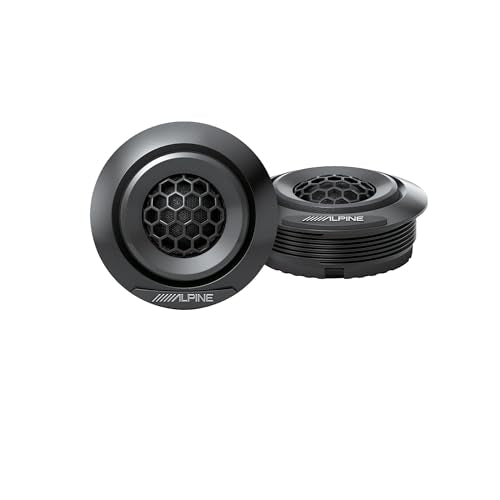

A dedicated 3/4-inch polyester cloth-dome tweeter handles high-frequency reproduction, bringing greater detail and clarity to vocals, instruments, and other high-frequency content.

The component configuration separates the woofer and tweeter so each driver can concentrate on its intended frequency range, helping create a more defined front soundstage.

OPTIM™ Sync Ready

The BRV-S80C is designed to work with Alpine's OPTIM™ Sync technology. When paired with a compatible Alpine OPTIM8® DSP/amplifier, the system can use Alpine's proprietary dynamic bass-boost algorithm and driver-specific pre-EQ processing.

This allows the system to extend bass performance while keeping the speaker operating within its safe performance limits. OPTIM™ Sync tuning can deliver substantially more low-frequency impact from the BRV-S80C than conventional speaker processing.

Built for Greater Excursion

The BRV-S80C's combination of its unique cone profile and H.E.D.G.E. Surround is designed to increase cone movement and output. Alpine specifies a 30% increase in SPL for greater loudness and a 25% increase in X-Max for increased cone movement.

The result is a speaker system designed to produce a more powerful and dynamic presentation without requiring a separate conventional subwoofer for every installation.

Premium Driver Construction

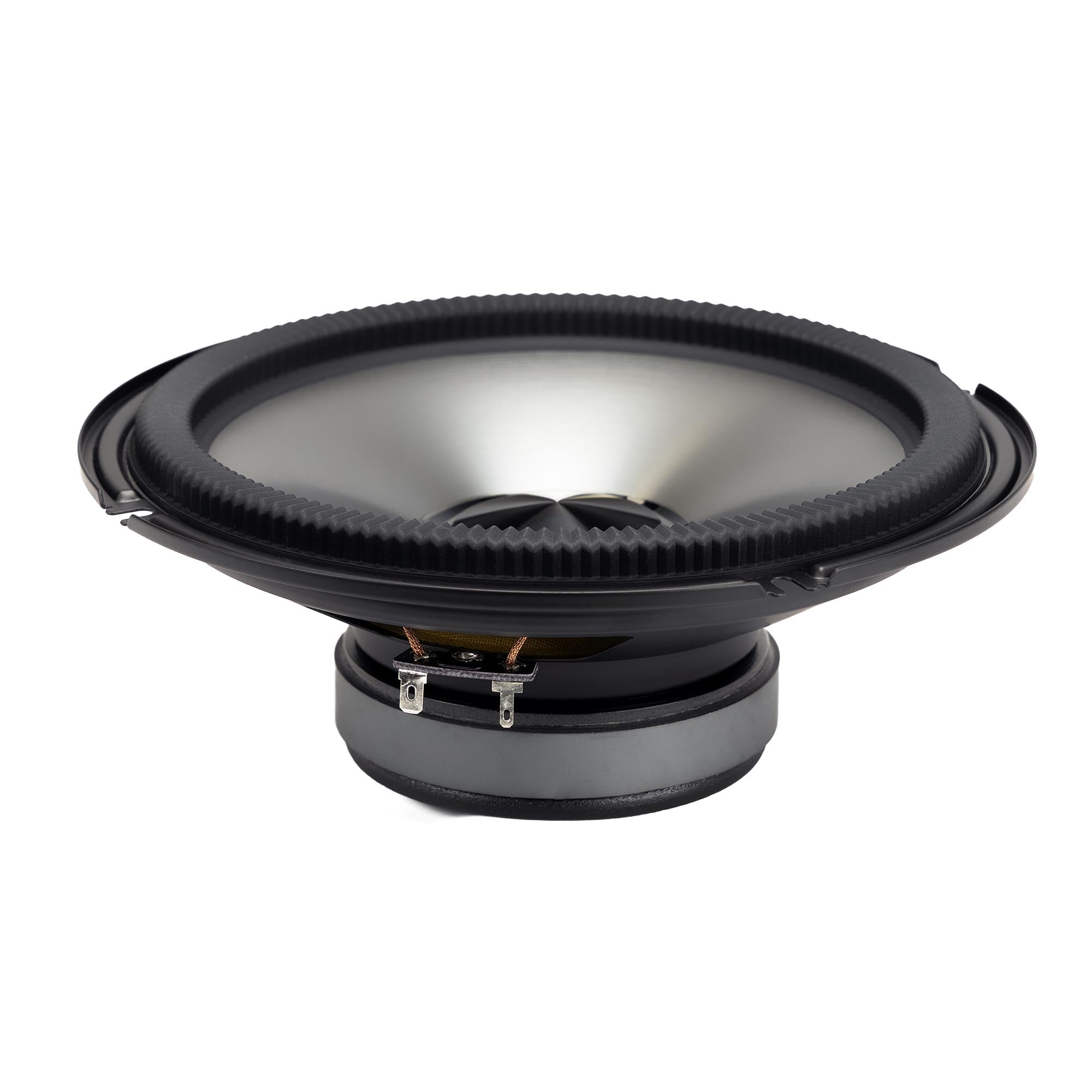

The 8-inch woofer uses a polypropylene-and-mica cone paired with a ferrite magnet and 35mm voice coil. The woofer's gun-metal chemical coating provides a distinctive finish while contributing to the speaker's premium appearance.

The 3/4-inch tweeter uses a polyester cloth dome, a neodymium magnet, and a 20mm voice coil for compact, detailed high-frequency reproduction.

Designed for Custom Audio Systems

With 50 watts RMS power handling and 150 watts peak power handling, the BRV-S80C is designed to integrate into upgraded vehicle audio systems and can be used with appropriate external amplification.

The 4-ohm impedance and 87dB sensitivity make the speakers suitable for a wide range of aftermarket system configurations. A woofer mounting depth of 2-15/16 inches provides installers with a clearly defined installation requirement.

Bring BassRev™ Performance to Your Vehicle

The Alpine BRV-S80C combines an oversized 8-inch woofer, high-excursion H.E.D.G.E. Surround, a dedicated component tweeter, and OPTIM™ Sync compatibility to deliver a powerful upgrade over conventional factory speakers.

For listeners who want stronger bass, greater output, and detailed highs from their vehicle's front-stage system, the BRV-S80C provides a purpose-built solution designed around Alpine's BassRev™ technology.

Features & Specifications

Specification	Details
Brand	Alpine
Model	BRV-S80C
Series	BassRev™
Product Type	2-Way Component Speaker System
Woofer Size	8"
Tweeter Size	3/4"
System Configuration	2-Way Component
Power Handling	50W RMS / 150W Peak
Frequency Response — BassRev™ Tuning ON	35Hz – 20kHz
Frequency Response — BassRev™ Tuning OFF	55Hz – 20kHz
Sensitivity	87dB (1W/1m)
Impedance	4Ω
Woofer Cone Material	Polypropylene + Mica
Tweeter Cone Material	Polyester Cloth Dome
Woofer Surround	Rubber H.E.D.G.E. Design
Woofer Voice Coil Diameter	35mm
Tweeter Voice Coil Diameter	20mm
Woofer Magnet Material	Ferrite
Tweeter Magnet Material	Neodymium
Woofer Magnet Size	100mm
Woofer Frame Material	Steel
Woofer Mounting Depth	2-15/16"
Woofer Cutout Diameter	Approximately 7"
OPTIM™ Sync Compatible	Yes
OPTIM™ Sync Requirement	Alpine OPTIM8® DSP/Amplifier with OPTIM™ Sync Technology
SPL Increase	30%
X-Max Increase	25%
Woofer Design	Unique lapel-shaped cone
Finish	Gun-metal chemical coating
Included Speakers	2 × 8" woofers
Included Tweeters	2 × 3/4" component tweeters
Application	Car, truck, SUV, and van audio systems
