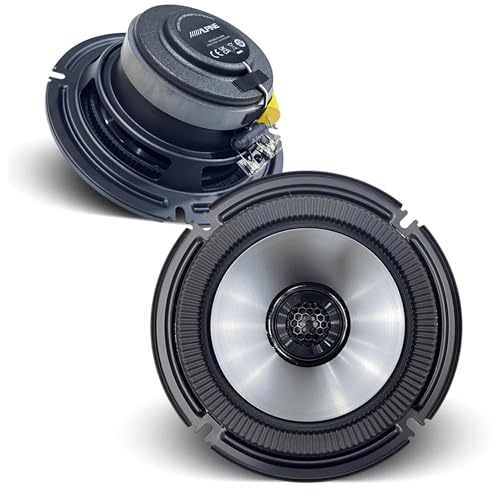

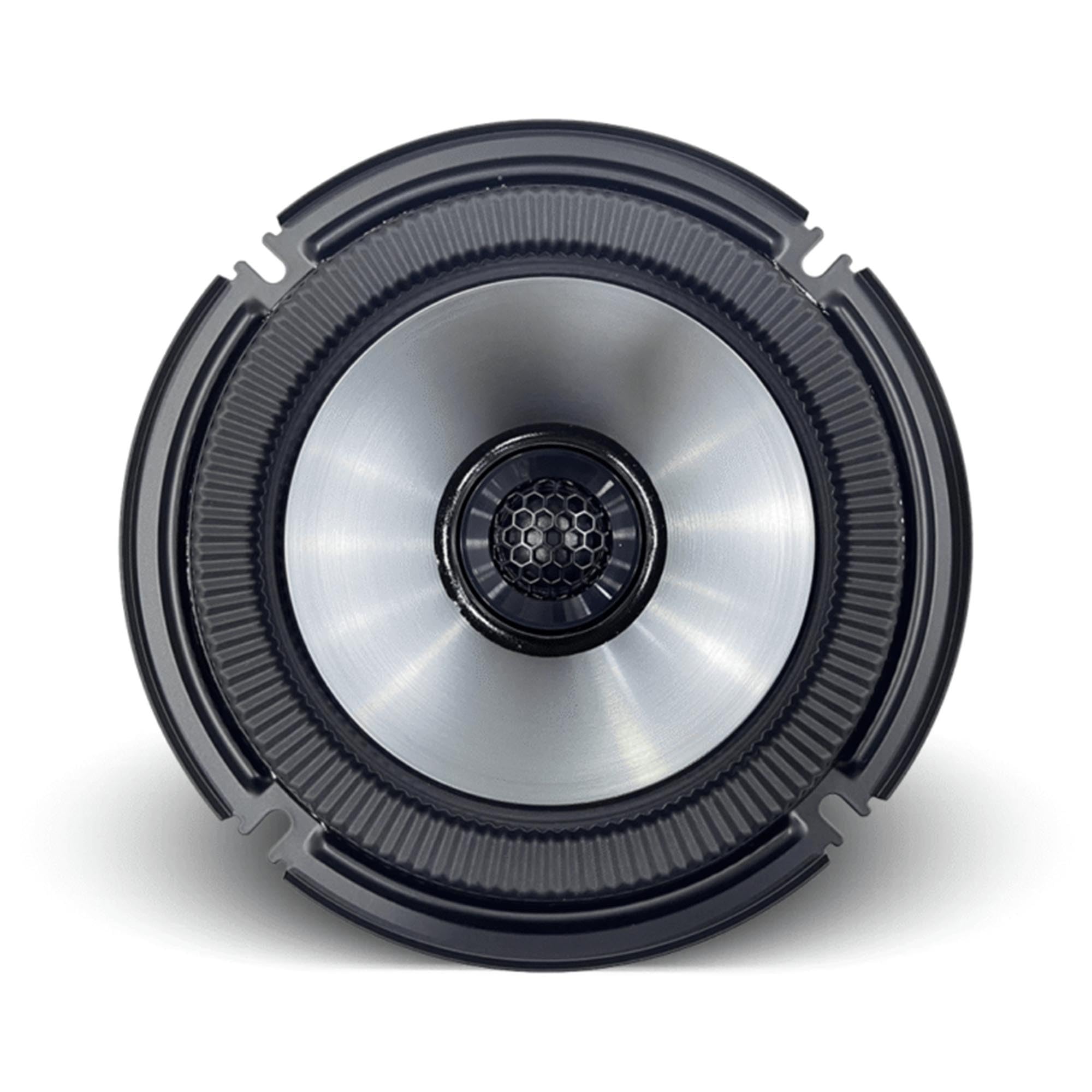

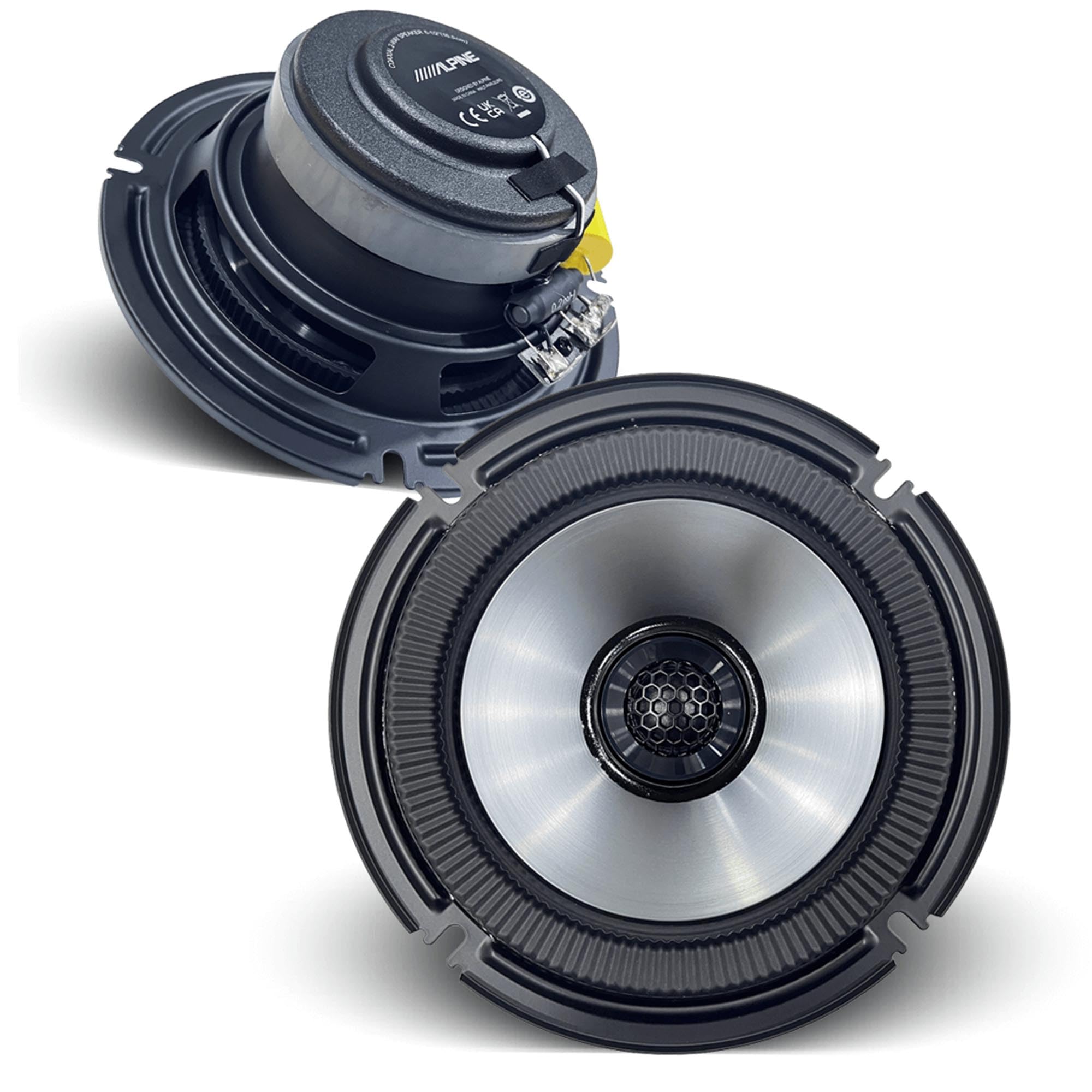

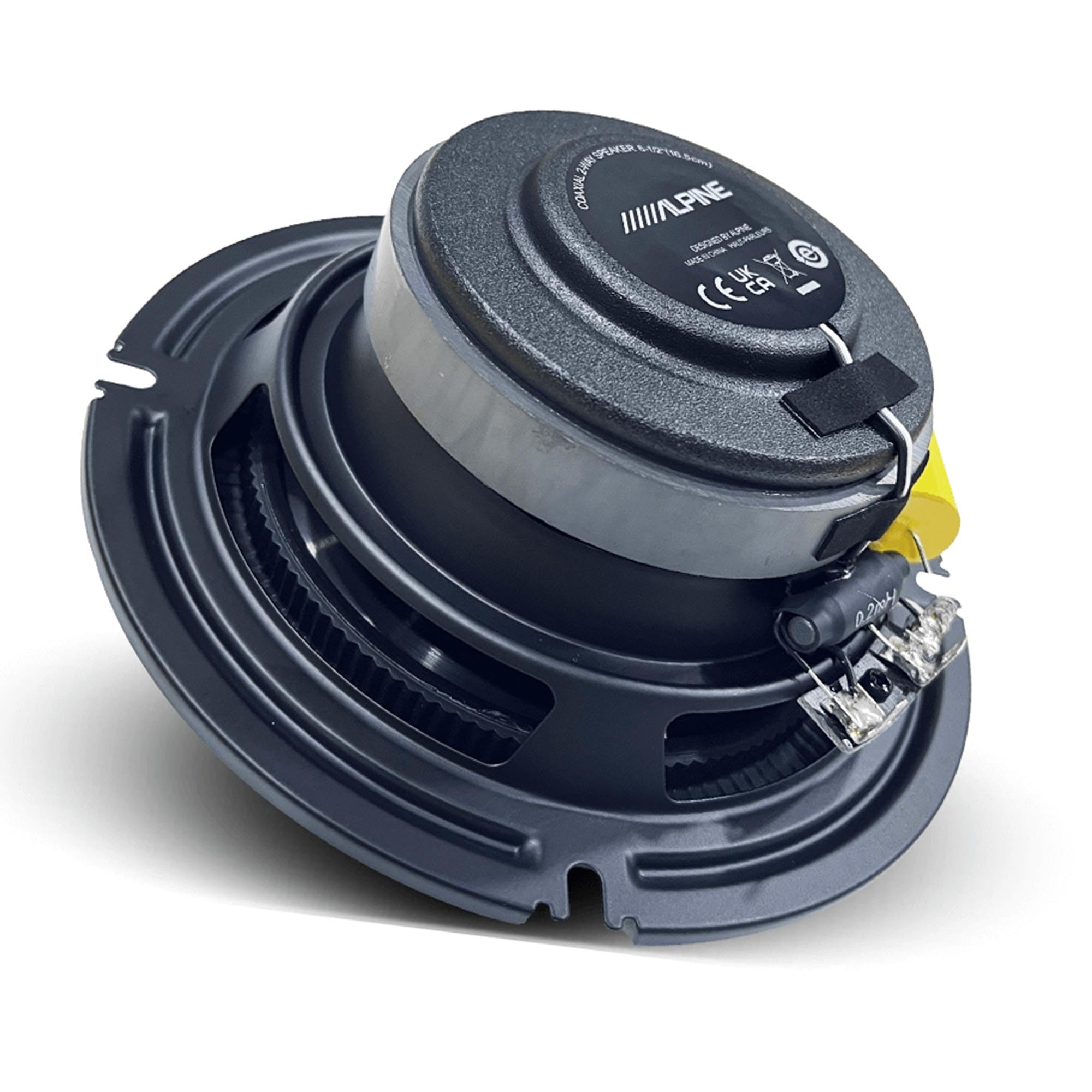

Alpine BRV-S65
BassRev™ 6.5" 2-Way Coaxial Speakers
Experience bigger, deeper bass from a compact speaker with the Alpine BRV-S65 BassRev™ 6.5" 2-Way Coaxial Speaker System. Engineered to deliver subwoofer-sized bass from a 6.5-inch driver, the BRV-S65 combines a high-excursion woofer with an integrated 1-inch tweeter for powerful low-end performance, smooth midrange, and detailed highs.
Alpine's exclusive HEDGE™ Surround and unique lapel-shaped cone design allow the woofer to achieve greater excursion than conventional speaker designs. The result is stronger low-frequency output and deeper extension while maintaining controlled, accurate sound.
Subwoofer-Sized Bass From a 6.5-Inch Speaker
The BRV-S65 is designed to deliver the impact of a much larger speaker without requiring additional installation space. Its specialized lapel-shaped cone increases cone height and travel, allowing greater linear excursion and stronger low-frequency output.
Combined with Alpine's HEDGE™ Surround, the woofer can move farther while maintaining control. This increased excursion gives the BRV-S65 greater bass impact and deeper extension while keeping vocals and midrange reproduction clear.
HEDGE™ High-Excursion Surround
Alpine's High Excursion Design Gathered Edge, or HEDGE™, Surround is engineered specifically to improve woofer excursion and low-frequency performance.
The rubber surround works like a suspension system for the woofer, allowing increased cone movement while helping maintain linear and controlled operation. This translates into greater output and more powerful bass from the compact 6.5-inch driver.
Integrated Coaxial Tweeter
The BRV-S65 features a recessed 1-inch polyester cloth-dome tweeter integrated directly into the woofer. Unlike a conventional tweeter mounted on a center post, the inlaid design places the two drivers closer to the same acoustic center.
This helps create a more unified soundstage with smoother integration between the woofer and tweeter, cleaner imaging, and a wider listening sweet spot.
OPTIM™ Sync Ready
The BRV-S65 is designed to pair with Alpine's OPTIM8® DSP/Amplifier using OPTIM™ Sync technology. When properly configured, Alpine's proprietary processing applies dynamic bass boost and pre-EQ specifically tailored to the BassRev™ speakers.
This processing is designed to safely extend low-frequency performance while smoothing the overall tonal response, allowing the BRV-S65 to produce a larger and more dynamic sound than the speaker alone.
Fuller, More Dynamic Sound
The BRV-S65's specialized lapel-shaped cone provides additional cone travel while maintaining controlled movement. The extra excursion helps produce stronger low-end output without compromising the clarity of the midrange.
The result is a fuller presentation with more impact from kick drums, bass guitar, electronic bass, and other low-frequency content.
Rigid and Refined Construction
The woofer uses a lightweight polypropylene and mica cone designed for rigidity and reduced unwanted resonance. The durable gun-metal chemical coating provides a premium appearance while helping the speaker withstand everyday use.
A ferrite magnet motor provides reliable power handling, while the steel frame provides a solid foundation for the woofer assembly.
The integrated tweeter uses a polyester cloth dome with a neodymium magnet and 20mm voice coil for smooth, detailed high-frequency reproduction.
Designed for Easy Integration
With a 6.5-inch woofer format and 2-3/8-inch mounting depth, the BRV-S65 is designed to fit a wide range of factory and aftermarket speaker locations.
The speaker set is also supplied with multi-purpose adapter rings and mounting hardware to simplify installation in compatible applications. Factory grilles can be retained, as the speaker grilles themselves are not included.
BassRev™ Performance Without a Large Enclosure
The Alpine BRV-S65 brings high-excursion BassRev™ technology to a conventional coaxial speaker format. With 50 watts RMS power handling, 150 watts peak power handling, HEDGE™ Surround technology, an integrated 1-inch tweeter, and OPTIM™ Sync compatibility, it provides a powerful upgrade for listeners looking for more bass and output from their existing speaker locations.
Whether you're upgrading factory speakers or building a more advanced Alpine audio system, the BRV-S65 delivers the combination of bass impact, clarity, and installation flexibility expected from Alpine's BassRev™ series.
|
| Specification |
Details |
| Brand |
Alpine |
| Model |
BRV-S65 |
| Series |
BassRev™ |
| Product Type |
2-Way Coaxial Speaker System |
| Woofer Size |
6.5" |
| Tweeter Size |
1" Integrated Coaxial |
| System Configuration |
2-Way Coaxial |
| Power Handling |
50W RMS / 150W Peak |
| Frequency Response — BassRev™ Tuning ON |
38Hz – 20kHz |
| Frequency Response — BassRev™ Tuning OFF |
60Hz – 20kHz |
| Sensitivity |
84dB (1W/1m) |
| Impedance |
4Ω |
| Woofer Cone Material |
Polypropylene + Mica |
| Tweeter Cone Material |
Polyester Cloth Dome |
| Woofer Surround |
Rubber HEDGE™ Design |
| Woofer Voice Coil Diameter |
40mm |
| Tweeter Voice Coil Diameter |
20mm |
| Woofer Magnet Size |
95mm |
| Woofer Magnet Material |
Ferrite |
| Tweeter Magnet Material |
Neodymium |
| Woofer Frame Material |
Steel |
| Woofer Mounting Depth |
2-3/8" |
| Woofer Cutout Diameter |
156mm / Approximately 6.14" |
| Woofer Frame Diameter |
165mm |
| Woofer Mounting Height |
10.9mm |
| HEDGE™ Surround |
Yes |
| OPTIM™ Sync Compatible |
Yes |
| OPTIM™ Sync Requirement |
Alpine OPTIM8® DSP/Amplifier using OPTIM™ Sync Technology |
| Cone Design |
Unique lapel-shaped cone |
| Maximum Linear Excursion |
Up to 28mm |
| Finish |
Gun-metal chemical coating |
| Tweeter Configuration |
Inlaid / recessed coaxial |
| Grilles |
Not included; designed to retain compatible factory grilles |
| Included Hardware |
Multi-purpose adapter rings, screws, machine screws, lock washers, nuts, speed clips, flat washers, and foam gaskets |
| Recommended Amplification |
Up to 50W RMS per channel |
| Application |
Car, truck, SUV, and van audio systems |
