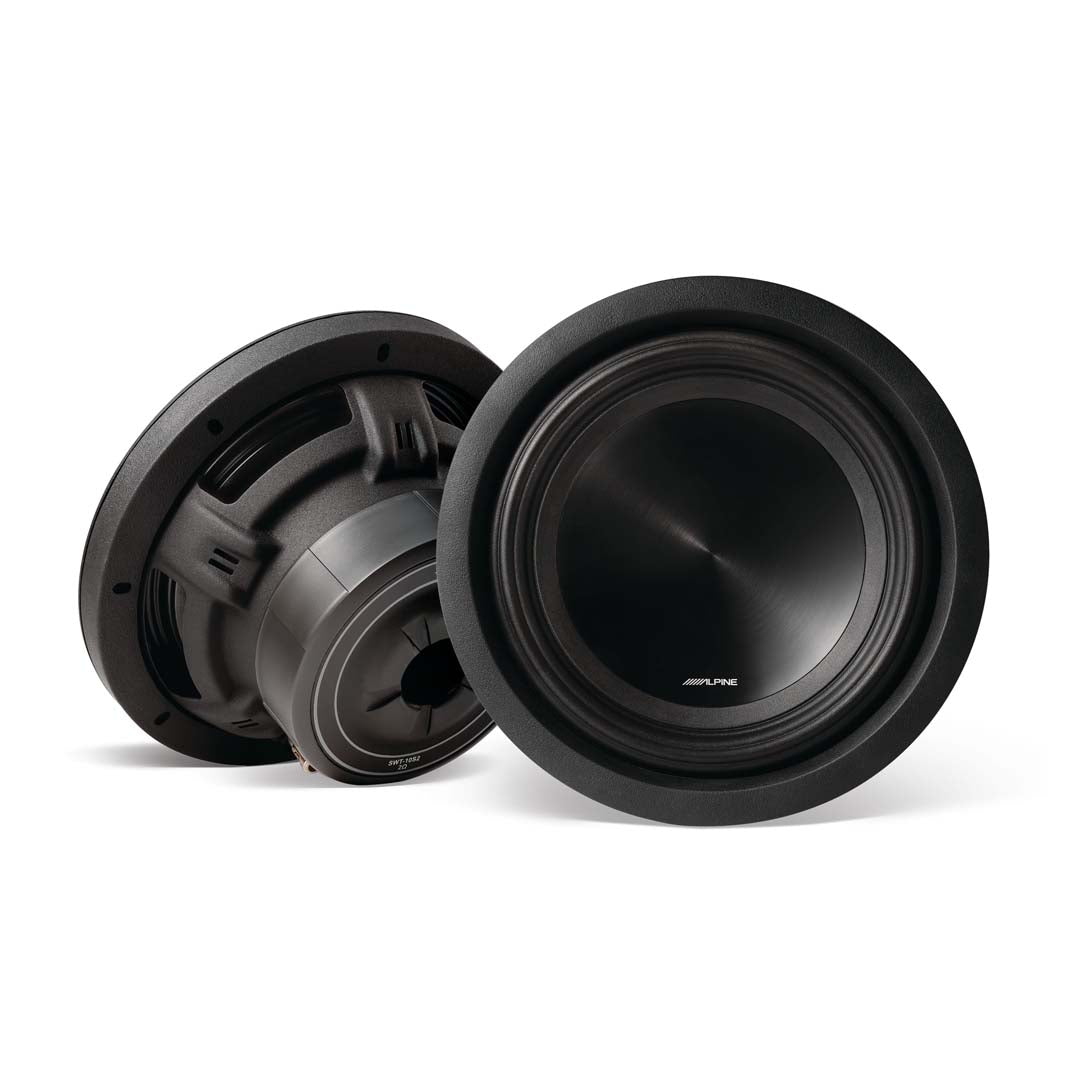

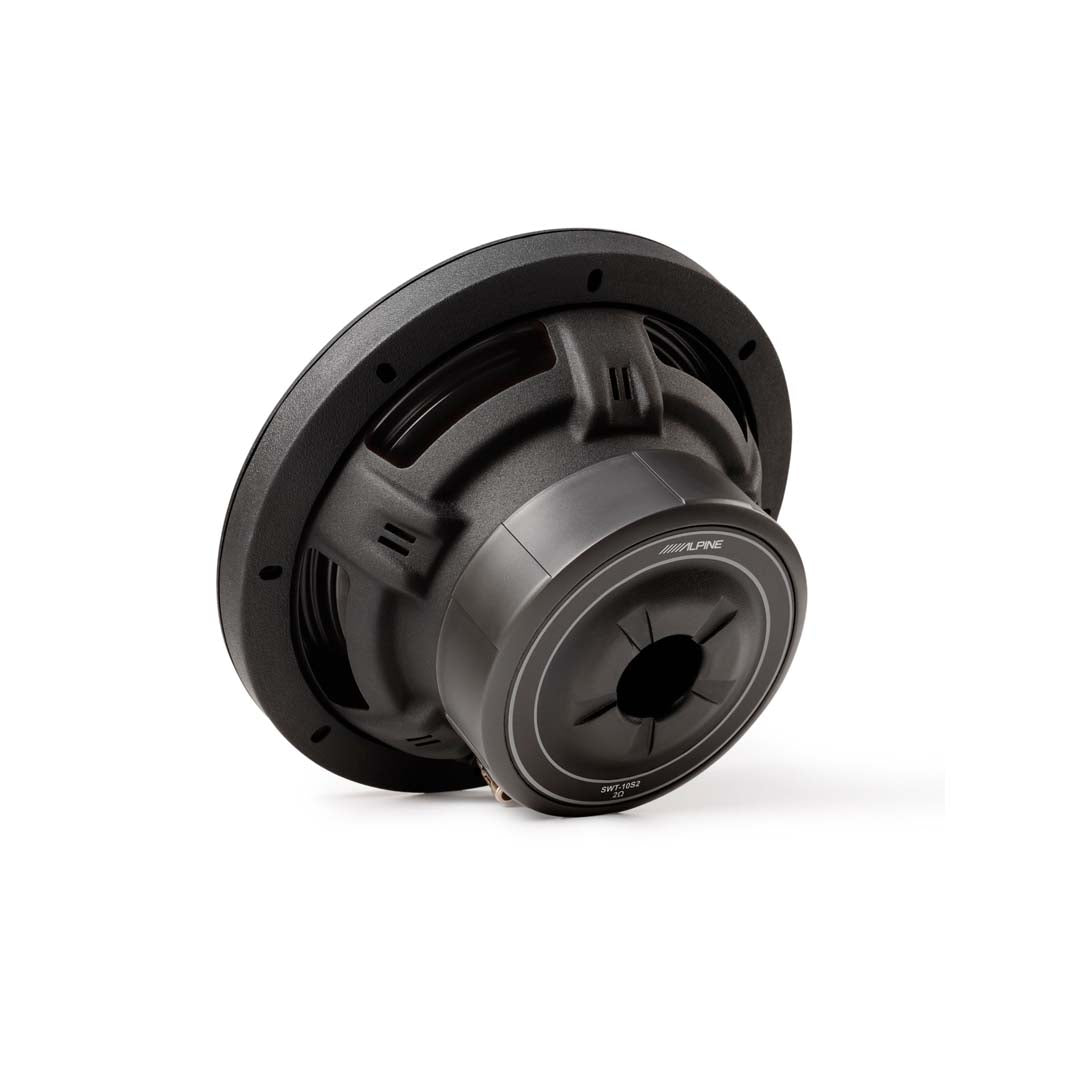

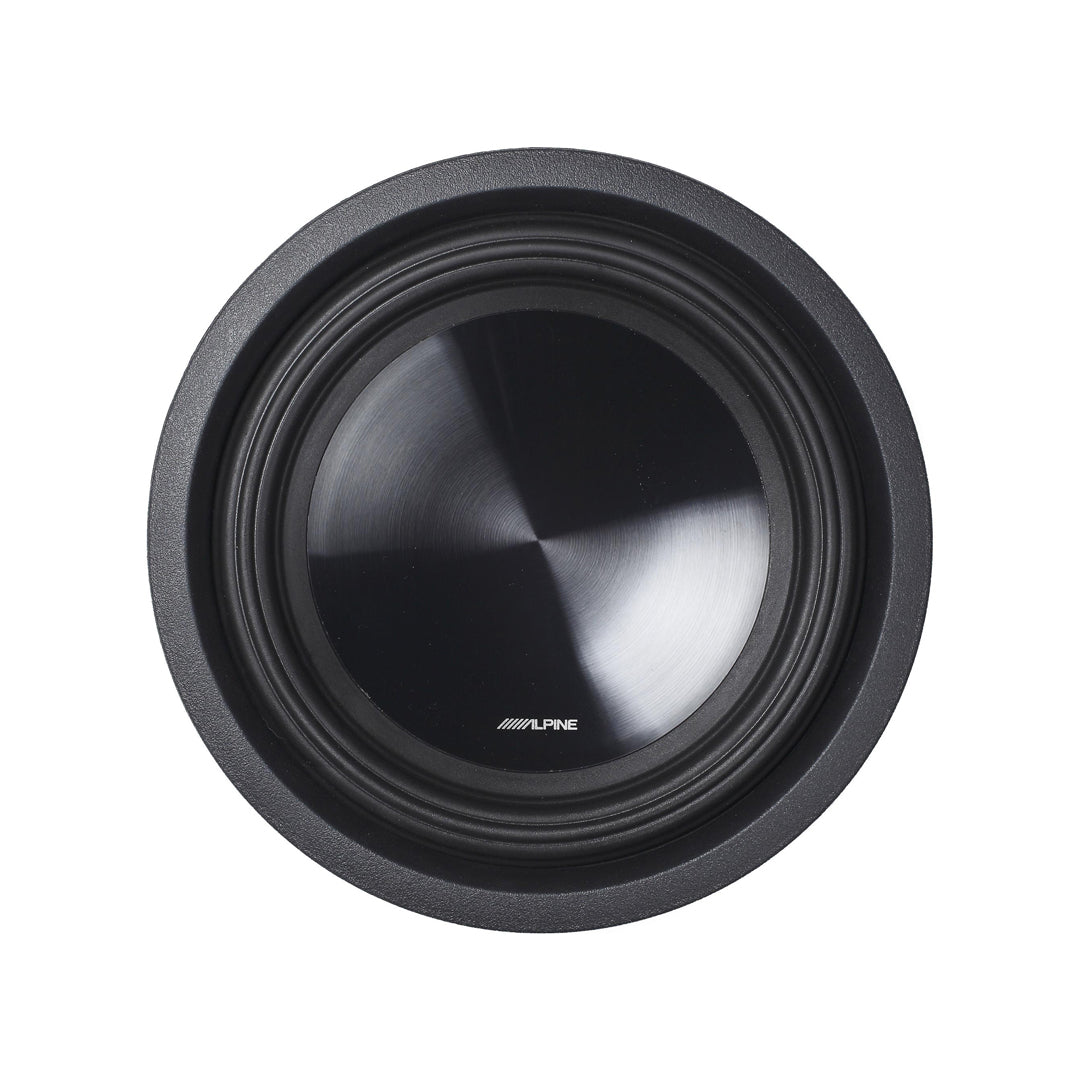

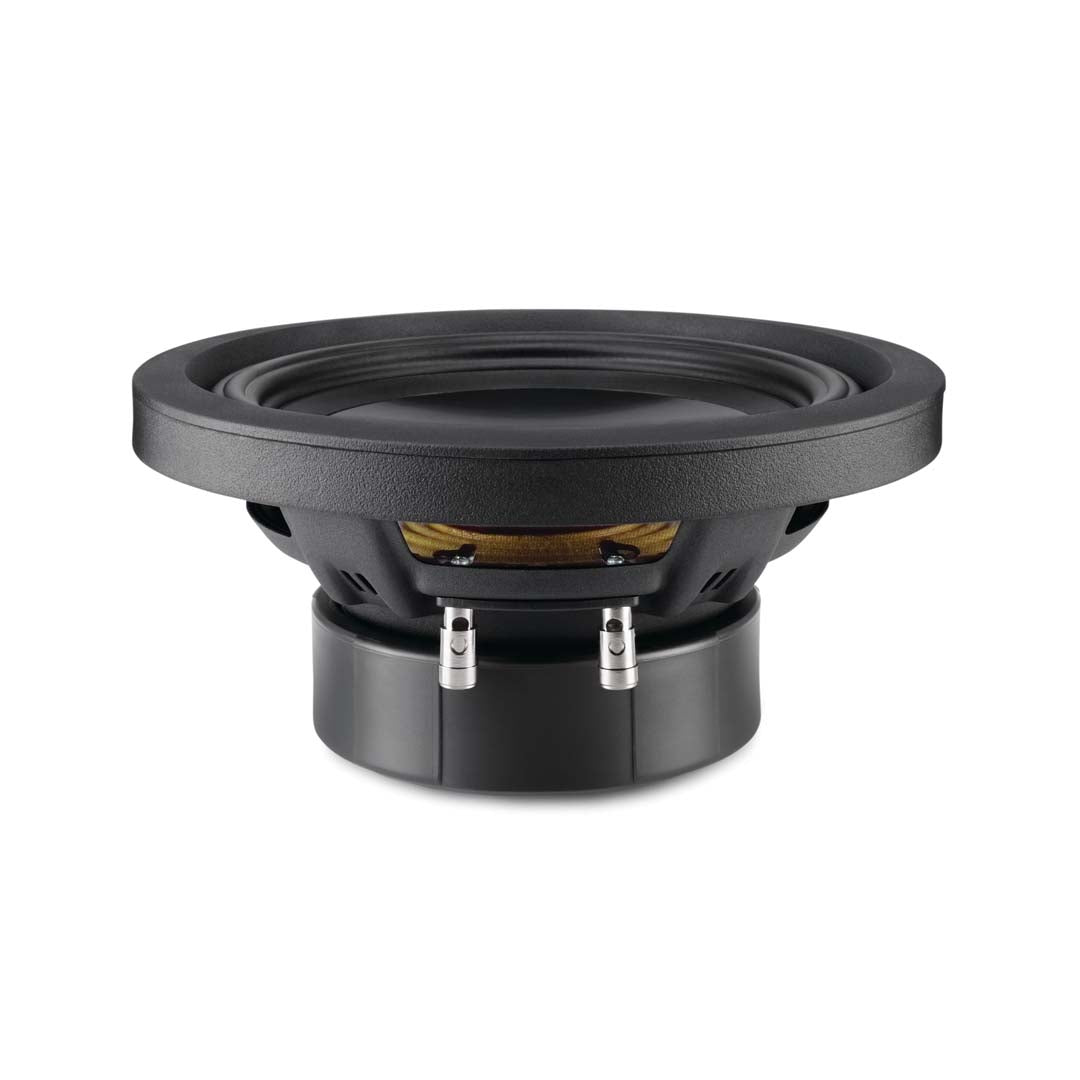

Alpine SWT-10S2, SWT Series Shallow 2 Ohm Voice Coil 1000 Watts Subwoofer, 10"
Not Available for Shiping Outside the United States
Questions? We're here to help.
866-859-0896 ChatEmail UsShallow Mounting Depth
The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing big output to build the ideal sound system for your truck. At 4-1/8” deep, these subs provide deep bass performance where it normally couldn’t fit in a truck. And the vented pole optimized for 4-1/8” deep box is the ideal enclosure size meaning great bass performance can fit just about anywhere in your truck.
More Excursion = More Output
The FEA-Optimized Motor Structure together with our revolutionary High-Amplitude Multi Roll (HAMR) Suspension Design gives the new SWT Truck Subwoofers the highest X-max and SPL output in its category.
The new SWT Truck Subwoofers deliver the best-in-class bass output, ultra-low distortion, and unparalleled sound quality. With a real world, measured 11mm of X-max, the SWT subwoofers perform like traditional models, yet fit in smaller spaces.
4 UNIQUE ALPINE TECHNOLOGIES
Radial Vented VC Heat Sink & Airflow Management System
Actively manages voice coil temperatures by forcing air directly across the heat sink system.
FEA Optimized Dual-Sided Machined CRC Motor Structure
Creates a symmetrical magnetic field with evenly distributed flux density to greatly reduce distortion, while further improving power handling and output.
FEA Optimized Injection Molded TPE Spider with Pass-Through Gap Design
Provides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package
FEA Optimized HAMR Surround
The High-Amplitude Multi Roll Surround Design allows for extreme excursions without sacrificing valuable cone area. FEA Optimized for linearity and made with injection-molded Santoprene ®, the HAMR surround is a key part of the suspension system that provides accurate, distortion-free control at extreme excursions.
Size |
10-inch |
Voice Coil |
Single |
Impedance |
2 ohms |
RMS Power Rating (Watts) |
350 |
Peak Power Rating (Watts) |
1000 |
Cone Material |
Pulp-Kevlar |
Surround Material |
Polyurethane Foam |
Free Air |
No |
Sensitivity |
84.8 dB at 1 Watt |
Frequency Response |
30-200hz |
Top Mount Depth (Inches) |
4 3/16 |
Bottom Mount Depth (Inches) |
|
Cutout Diameter (Inches) |
8 7/8 |
Vas (liters) |
44.4 |
Fs (Hz) |
27 |
Xmax (millimeters) |
11 |
Warranty |
1 Year |
