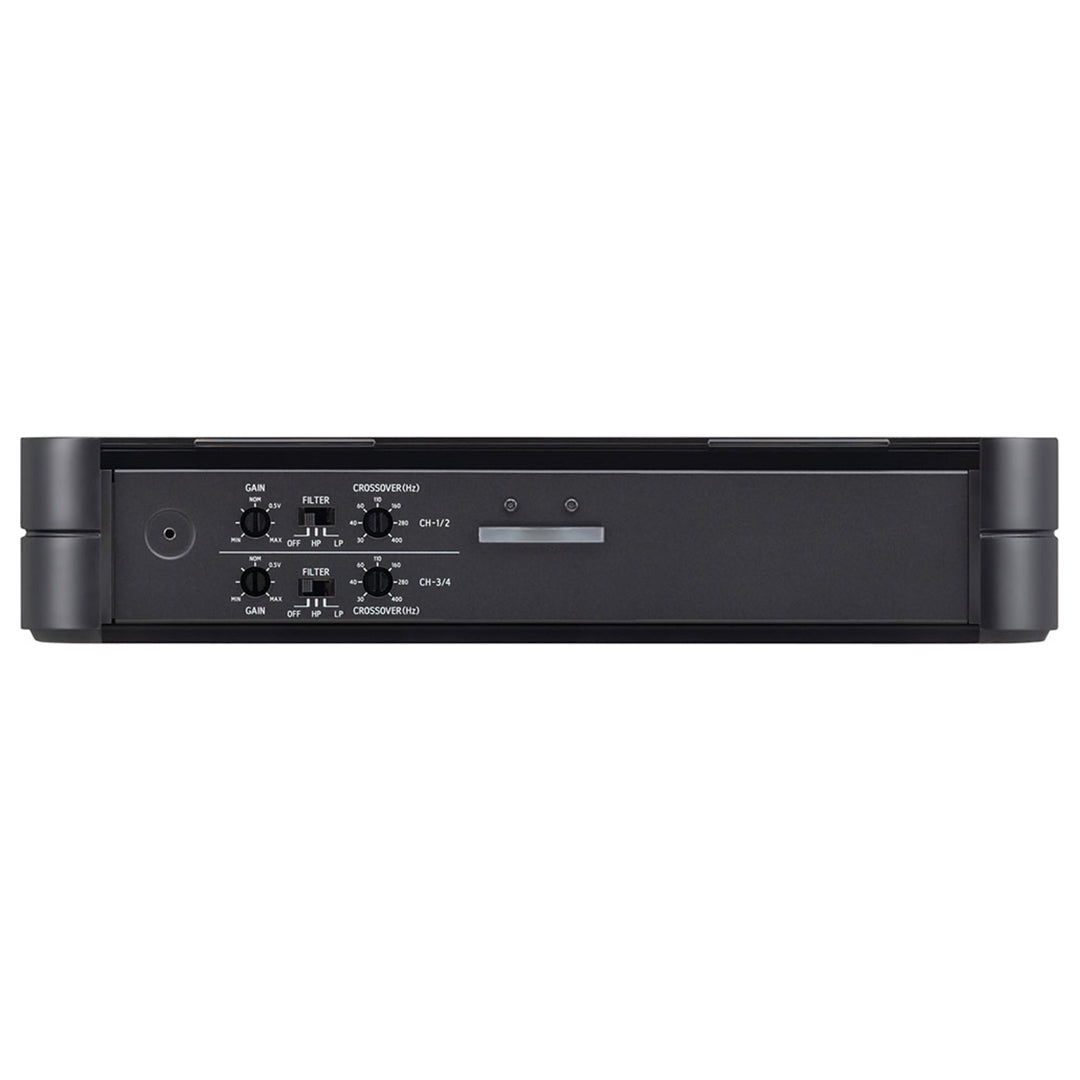

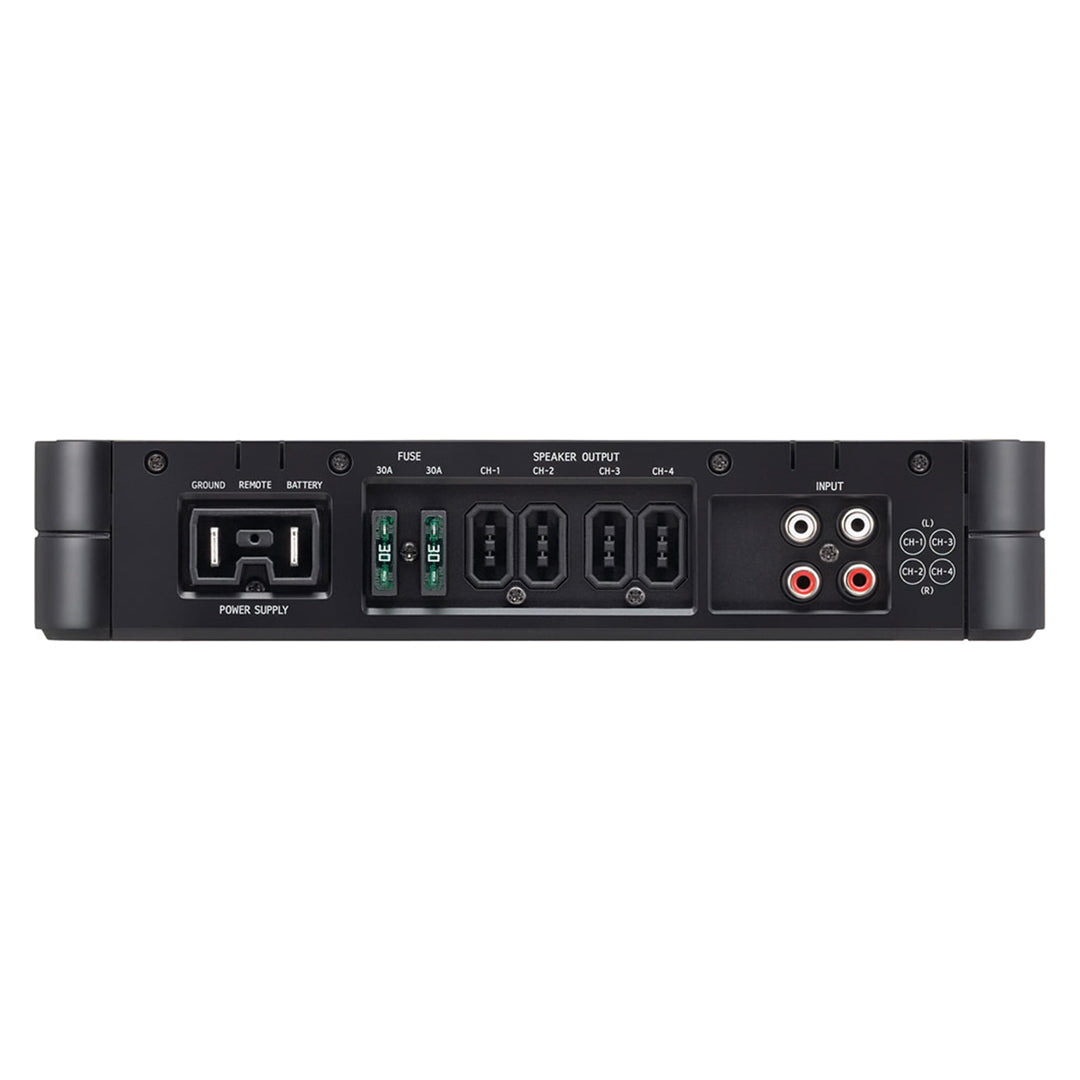

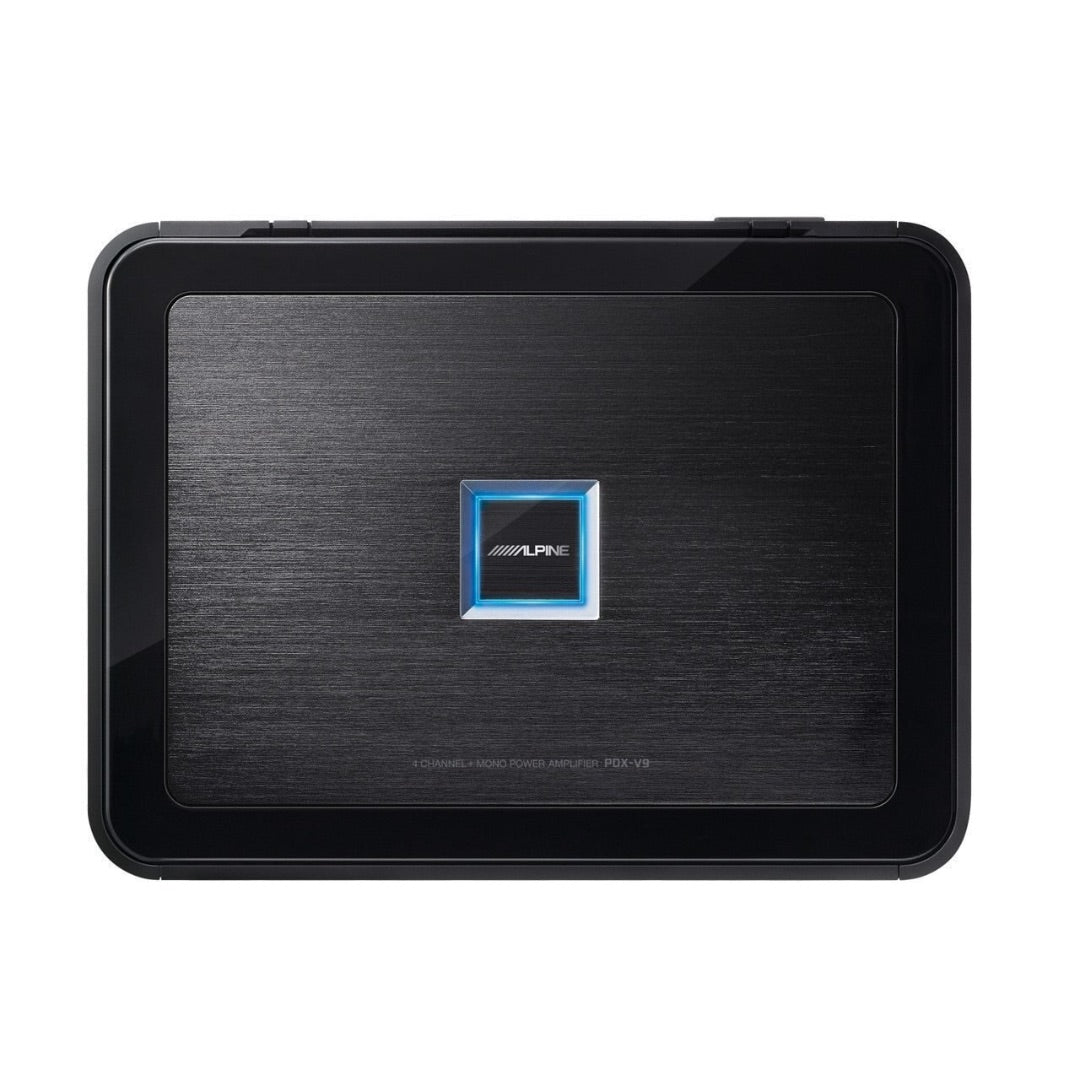

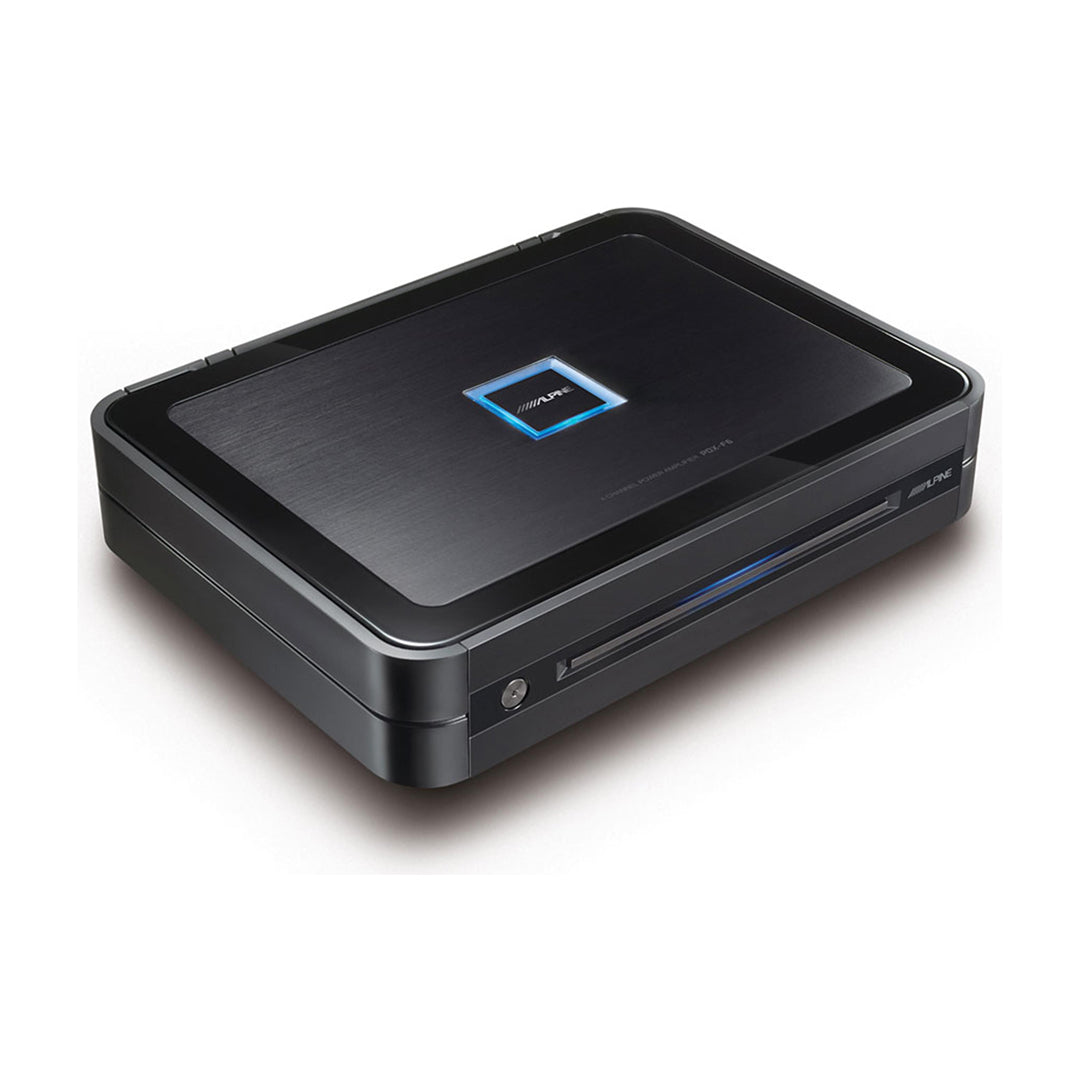

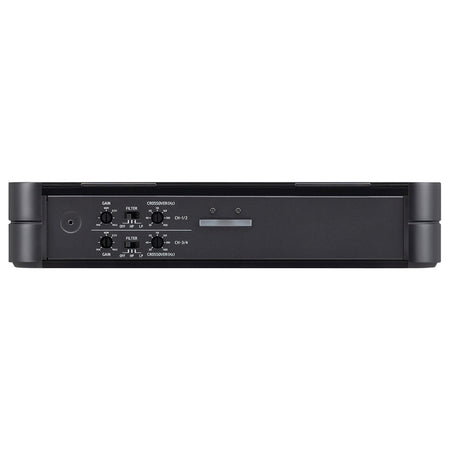

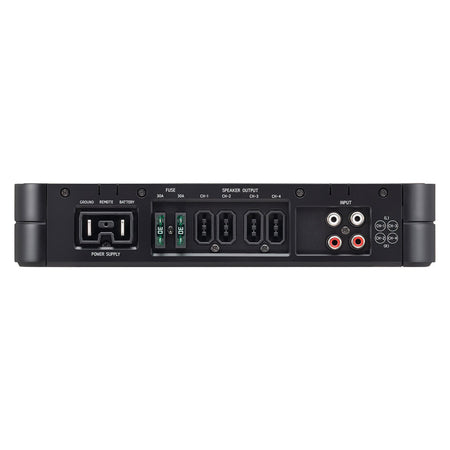

Alpine PDX-F6, PDX Series 4-Ch Class-D Car Amplifier - 600 Watts

Model: AL-PDX-F6
UPC: 793276301031

Alpine PDX-F6, PDX Series 4-Ch Class-D Car Amplifier - 600 Watts

Alpine PDX-F6, PDX Series 4-Ch Class-D Car Amplifier - 600 Watts
Sold Out
Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$749.95
Alpine

60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.
FREE SHIPPING & FREE RETURNS
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

General Features:

  • Alpine PDX Series 4-Channel Class D Car Amplifier
  • RMS Power Rating @ 4 ohms: 150 watts x 4 channel
  • RMS Power Rating @ 2 ohms: 150 watts x 4 channel
  • RMS Power Rating @ Bridged, 4 ohms: 300 watts x 2 channel
  • Total RMS output: 600 watts
  • DC-DC PWM Power supply with STAR circuitry
  • Blue LED power/status indicator conveniently located on the top
  • Discrete pre-amp stage
  • 6-Layer glass epoxy PC board
  • Automatic over-current protection system
  • Soft start turn-on prevent initial system popping
  • 4/3/2 channel operation
  • System Protection circuitry keeps the amp running properly
  • Large aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Proprietary screw terminals ensure a solid and secure connection
  • Input sensitivity:0.2-4 V with input level
  • Variable high-pass filter (30-400 Hz, 12 dB/octave)
  • Variable low-pass filter (30-400 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-100,000 Hz
  • Dimensions: 7-9/16"D x 10-1/8"W x 2"H
  • 1 Year Manufacture's Warranty

Number of Channels

4

Class

D

Peak Power Rating (Watts)

RMS Power Rating (Watts x Channels) - 4 Ohms

150 x 4

RMS Power Rating (Watts x Channels) - 2 Ohms

150 x 4

RMS Power Rating - Bridged 300 x 2
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

4

THD at Rated RMS Power

1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass

Yes

High Pass Crossover Frequency (Hz)
50-400hz
Low Pass Crossover Frequency (Hz)
50-400hz
Signal-to-Noise Ratio

96dB

Bass Boost
No
Bass Remote Included

No

Fuse Rating 60A
CEA-2006 Compliant Yes
Maximum Power Wire Gauge Size 4 gauge
Warranty 1 Year
