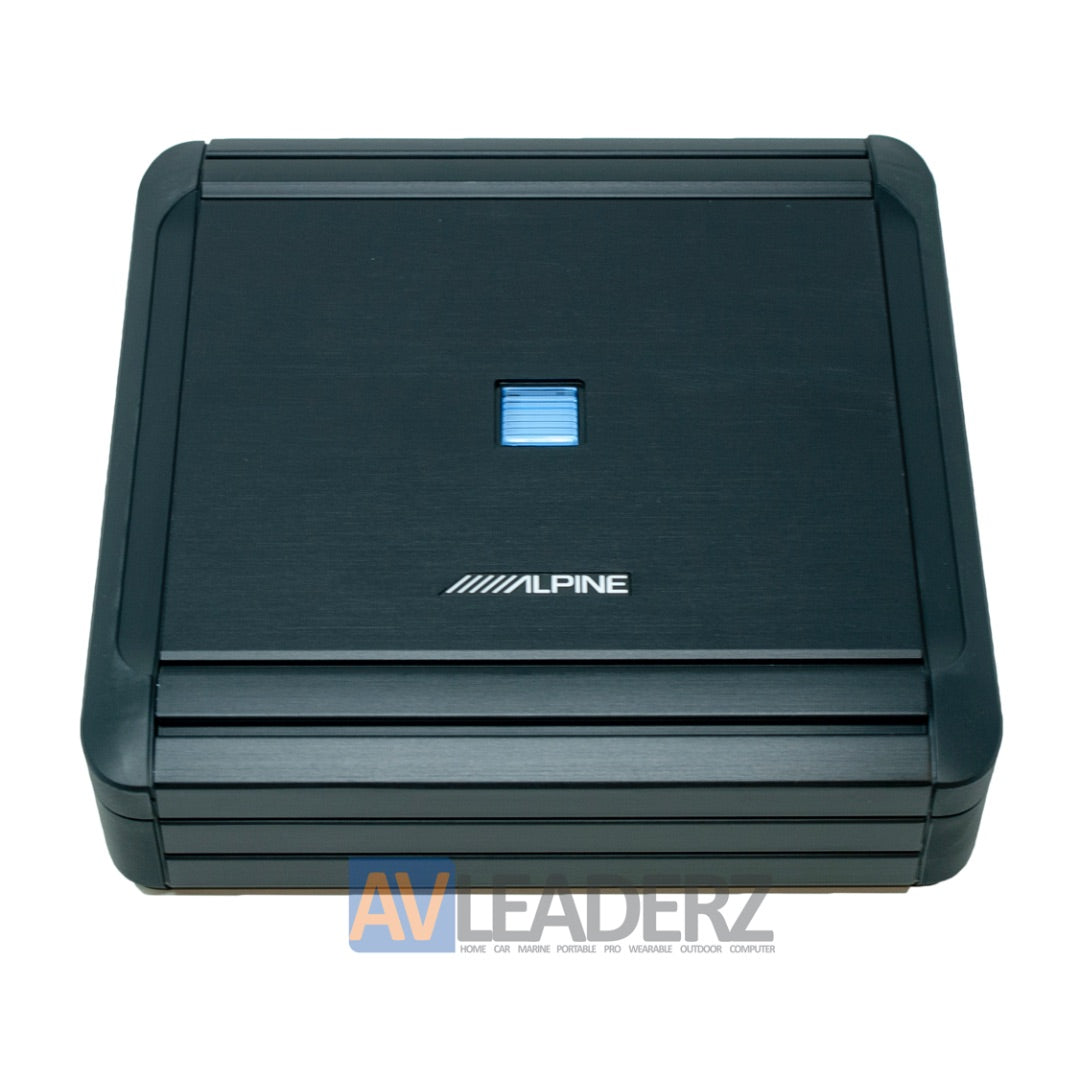

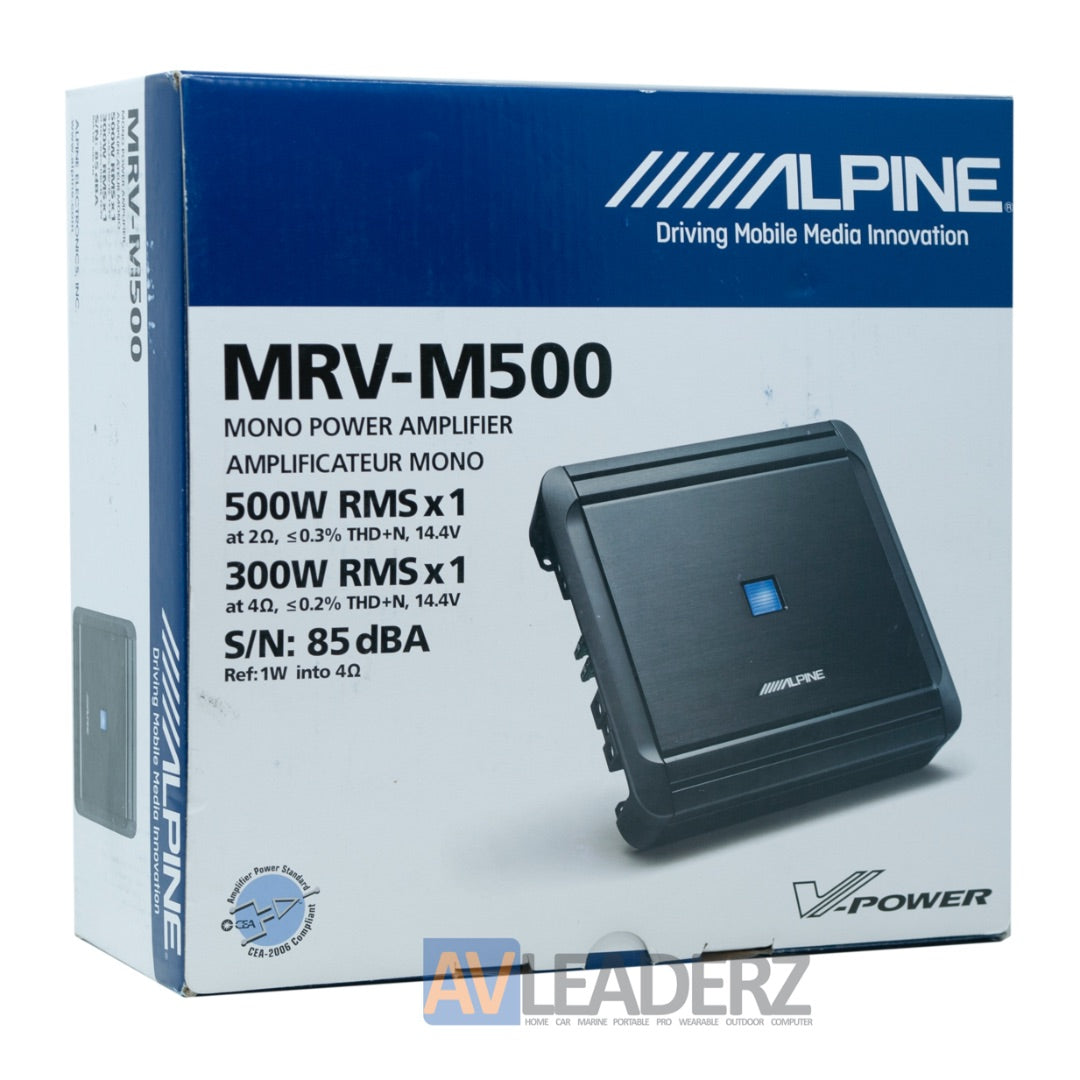

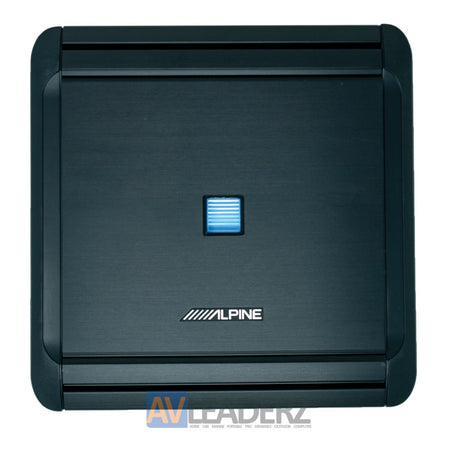

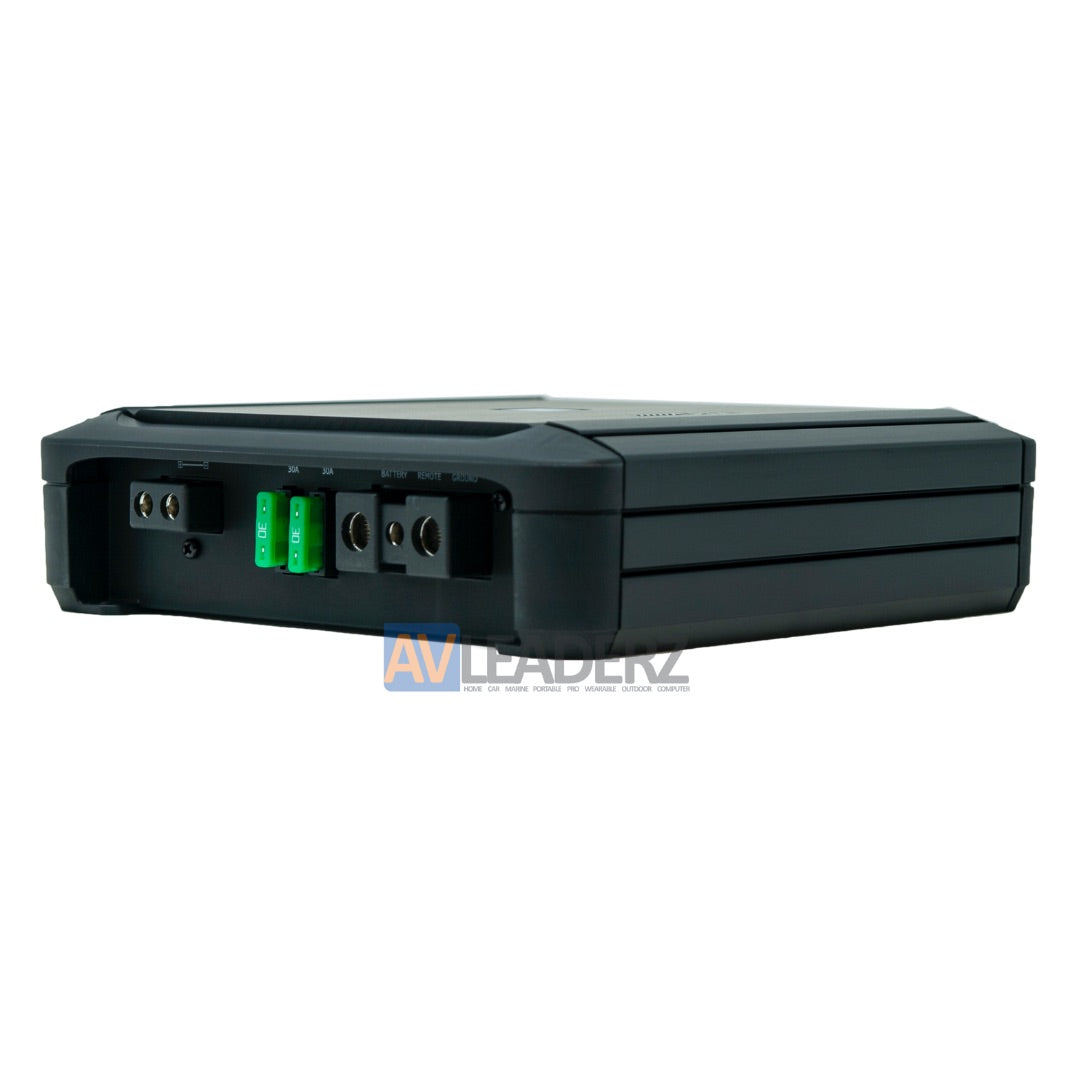

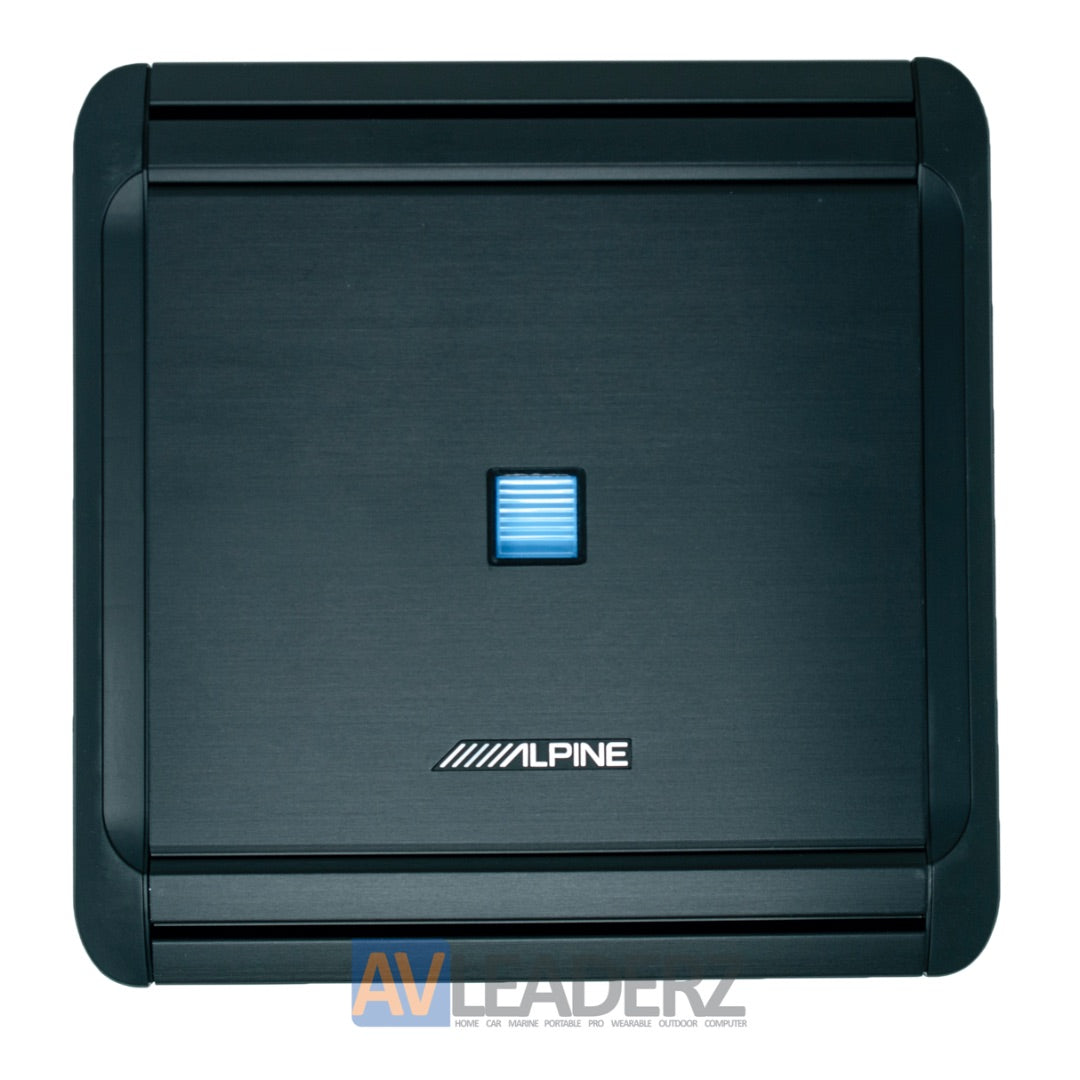

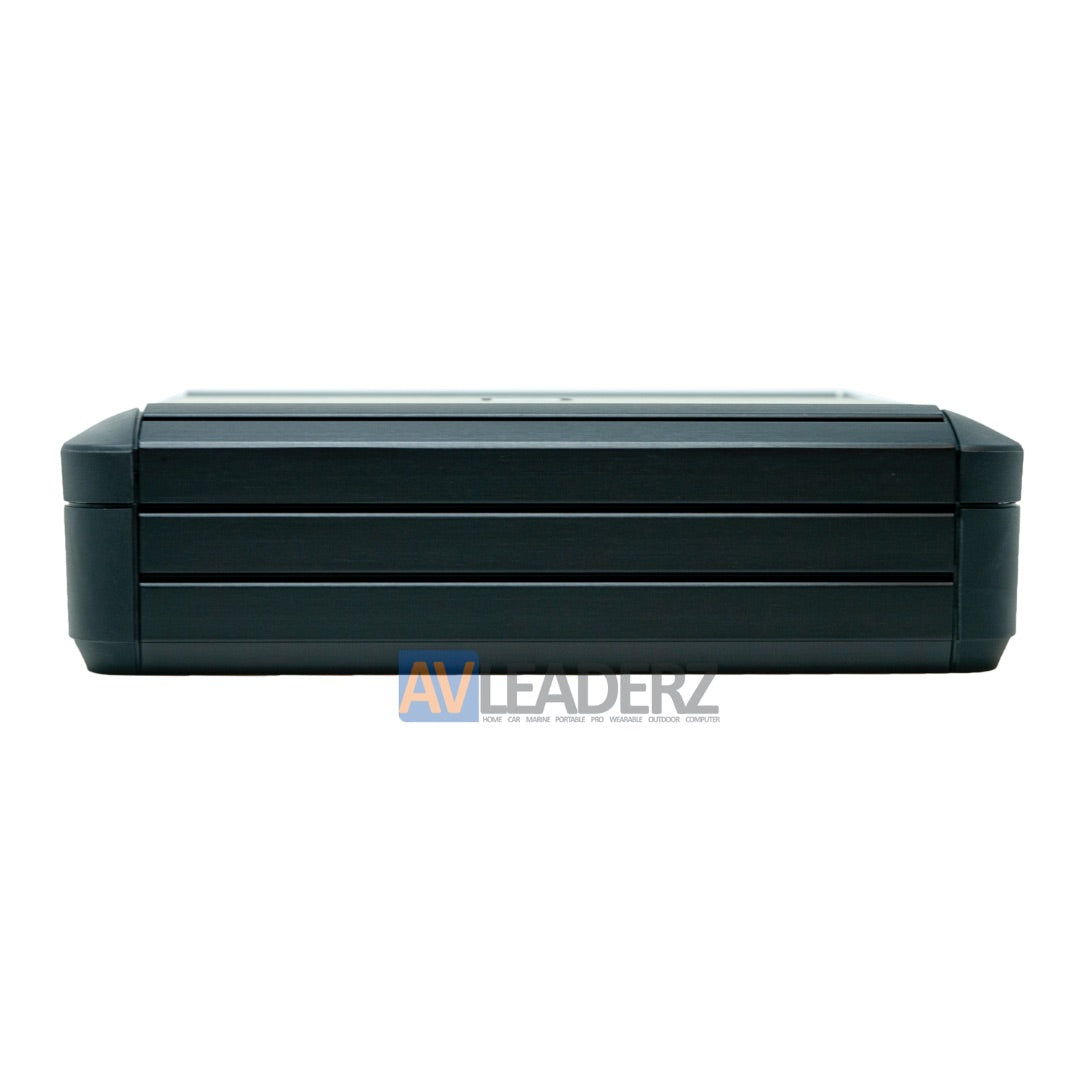

Alpine MRV-M500, V Power Mono Class-D Car Subwoofer Amplifier - 500 Watts

Model: AL-MRV-M500
UPC: 793276012401

Alpine MRV-M500, V Power Mono Class-D Car Subwoofer Amplifier - 500 Watts

Alpine MRV-M500, V Power Mono Class-D Car Subwoofer Amplifier - 500 Watts
Sold Out
Discontinued Item
60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Raising the Bar

The new V-Power products are now Class D digital amplifiers, resulting in a huge efficiency gain versus their predecessors without draining your battery or your pockets. Class-D provides continuous clean power to your speakers, operating at 80% efficiency far greater than conventional Class A or B amplifiers. Translation: Enjoy cleaner bass, even during extreme power demands.
Big Power, Small Package

V-Power amplifiers are known for their compact size, but dont underestimate their power capacity. Although they have a 40% smaller footprint than their predecessors, they produce the same amount of power as before. Get the power you need, even if you have limited installation space.

Keep the Music Playing

The V-Power amplifiers provide reliable, stable thermal performance. They use a new, higher efficiency design to achieve non-stop music playback. A new circuit and heat sink design allows gradual thermal absorption and provides a gentle, almost undetectable power control.

Dual Feedback Modulation

Dual internal error correction technology  which had previously only been available in the PDX and X-Power amplifiers, is now integrated in V-Power mono amplifiers. The audio input signal is analyzed, compared, and corrected twice dynamically as the signal is processed through the amplifier. The result is amplifiers with the widest frequency response, higher damping factor, and lowest noise in its class.

Exceptionally Simple Sound Upgrade

The V-Power's 4-channel speaker level inputs connect directly to any head unit, without the need for external converters. This makes the V-Power amplifiers ideal for upgrading factory and aftermarket systems. The flush mount controls make for easy installation. The terminal covers conveniently snap-on without the need for additional tools, to protect the wiring connections while creating a clean, finished appearance.

General Features:

  • Alpine V-Power Series Class D Monoblock Digital Amplifier
  • RMS Power Rating @4 ohms: 300 watts x 1 channel
  • RMS Power Rating @ 2 ohms: 500 watts x 1 channel
  • Max power output: 500 watts x 1 channel
  • Integrated wire and mounting screw terminals
  • S.T.A.R. circuitry
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • OptionalAlpine RUX-KNOB.2remote bass knob available
  • Soft start turn-on
  • 4 or 2 channel operation

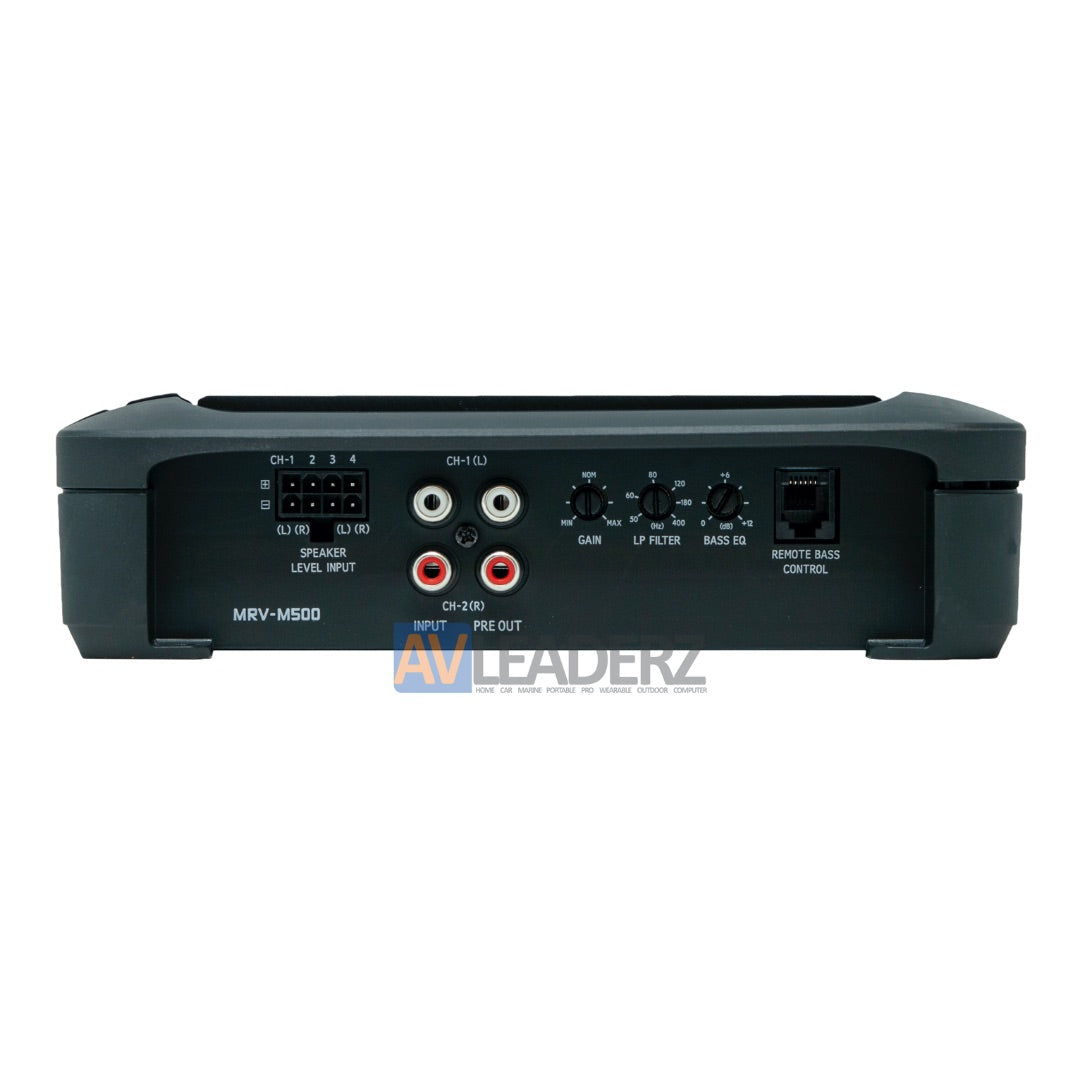

  • 4-channel speaker-level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 0.4V - 10V
  • Non-fading pre-amp output
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier

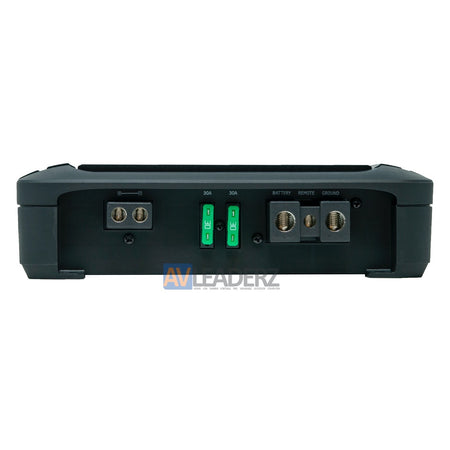

  • 4 gauge power and ground wiring is required for installation.
  • Dimensions: 7-7/8"Wx 7-7/8"Lx 2-3/16"H
  • 1 Year Manufacturer's Warranty
  • 500W RMS X 1 (2, 14.4V, 1% THD+N)
  • 300W RMS X 1 (4, 14.4V, 1% THD+N)
  • Evolution To Class D Digital Platform
  • New Snap-on Terminal Covers For Easy Installation

Number of Channels

1

Class

D

Peak Power Rating (Watts)

RMS Power Rating (Watts x Channels) - 4 Ohms

300 x 1

RMS Power Rating (Watts x Channels) - 2 Ohms

500 x 1
RMS Power Rating - Bridged N/A
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

N/A

THD at Rated RMS Power

0.2%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass

N/A

High Pass Crossover Frequency (Hz)

N/A

Low Pass Crossover Frequency (Hz)
50-400hz
Signal-to-Noise Ratio

85dB

Bass Boost
0-12dB
Bass Remote Included

No

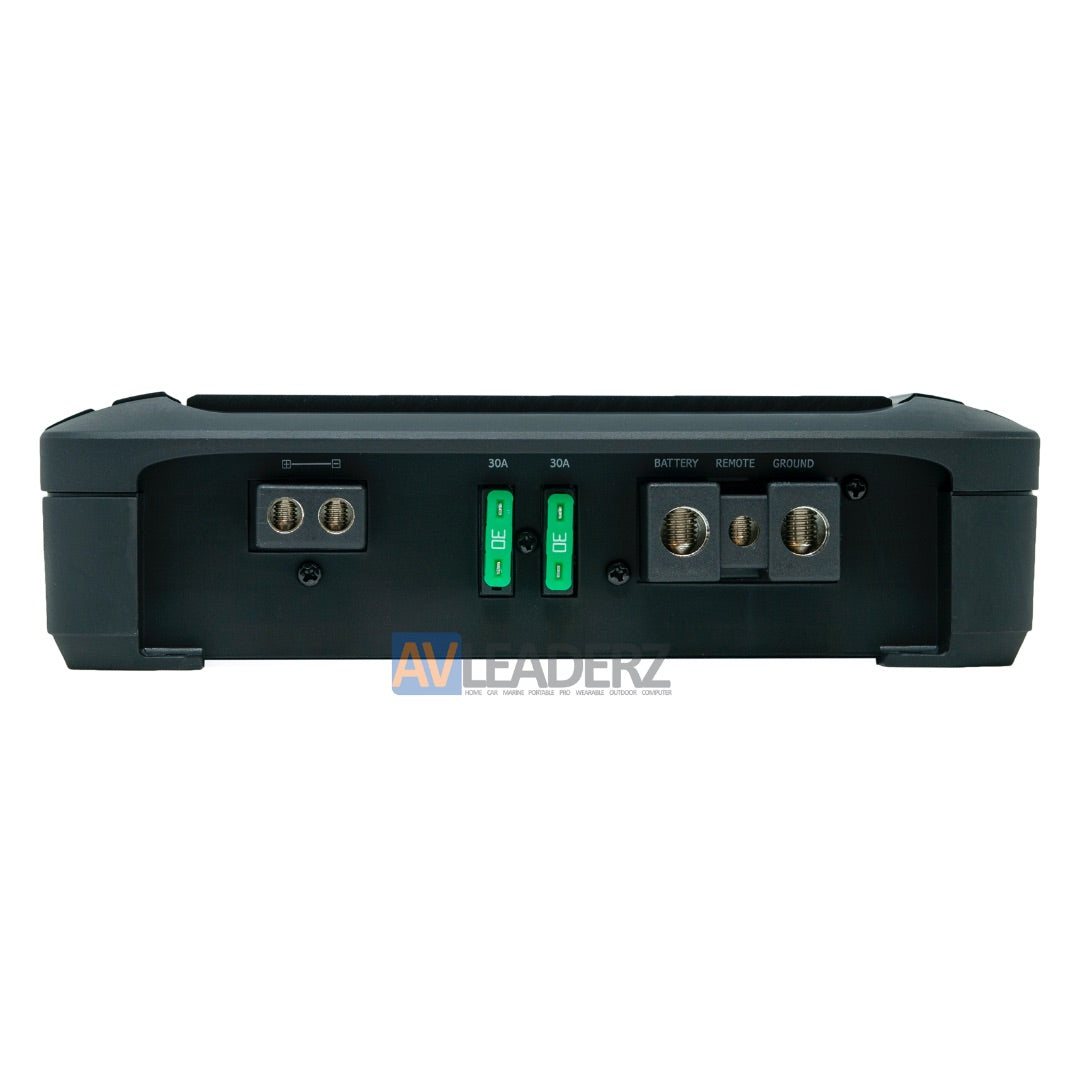

Fuse Rating 60A
CEA-2006 Compliant Yes
Maximum Power Wire Gauge Size 4 gauge
Warranty 1 Year
