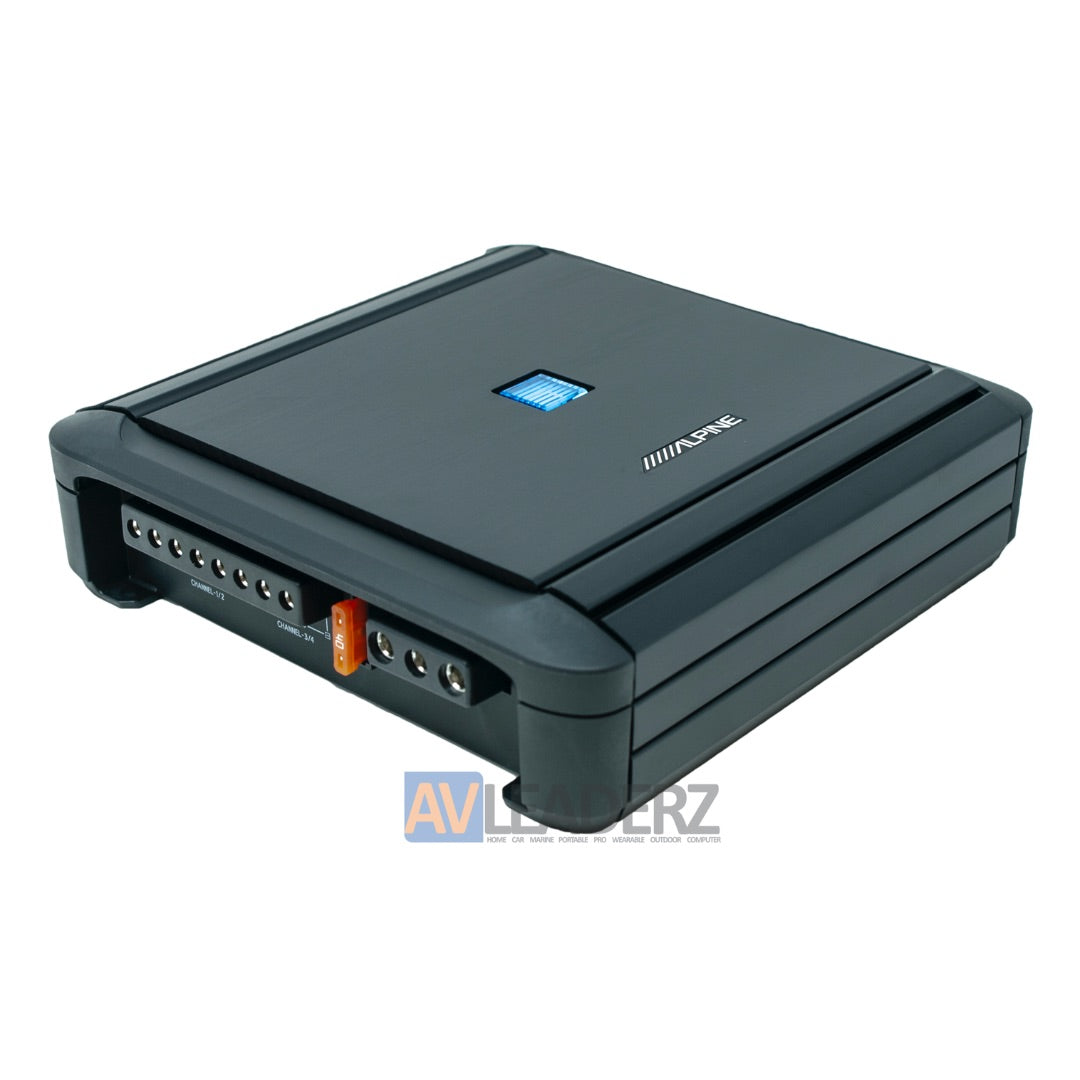

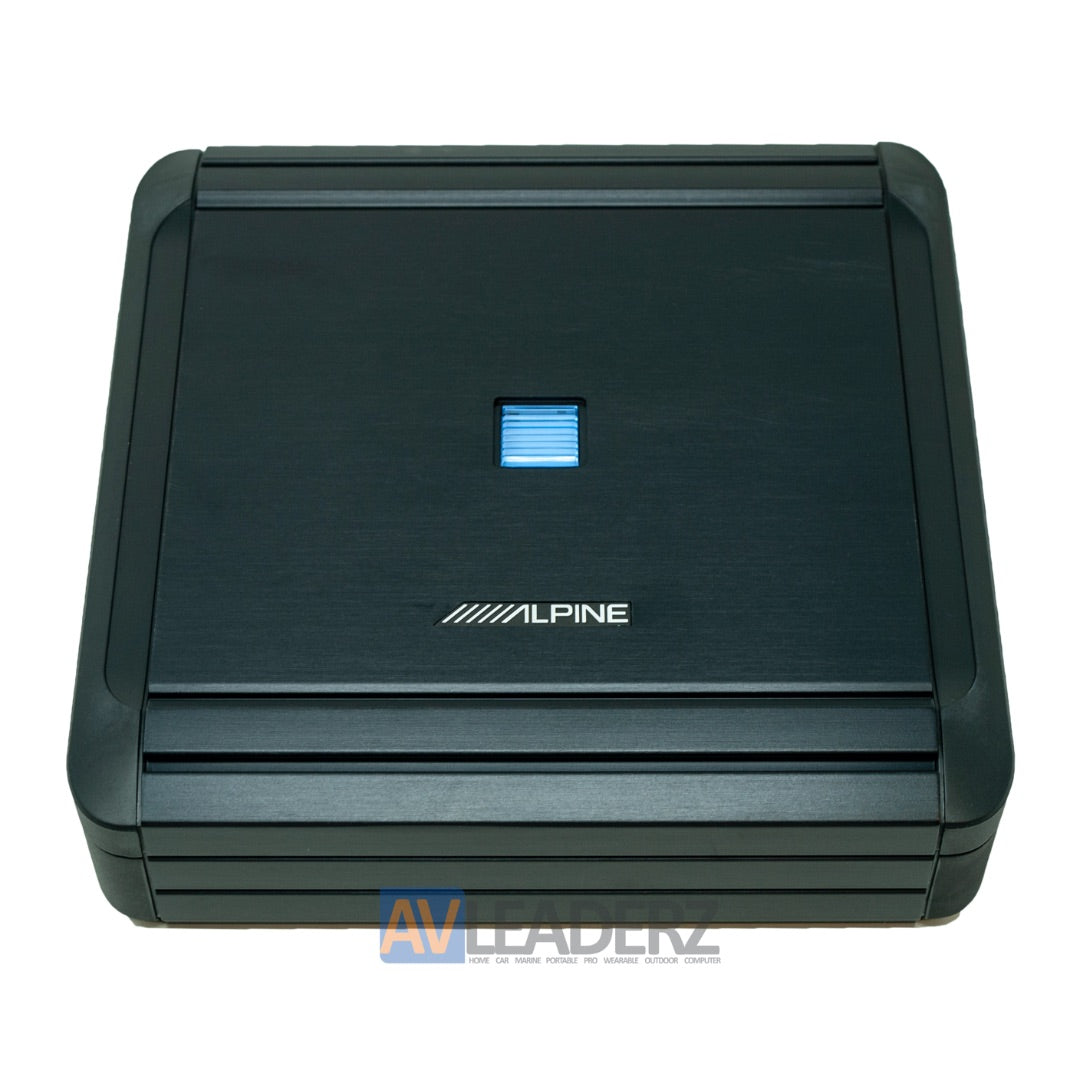

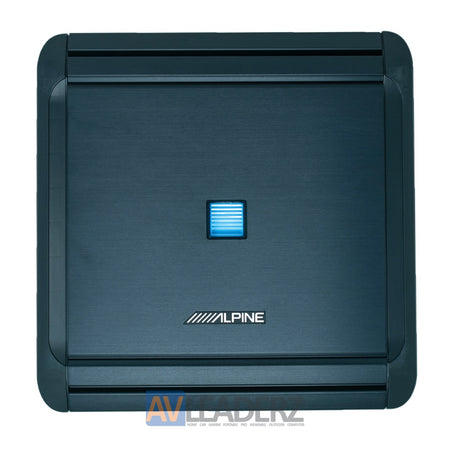

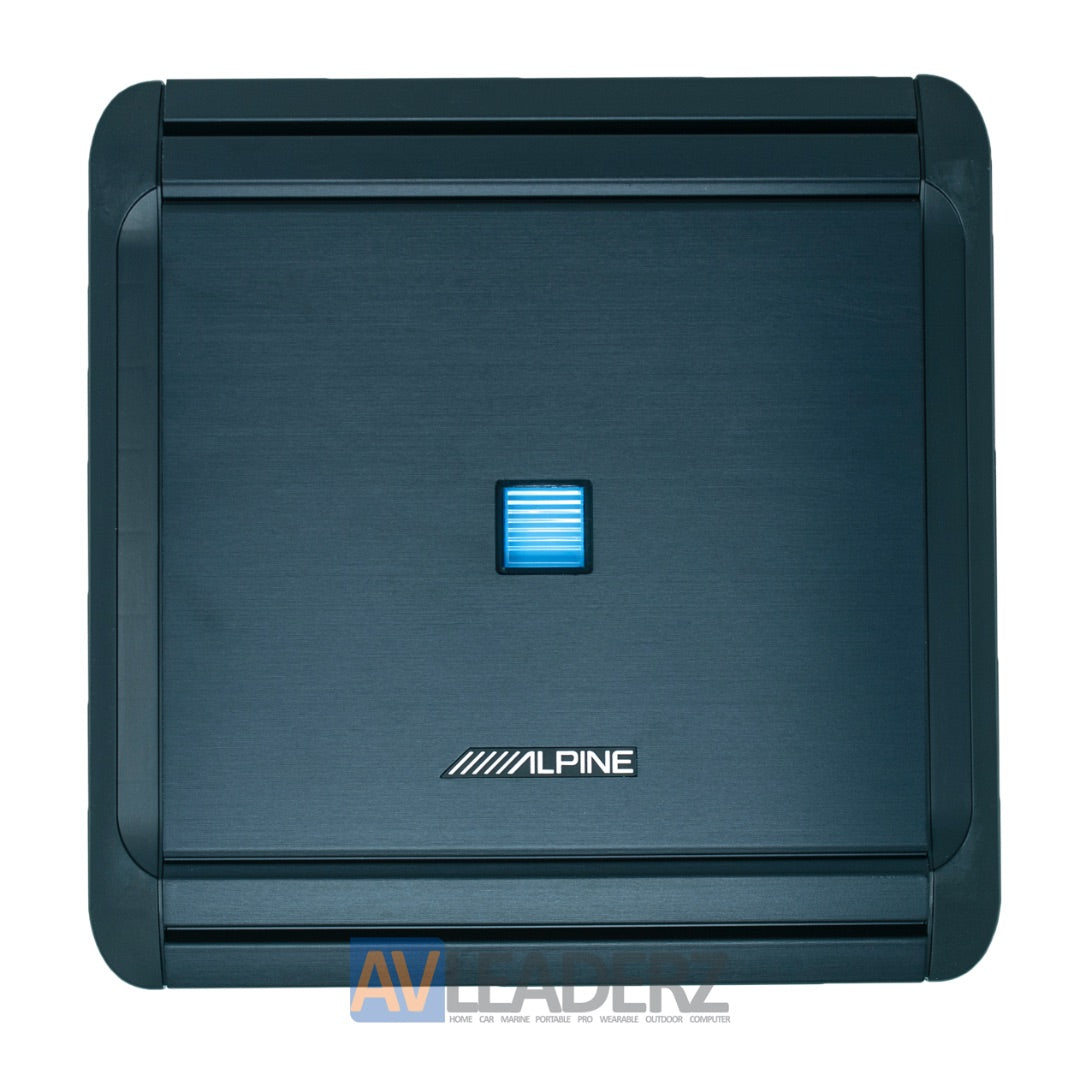

Alpine MRV-F300, V Power Multi Channel Car Amplifier - 300 Watts

Model: AL-MRV-F300
UPC: 793276012418

Alpine MRV-F300, V Power Multi Channel Car Amplifier - 300 Watts

Alpine MRV-F300, V Power Multi Channel Car Amplifier - 300 Watts
Sold Out
Discontinued Item
60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Raising the Bar

The new V-Power products are now Class D digital amplifiers, resulting in a huge efficiency gain versus their predecessors without draining your battery or your pockets. Class-D provides continuous clean power to your speakers, operating at 80% efficiency far greater than conventional Class A or B amplifiers. Translation: Enjoy cleaner bass, even during extreme power demands.

Big Power, Small Package

V-Power amplifiers are known for their compact size, but dont underestimate their power capacity. Although they have a 40% smaller footprint than their predecessors, they produce the same amount of power as before. Get the power you need, even if you have limited installation space.

Keep the Music Playing

The V-Power amplifiers provide reliable, stable thermal performance. They use a new, higher efficiency design to achieve non-stop music playback. A new circuit and heat sink design allows gradual thermal absorption and provides a gentle, almost undetectable power control.

Exceptionally Simple Sound Upgrade

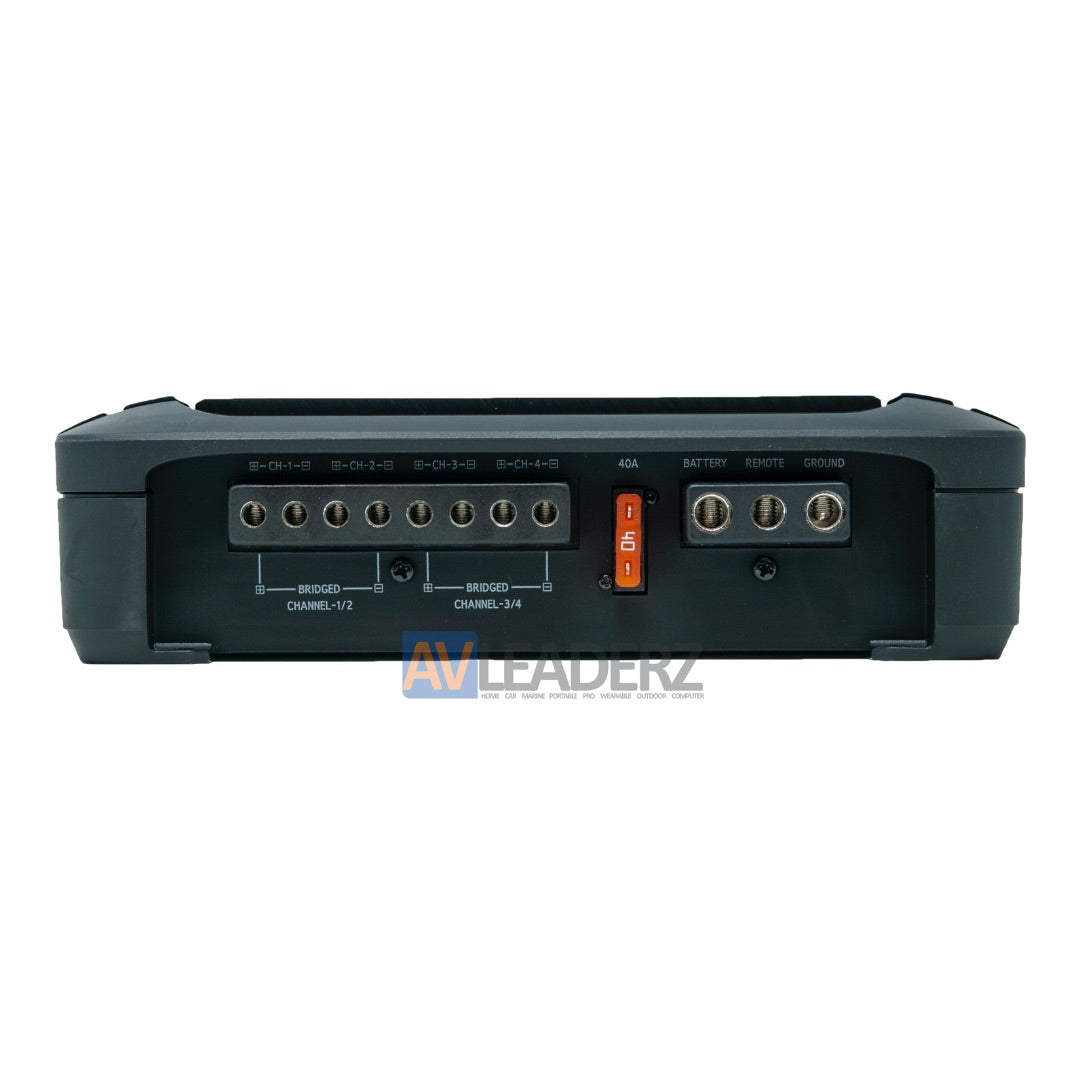

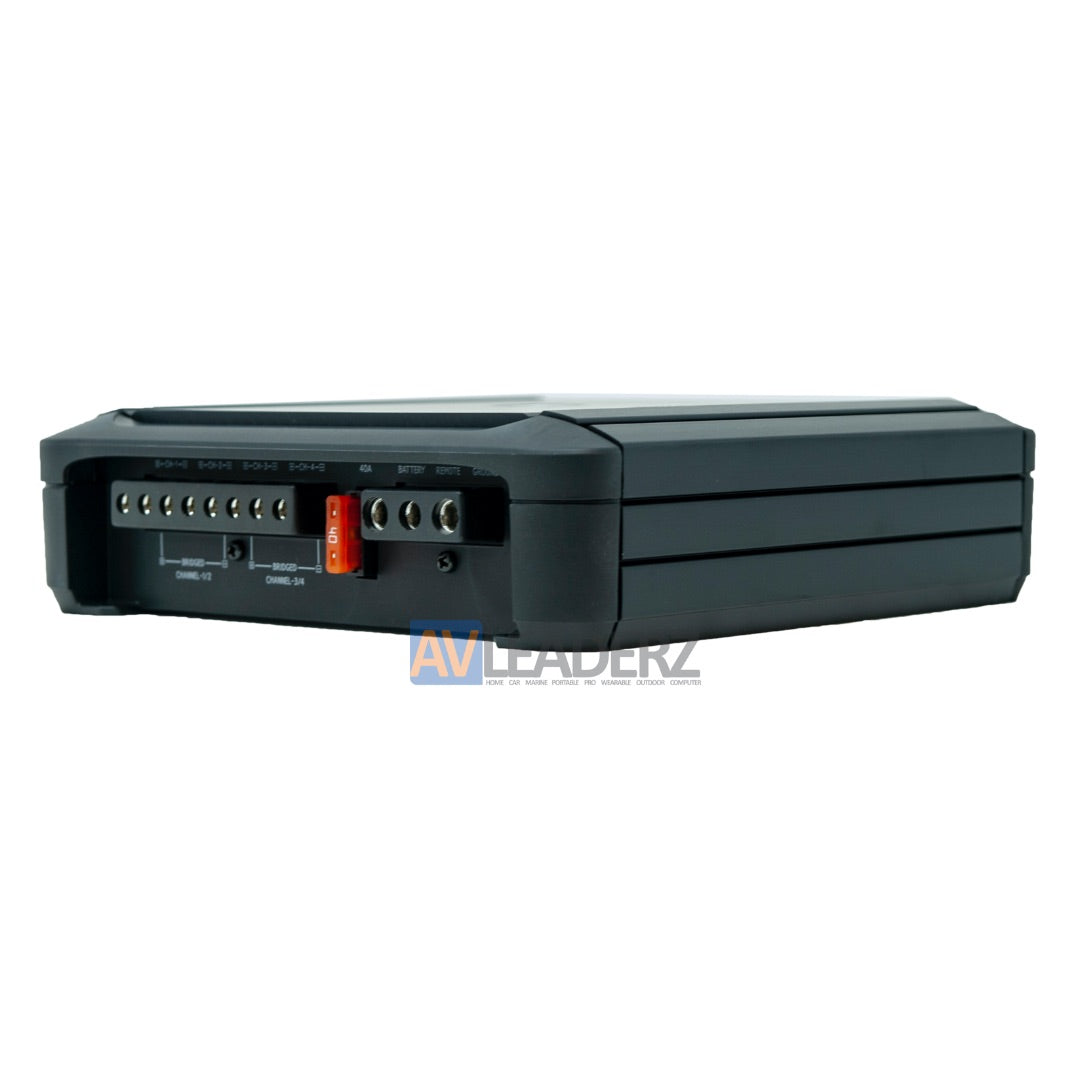

The V-Power's 4-channel speaker level inputs connect directly to any head unit, without the need for external converters. This makes the V-Power amplifiers ideal for upgrading factory and aftermarket systems. The flush mount controls make for easy installation. The terminal covers conveniently snap-on without the need for additional tools, to protect the wiring connections while creating a clean, finished appearance.

General Features:

  • Alpine V-Power Series 4-Channel Class D Car Amplifier
  • RMS Power Rating @ 4 ohms: 50 watts x 4 channel
  • RMS Power Rating @ 2 ohms: 75 watts x 4 channel
  • RMS Power Rating @ Bridged, 4 ohms: 150 watts x 2 channel
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable Bass Boost (0 or +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation

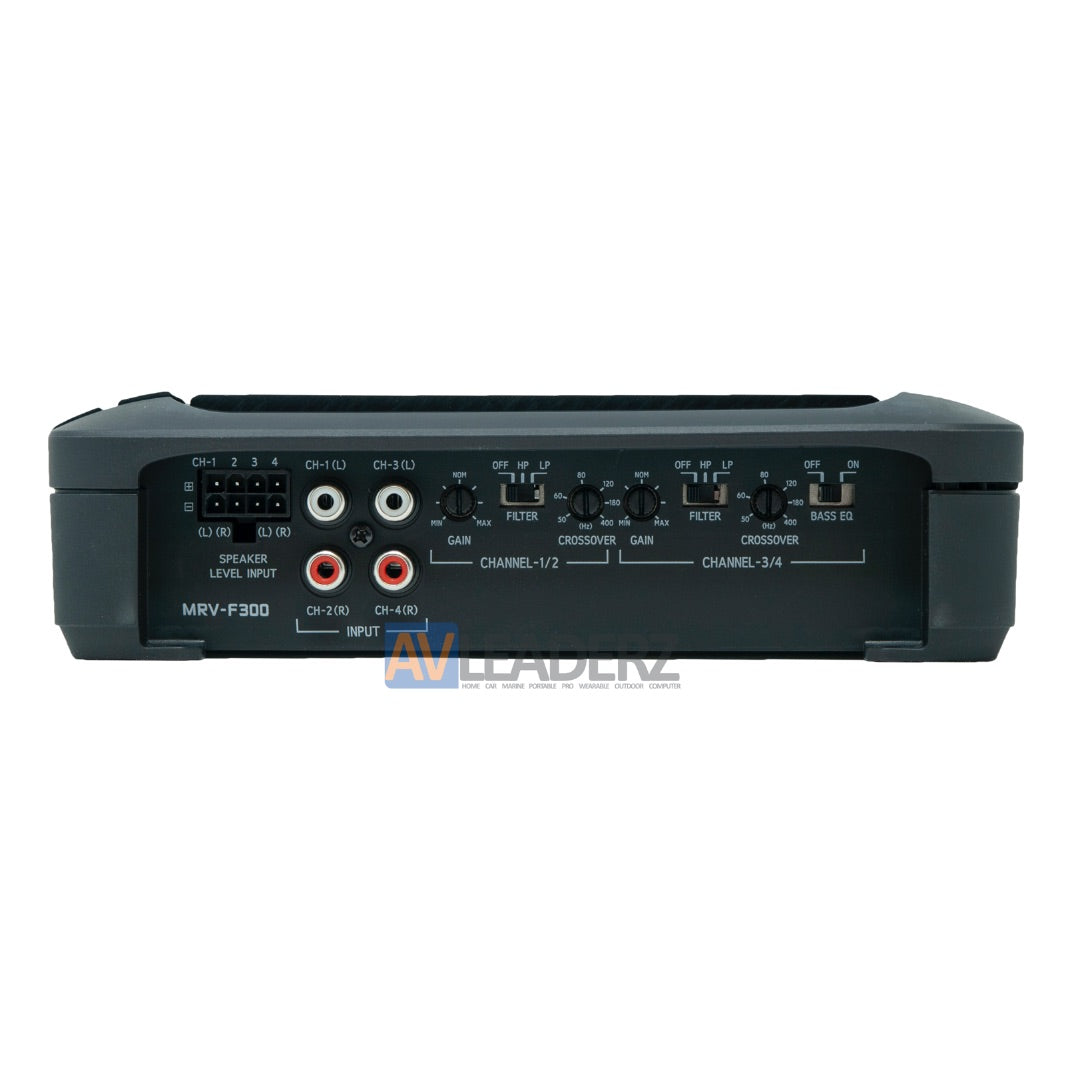

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity -Low level: 200mV-4V
  • Input sensitivity - High level: 500mV-10V
  • Variable high-pass filter (50-400 Hz, 12 dB/octave)
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
  • 1 Year Manufacturer's Warranty
  • 75W RMS X 4 (2, 14.4V, 1% THD+N)
  • 50W RMS X 4 (4, 14.4V, 1% THD+N)
  • Same Power In A 40% Smaller Chassis
  • Evolution To Class D Digital Platform

Number of Channels

4

Class

D

Peak Power Rating (Watts)

RMS Power Rating (Watts x Channels) - 4 Ohms

50 x 4

RMS Power Rating (Watts x Channels) - 2 Ohms

75 x 4
RMS Power Rating - Bridged 150 x 2
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

4

THD at Rated RMS Power

1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass

Yes

High Pass Crossover Frequency (Hz)

50-400hz

Low Pass Crossover Frequency (Hz)
50-400hz
Signal-to-Noise Ratio

81dB

Bass Boost
12dB
Bass Remote Included

No

Fuse Rating 40A
CEA-2006 Compliant Yes
Maximum Power Wire Gauge Size 8 gauge
Warranty 1 Year
