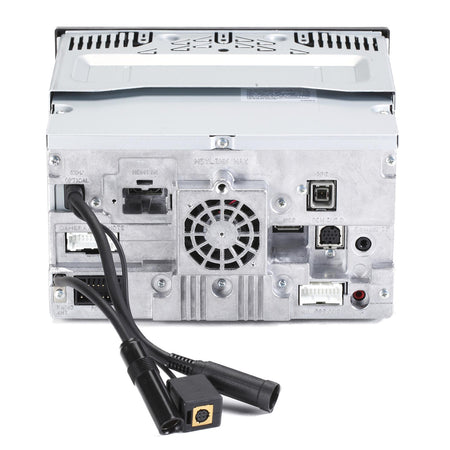

Alpine INE-W957HD, Double-Din Car Multimedia Receiver with 7" Screen and GPS Navigation

Model: AL-INE-W957HD
UPC: 793276210029

Alpine INE-W957HD, Double-Din Car Multimedia Receiver with 7" Screen and GPS Navigation

Alpine INE-W957HD, Double-Din Car Multimedia Receiver with 7" Screen and GPS Navigation
Sold Out
Discontinued Item
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer

Questions? We're here to help.

866-859-0896 ChatEmail Us


WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to

General Features:

  • Alpine INE-W957HD In-Dash Receiver
  • CEA-2006 compliant amplifier
  • Navigation system preloaded with NAVTEQ map data
  • Integrated Android and iPod/iPhone controls
  • PandoraLink integrates your car stereo with your iPhone and Pandora Internet Radio
  • 2-way iPod Audio/Video control allows control from the iPod or the stereo¬†
  • Siri Eyes Free control

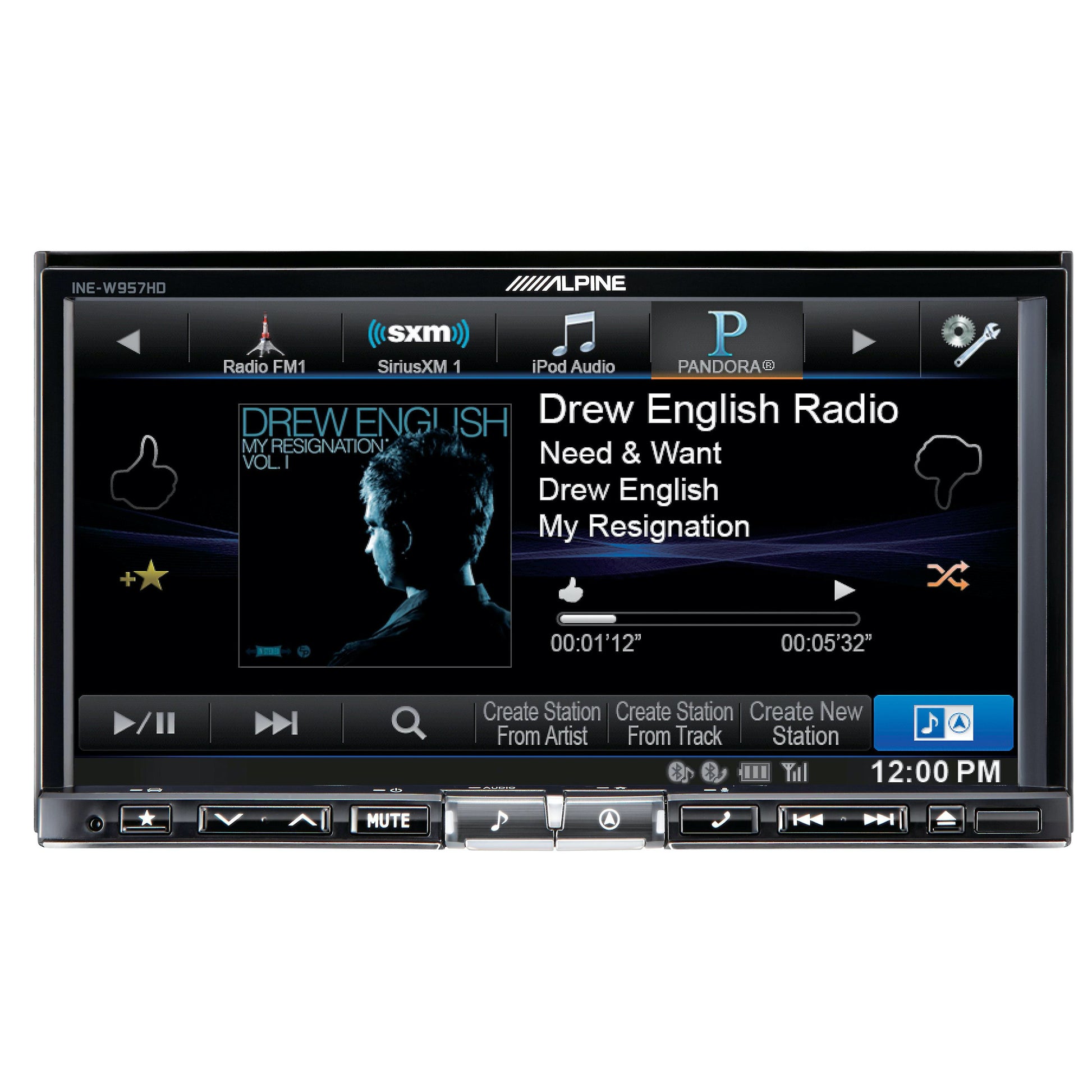

  • Direct control of Pandora Internet radio
    • Alpine's Media Xpander Pro DSP-Sound Expansion circuitry ensures optimum sound quality for streaming music
  • iDatalink Maestro allows you to keep your SYNC features (Requires Optional ADS Maestro RR Module and cables
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 18 watts x 4 channels
  • 7" WVGA touchscreen display
    • Aspect Ratio: 16:9
    • Resolution: 800 x 480
  • Optional remote control: Alpine RUE-4190
  • 1 Year Manufacturer's Warranty
  • Authorized Internet Dealer

Playback and Audio Features:

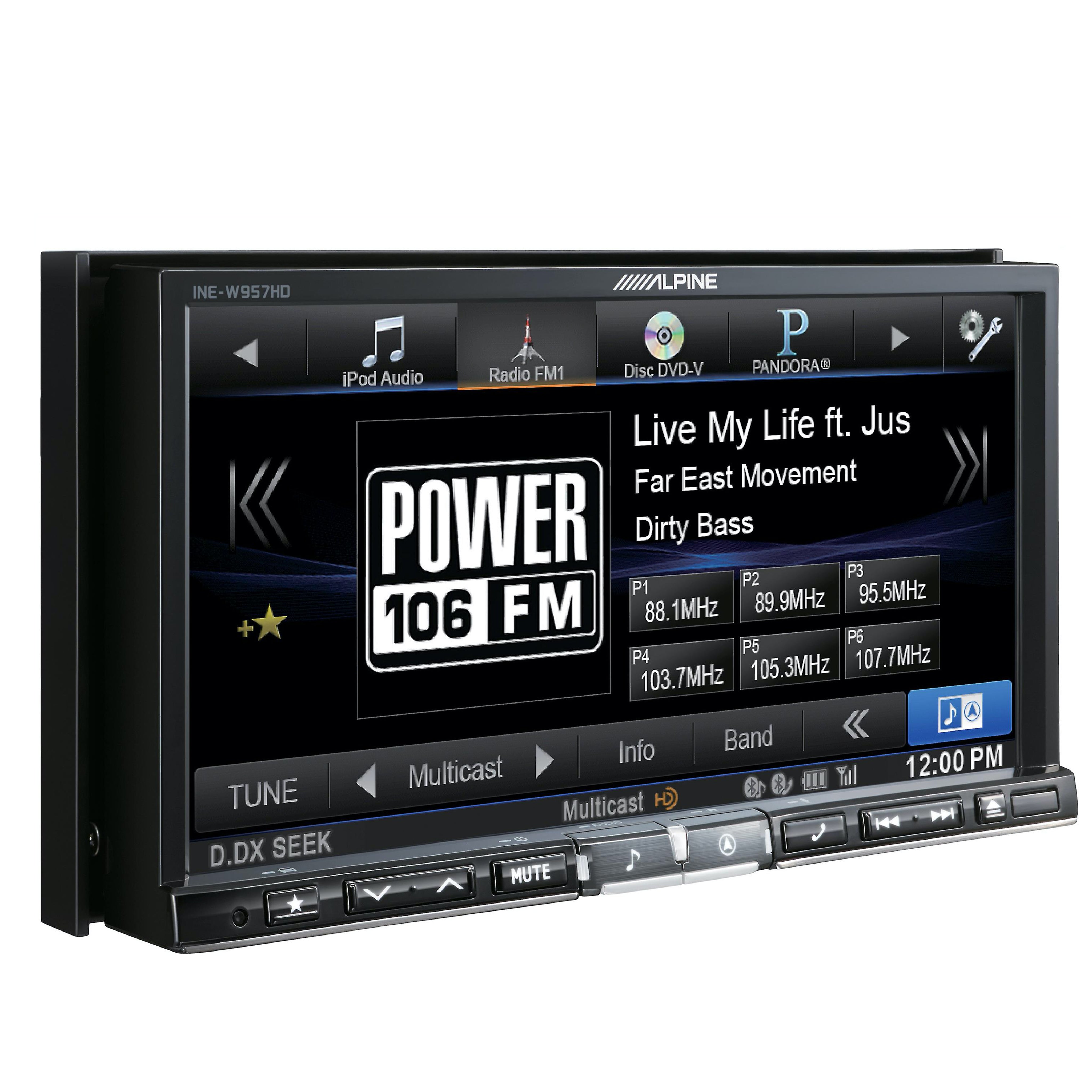

  • AM/FM tuner with 18FM/6AM presets
  • Works with Alpine TuneIt 2.0 smartphone app
    • Enter your vehicle and sound system information for tips to make your system sound its best
    • Adjust the EQ, crossover and time correction
    • Share your system and settings on social media
  • iPod and iPhone Ready: Alpine KCU-461IV sold separately
  • Android control: HDMI/MHL cable required for video playback
  • Dual Zone technology allows you to listen to music up front and play a movie in the back
  • 9-band parametric equalizer
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • Rear USB Input
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • iTunes Tagging marks your favorite songs on HD Radio and loads them in iTunes
  • My Favorites screen displays up to 8 shortcut icons for the features you use the most
  • Quick Search and Alphabet Search make navigating your music library easy¬†
  • Built-in Low-Pass and High-Pass crossover filters

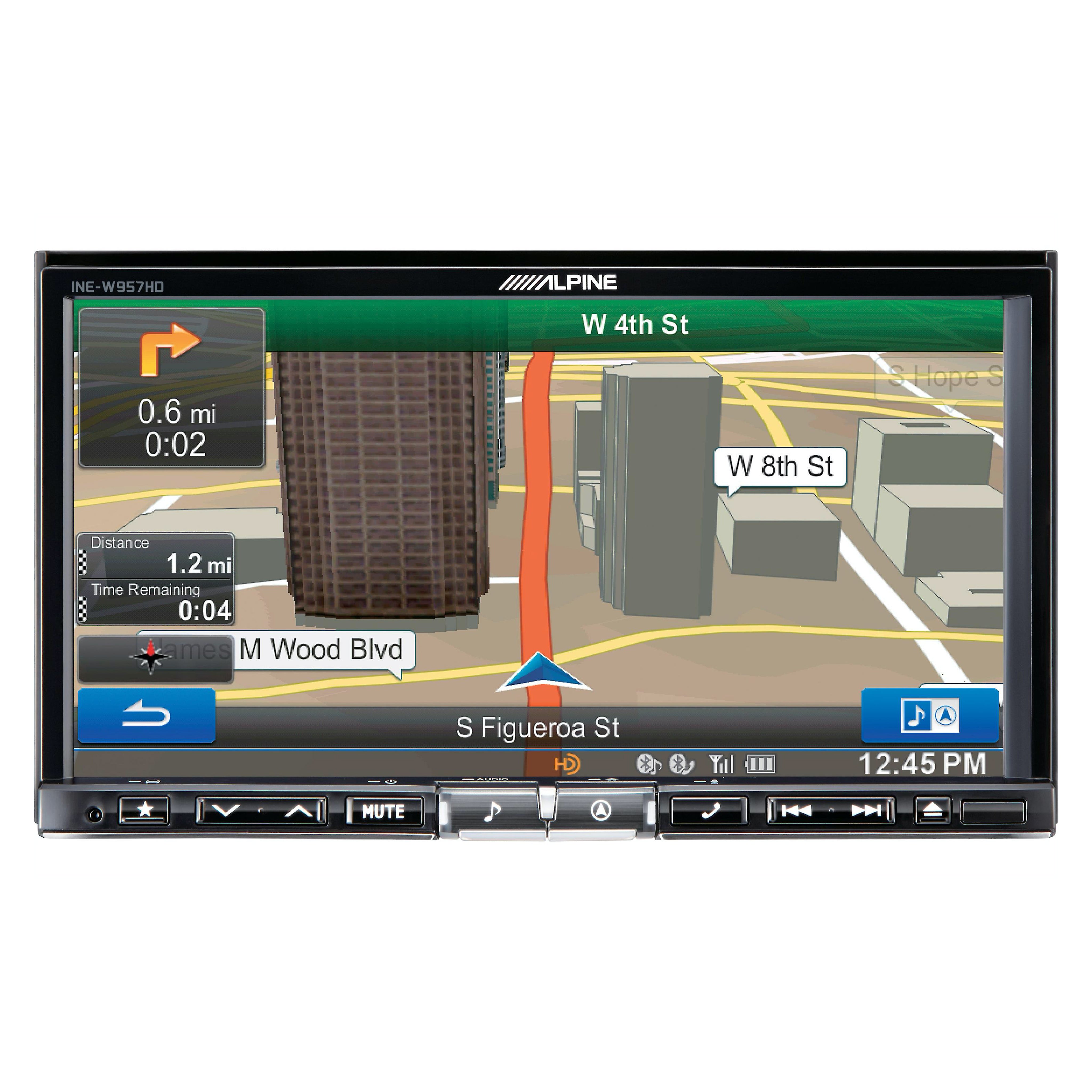

Navigation Features:

  • Features Alpine's exclusive Graphical User Interface
    • Intuitive screen graphics make it easy to find your way
  • 7 million points of interest
  • Pre-loaded map database supports United States, Canada, Puerto Rico and Virgin Islands
    • Update maps via hidden SD card slot behind the screen
    • SD card slot used only for navigation updates
  • Selectable map viewing angles supports North Up, Heading Up or 3D
  • Text-to-speech plays back street name, driving directions and any other text the driver needs to here
  • Database smart key filtering
  • Street name voice guidance
  • Auto-sort nearest destination
  • Estimated arrival time (ETA)
  • Route guidance options
  • Voice prompts

Bluetooth Features:

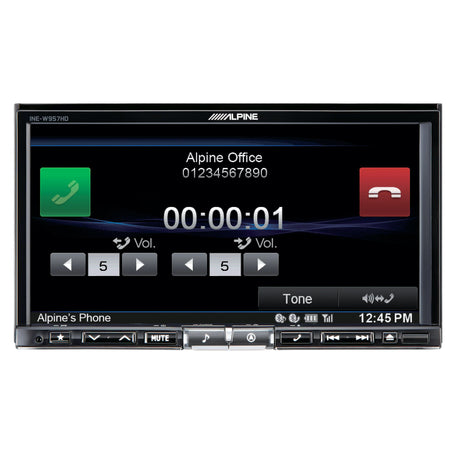

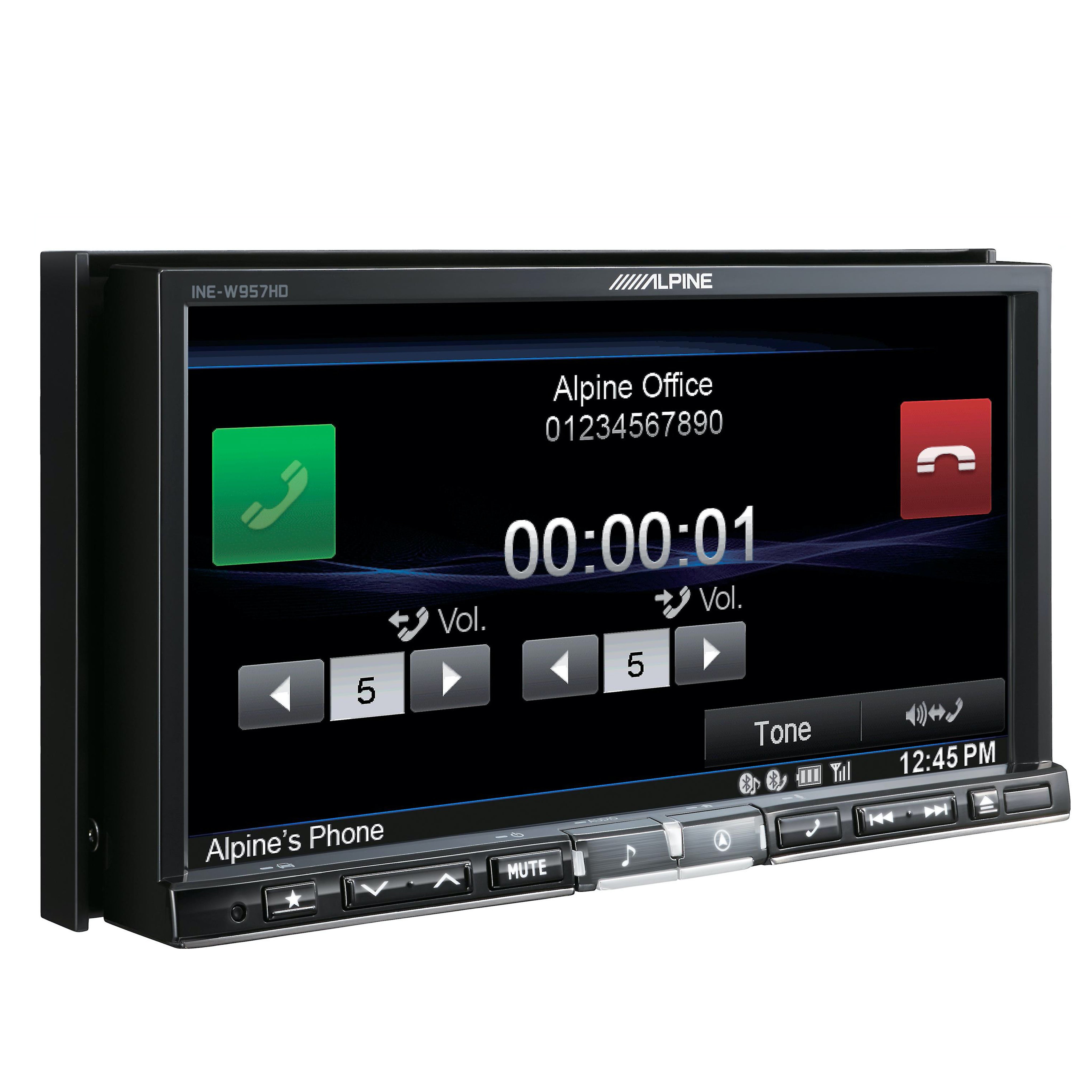

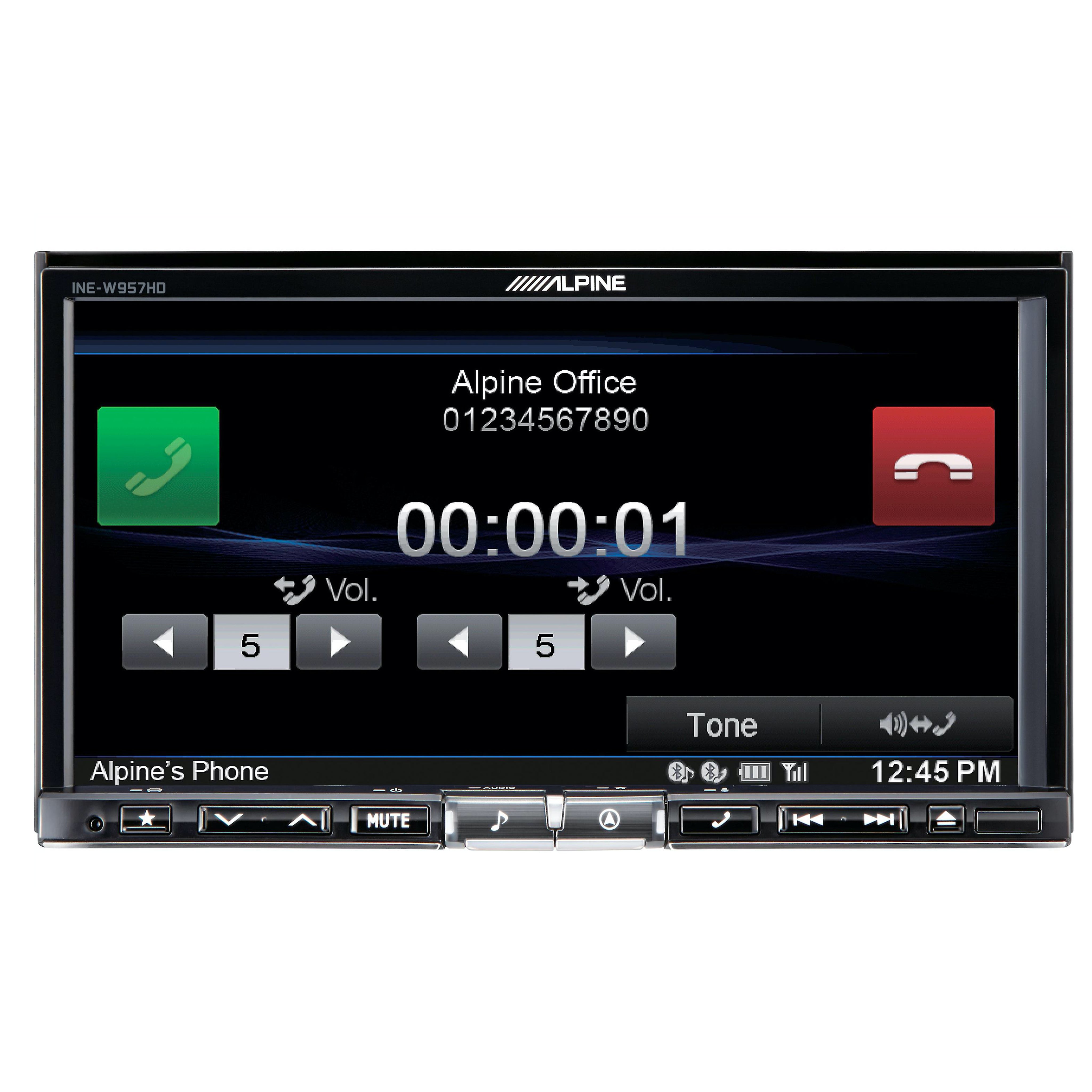

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Supports A2DP audio streaming
  • Works with most Bluetooth enabled cell phones

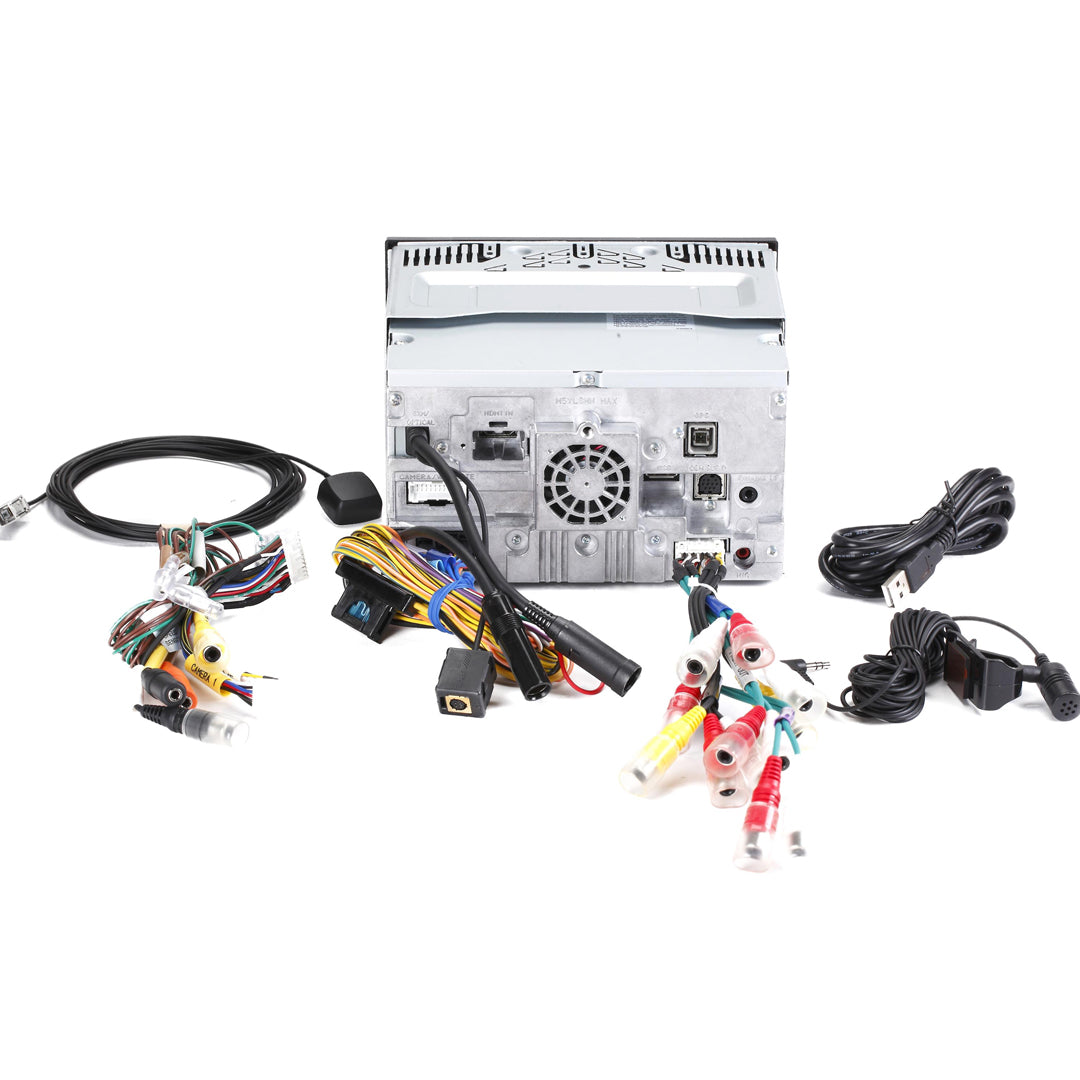

  • Includes a external wired microphone for clear, convenient talking

Expandability Options:

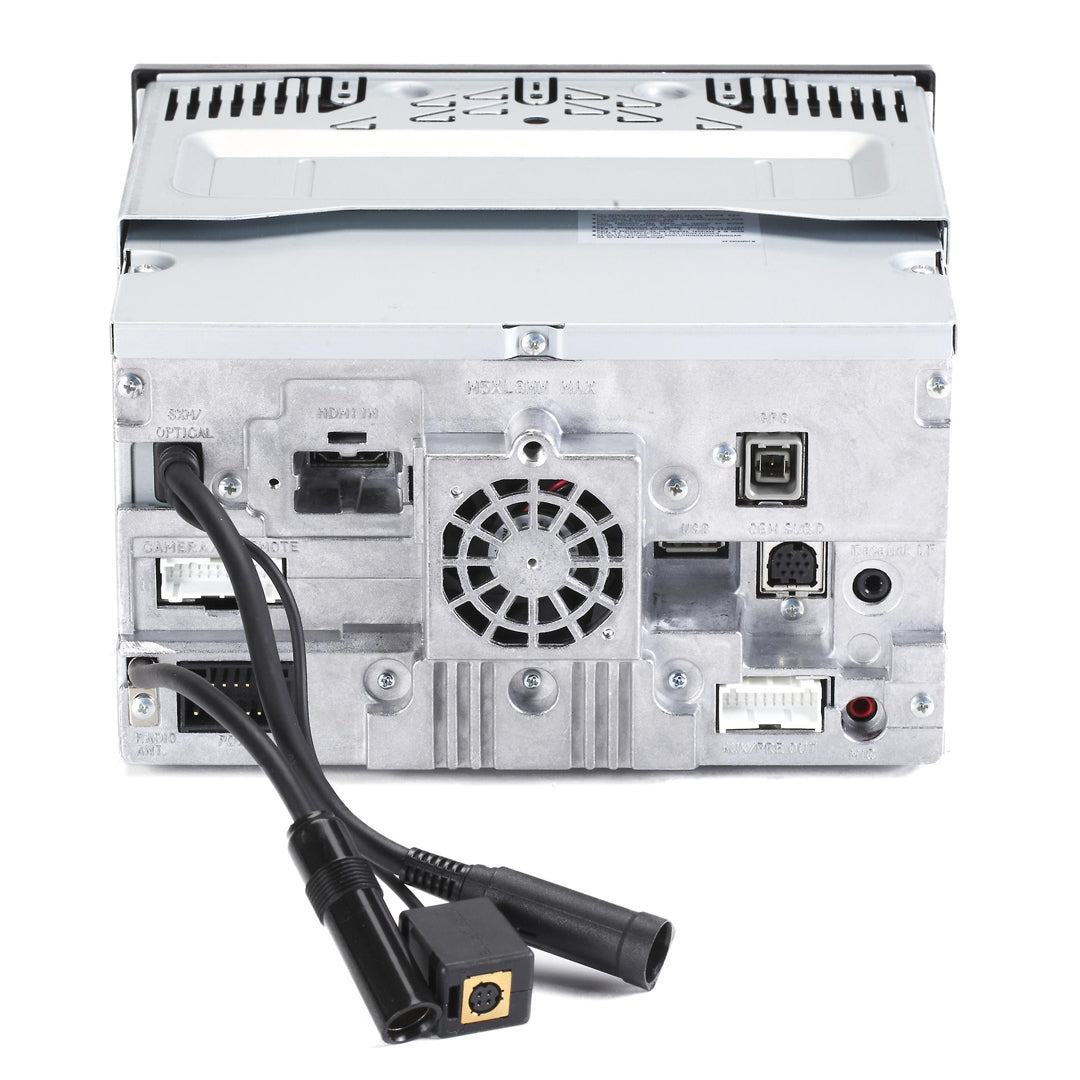

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
  • Vehicle Data and Steering Wheel Control integration with iDatalink Maestro ADS-MRR (module sold separately)
  • Steering Wheel Control Ready for Vehicles not supported by iDatalink Maestro: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
  • Dedicated Backup Camera Input: Universal Backup Camera recommended and sold separately

Unit size:

Double Din
CarPlay: No
Android Auto: No
Navigation: Yes
Video Screen: Yes
Screen Size: 7"
CD player: Yes
Camera Input: Backup, and secondary input



AV input:

RCA (Rear), HDMI (Rear)



File playback:


RMS Power (CTA-2006):

16 Watts x 4

Peak Power:

50 Watts x 4

Preamp Output Voltage:

4 Volts

Preamp Output channels:


Ipod Compatible:


HD Radio:


Satellite Radio Ready:


Steering Wheel Control:

Adapter required


1 Year
