Overview

2 Channel Line Driver with Optional Level Control

High performance car audio amplifiers love lots of signal voltage. This allows them to deliver optimum sound quality and maximum bass response. Unfortunately, many of today’s after market source units don’t output the optimum voltage levels these amplifier need. The AudioControl OVERDRIVE PLUS pre-amp line driver increases the line level signals from aftermarket source units up to 13 volts max (9.5 RMS) and delivers them downstream to the amplifiers inputs. The results are increased dynamic range, maximum signal-to-noise levels, and tremendous bass response. Autosound enthusiasts will enjoy dramatically improved sound quality of their after market audio system.

The OVERDRIVE PLUS features an optional dash control input which facilitates remote control of pre-amp signal levels. This makes the OVERDRIVE PLUS an ideal controller for overall system master volume (great for tablet installs) or subwoofer levels.

Features

High signal voltage capability: 9.5 volts RMS output
24dB of gain
Input for optional Dash Control for remote level
Ultra-low distortion, ultra-quiet operation
Low noise, high current output circuitry
High-headroom PWM switching power supply
Selectable ground isolation
Voltage indicator LEDs

Features & Specifications

Specification	AudioControl Overdrive Plus
Product Type	2-Channel Line Driver
Model	Overdrive Plus
Channels	2
Line Driver Gain	Adjustable
Maximum Output Level	Up to 13.5 V RMS
Input Type	RCA Line-Level
Output Type	RCA Line-Level
Input Impedance	20 kΩ
Output Impedance	50 Ω
Frequency Response	10 Hz–100 kHz
Signal-to-Noise Ratio	>110 dB
Total Harmonic Distortion	<0.005%
Level Control	Optional Remote Level Control
Remote Compatibility	Optional Level Control
Power Supply	12 V DC
Turn-On	Remote / Signal-Sensing
Installation	Surface Mount
Application	Signal Boosting / Long RCA Cable Runs / OEM Integration

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

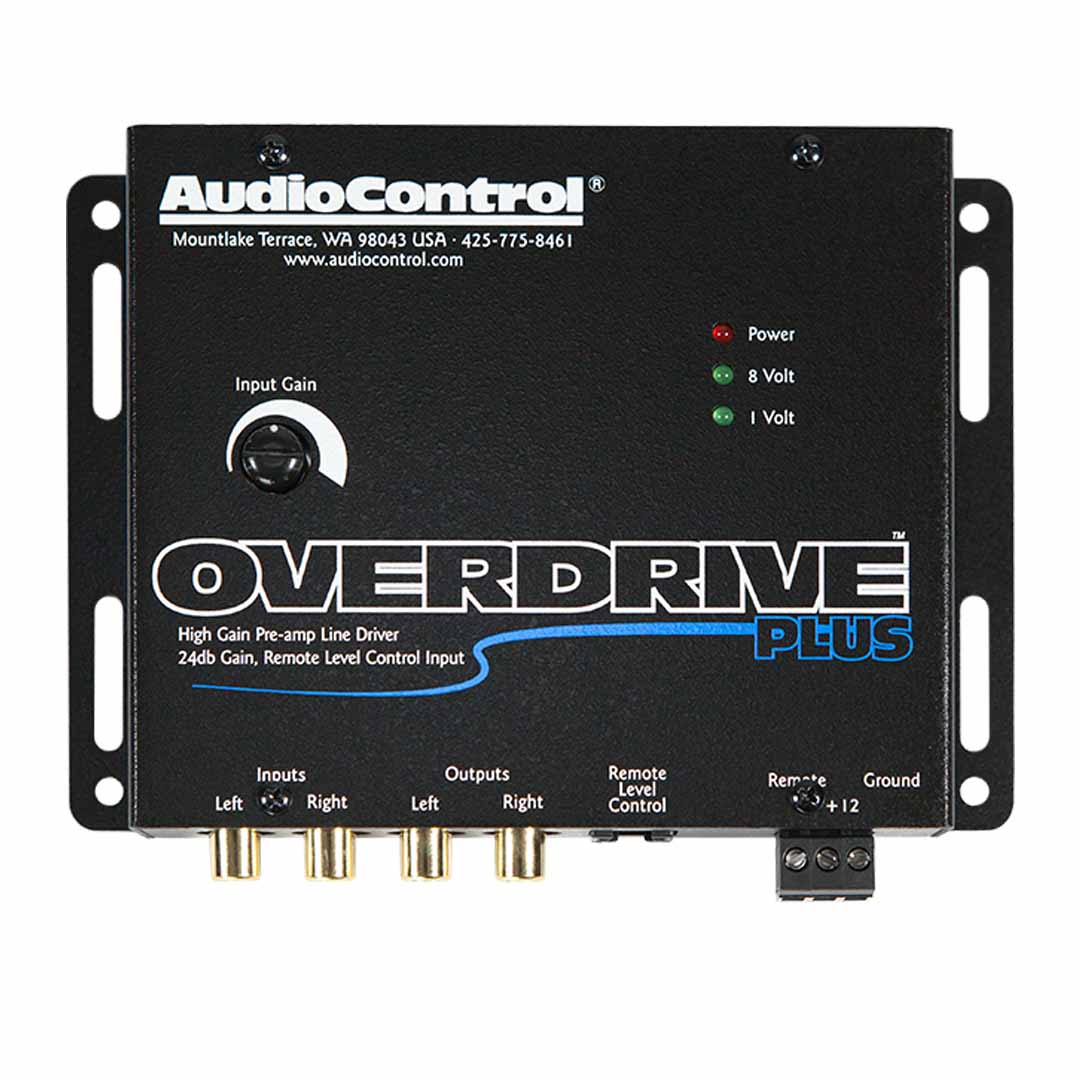

AudioControl Overdrive Plus, 2 Channel Line Driver with Optional Level Control
