Overview

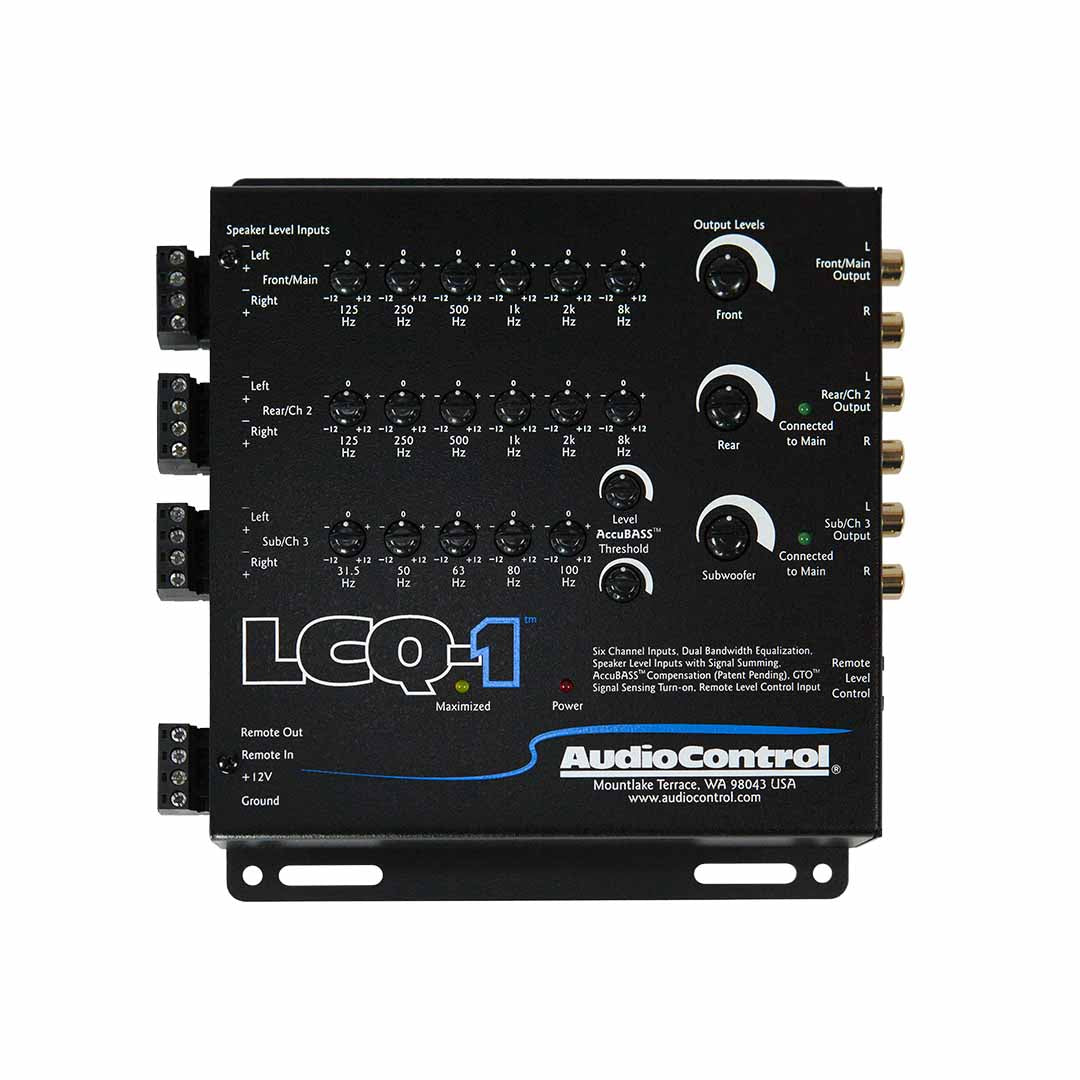

6 Channel Line Out Converter with EQ and Accubass™

Audio enthusiasts can now rejoice with the introduction of AudioControl’s LCQ-1, a powerful six-channel signal processor that provides a gateway between factory installed source units and after-market amplifiers. The LCQ-1 allows Mobile Electronics enthusiasts to easily “tune” their audio systems and receive truly amazing sound quality. An ideal combination of discrete equalization controls combined with AudioControl’s unique OEM integration circuitry, the LCQ-1 maximizes the performance of factory installed audio systems. Enthusiasts, who want amazing audio performance that only comes from custom-tuned audio systems, will truly enjoy the LCQ-1.

Basic, inexpensive, passive line output converters generally deliver poor sound quality and diminishing bass response. The active circuitry used in the LCQ-1 provides dramatically better sound quality and enhances the bass response. No longer will audio enthusiasts have to compromise when performing basic amplifier additions to factory installed audio systems. Enthusiasts looking for great sound will really love this product.

Designed for maximum sound quality and enhanced audio performance, the LCQ-1 is the latest AudioControl processor to incorporate AccuBASS™. This patent pending process automatically corrects for the bass roll-off that is common with many factory-installed audio systems. AudioControl engineers designed the LCQ-1 to be a very high-value processor, so subsequently it is equipped with a number of installer friendly features that simplify the OEM connection and calibration process.

Features

Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
AccuBASS™ processing for correction of bass roll-off
Six channels of active speaker level inputs – accept up to 400 watts per channel
Optional ACR-2 Remote allows for control of the subwoofer level plus EQ bypass which makes it ideal for demonstration applications
Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
GTO™ (Great Turn-On) Circuit – Powers up the LCQ-1 when it detects signal on the speaker level input
Compact (6”x 6”) chassis allowing for ease of installation

Features & Specifications

Specification	AudioControl LCQ-1
Product Type	6-Channel Line Output Converter with EQ
Model	LCQ-1
Channels	6
Inputs	6-Channel Speaker-Level Inputs
Outputs	6-Channel RCA Line-Level Outputs
Line Output Converter	Integrated
Signal Summing	6-Channel Signal Summing
Equalization	3-Band Parametric EQ
AccuBASS®	Integrated Bass Restoration
Input Signal Sensing	GTO™ Signal-Sensing Turn-On
Maximum Output Voltage	Up to 9.5 V RMS
Frequency Response	10 Hz–22 kHz
Signal-to-Noise Ratio	>115 dB
THD+N	<0.01%
Input Sensitivity	Adjustable
Output Level	Adjustable
Remote Control	Optional ACR-1 Dash Remote
Power Supply	12 V DC
Mounting	Surface Mount
Application	OEM Integration / Factory Audio Upgrade

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

AudioControl LCQ-1, 6 Channel Line Out Converter with EQ and AccuBass

Name: AudioControl LCQ-1, 6 Channel Line Out Converter with EQ and AccuBass
Brand: AudioControl
SKU: AC-LCQ-1
Price: 289.00 USD
Availability: OutOfStock

SKU: AC-LCQ-1

UPC: 855814005914

Discontinued Item

The requested item has been discontinued.
