Overview

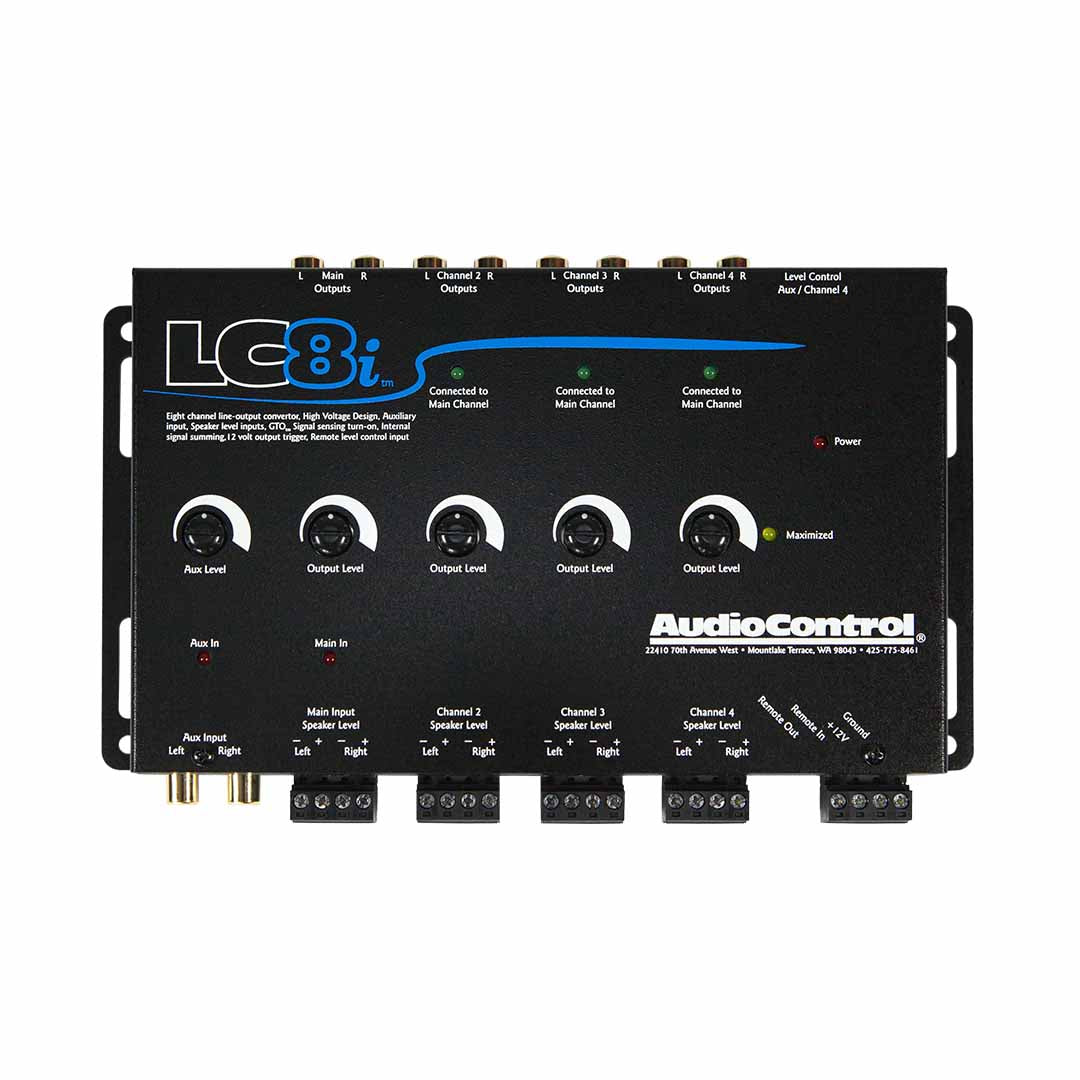

8 Channel Line Out Converter with Auxiliary Input

The LC8i is a highly flexible eight-channel signal processor with active input circuitry that accepts speaker-level inputs, of up to 400 watts per channel, from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to aftermarket processors and/or amplifiers. This means users will enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Designed for maximum flexibility, the LC8i is equipped with an auxiliary input that allows the simple addition of secondary source units like iPods and satellite radio tuners. By tapping the dash control knob, a user can switch back and forth between the main speaker-level inputs and the auxiliary input. Additionally, the multi-function dash knob provides both volume control of the Auxiliary input and level adjustments for the subwoofer output.

The LC8i uses proven OEM integration technology derived from AudioControl’s highly popular LC6i, LC7i and The Epicenter® Plus signal processors. The speaker-level inputs accept high wattage signals (up to 400 watts per channel), either full range or crossed over, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be summed and combined internally to provide a full-range preamp signal. Customers wanting to offer sound quality that is clearly better than OEM systems can also easily add one of AudioControl’s many crossovers or equalizers after the LC8i, providing even greater control over factory signals.

Features

Eight input and output channels – will accept 400 watt signals per channel
Auxiliary input for easy interfacing of iPods or other portable audio devices
Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control
Internal channel summing
Selectable GTO™ Signal-sensing Turn-on Circuit

Features & Specifications

Specification	AudioControl LC8i
Product Type	8-Channel Line Output Converter
Model	LC8i
Channels	8
Speaker-Level Inputs	8 Channels
RCA Line-Level Outputs	8 Channels
Auxiliary Input	2-Channel Auxiliary Input
Signal Summing	Multi-Channel Signal Summing
Bass Restoration	AccuBASS®
Input Signal Sensing	GTO™ Signal-Sensing Turn-On
Maximum Output Voltage	Up to 9.5 V RMS
Frequency Response	10 Hz–22 kHz
Signal-to-Noise Ratio	>115 dB
THD+N	<0.01%
Input Sensitivity	Adjustable
Output Level	Adjustable
Remote Control	Optional ACR-1 Dash Remote
Power Supply	12 V DC
Mounting	Surface Mount
Application	OEM Integration / Factory Audio Upgrade

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

AudioControl LC8i, 8 Channel Line Out Converter with Auxiliary Input

Name: AudioControl LC8i, 8 Channel Line Out Converter with Auxiliary Input
Brand: AudioControl
SKU: AC-LC8i
Price: 145.99 USD
Availability: OutOfStock

SKU: AC-LC8i

UPC: 855814005884

Out of stock

$145.99

$145.99 ~~$319.99~~

Shipping calculated at checkout.

60-Day Returns
Lifetime Tech Support
