Overview

6 Channel Line Out Converter

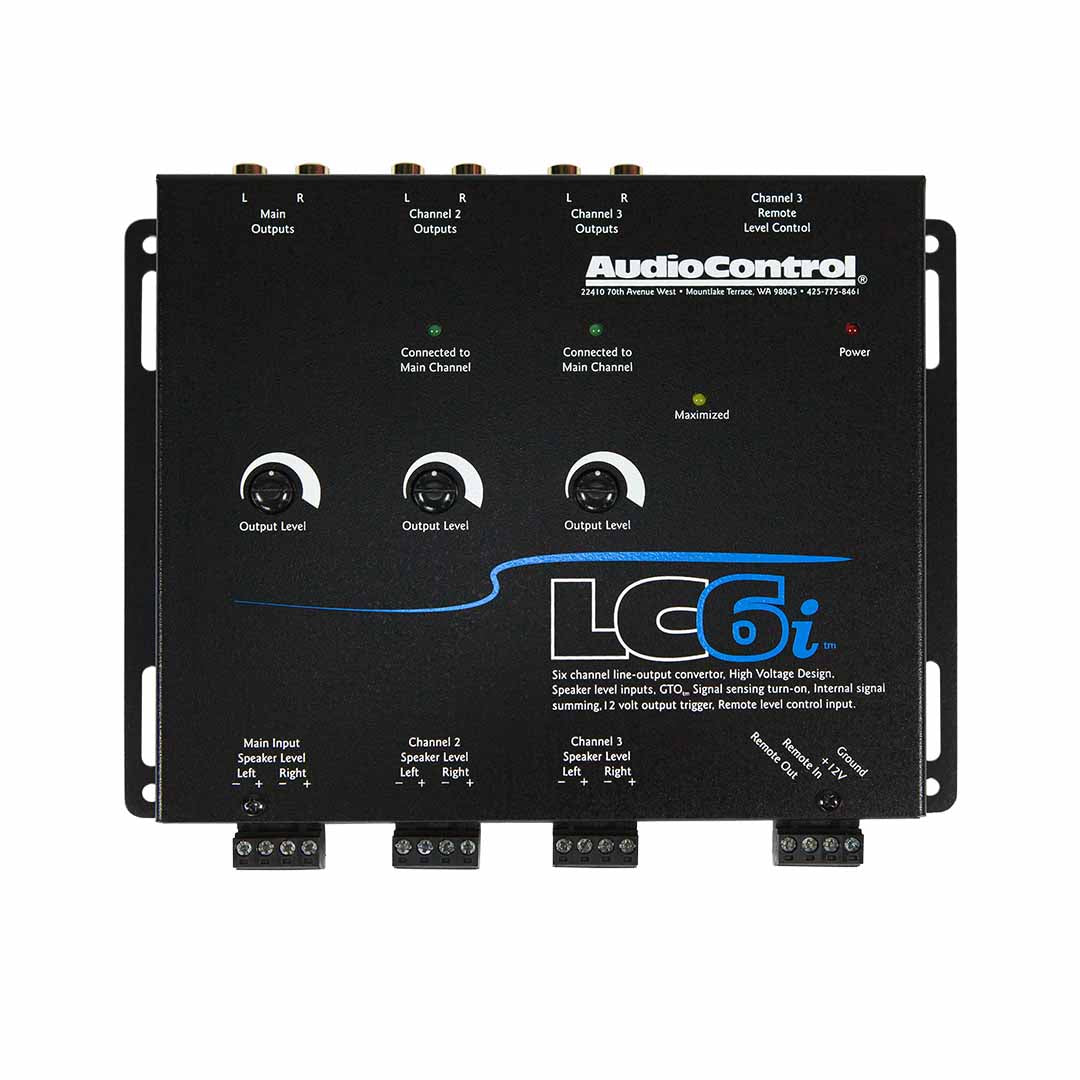

AudioControl continues to simplify OEM integration with the new LC6i Six Channel Line Output Converter with internal summing. The LC6i is built on the same technology as its predecessor, the LC6. The LC6i converts speaker level inputs from a factory radio or factory amplifier into high-quality pre-amp signals. The addition of internal summing capabilities and improved GTO™ signal-sense turn-on make the LC6i the perfect way to solve your OEM headaches.

The LC6i allows for the addition of aftermarket processors and amplifiers while maintaining use of the factory volume and steering wheel controls. Internal signal summing and AudioControl’s new GTO™ signal-sense turn-on make the LC6i a perfect OEM interface for a performance audio system.

The LC6i provides the type of clean pre-amp signals installers are familiar with. Those who desire custom control over the sound can easily add one of AudioControl’s many crossovers or equalizers which offer unlimited system design flexibility, clearly different than traditional OEM interfaces.

Features

High Current 12-Volt Trigger Output
Internal Channel Summing
GTO™ Signal Sensing Inputs
Speaker Level Inputs – Can Accept 400 Watt Signals!
Level Matching Controls
Six Input and Output Channels
AutoMode™ Turns 4-channel Input into 6-channel Output
Input for Optional Subwoofer Level Control

The LC6i follows in the steps of the rampantly successful LC8 Eight Channel Line Output Converter, offering all of the same features for 6 channel systems at a reduced price. The LC6i accepts speaker level signals, both crossed-over and full range, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be overcome by summing them together, internally, to provide a full-range preamp signal.

Features & Specifications

Specification	AudioControl LC6i
Product Type	6-Channel Line Output Converter
Model	LC6i
Channels	6
Speaker-Level Inputs	6 Channels
RCA Line-Level Outputs	6 Channels
Internal Summing	Integrated 6-Channel Signal Summing
Signal Processing	Active Line-Level Conversion
Input Signal Sensing	GTO™ Signal-Sensing Turn-On
Maximum Output Voltage	Up to 9.5 V RMS
Frequency Response	10 Hz–22 kHz
Signal-to-Noise Ratio	>115 dB
THD+N	<0.01%
Input Sensitivity	Adjustable
Output Level	Adjustable
Remote Control	Optional ACR-1 Dash Remote
Power Supply	12 V DC
Mounting	Surface Mount
Application	OEM Integration / Factory Audio Upgrade

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

AudioControl LC6i 6 Channel Line Output Converter with Internal Summing

Name: AudioControl LC6i 6 Channel Line Output Converter with Internal Summing
Brand: AudioControl
SKU: AC-LC6i
Price: 104.99 USD
Availability: OutOfStock

SKU: AC-LC6i

UPC: 855814005853

Out of stock

$104.99

$104.99 ~~$259.99~~
