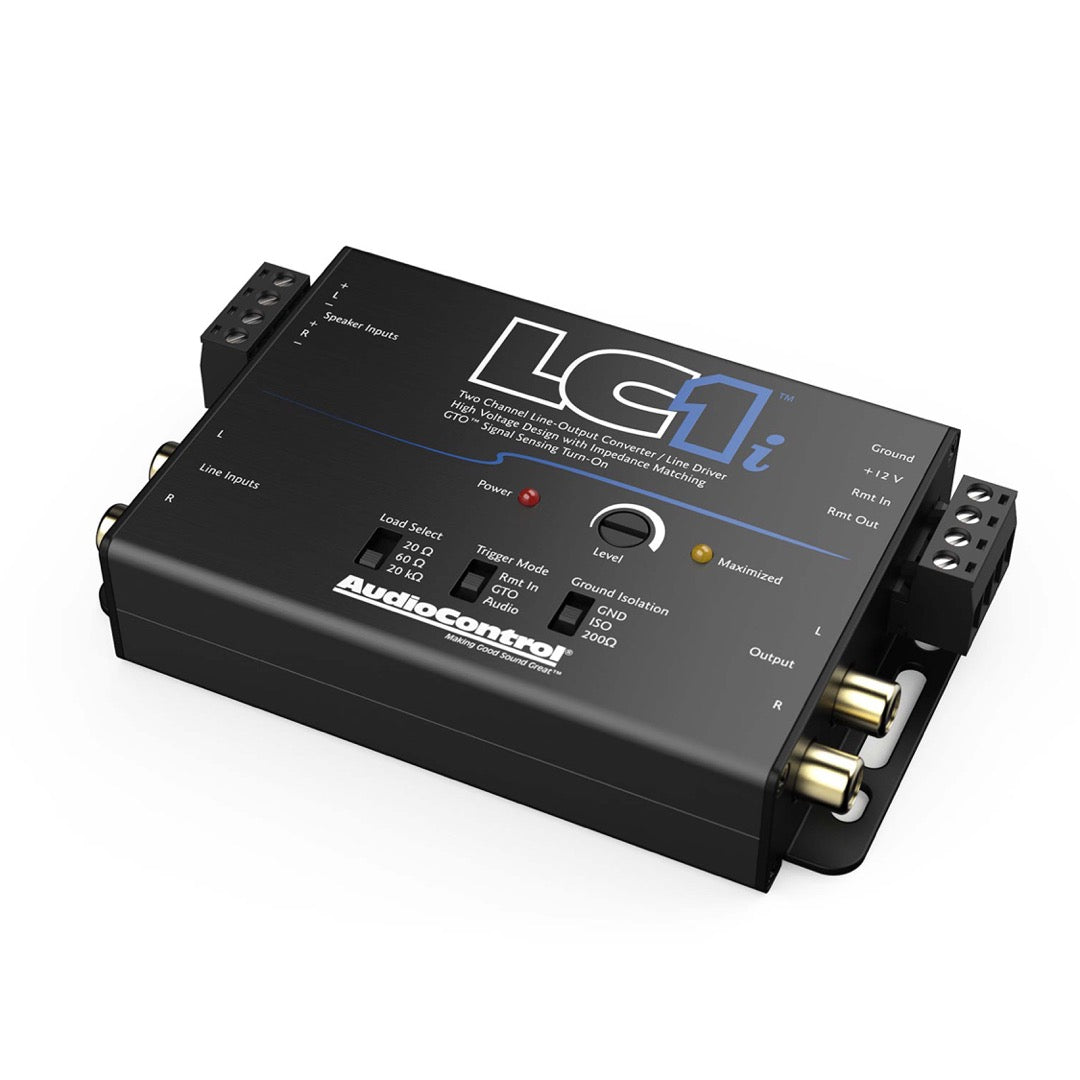

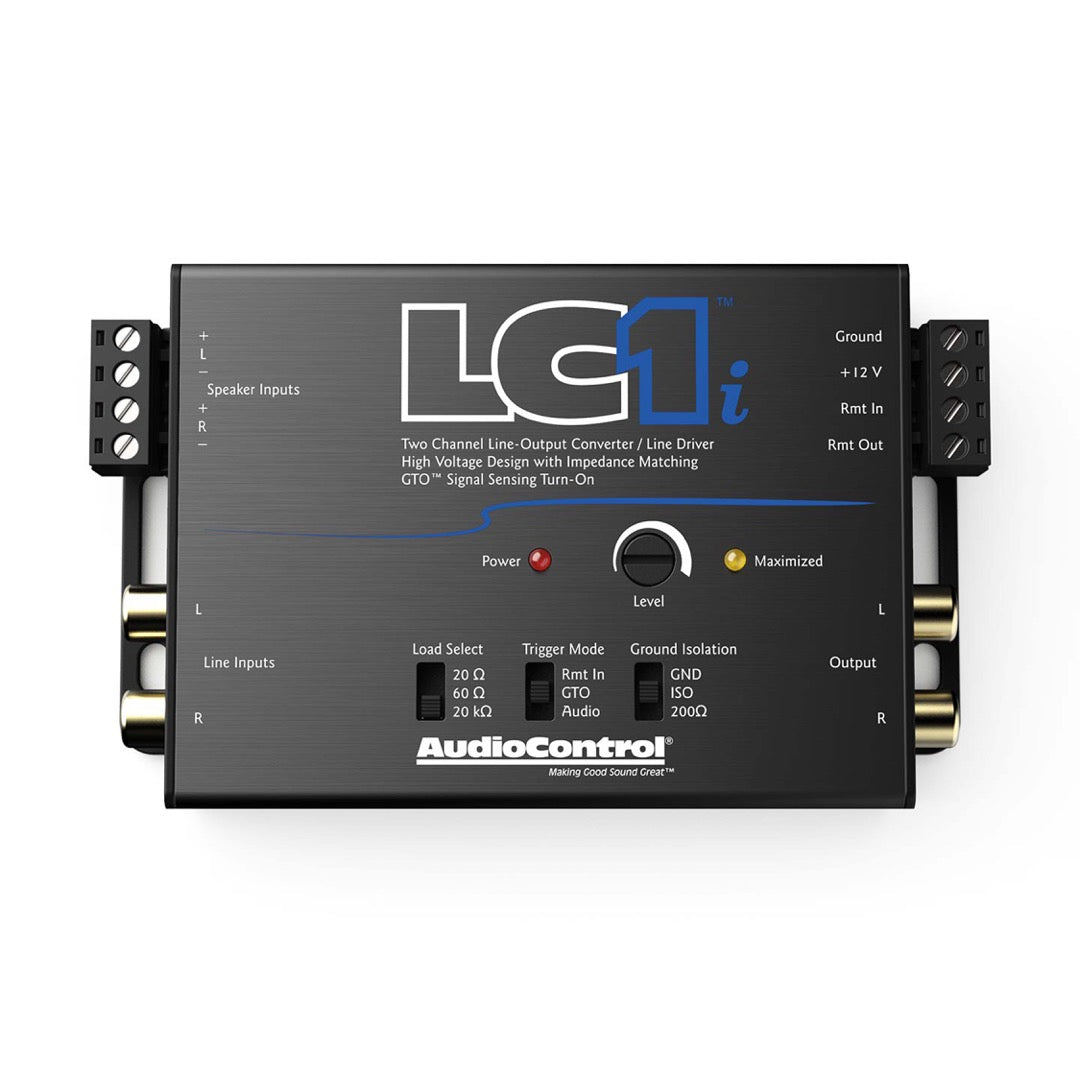

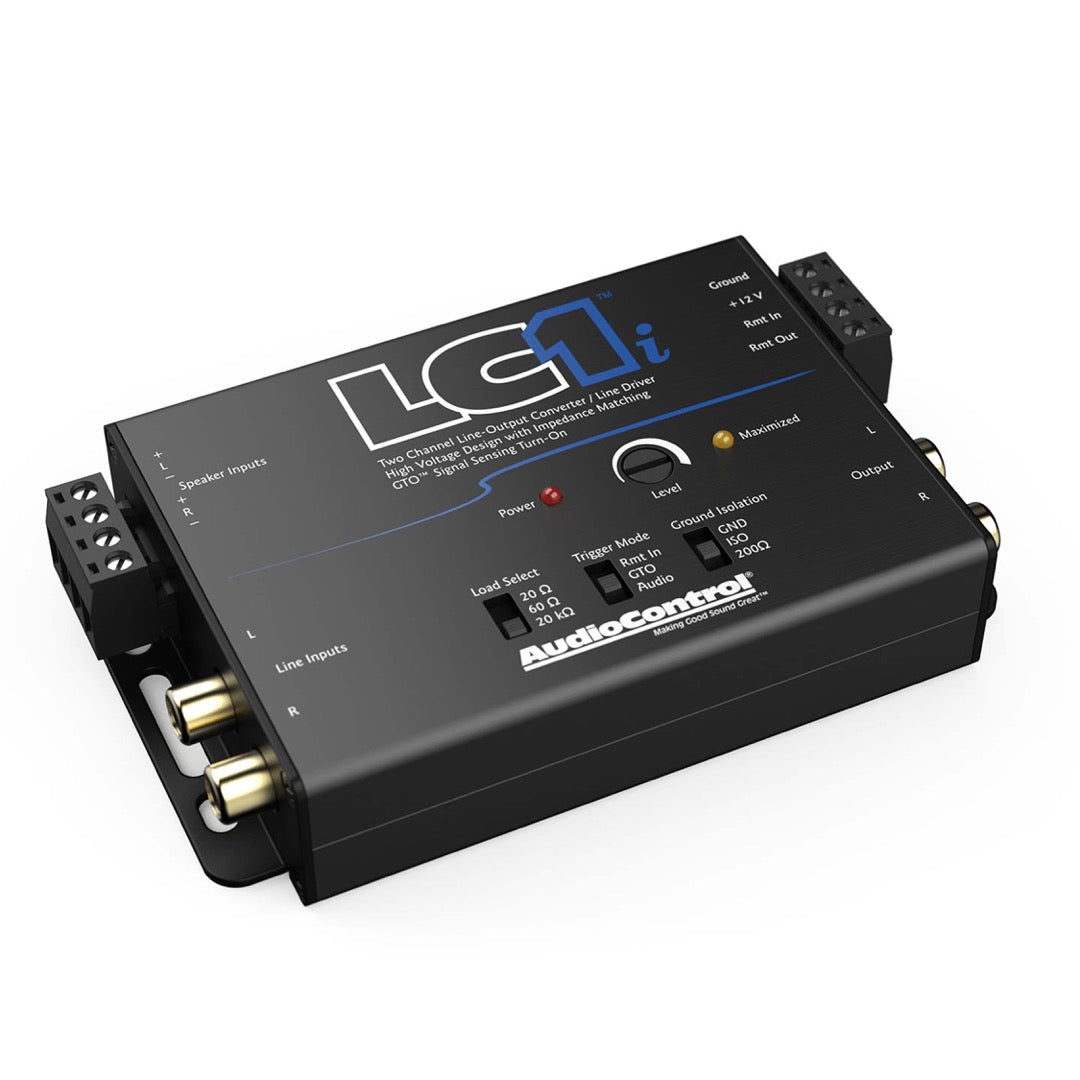

AudioControl LC1i, 2 Channel Line Output Converter and Line Driver

Overview

2 Channel Line Out Converter and Line Driver

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.

Features

Two channels of active speaker level inputs (up to 40V input handling)
Two channels of line level inputs
Load Selection Switch
GTO^TM Signal Sensing
Ground Isolation Switch
Compact design

Specification	AudioControl LC1i
Product Type	2-Channel Line Output Converter & Line Driver
Model	LC1i
Channels	2
Speaker-Level Inputs	2 Channels
RCA Line-Level Outputs	2 Channels
Line Driver	Integrated
Input Signal	Speaker-Level / Line-Level
Maximum Output Voltage	Up to 9.5 V RMS
Frequency Response	10 Hz–22 kHz
Signal-to-Noise Ratio	>115 dB
THD+N	<0.01%
Input Sensitivity	Adjustable
Output Level	Adjustable
Gain	Adjustable Line-Level Gain
Signal Sensing	GTO™ Signal-Sensing Turn-On
Remote Control	Optional ACR-1 Dash Remote
Power Supply	12 V DC
Mounting	Surface Mount
Application	OEM Integration / Factory Audio Upgrade

Features & Specifications

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

AudioControl LC1i, 2 Channel Line Output Converter and Line Driver

Name: AudioControl LC1i, 2 Channel Line Output Converter and Line Driver
Brand: AudioControl
SKU: AC-LC1i
Price: 55.50 USD
Availability: OutOfStock

SKU: AC-LC1i

UPC: 851523007799

Out of stock

$55.50

$55.50 ~~$99.99~~
