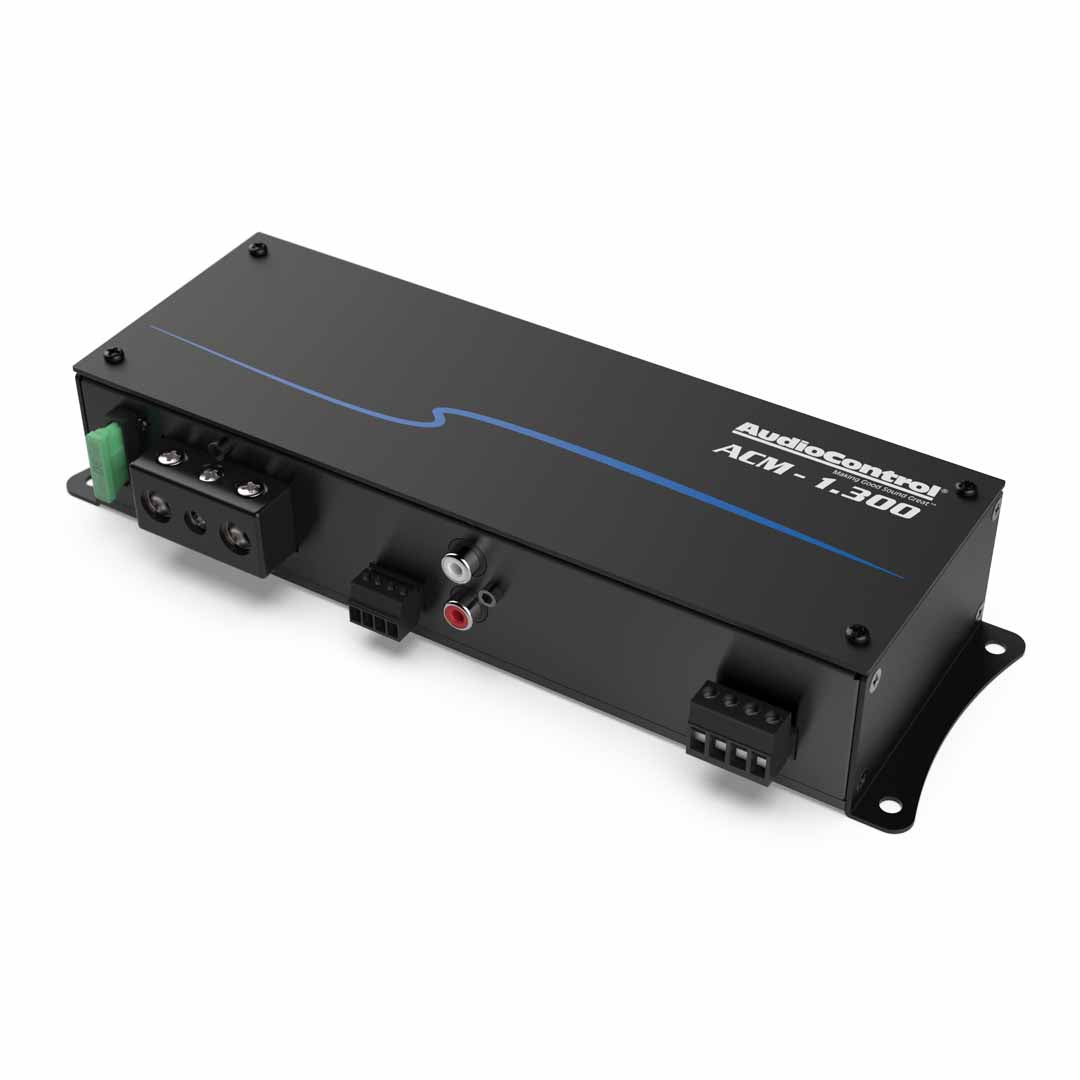

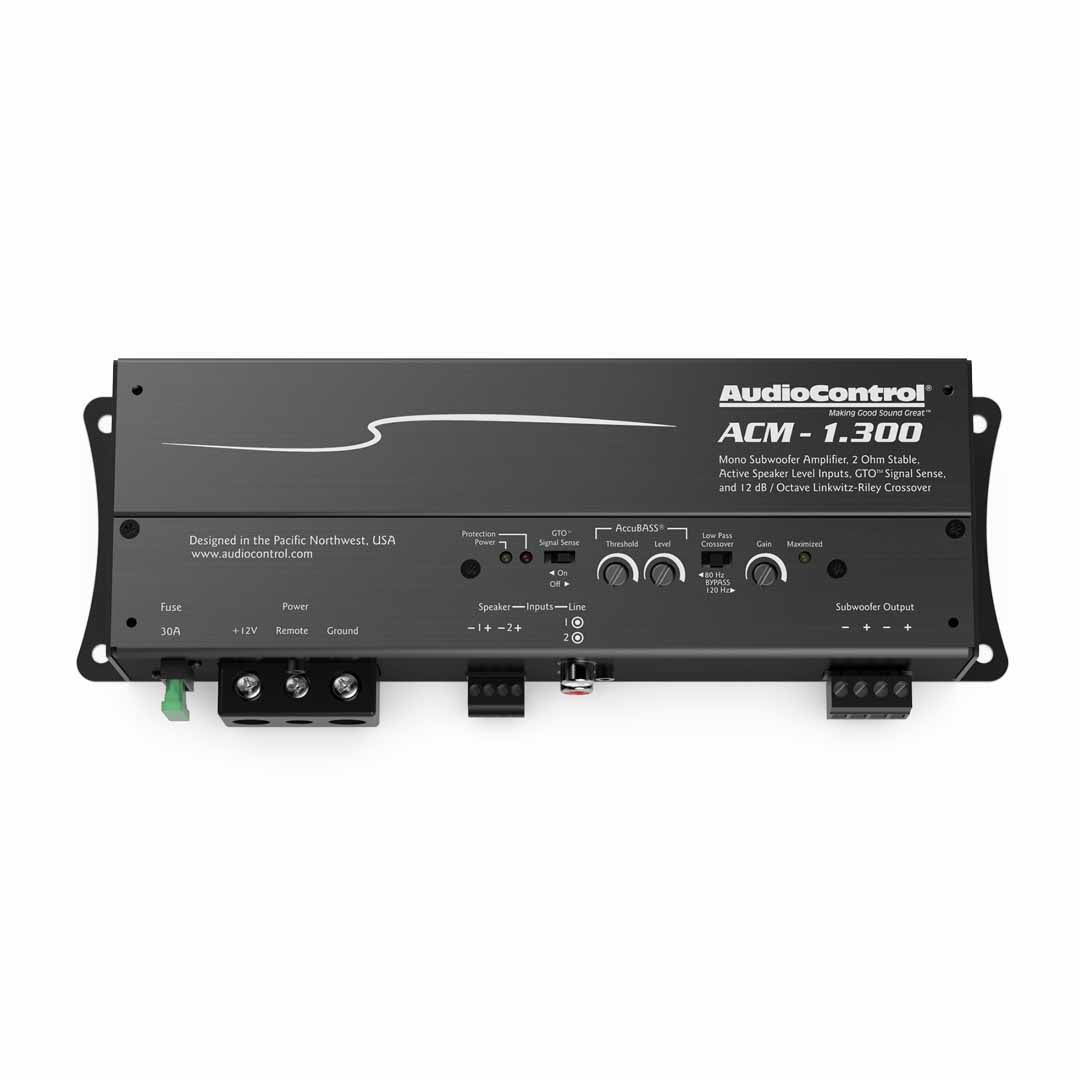

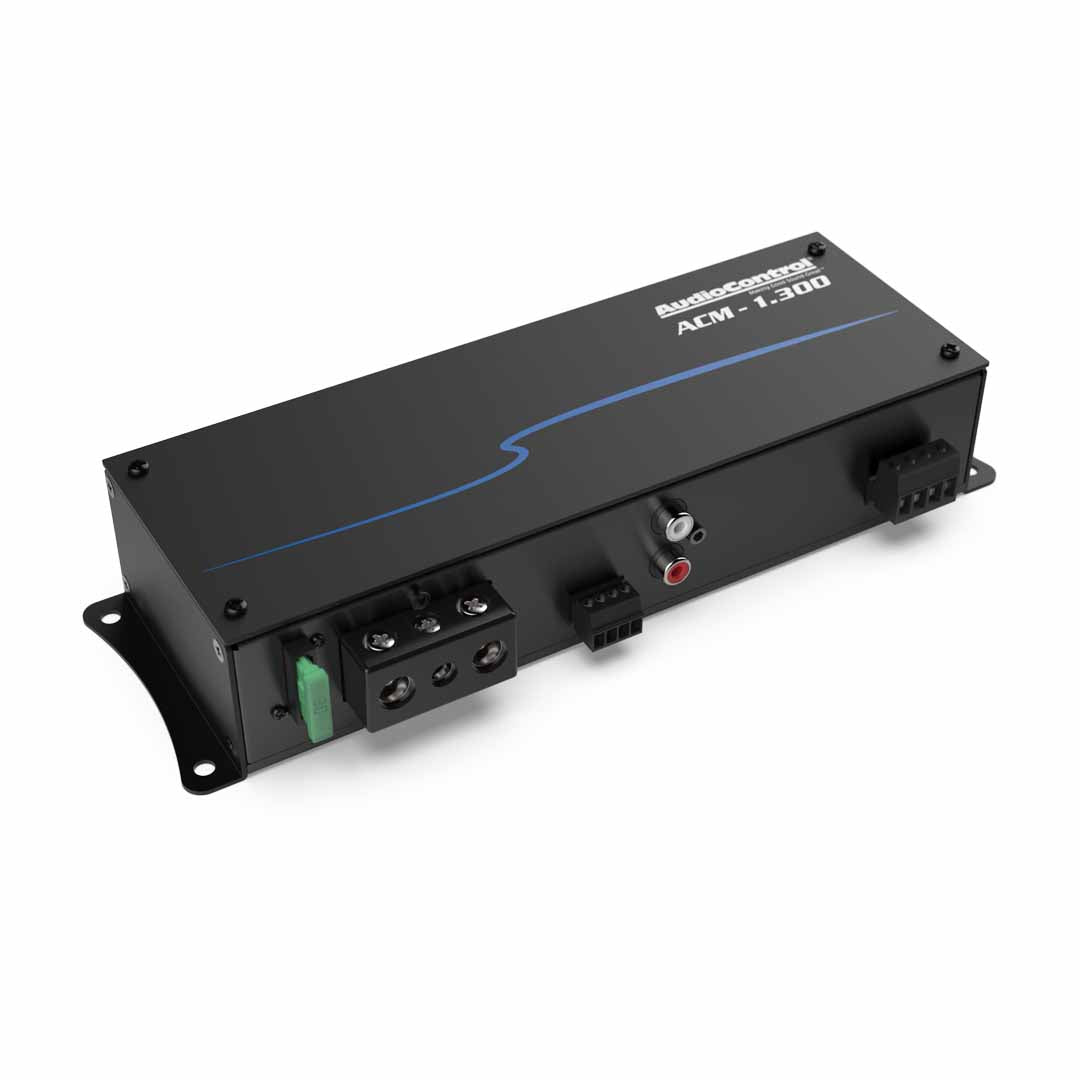

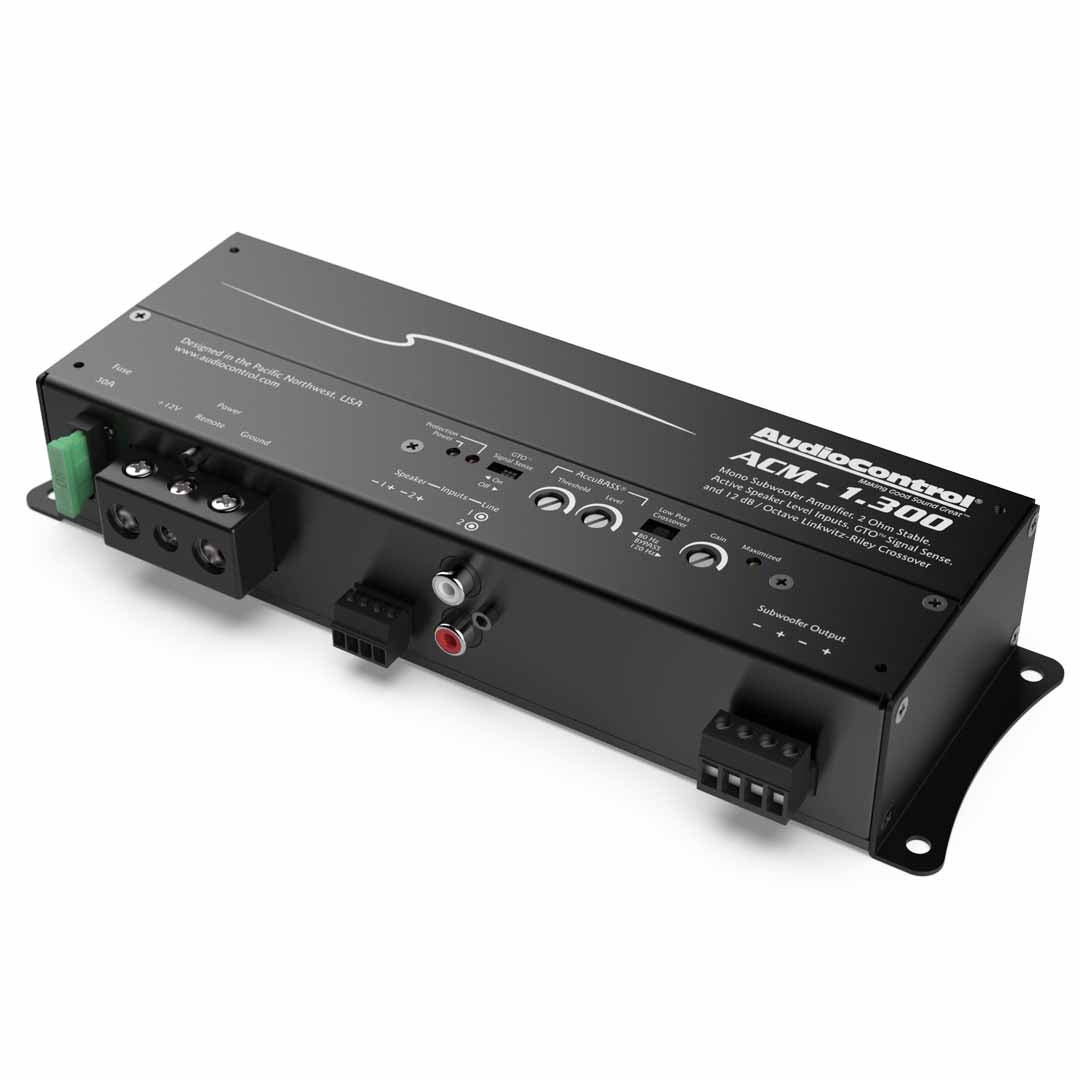

AudioControl ACM-1.300, ACM Series Monoblock Class D Micro Amplifier, 300 Watts
Monoblock Micro Amplifier with Accubass®
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
Features
- 300 watts @ 2 ohms
- 175 watts @ 4 ohms
- AccuBASS® Processing
- GTOTM Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Optional ACR-1 remote level control
- Reversible Cover Plate
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
175 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm | N/A |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
0.01% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
80,120hz |
| Signal-to-Noise Ratio |
102dB |
| Bass Boost |
AccuBASS |
| Bass Remote Included |
No |
| Fuse Rating | 30A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 8 Gauge |
| Warranty | 1 Year |
- Bulletproof 5 year warranty
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
175 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm | N/A |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
0.01% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
80,120hz |
| Signal-to-Noise Ratio |
102dB |
| Bass Boost |
AccuBASS |
| Bass Remote Included |
No |
| Fuse Rating | 30A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 8 Gauge |
| Warranty | 1 Year |
- Bulletproof 5 year warranty
