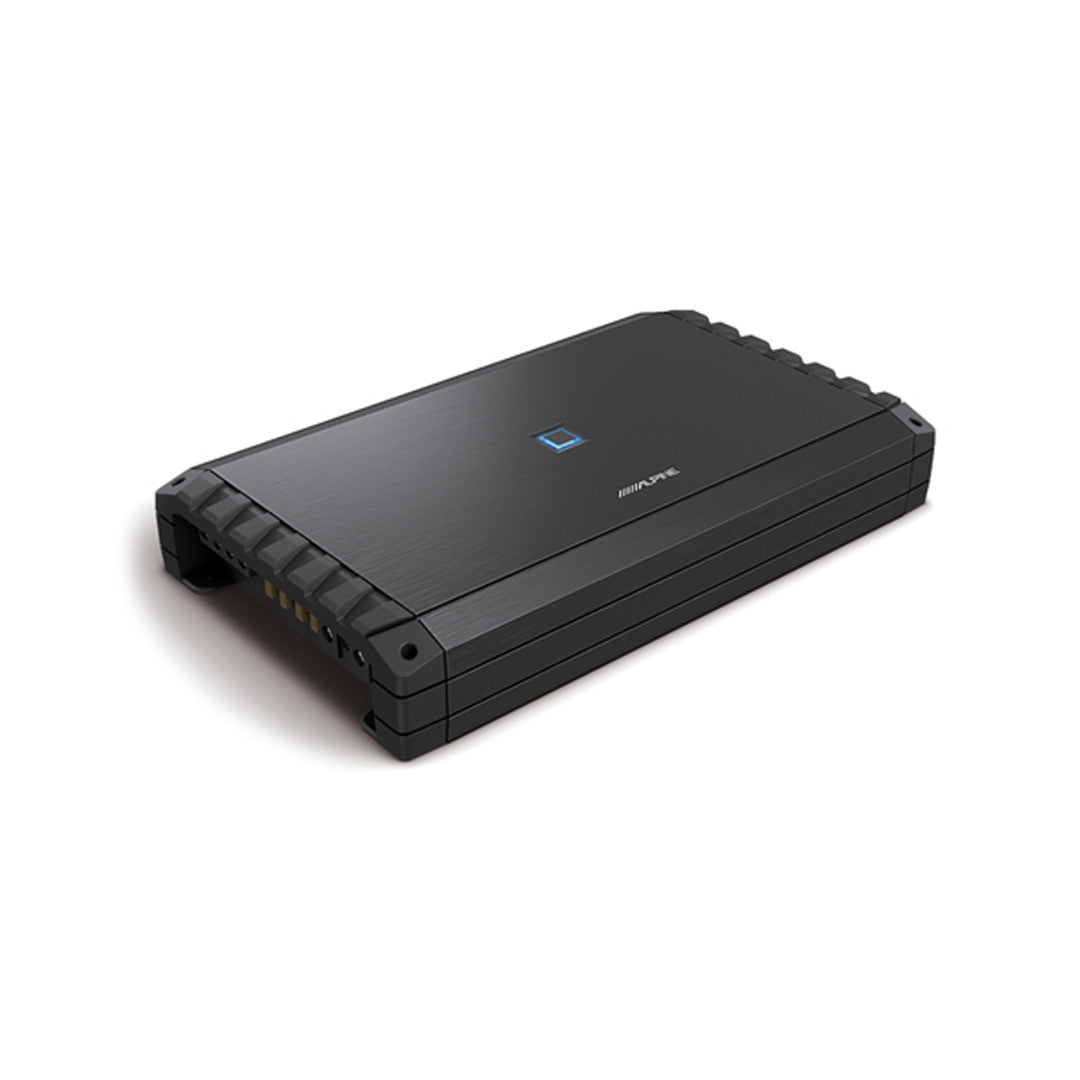

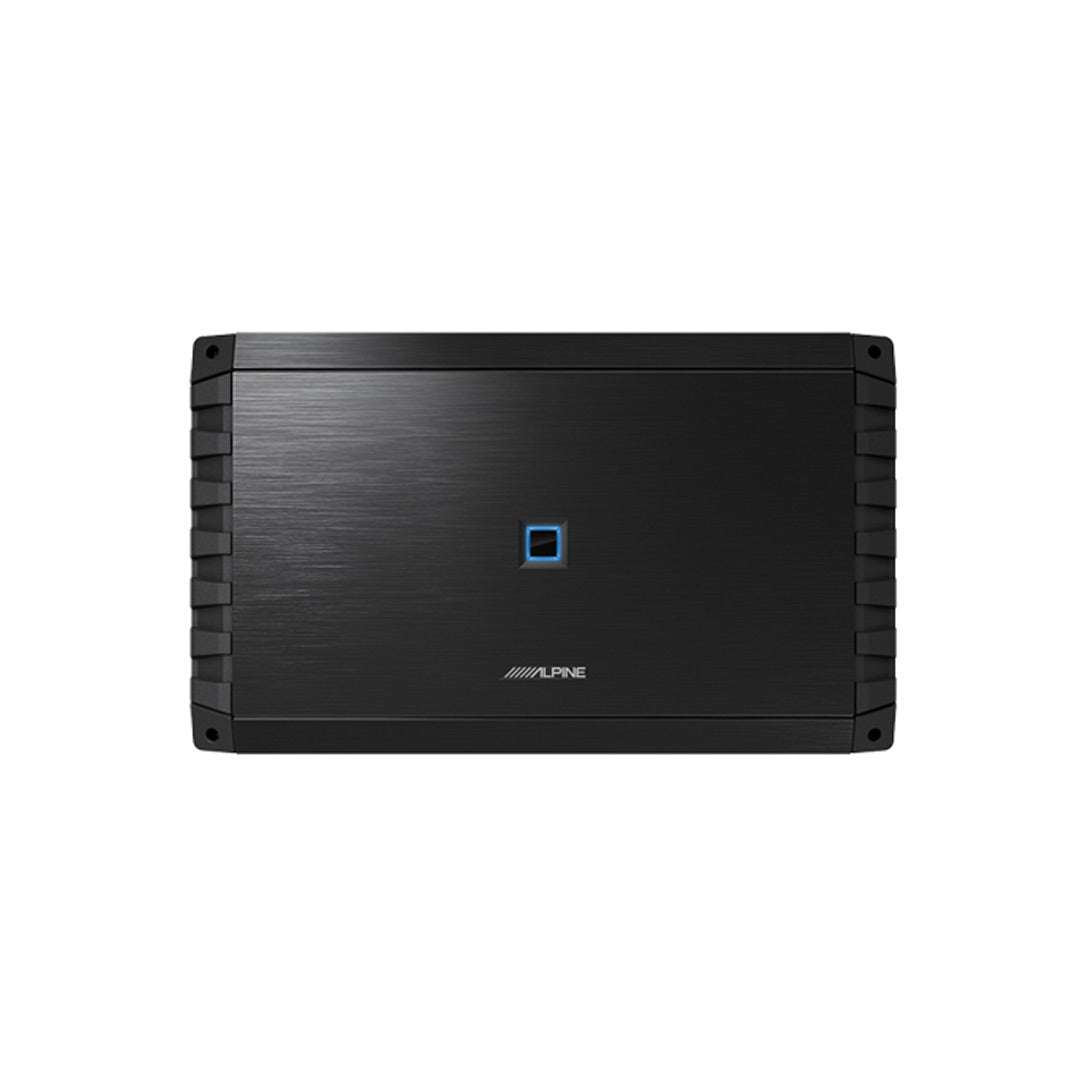

Alpine S2-A120M, S Series Monoblock Class D Subwoofer Amplifier - 1200W
Alpine S2-A120M, S Series Monoblock Class D Subwoofer Amplifier - 1200W
Available in stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
Overview
Overview
UNPARALLELED POWER
Alpine's S-Series S2-A120M 1200W Mono Amplifier is the perfect solution for unparalleled power and performance on a budget. With a power output of 1200W at a 1ohm or 2ohm drive, this mono amp is capable of driving even the most demanding subwoofers, delivering clean and distortion-free bass for a wide range of applications.
FLEXIBLE APPLICATION
New to the Next-Generation S-Series amplifiers is a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.
Easy Control Access

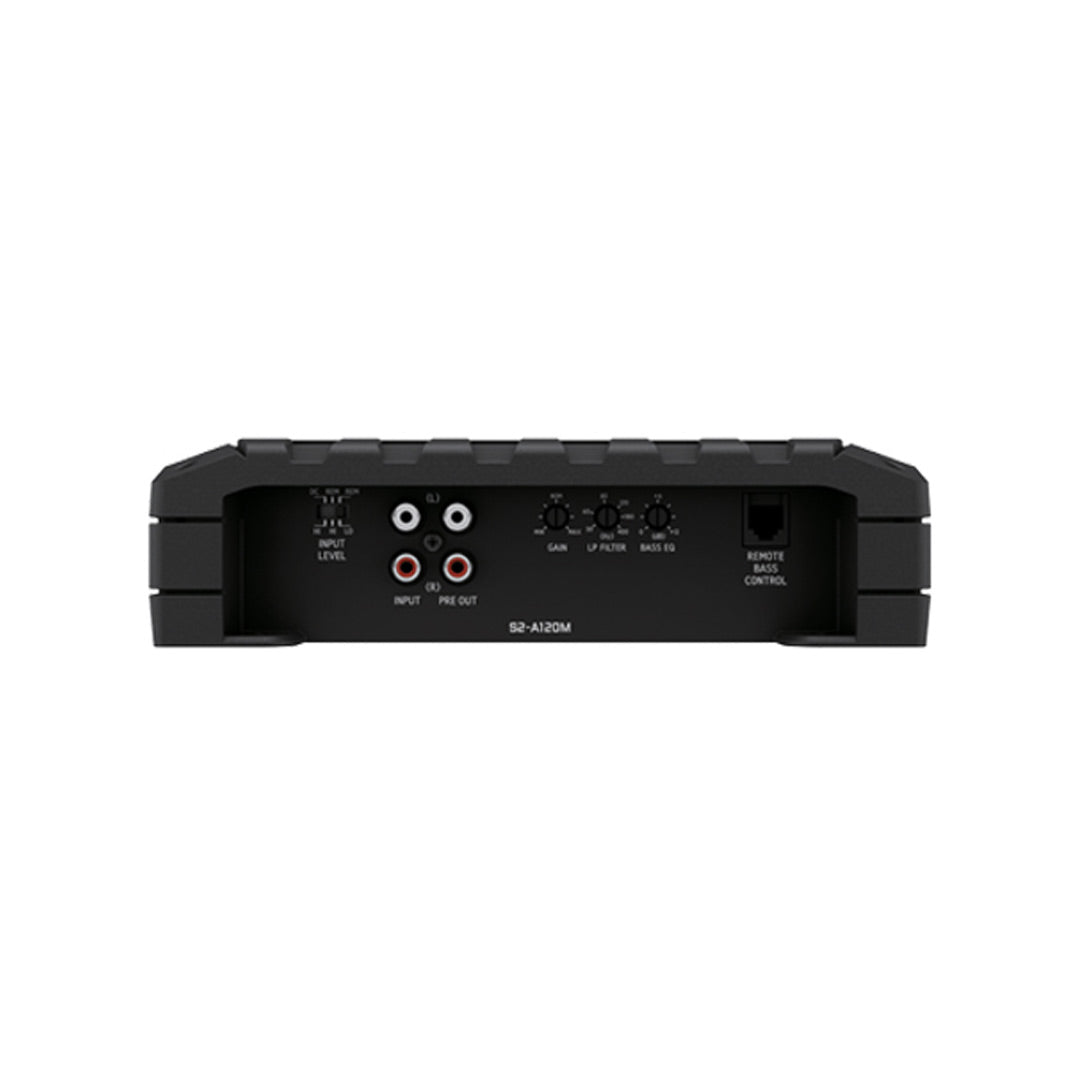

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.
Power Dual Subwoofers
Delivering an impressive 1200 watts of power at both 1 ohm and 2 ohm, the S2-A120M is fully capable of providing ample power to two Alpine S-Series 10" or 12" Subwoofers, ensuring exceptional sound quality and optimal performance.
Features & Specifications
Features & Specifications
|
Number of Channels |
Mono |
|
Class |
D |
|
RMS Power Rating (Watts x Channels) - 4 Ohm |
600 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohm |
1200 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm | 1200 x 1 |
| RMS Power Rating - Bridged |
|
| Minimum Impedance (Ohms) |
1 Ohms |
| THD at Rated RMS Power |
1% |
| Built-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
|
| High Pass Crossover Frequency (Hz) |
|
| Low Pass Crossover Frequency (Hz) |
50-400Hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-12dB @ 50Hz |
| Bass Remote Included |
No |
| Fuse Rating | 100A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 |
| Warranty | 1 Year |
