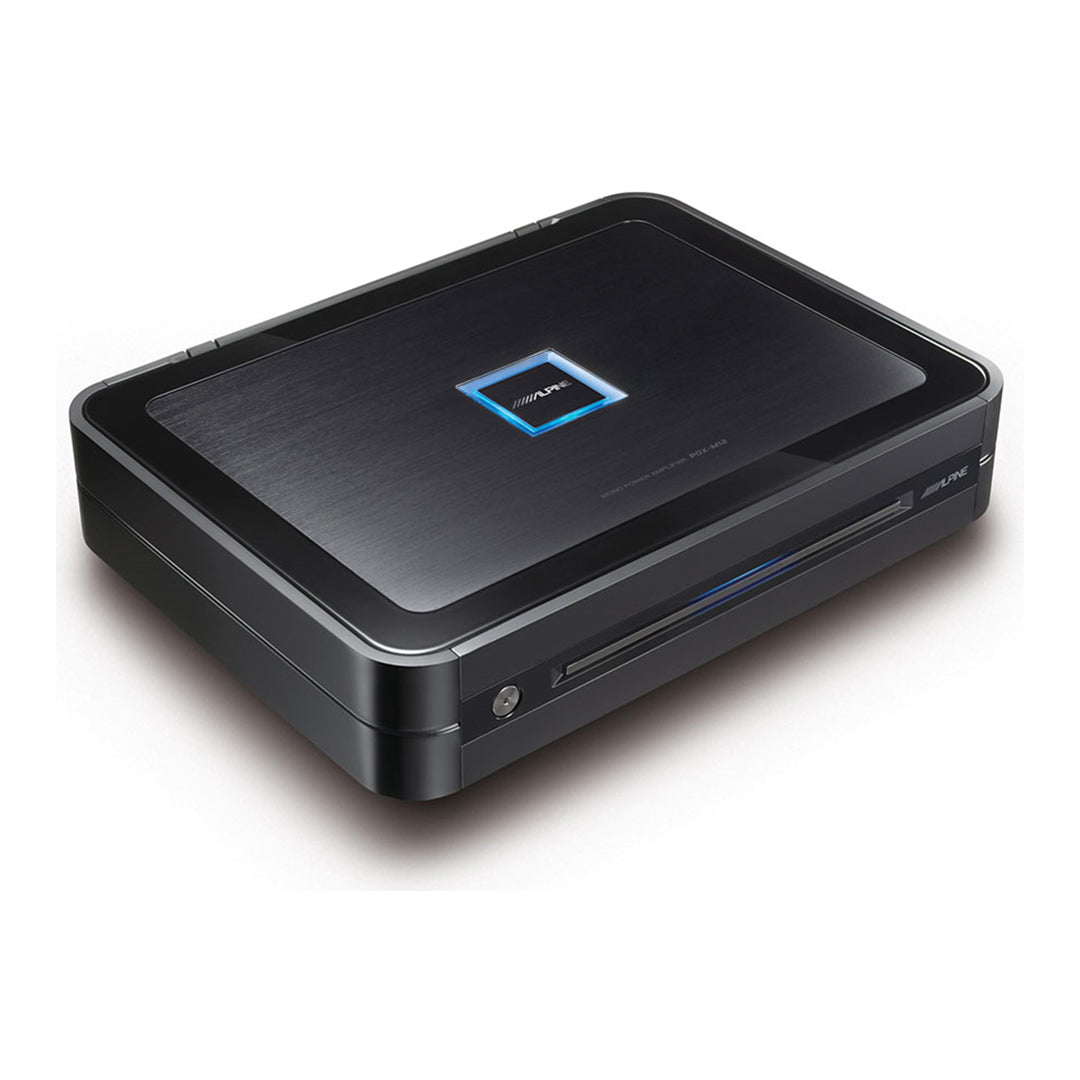

Alpine PDX-M12, PDX Series Mono Class-D Car Amplifier - 1200 Watts
Alpine PDX-M12, PDX Series Mono Class-D Car Amplifier - 1200 Watts
FREE SHIPPING
Arrives by
Order within
Choose your location
enter a US zip code
Discontinued Item
The requested item has been discontinued.
Please consider the below similar item.
Couldn't load pickup availability
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
Overview
Overview
General Features:
- Alpine PDX Series 1-Channel Class D Car Amplifier
- RMS Power Rating (@ 14.4V) @ 4 ohms: 1200 watts x 1 channel
- RMS Power Rating (@ 14.4V) @ 2 ohms: 1200 watts x 1 channel
- Total RMS output: 1200 watts
- DC-DC PWM Power supply with STAR circuitry
- Blue LED power/status indicator conveniently located on the top
- Discrete pre-amp stage
- 6-Layer glass epoxy PC board
- Automatic over-current protection system
- Soft start turn-on prevent initial system popping
- 1-Channel monoblock operation
- 1 Set of pre-amp outputs
- Optional Alpine RUX-KNOB.2 available
- System Protection circuitry keeps the amp running properly
- Large aluminum alloy heatsink for extreme heat dissipation
- Gold-plated RCA level inputs
- Proprietary screw terminals ensure a solid and secure connection
- Input sensitivity: 0.1-8 V with input level
- Variable low-pass filter (50-400 Hz, 24 dB/octave)
- CEA-2006 compliant amplifier
- Frequency response: 5-100,000 Hz
- Dimensions: 7-9/16"D x 10-1/8"W x 2"H
- 1 Year Manufacturer's Warranty
Features & Specifications
Features & Specifications
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
1200 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
1200 x 1 |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-400hz |
| Signal-to-Noise Ratio |
92dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 100A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
