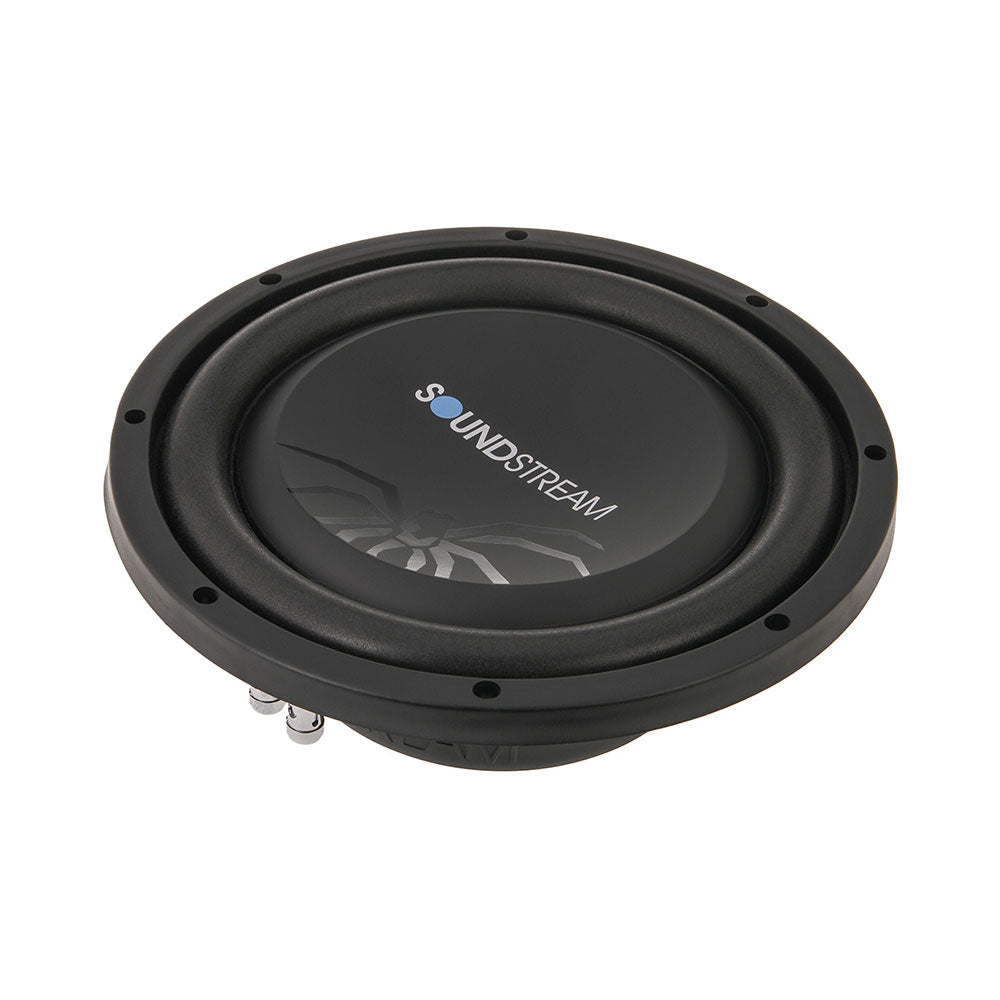

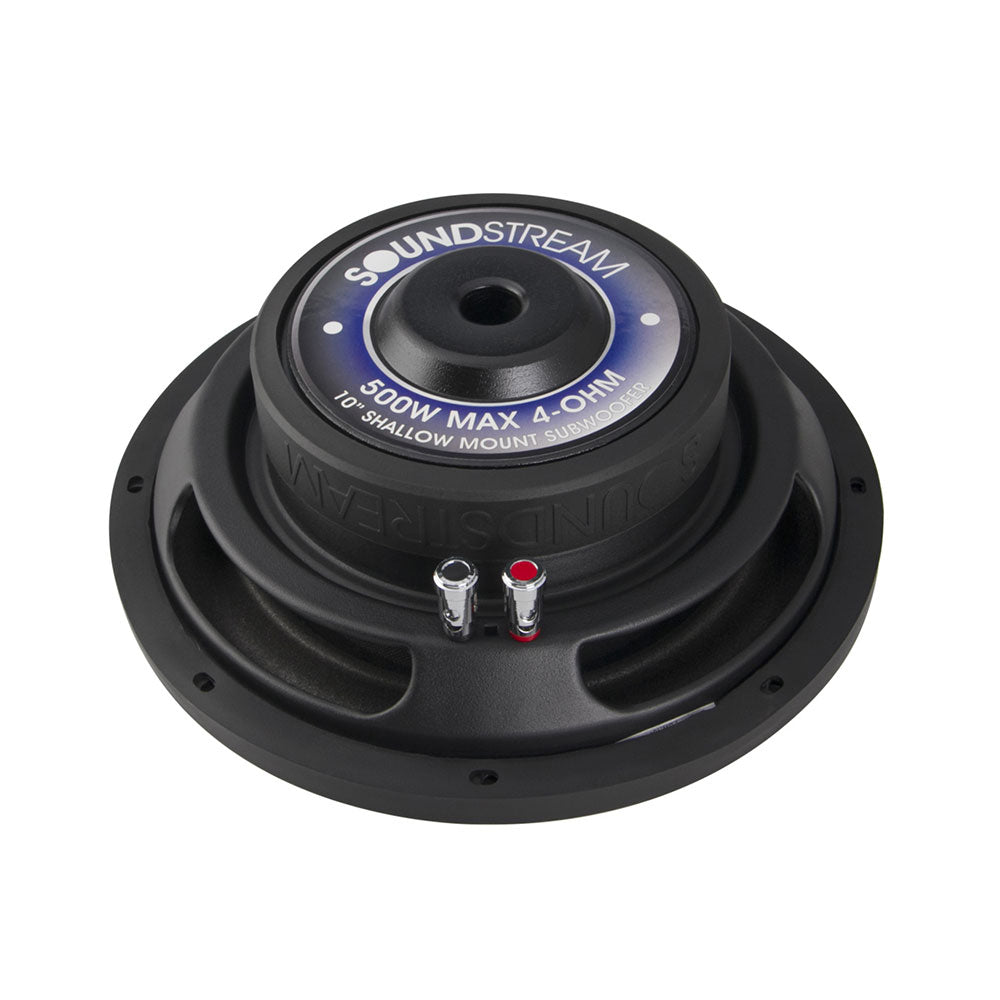

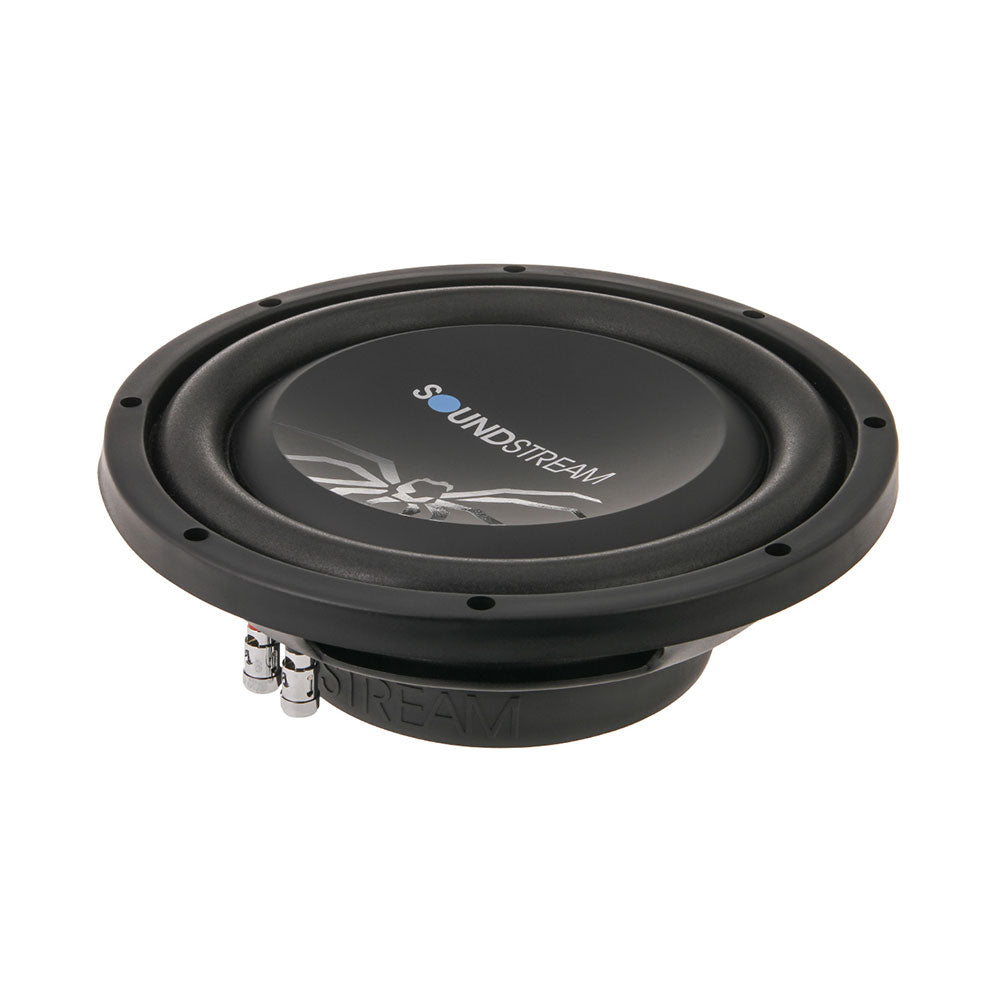

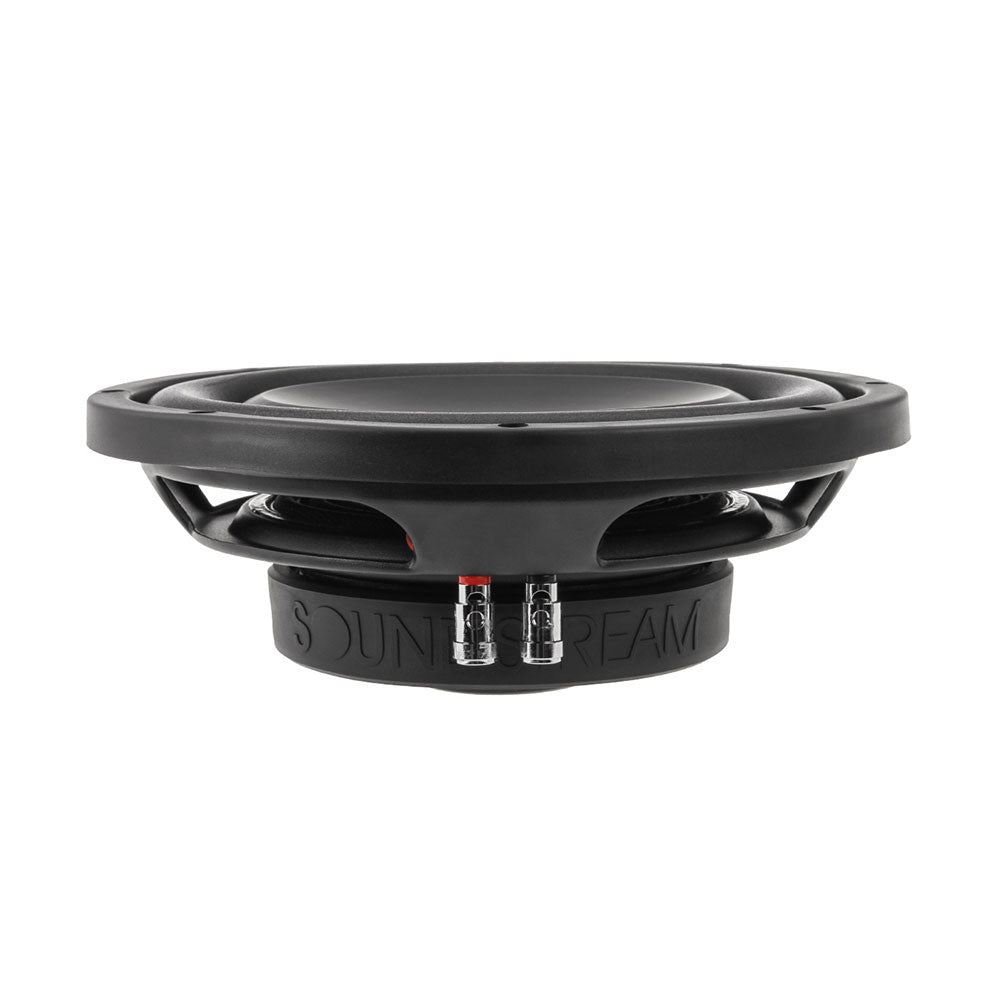

Soundstream PSW.104, 4½ Shallow 3" Mounting Depth 10" Subwoofer - 500W
Soundstream PSW.104, 4½ Shallow 3" Mounting Depth 10" Subwoofer - 500W
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
Picasso Shallow Subwoofers combine performance and value. These shallow subwoofers accomplish their best sound in small sealed enclosures, with minimal power requirements, thanks to efficiencies in the cone and suspension design.
If you are doing a system in a #Truck or #Powersports vehicle and need bass where its least expected or probable, fit our Picasso Shallows! The beauty in subwoofer technology is subs can be smaller and engineered to give you bass opportunity whereas you couldn’t before.
- Pressed Spruce Pulp Cone with Polypropylene Coating
- Polyether Foam Surround
- Formed Steel Frame
- 1-piece Gasket Trim Ring
- 6mm T-yoke
- Nickel-plated Spring Terminals
- 2″ 4-layer voice coil
- UV & Chemical Coated Protection
- Top-mount Depth: 3.25″
- Cutout Diameter: 9″
- Sensitivity: 84.2dB
- Resonance Frequency (Fs): 49.54
- Optimum Sealed Enclosure: 0.75ft
Features & Specifications
Features & Specifications
|
Size |
10-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
250 |
|
Peak Power Rating (Watts) |
500 |
| Cone Material |
Spruce Paper |
| Surround Material |
Foam |
| Free Air |
No |
| Sensitivity |
84.2 dB at 1 Watt |
| Frequency Response |
|
|
Top Mount Depth (Inches) |
3.25 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 |
| Vas (liters) |
75.88 |
| Fs (Hz) |
31.5 |
| Xmax (millimeters) |
8 |
| Warranty |
1 Year |
